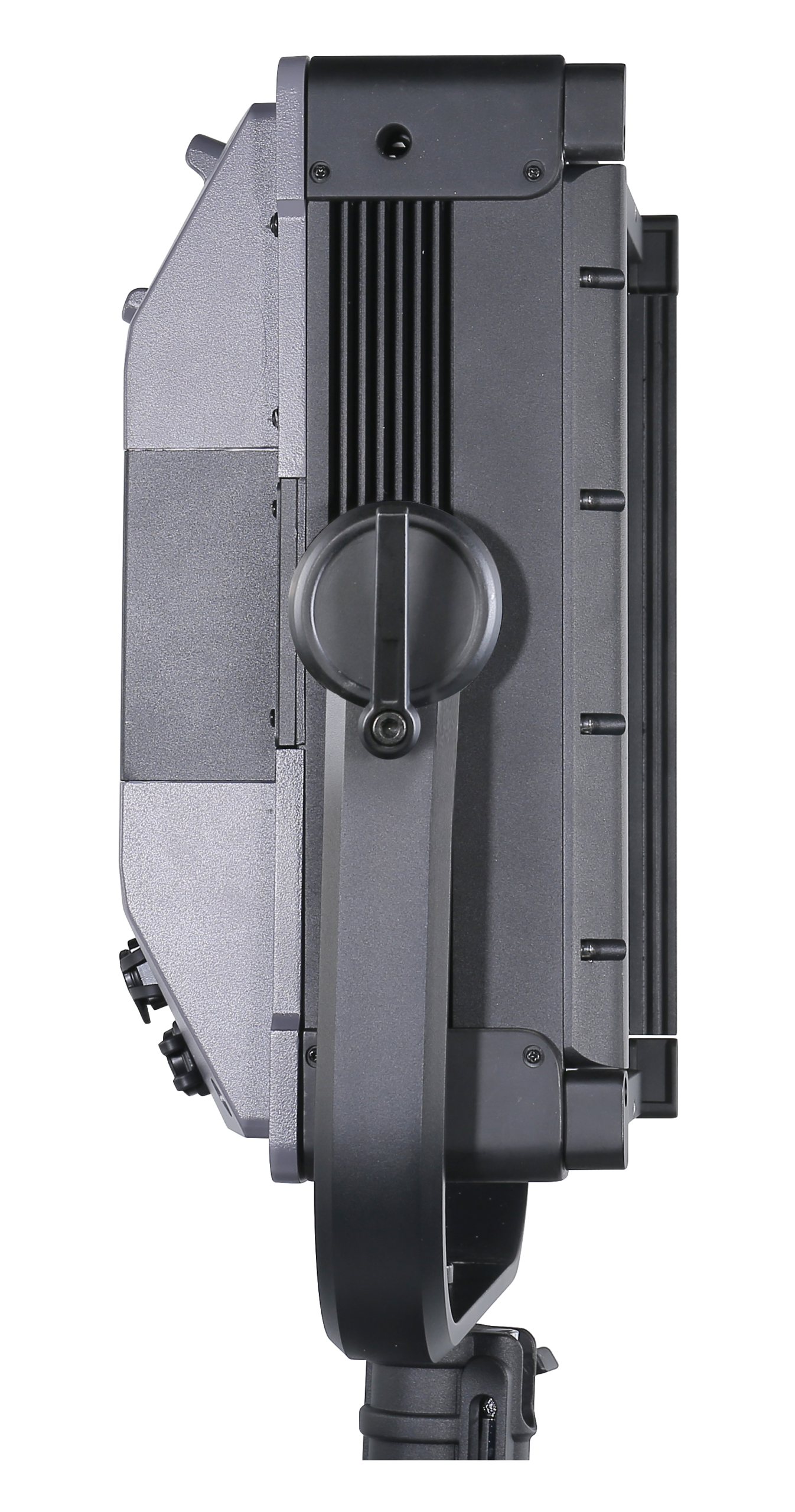

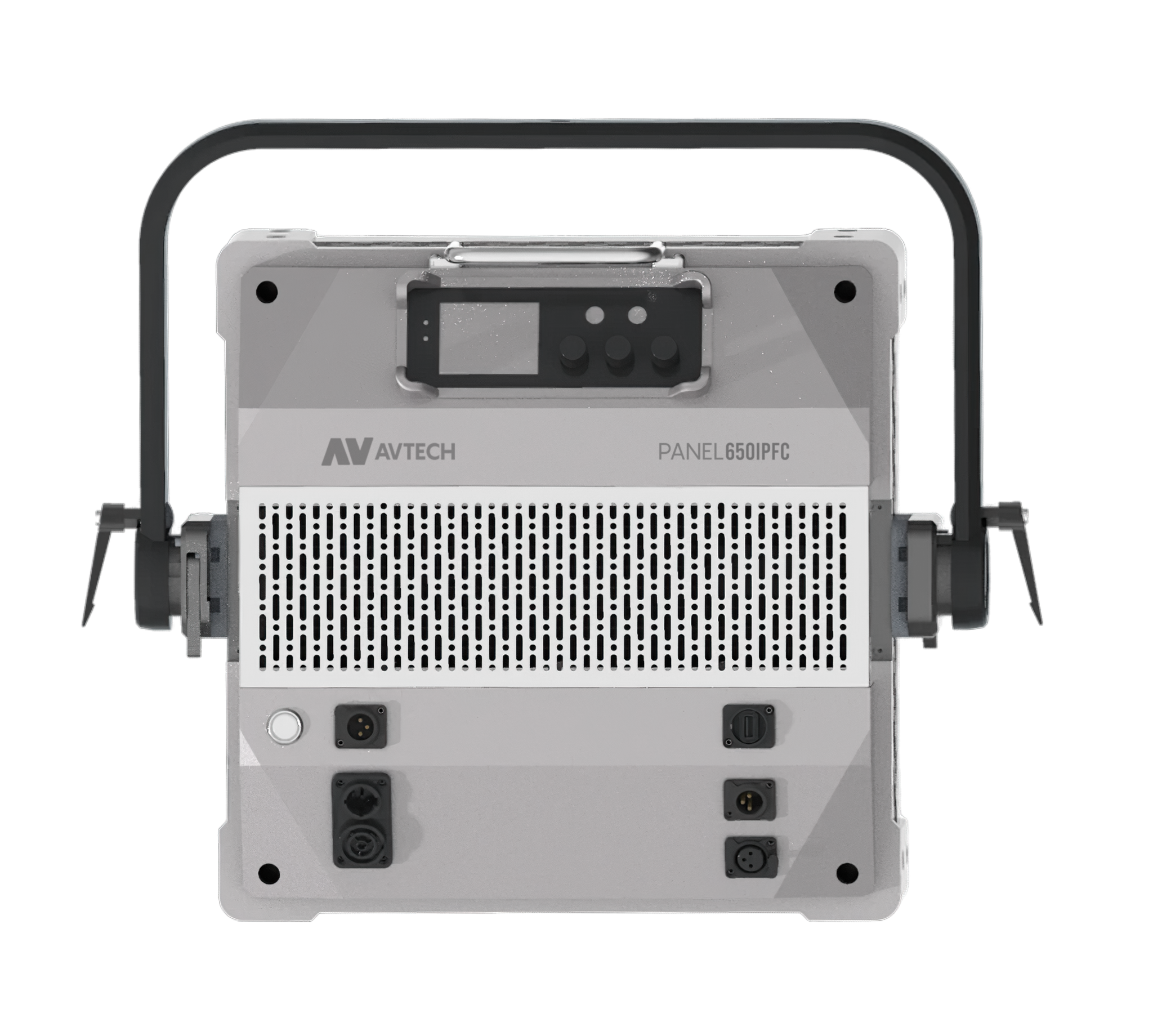

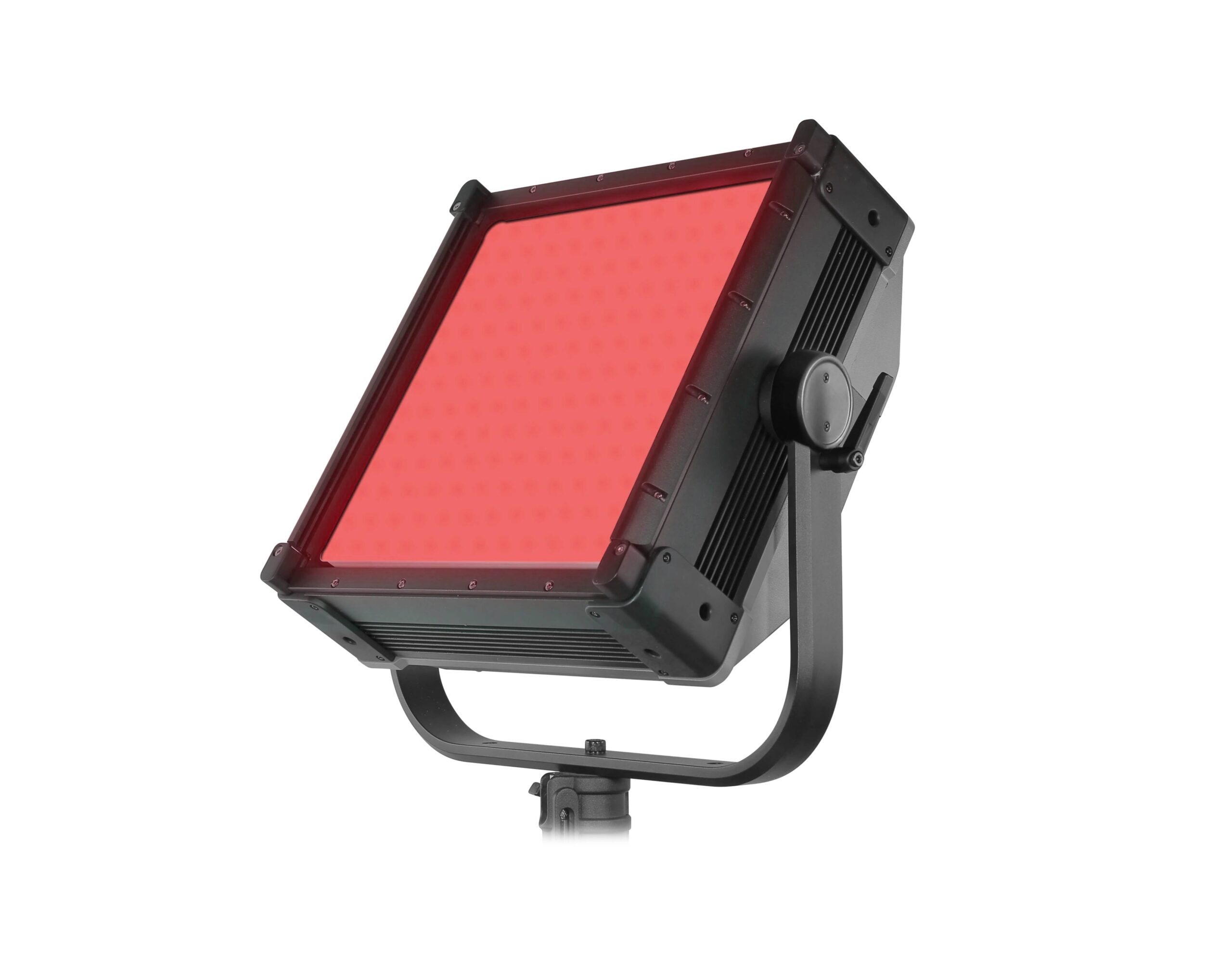

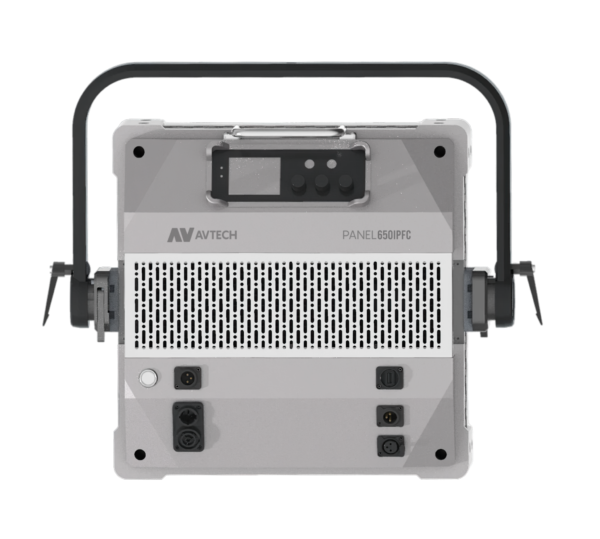

The PANEL650FCIP is a high-performance 650W RGBCW WW LED soft light panel engineered for professional film, television, and outdoor broadcast applications.

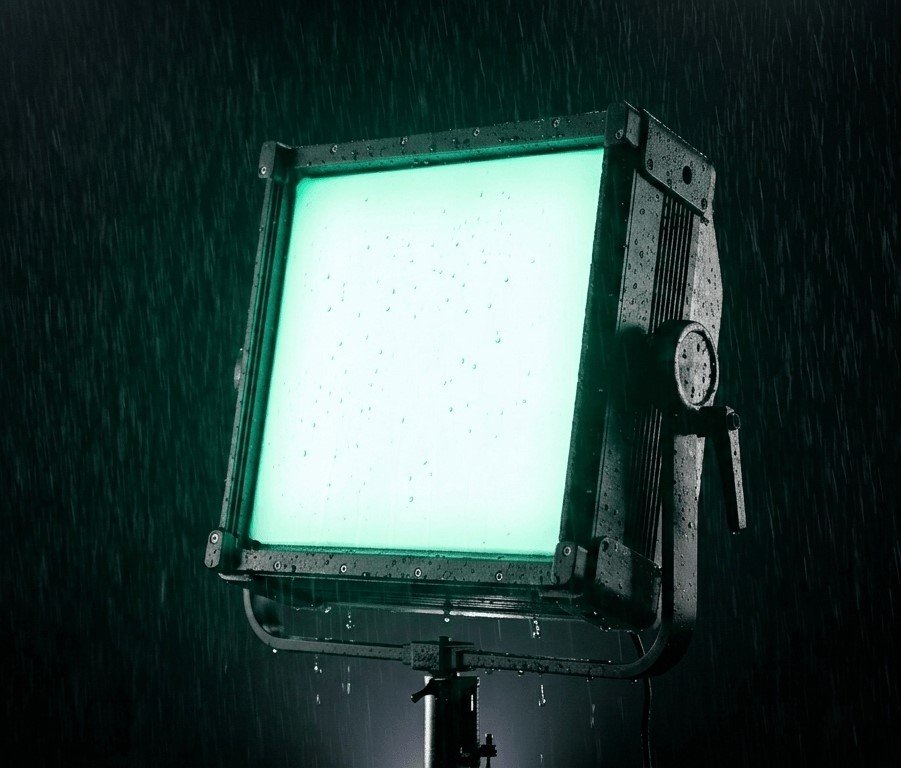

Combining an IP65 weather-resistant rating with an expansive color temperature range (2,700K to 10,000K) and precise Green-Magenta tuning, it delivers breathtaking brightness and flawless color fidelity (CRI >97, TLCI >98). Enhanced by flicker-free 24 kHz PWM dimming and versatile multi-protocol control, it stands as the ultimate, dependable workhorse for the most demanding production environments.
Specifications
- LED source: RGBCW WW
- Power consumption: 650W Maximum
- Input voltage: AC100-240V, 50/60 Hz
- CCT (correlated color temperature): 2700K – 10000K tunable (±100K)
- Colored Light: Full RGB+W Color Gamut with Hue and Saturation Control
- Green-Magenta Adjustment: Continuously adjustable (Full Minus- to Full Plus green)
- Color rendering: Average CRI >97, average TLCI >98
- Beam angle: 110°
- Control mode: DMX512, RDM, CRMX (optional), ARTNET, sACN
- Light mode: CCT, HSI, GEL, RGBCW, XY
- Dimming mode: 8 bit and 16 bit (0 – 100%)
- Dimming curve: 4 kinds
- PWM: 24 KHz
- Power connector: Powercon TRUE 1 in & out
- DMX connector: 3-pin & 5-pin XLR in/out, RJ45
- 5VDC input: USB
- Special effects: Candle, cloud passing, club, color chase, cop car, fire, fireworks, strobe, lightning, paparazzi, pulsing, television
- Mounting: 28 mm Spigot (Junior Pin)
- IP rate: IP65
- Dimension: 602.38 x 466 x 198.18 mm
- Weight: 16.3 kg
