Description

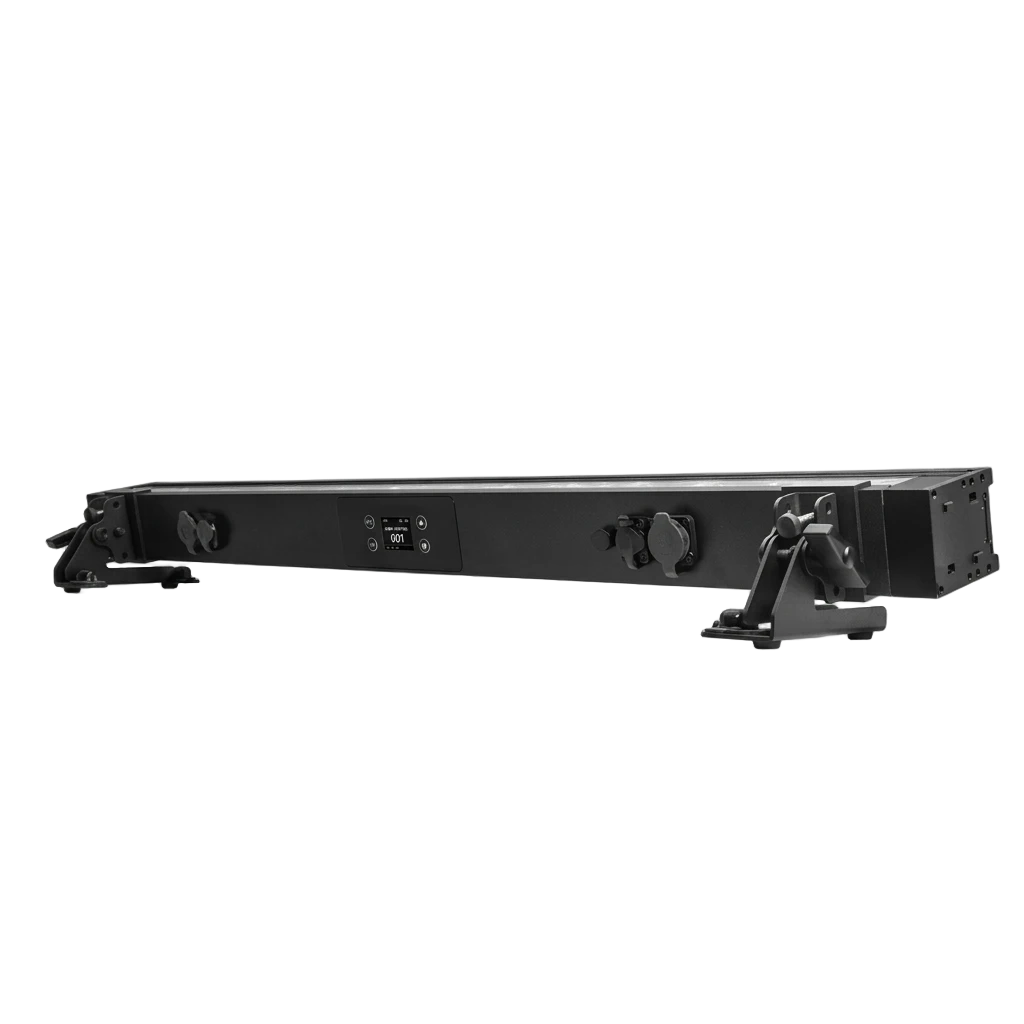

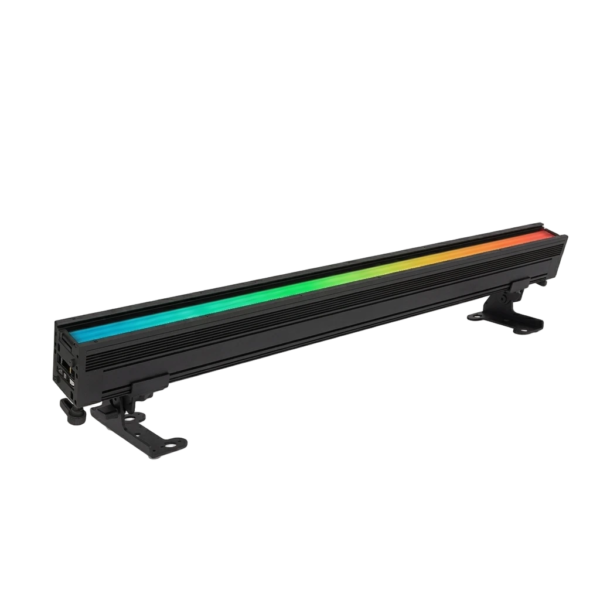

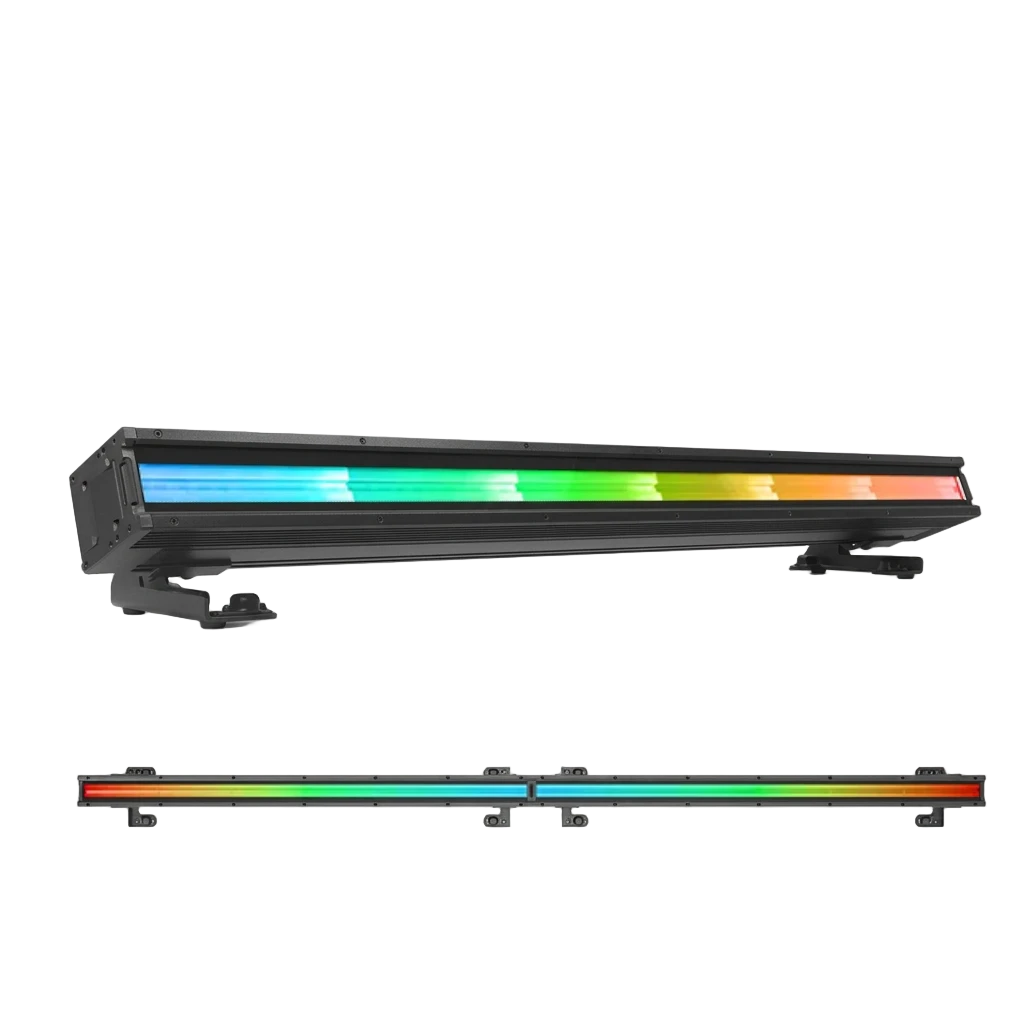

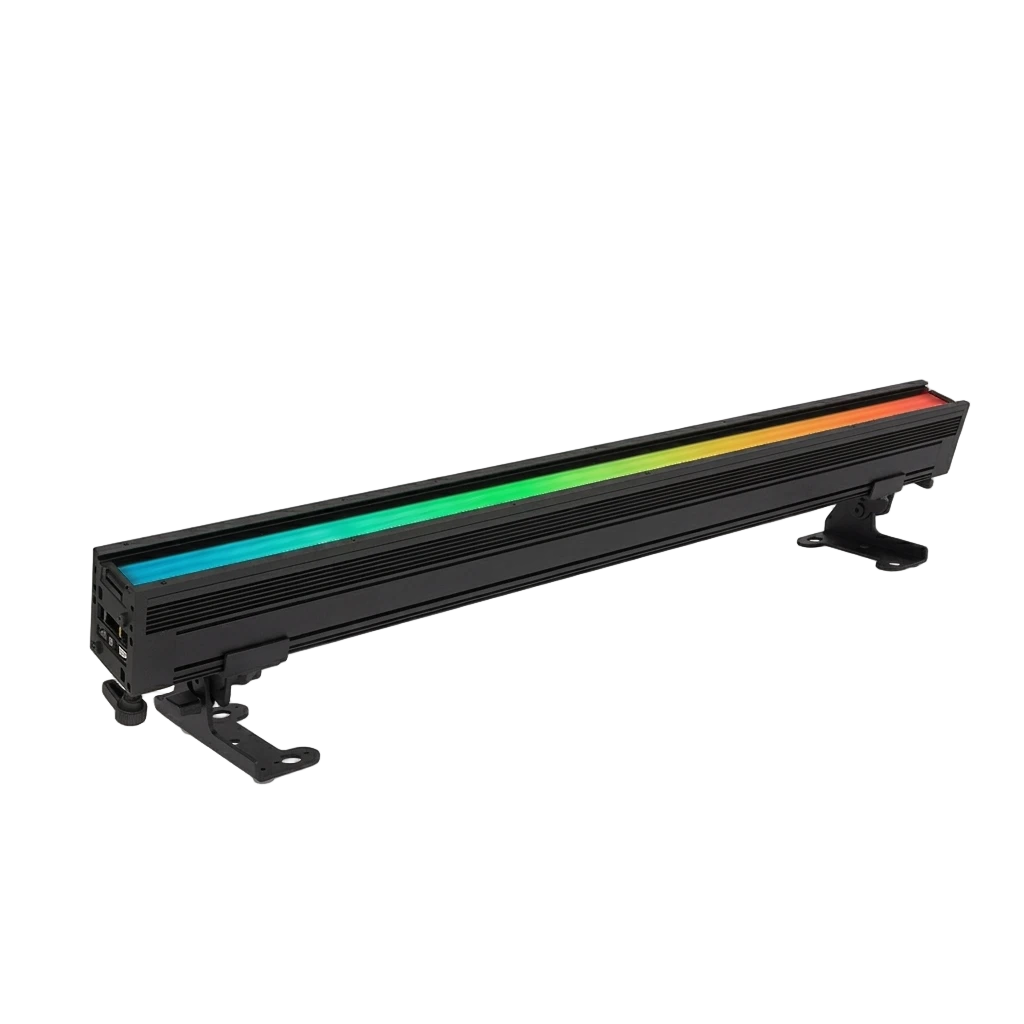

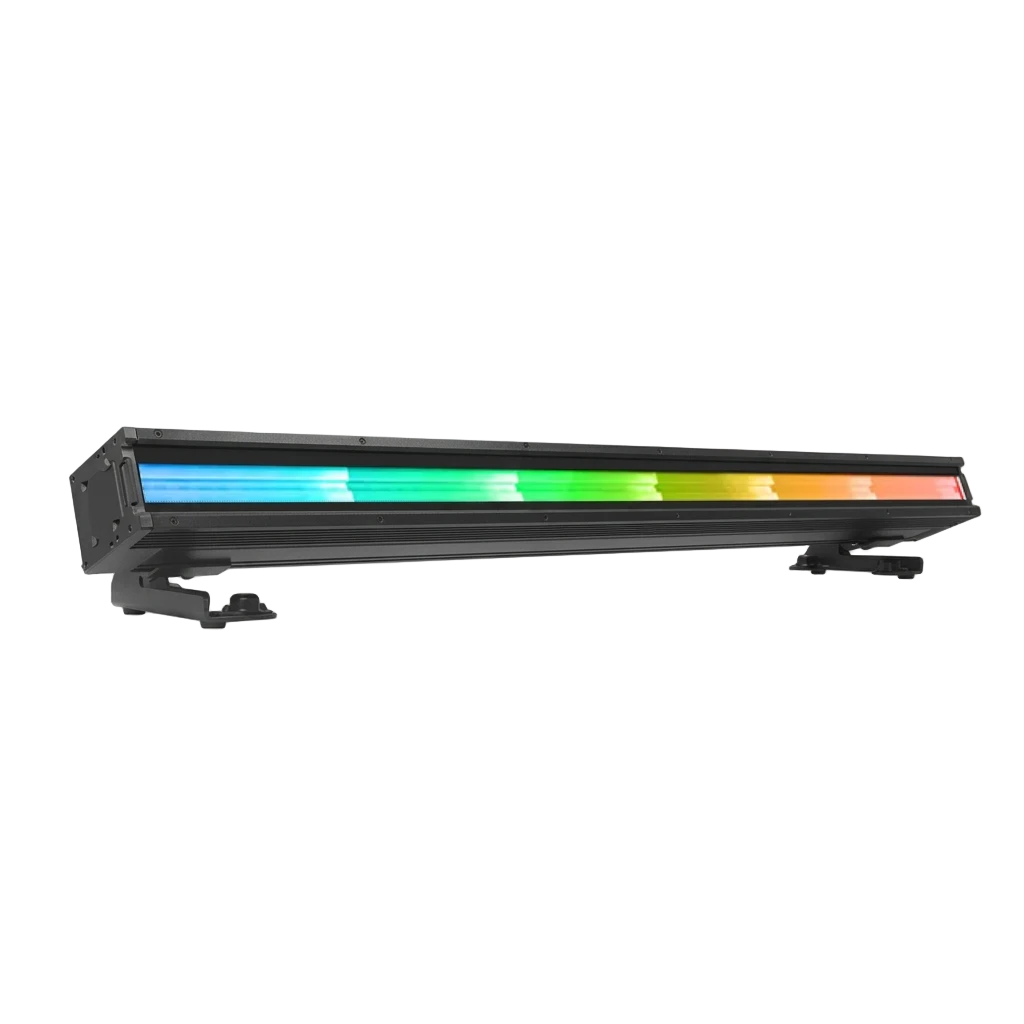

The LEDBAR648RGBLIP sets a new standard for facade and stage lighting with its powerful 64x8W RGB+L configuration. By incorporating Lime (L) LEDs, this fixture achieves an exceptional Color Rendering Index (CRI ≥90) and a much broader color spectrum than conventional RGBW fixtures. Its 16 independent control sections allow for intricate and dynamic pixel-mapping effects. It features versatile control via DMX, RDM, and Mobile App, along with a quick-setup system using eccentric locks and internal magnets for perfect physical alignment. It is the ultimate solution for large-format architectural projects and stages requiring maximum output and color fidelity.
Specifications
- Light Source: 64 x 8W RGB+L LEDs (Red, Green, Blue, Lime)
- Luminous Flux: 10,937 LM
- CRI/Ra: ≥90
- Color Temperature Range: 2500K – 10000K
- Native Beam Angle: 60° x 10°
- Pixel Control: 16 Independent Sections
- Control Protocols: DMX512-A, RDM, App Control, 2.4G Remote
- DMX Channels: 3 / 4 / 8 / 12 / 16 / 18 / 18D / 32 / 42 CH
- PWM Frequency: Adjustable from 600Hz to 25,000Hz (Flicker-free)
- Tilt Adjustment: 0 – 90° Manual
- Protection Rating: IP65 / IK07
- Construction: Magnesium-Aluminum Alloy
- Power Consumption: 160W Max
- Input Voltage: 100 – 240V, 50/60Hz
- Dimensions: 1006 x 140 x 173 mm
- Weight: 7.5 kg
