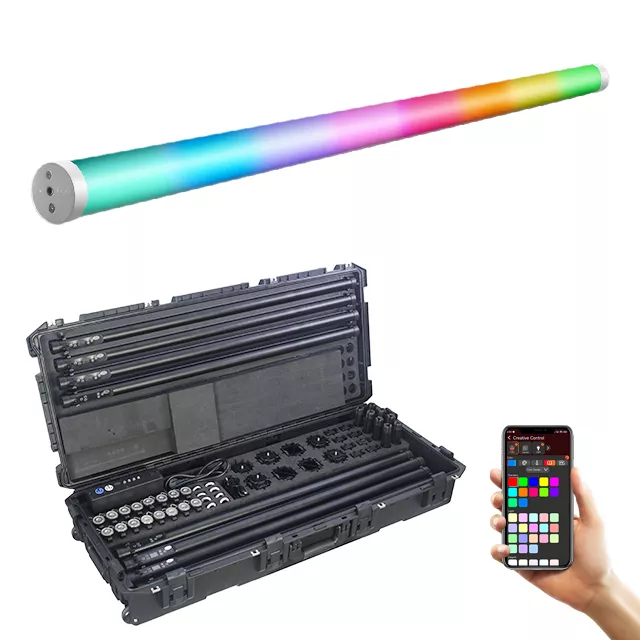

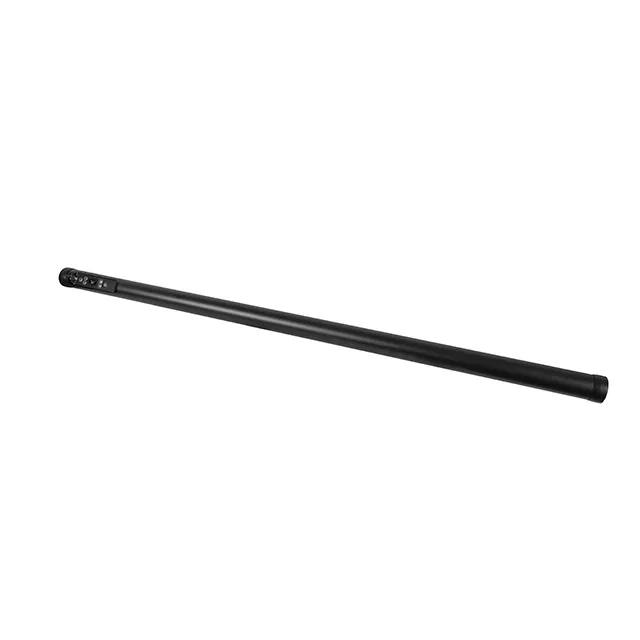

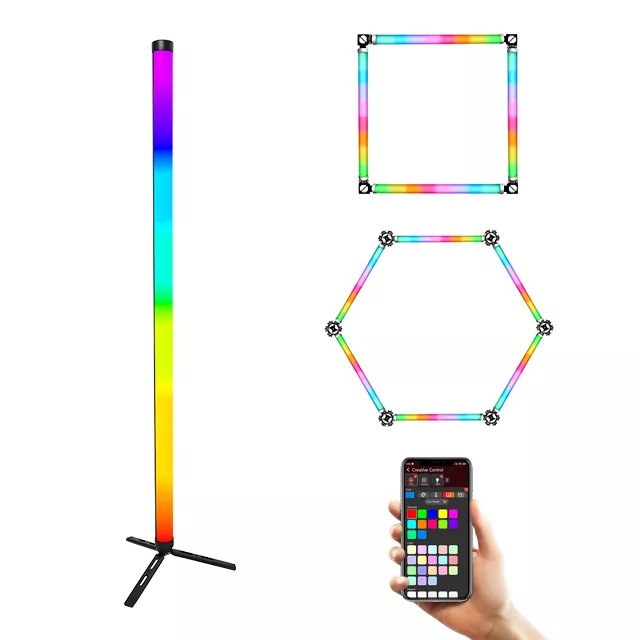

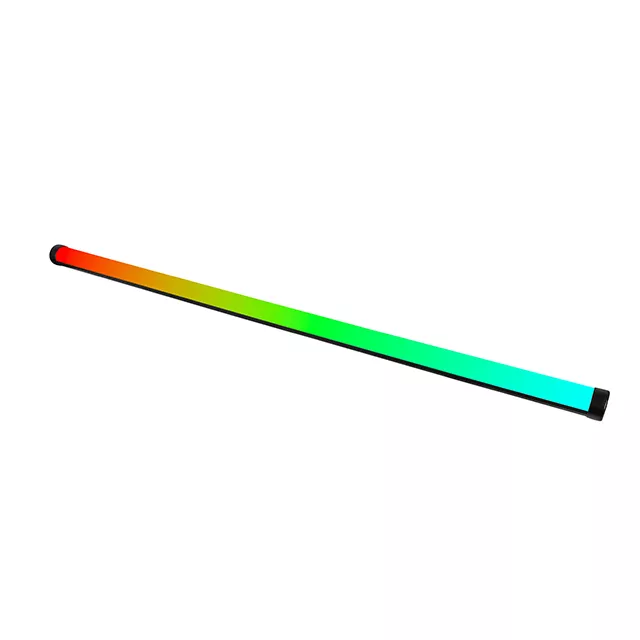

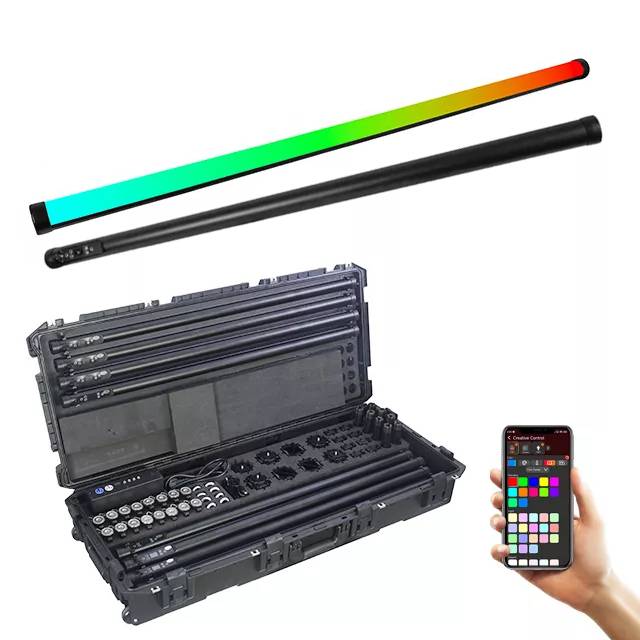

The BATUBE is a high-performance, battery-powered LED color tube designed for professional lighting applications. Featuring 320 × 0.5W RGB, Mint, and Amber LEDs with 16-segment pixel control, it delivers vibrant, smooth color transitions and dynamic lighting effects with high efficiency and precision.
With an IP65 rating, integrated lithium battery, and flexible control options including DMX, RDM, and wireless protocols (including 2.4G remote control), the BATUBE ensures outstanding adaptability for both indoor and outdoor use. Its durable aluminum+PC housing, compact form factor, and intuitive LCD interface make it an ideal solution for stage design, architectural accents, film production, and event lighting.
LED Configuration: 320 × 0.5W RGB + Mint + Amber LEDs for rich, full-spectrum output
Specifications
- LED: 320 × 0.5W (64 × Red, 64 × Green, 64 × Blue, 64 × Mint, 64 × Amber)
- Beam Angle: 115° (no lens)
- Efficacy: 12 lm/W
- Input Voltage: Range: 90-264VAC / 47-63Hz (Absolute Max)
- Power Consumption: Max: 70W
- Battery: Lithium Battery
- Runtime: 4H (Full Power), 8H (Auto Mode)
- Charging Time: 4 Hours
- Dimming Curves: Linear / Square Law 1 / Square Law 2 / Square Law 3
- Dimming: Range: 0-255%
- Strobe: Rate: 0-20Hz Adjustable
- Display: LCD
- Control Protocols: USITT DMX512 / RDM / Wireless DMX / 2.4G Remote
- DMX Channels: 2 / HSV / 5 / 10 / 12 / 20 / 40 / 80 / 85 CH
- Spot Field Of View: 158°
- Color: Calibration: 0-255
- Pixel Segments: 16 Segments
- Light Output (all Leds): 572 lm Red: 70 lm
- Green: 358 lm
- Blue: 70 lm
- Mint: 172 lm
- Amber: 402 lm
- Lux Output: @ 2m: 48 lx
- @ 5m: 8 lx
- @ 8m: 3 lx
- @ 10m: 2 lx
- Nominal Voltage: 100-240VAC / 50-60Hz
- Max Inrush Current: 30A @ 240VAC
- Constant: 50W
- Standby: 0.3W
- IP Rating: IP65
- Materials: Aluminum + PC
- Dimensions: 1060 × 44 × 44 mm
- Weight: 1.19 kg
