Description

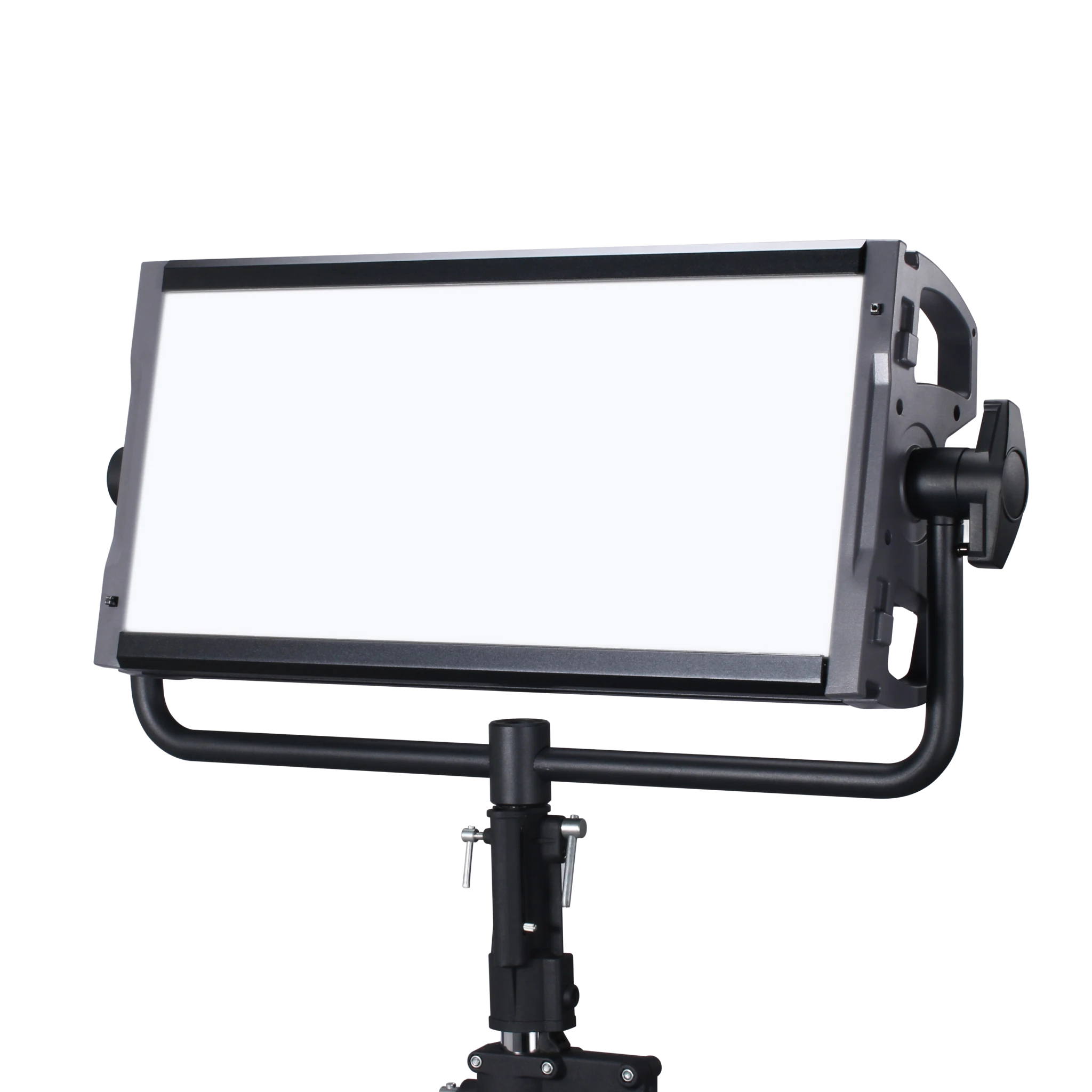

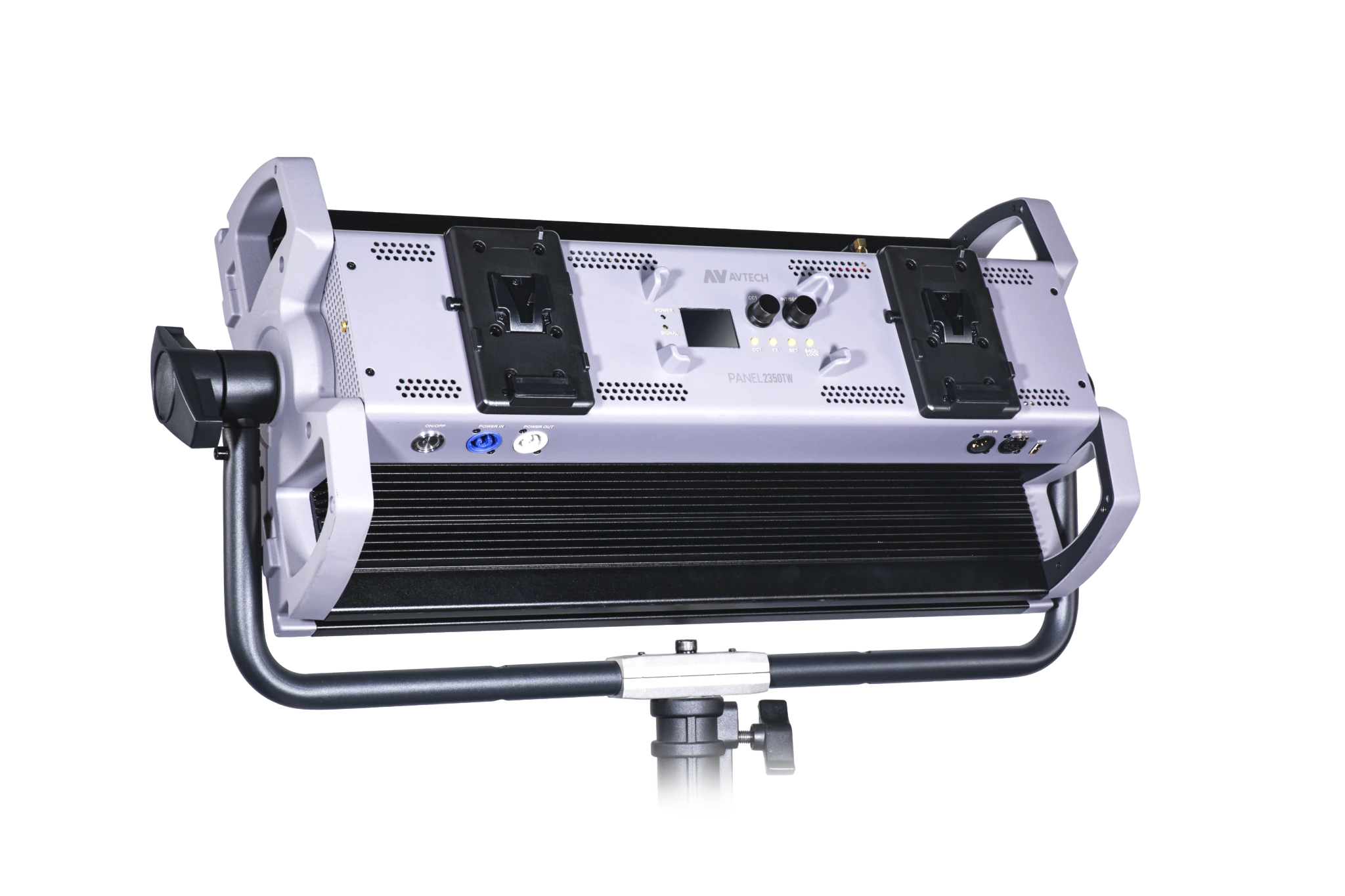

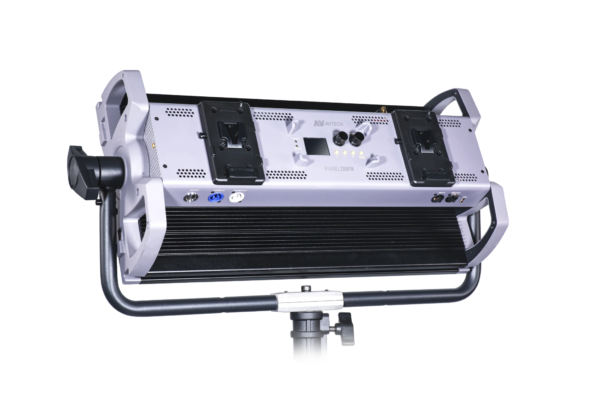

The PANEL2350TW is a high-performance Studio LED Panel engineered to meet the demanding requirements of modern photography sets, broadcast television stations, conferences, and large retail environments. Powered by an array of 576 LEDs (288 Cool White and 288 Warm White), it offers ultra-smooth dimming and a widely adjustable color temperature range from 2800K to 6500K. With exceptional color fidelity scores (TLCI ≥ 97), this fixture ensures highly accurate color rendering for the camera. It includes built-in lighting effects such as Candle, Fire, Fireworks, Paparazzi, Strobe, TV, Explosion, Welding, Lightning, and Cloud to easily simulate complex environments. The unit features multiple control options, including 5-pin DMX512 and RDM protocols, adjustable fan speed modes, and versatile power input capabilities, making it a reliable, versatile tool for both indoor studio setups and outdoor field productions.
Specifications
- Light Source : 288pcs CW LED + 288pcs WW LED
- Color Temperature : 2800~6500K±100K
- Beam Angle : 110°
- Input Power Supply : AC 100~240V, 50/60Hz
- Battery Power Input : DC 26V V-port battery
- Power Consumption : 350W
- CRI : 297 (Note: This value is presented as printed in the source text)
- CQS : 296 (Note: This value is presented as printed in the source text)
- TLCI : ≥ 97
- Control Protocols : DMX512, RDM
- DMX Channel Modes : P1: CCT 8Bit 7CH / P2: CCT 16Bit 10CH /
- P3: FX 8Bit 13CH
- Built-in Effects : Candle, Fire, Fireworks, Paparazzi, Strobe, TV,
- Explosion, Welding, Lightning, Cloud
- Display Screen : 1.77 LCD display screen
- Signal Input/Output : 5-pin XLR socket
- Software Upgrade : Via USB
- Protection Level : IP20
- Dimensions : 737 * 382.5 * 173 mm
- Net Weight : 11.8 KG
