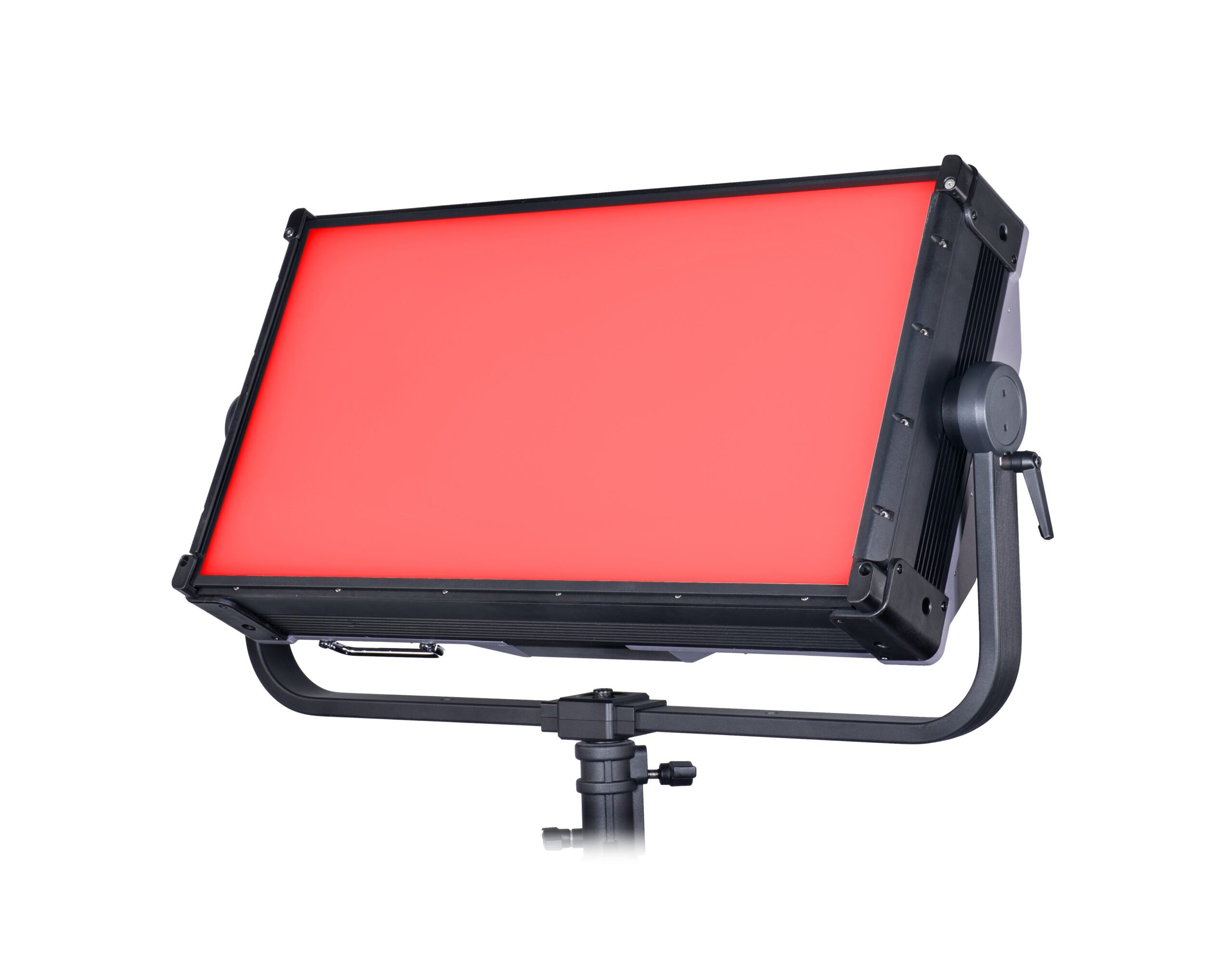

The PANEL1300FCIP is a ultra-powerful 1300W RGBCW WW LED soft light panel designed for large-scale film, television, and outdoor broadcast applications.
Featuring an IP65 rating and a wide color temperature range (2,700 K to 10,000 K with Green-Magenta tuning), it delivers massive light output alongside exceptional color accuracy (CRI >97, TLCI >98) and flicker-free performance (24 kHz PWM), making it the ultimate high-output workhorse for demanding production environments.
Specifications
- Light Source: RGBCW WW LED
- Beam Angle: 110°
- Color Temperature: 2700K – 10000K tunable (±100K)
- CRI: (Color Rendering Index): >97 (average)
- Input Voltage: AC 100 – 240V, 50/60 Hz
- Power Consumption: 1300W (Maximum / Full output)
- Control Protocol: options: DMX512, RDM, CRMX (optional), ARTNET, sACN
- Dimming Curves: 4 kinds
- Dimming: frequency: 24.0 KHz
- Strobe: Rate: 0 – 30 Hz (Effects: Candle, Cloud passing, Club, Color chase, Cop car, Fire, Fireworks, Strobe, Lightning, Paparazzi, Pulsing, Television)
- Tlci (television Lighting Consistency Index): >98 (average)
- Operation Modes: CCT, HSI, GEL, RGBCW, XY
- Electronic Dimming: 8 & 16 bits (0 – 100%)
- AC Power In/thru: PowerCon TRUE 1 in & out
- DMX Data In/thru: 3-Pin & 5-Pin XLR in & out
- Housing: Aluminum alloy & Aluminum die-cast
- IP Rating: IP65
- Color: Black + Gray
- Dimensions: 940 x 475 x 182 mm
- Weight: 29.5 kg
- Accessories (incl.): Mounting 28 mm Spigot (Junior Pin), Power cable (1.5 m)
