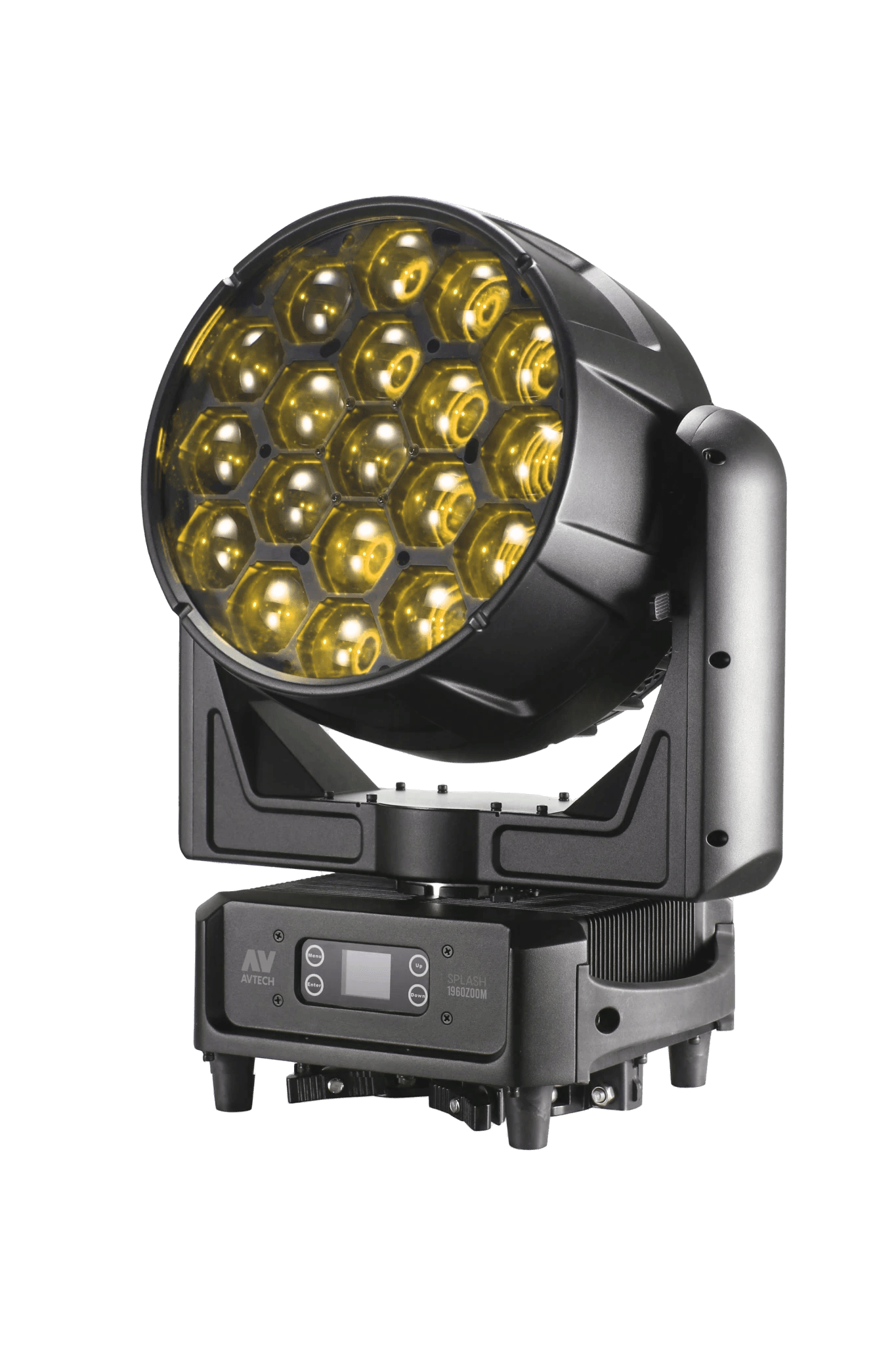

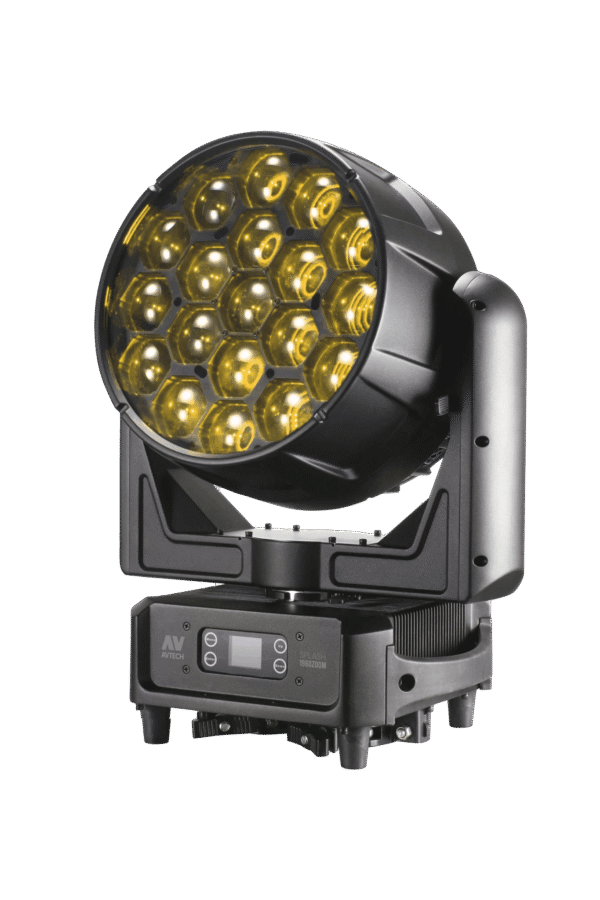

The SPLASH1960ZOOM is a high-performance IP65-rated Mega Wash moving head engineered for professional touring, festival, and outdoor production environments. Designed to deliver powerful output, precise control, and reliable operation in all weather conditions, it combines advanced LED technology with flexible beam shaping and pixel-level effects.

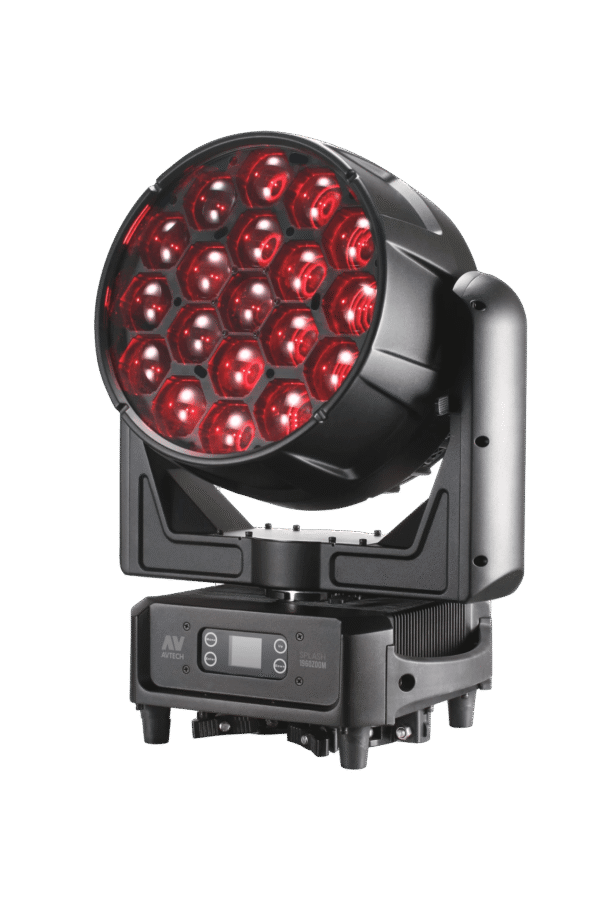

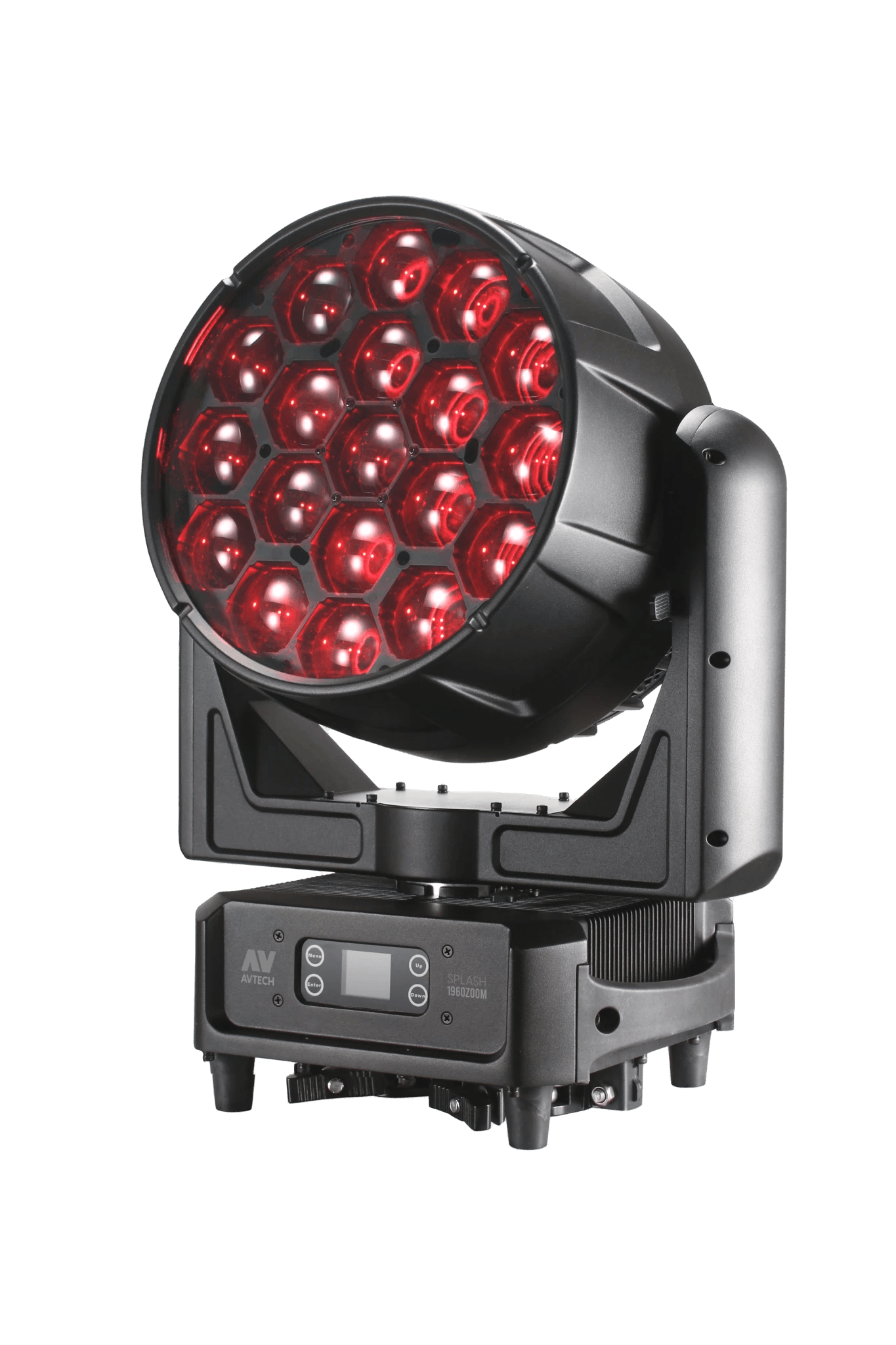

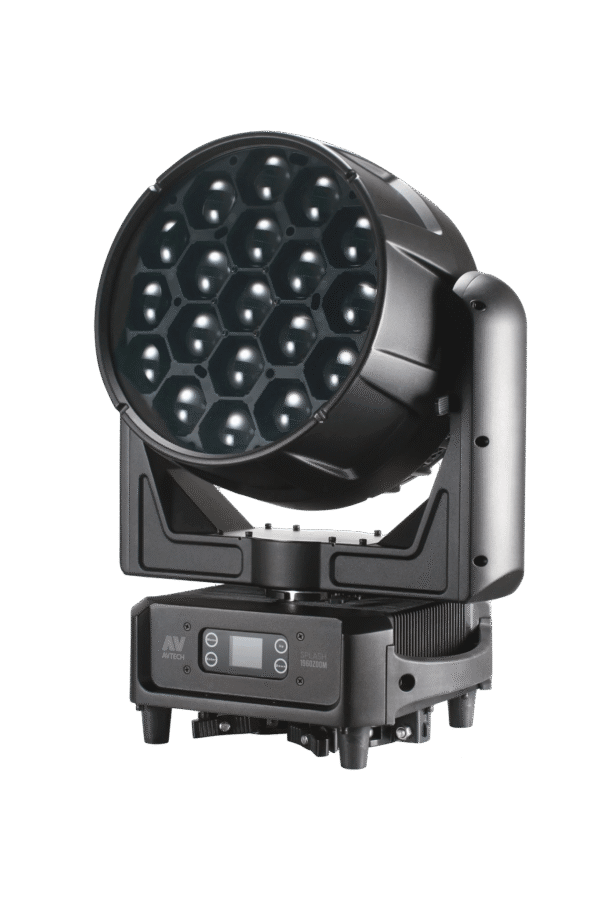

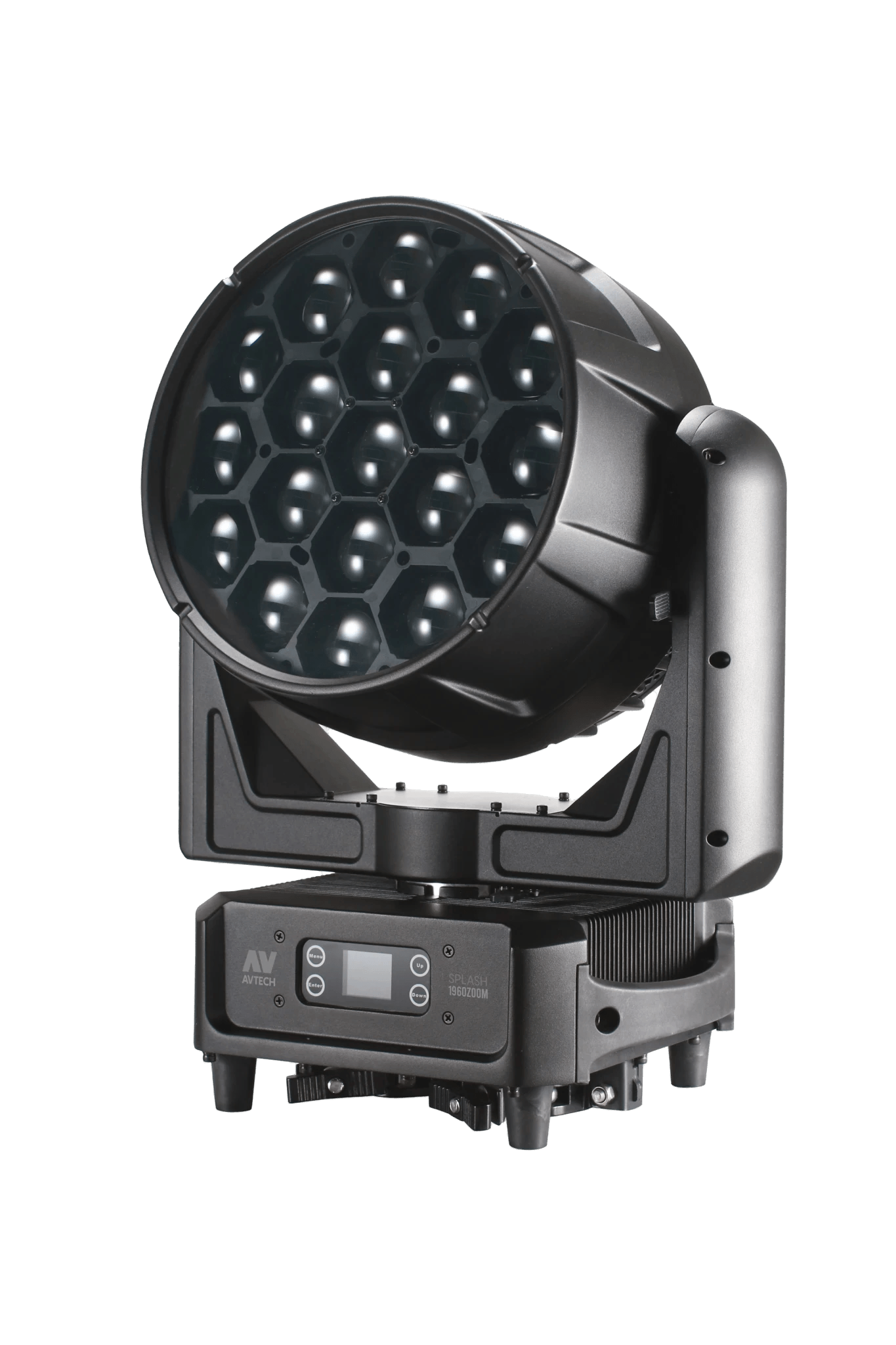

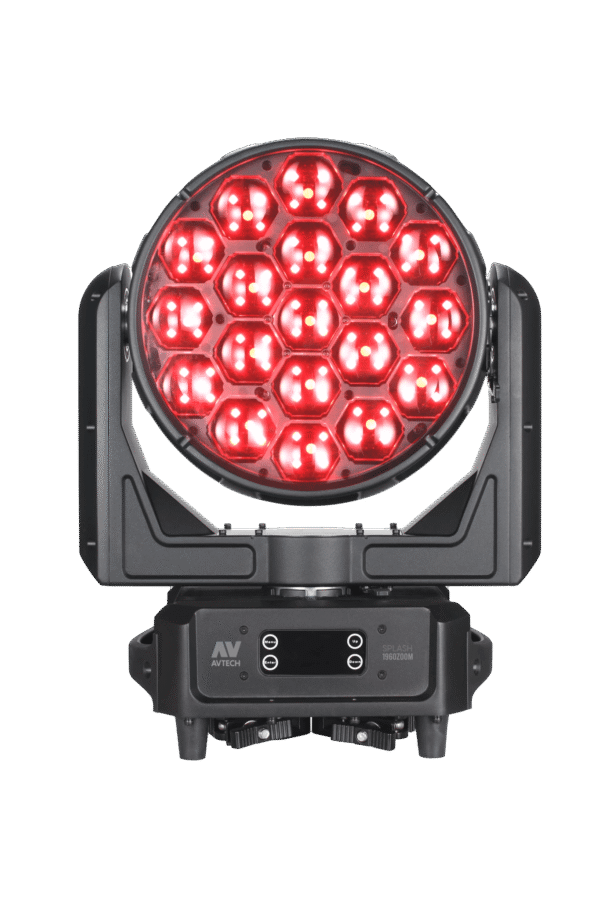

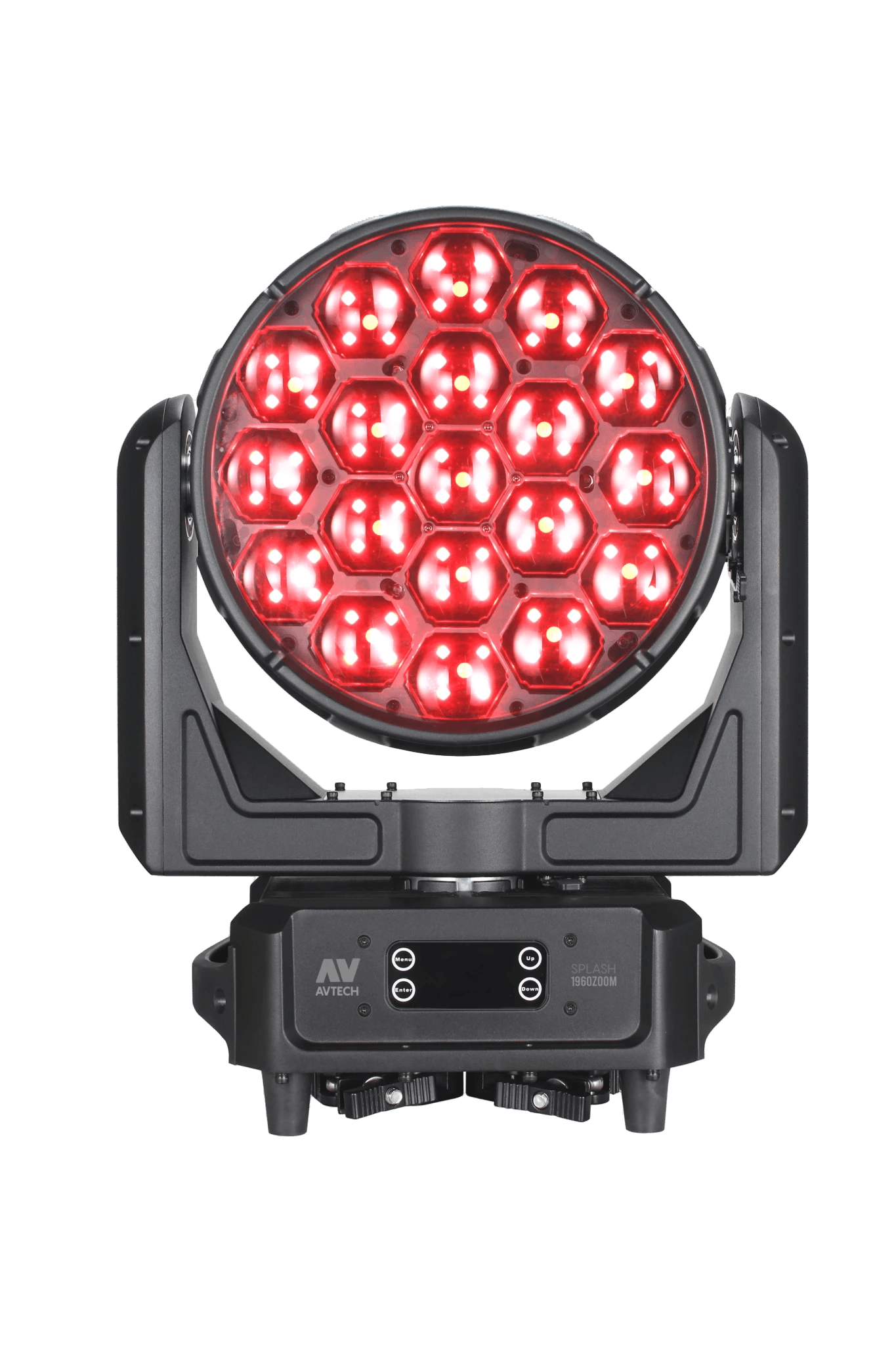

At its core, the fixture features 19 high-output 60W RGBL LEDs, delivering intense brightness and smooth, high-quality color mixing across the full spectrum. The RGBL engine enhances color accuracy and expands the range of pastel and saturated tones, making it suitable for both creative stage design and camera-friendly applications. In addition, a secondary array of 76 x 0.5W RGB LEDs provides dynamic Aura background effects, adding depth, movement, and visual layering to any lighting design.
The SPLASH1960ZOOM is equipped with a motorized zoom system ranging from 4.5° to 60°, allowing seamless transitions between narrow beam effects and wide, even wash coverage. This flexibility makes it ideal for a wide range of applications, from high-impact aerial effects to smooth stage washing.
Built for modern lighting workflows, the fixture supports DMX, RDM, Art-Net, and sACN protocols, ensuring full compatibility with professional lighting networks. With multiple DMX channel modes (26 / 98 / 238 / 309), it offers scalable control options, from basic operation to advanced pixel-mapping programming.
Its IP65-rated housing guarantees reliable performance in outdoor environments, protecting against rain, dust, and humidity. This makes it a solid choice for touring productions, festivals, rental companies, and permanent installations requiring robust and weather-resistant equipment.
The fixture also includes precise pan and tilt movement (540° pan / 210° tilt), a high-resolution dimming system with multiple curves, and a full-color reversible LCD display for intuitive setup and control.
Combining high output, advanced optical design, pixel-based effects, and rugged construction, the SPLASH1960ZOOM is a versatile solution for demanding professional lighting applications.

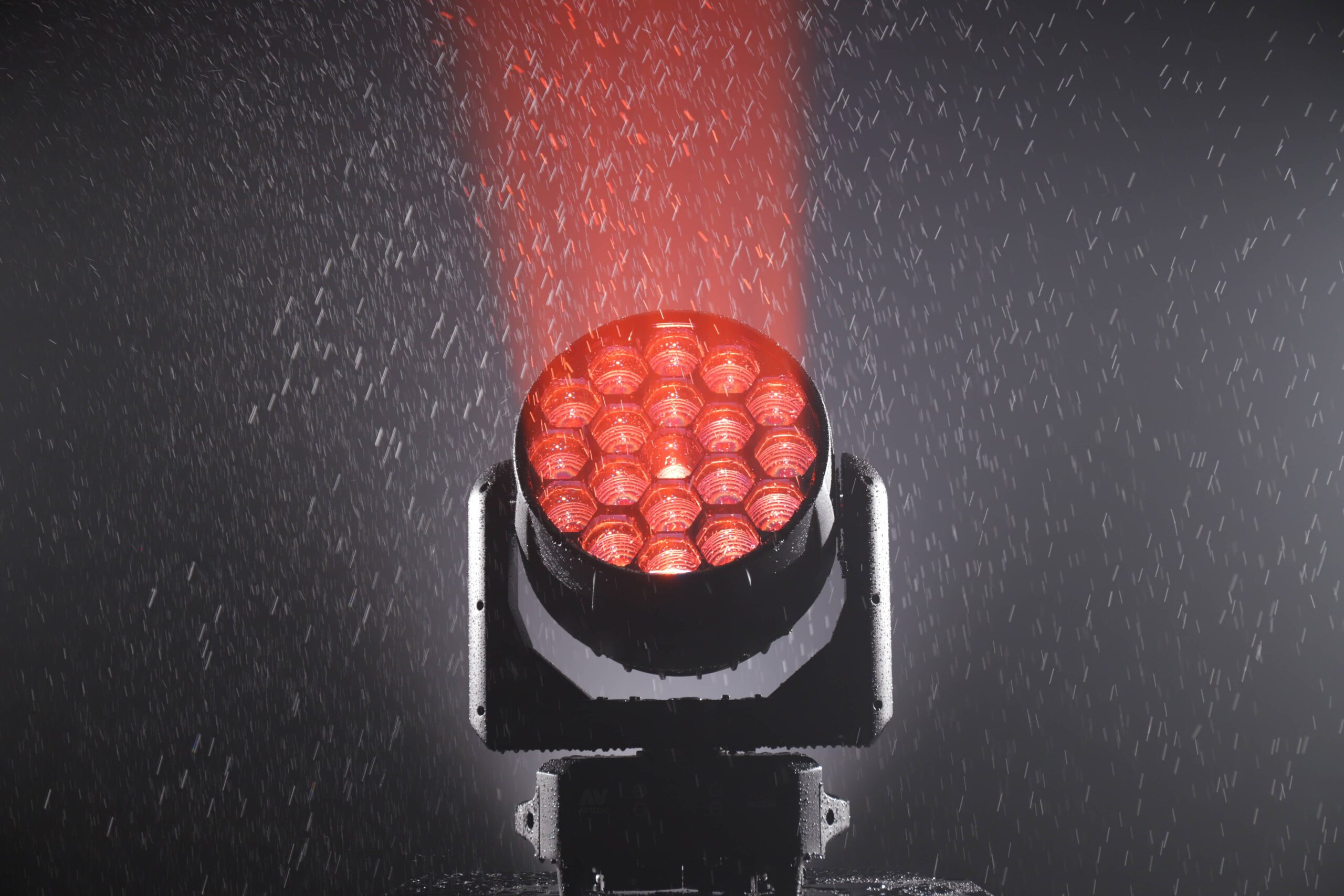

Weatherproof IP65 Architecture
Designed for the most demanding environments, the AL-MH1960IP features a robust, hermetically sealed IP65-rated chassis. This construction guarantees complete immunity against torrential rain, dust ingress, and high-humidity climates. By eliminating internal condensation, the unit preserves pristine optical integrity, making it the reliable choice for high-stakes outdoor festivals, touring productions, and permanent installations.

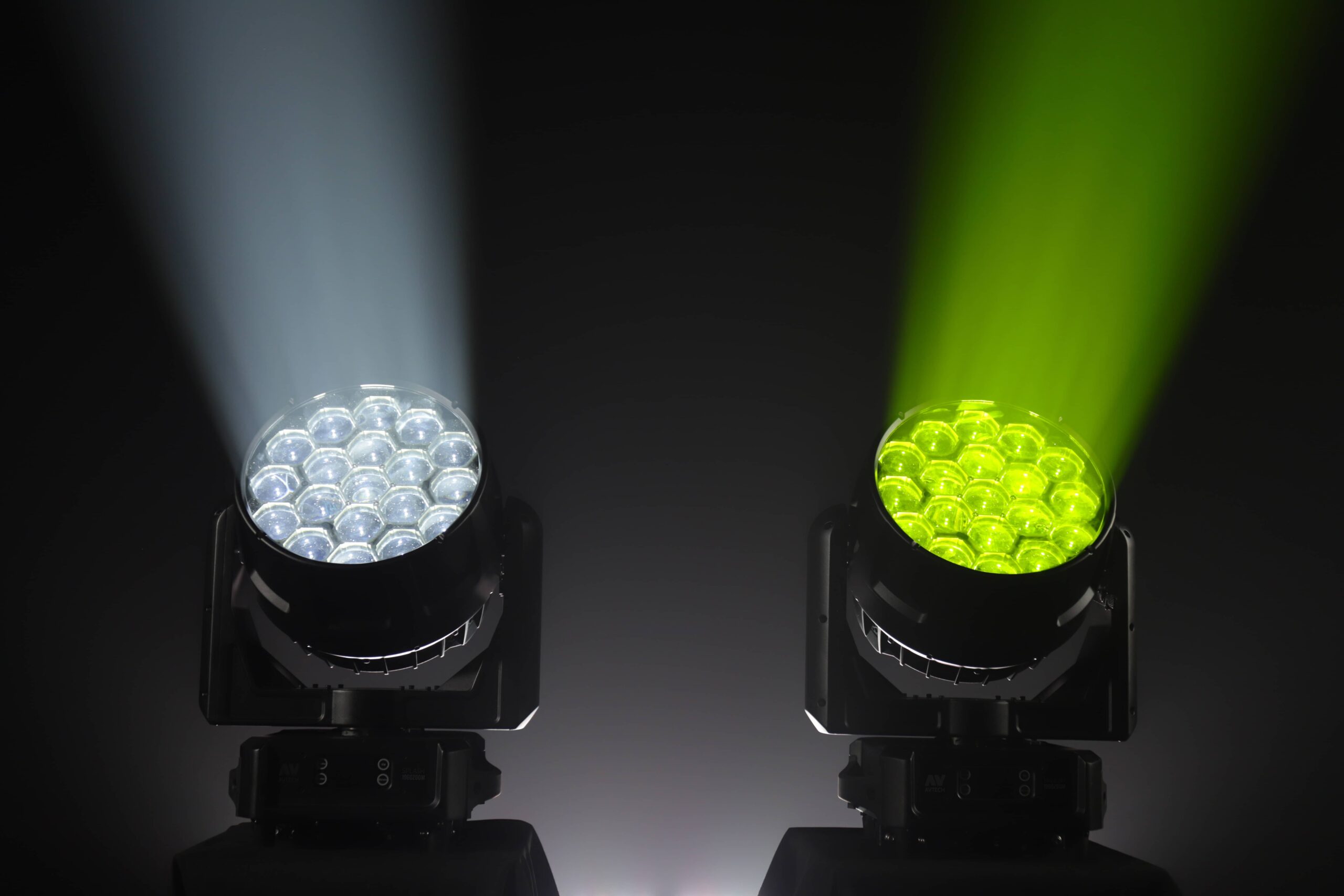

Precision Linear Zoom
Experience seamless transitions between a tight, high-intensity beam and an expansive, soft-edge wash. Our advanced motorized linear zoom system employs multi-group optics to provide immense versatility. Regardless of the throw distance, the fixture maintains remarkable lumen density and flawless color uniformity, ensuring your lighting remains sharp and impactful.
Immersive Aura Background Effects
Take your stage design to the next level with an integrated auxiliary LED aura. This independent back-lighting system adds a secondary layer of visual complexity, allowing designers to blend rich background hues with primary foreground beams. It is the perfect tool for creating mesmerizing “eye-candy” sequences that add depth and dimension to any live performance.

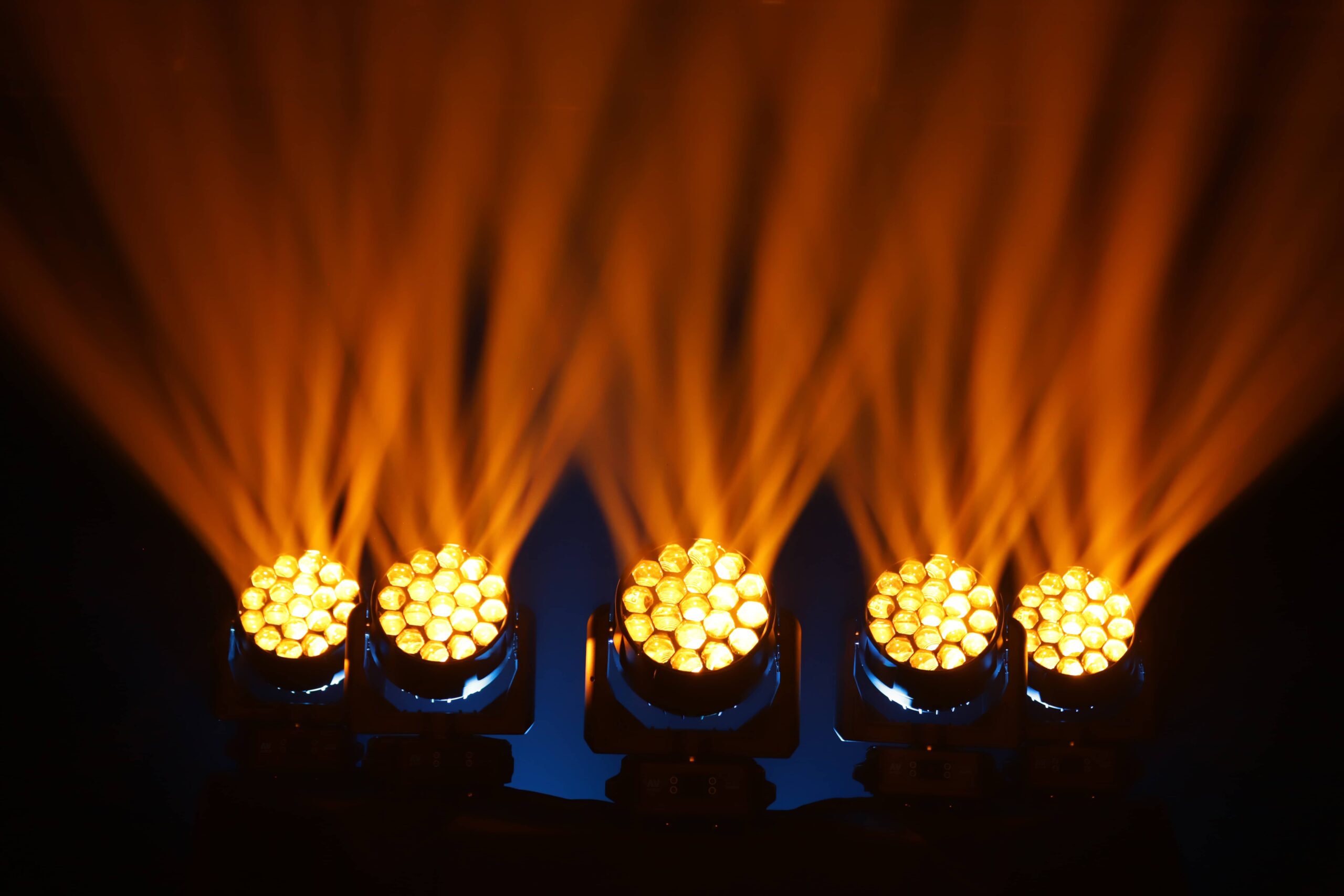

Continuous 360° Vortex Lens
The fixture’s signature front lens assembly is engineered for endless creativity. With full, bi-directional 360-degree rotation, you can break away from standard wash looks. Instantly morph uniform fields of light into intricate, swirling vortex rays and kaleidoscopic aerial flower effects—an essential feature for modern festival light shows.

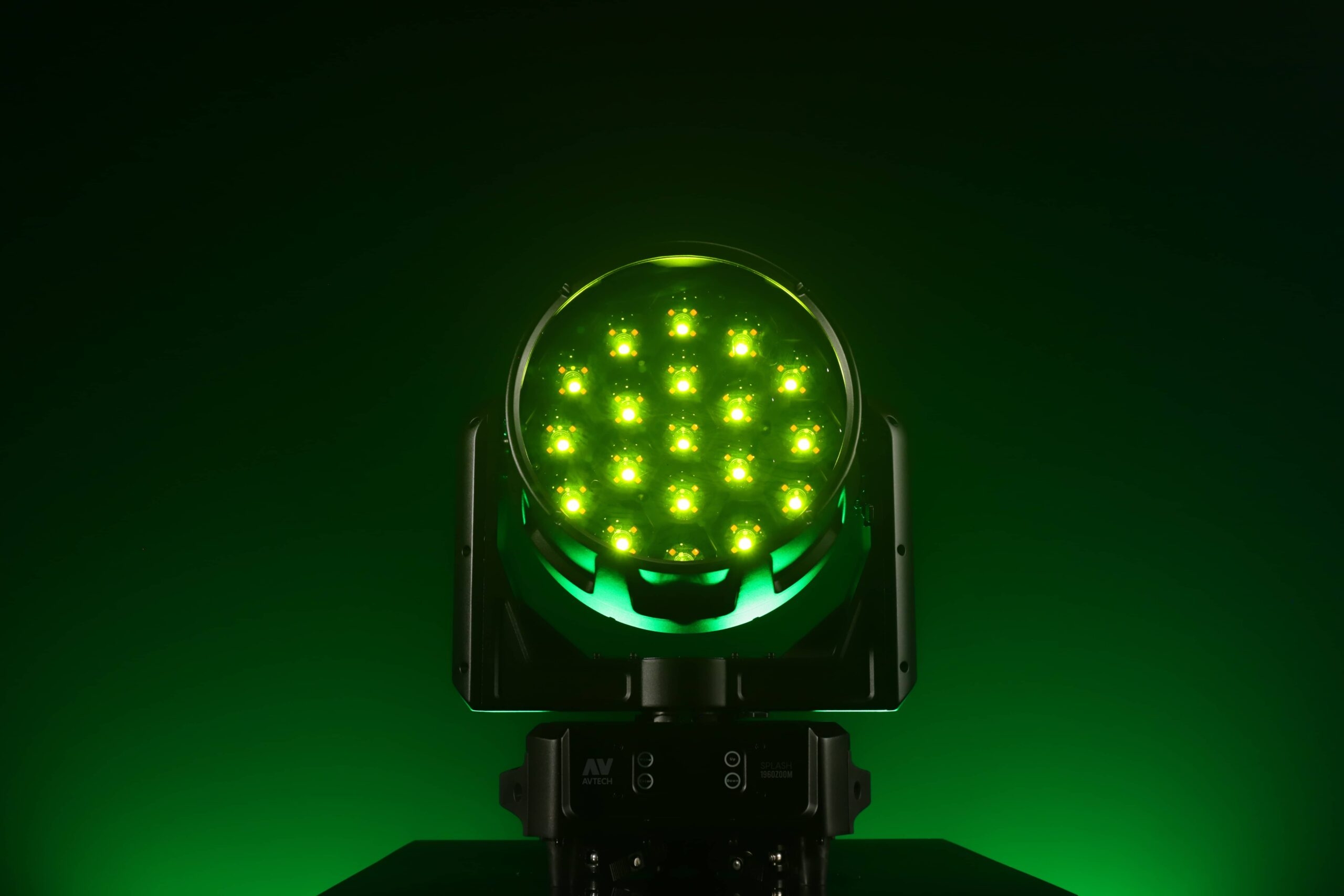

Flexible Engine Options: RGBW or RGBL

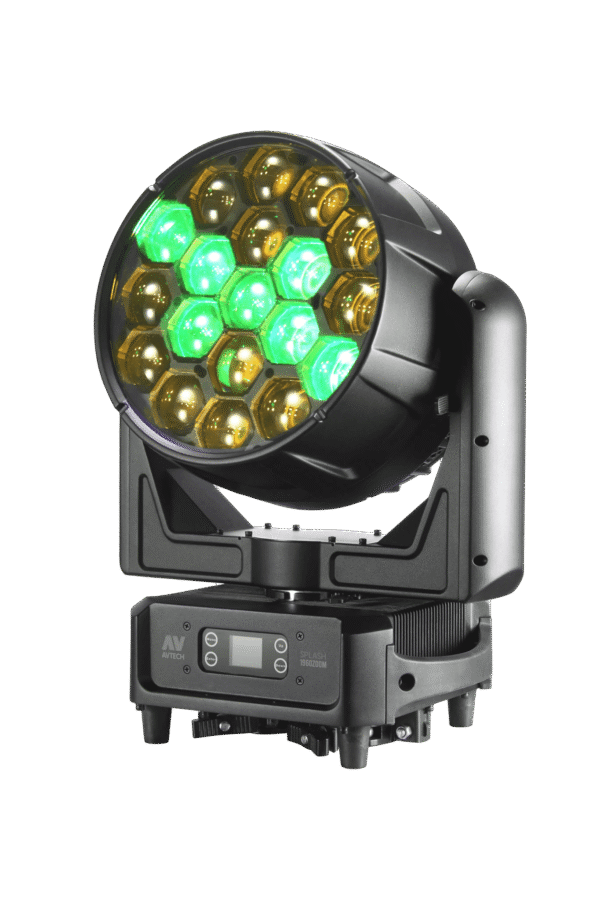

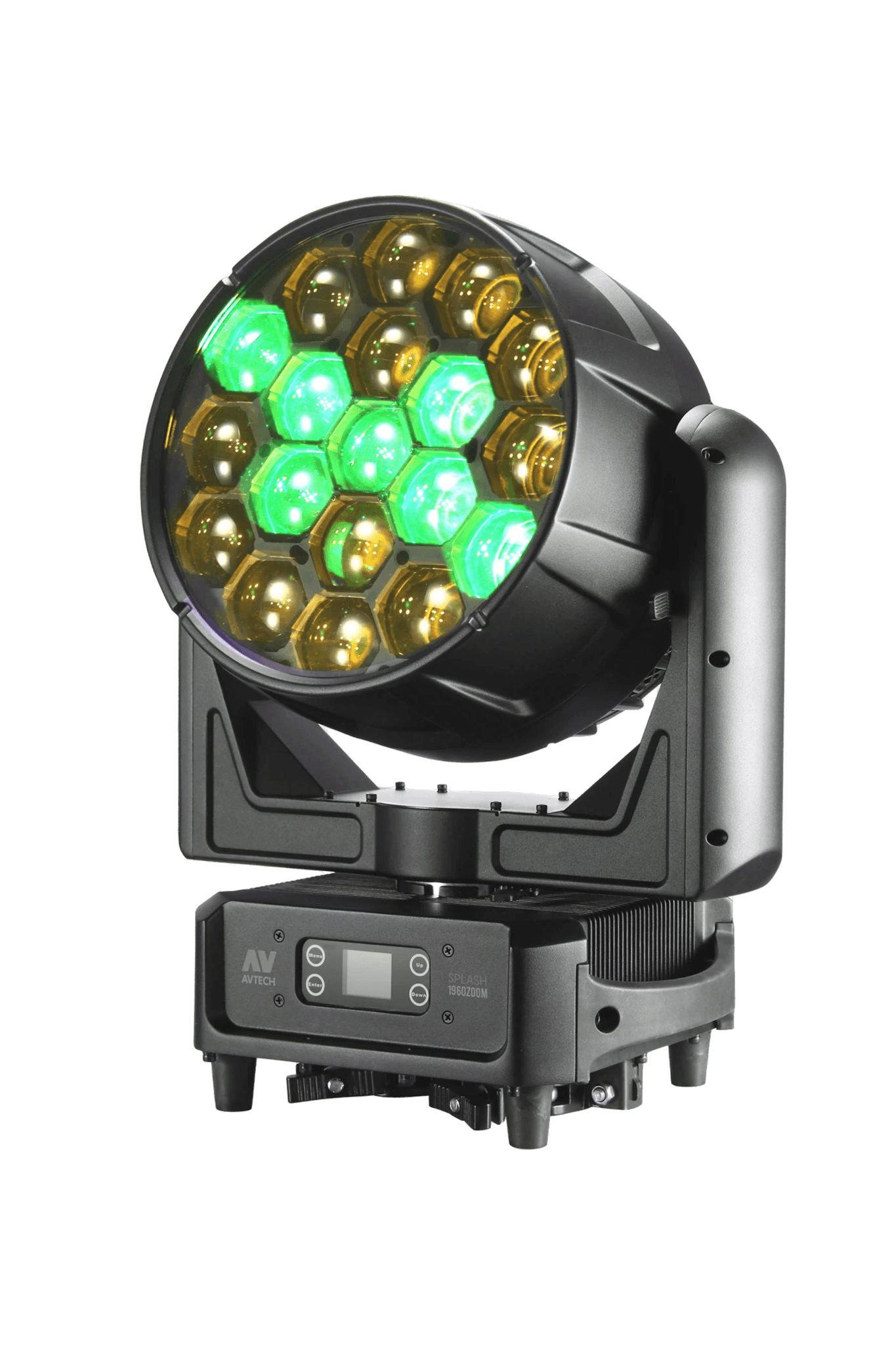

Tailor your lighting inventory to your specific needs. Choose our standard RGBW model for brilliant, punchy primary colors and crisp white beams. For specialized needs, our RGBL variant replaces the white emitter with a high-efficiency Lime diode. This upgrade significantly enhances the yellow-green spectrum and delivers superior CRI, making it ideal for television broadcasts and high-end theater where skin-tone accuracy is paramount.
Fluid Linear CTO Adjustment
Achieve the perfect color temperature effortlessly with our dedicated linear CTO channel. Move smoothly from a clinical daylight white to a deep, cinematic tungsten warmth without any stepping. This granular control is essential for professional studio work, where matching ambient lighting or creating a natural, warm atmosphere is critical.
High-Resolution Pixel Mapping
Unlock the full potential of your media servers with total individual control over every LED pixel. The AL-MH1960IP allows for the creation of sophisticated digital graphics, complex text animations, and volumetric matrix effects. Designed for seamless integration with professional consoles, it brings high-level digital artistry to any touring rig.
Specifications
- Light Source: 19 pcs × 60W RGBL LEDs + 76 pcs × 0.5W RGB LEDs (Aura effects)
- LED Lifespan: 50,000 hours average
- CRI: 83+
- Beam Angle: 4.5° – 60°
- Zoom: Motorized linear zoom
- Color Temperature: 2000K – 8000K presets
- Color Mixing: RGBL color mixing and pixel control
- Background FX: RGB Aura effects
- Color & Macros: Built-in color presets and macros
- Dimming: 16-bit dimming, electronic strobe, variable dimming curves
- Pan Movement: 540°
- Tilt Movement: 210°
- DMX Channels: 26 / 98 / 238 / 309 modes
- Refresh Rate: 800 – 24,000 Hz adjustable
- Display: Full color 180° reversible LCD display
- Control Protocols: DMX, RDM, Art-Net, sACN

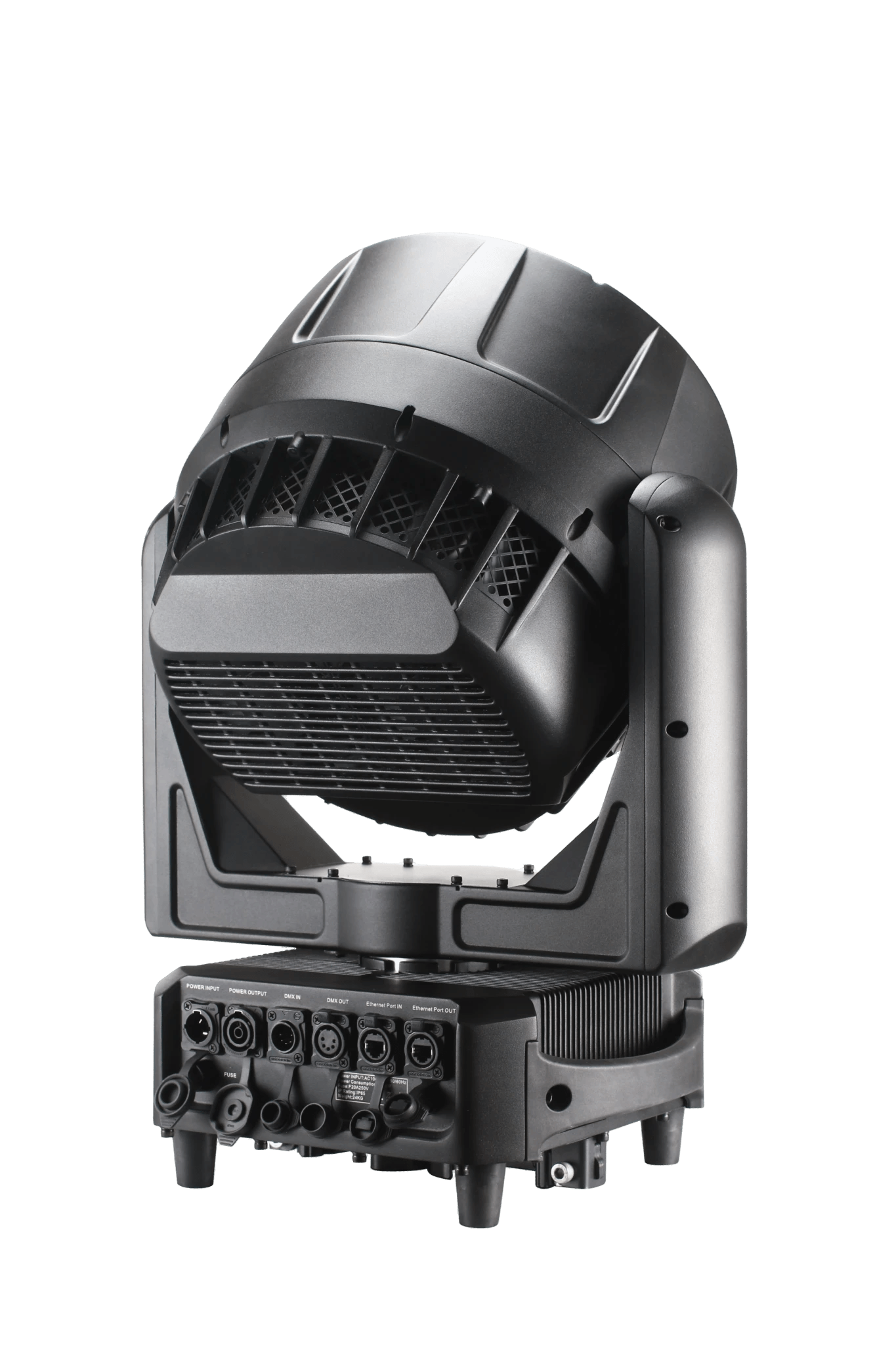

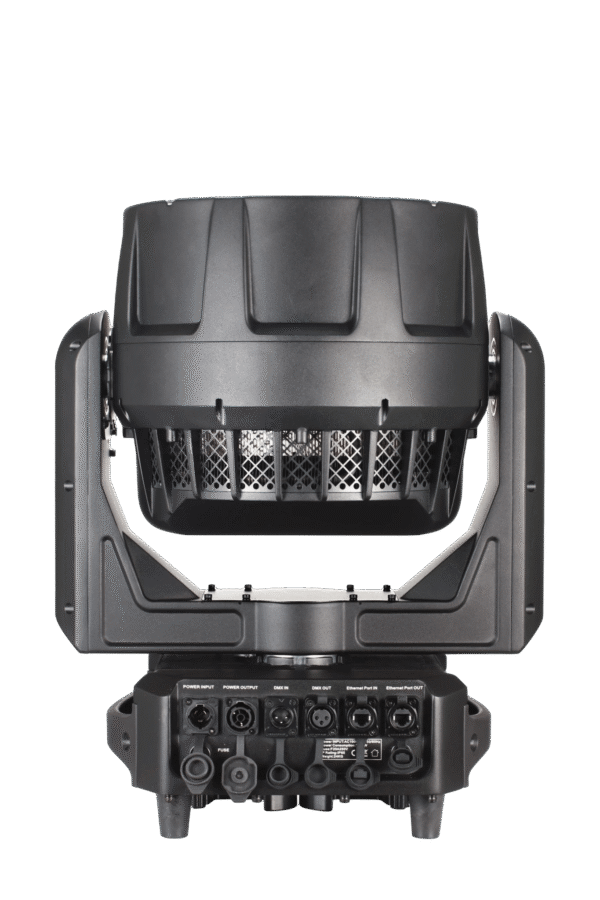

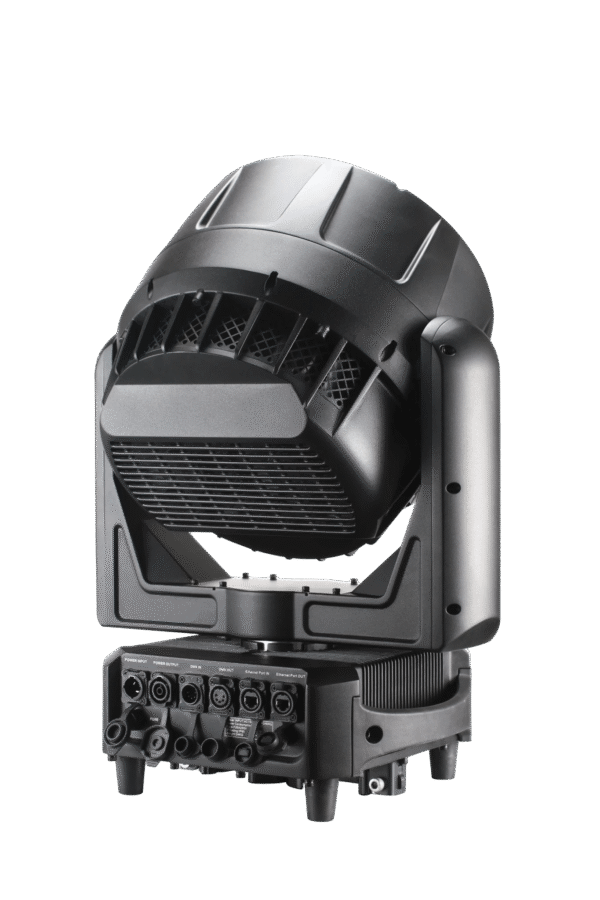

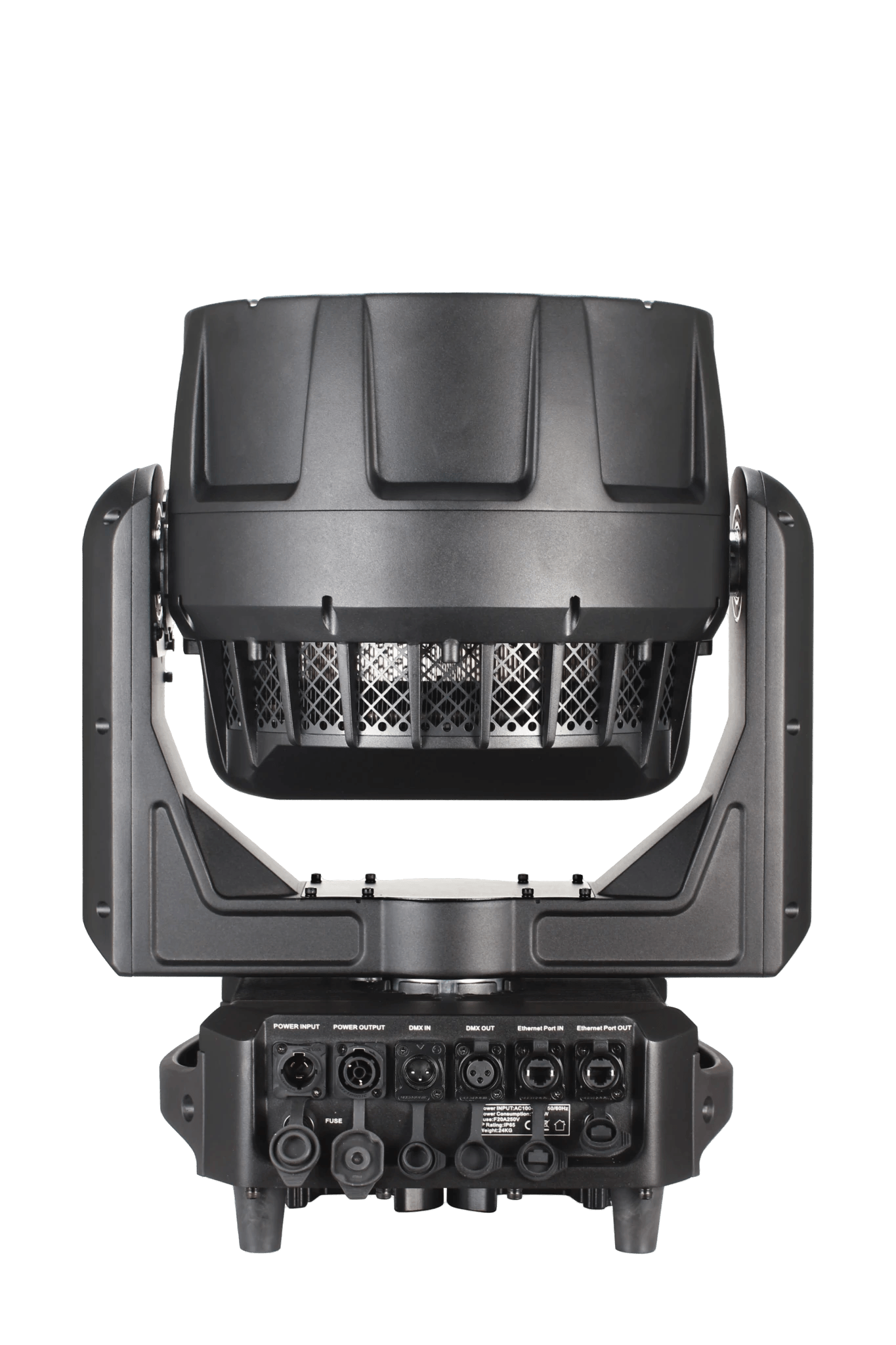

- Data Connections: IP65 5-pin XLR DMX in/out, IP65 RJ45 Ethernet in/out
- Input Voltage: AC 100–240V, 50/60Hz
- Power Consumption: 1500W max
- Thermal Output: 2387 BTU/hr ±10%
- IP Rating: IP65
- Dimensions: 430 × 280 × 514 mm
- Weight: 23 kg
