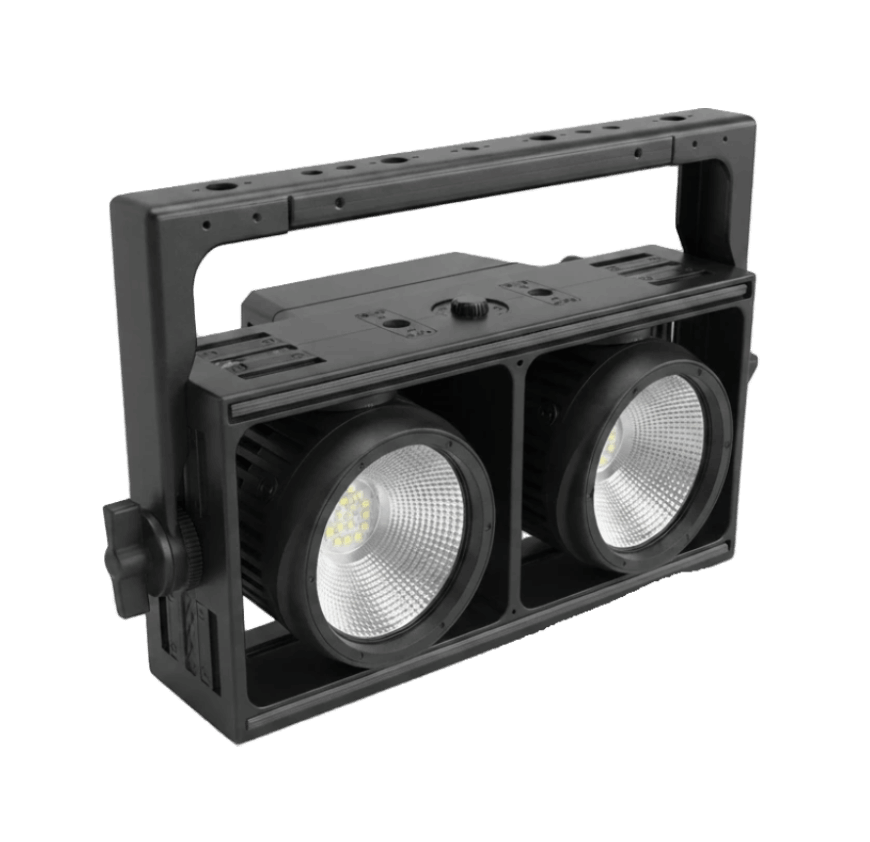

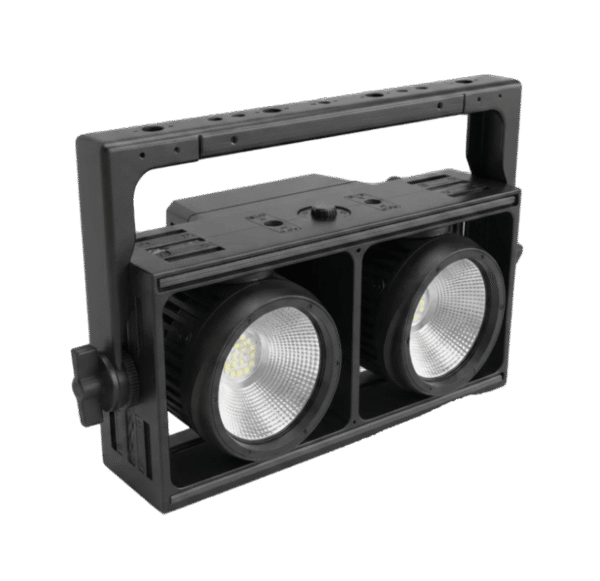

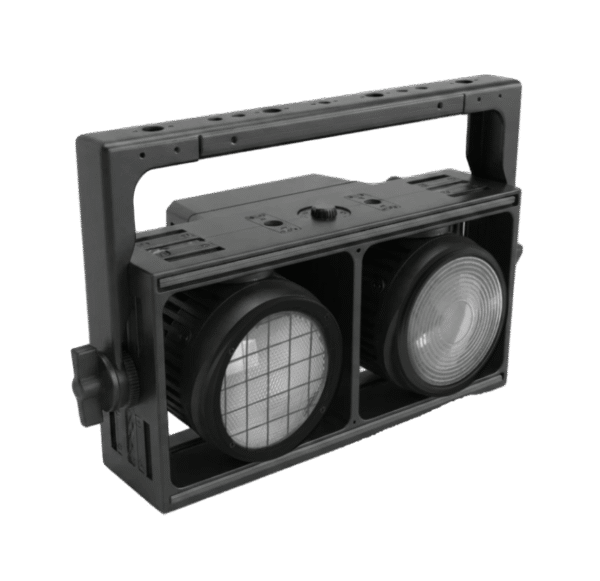

The BLIND2RGBAL represents the cutting edge of professional stage lighting, combining raw output, intelligent control, and rugged outdoor durability. Built to withstand the harshest touring environments, its robust aluminum housing features anti-salt and anti-UV coatings alongside an IP65 weatherproof rating, making it equally reliable for indoor arenas and open-air festivals.

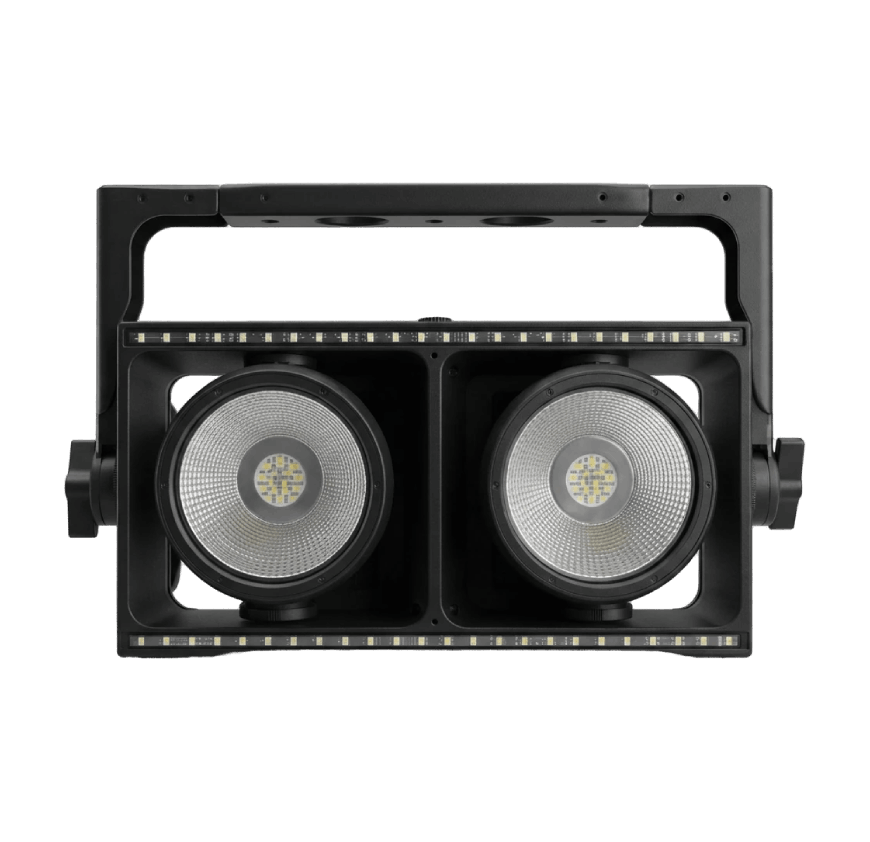

At its core, the fixture utilizes a dual-panel configuration: a massive 2x400W RGBAL main LED panel that yields rich, saturated color mixing and wide chromatic flexibility, paired with a 2x24W cold white and warm white (CW+WW) auxiliary panel for striking blinder effects and punchy highlights. Generating a stunning 40,600 lumens with a native 50° beam angle and 93° field of view, the BLIND2RGBAL delivers breathtaking brightness and coverage.

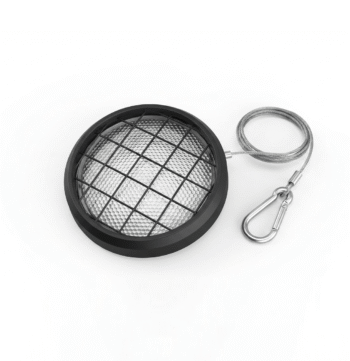

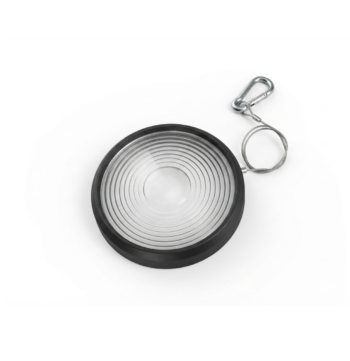

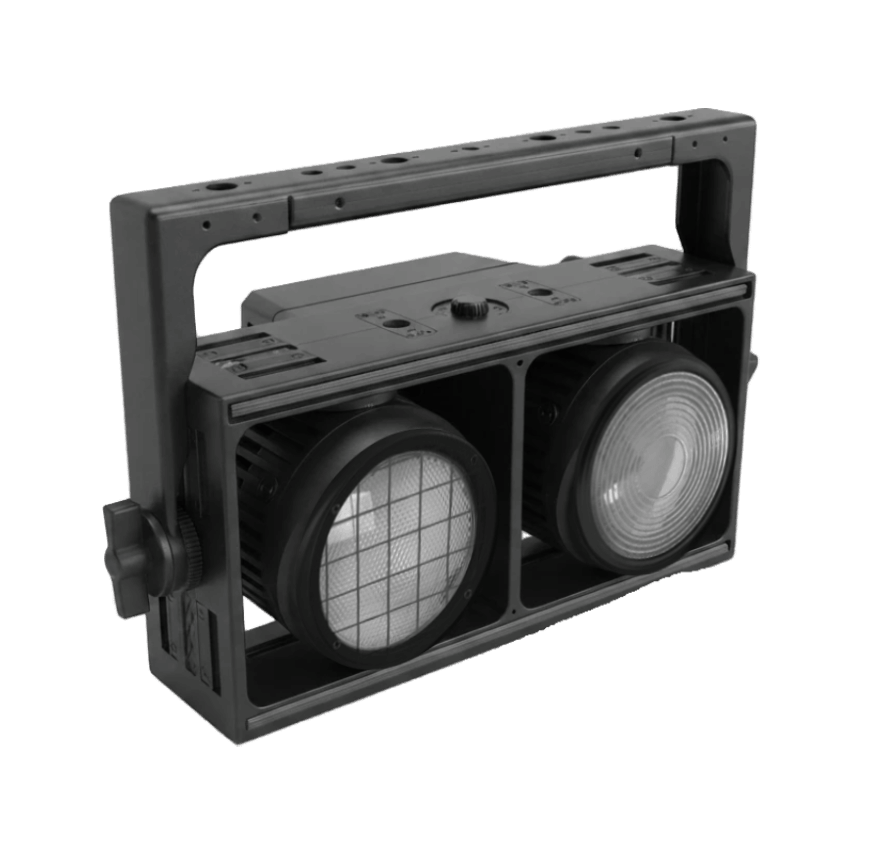

Operators benefit from advanced workflow features including multiple DMX channel modes, RDM support, built-in color macros, variable color chasing, strobing, fading, and four selectable dimming curves with tungsten emulation. It also supports Sweden’s CRMX wireless DMX and optional Vision App control for maximum rigging flexibility. Installation is fast and tool-free thanks to magnetic accessory lenses (Halogen, Fresnel, and Frosted options), built-in C-lock splicing systems, and flexible quick-lock mounting points.
Specifications
- Light Source: Main Led Panel: 2*400W RGBAL, Auxiliary Led Panel: 2*24*2W CW+WW
- Power Consumption: 700W
- Input Voltage: 100~240V / 50~60Hz
- DMX Channels: Multiple modes (ranging from 01 to 52 channels)
- Dimming Curves: 4 different curves (Linear, Square Law, Inverse Square Law, S-Curve)

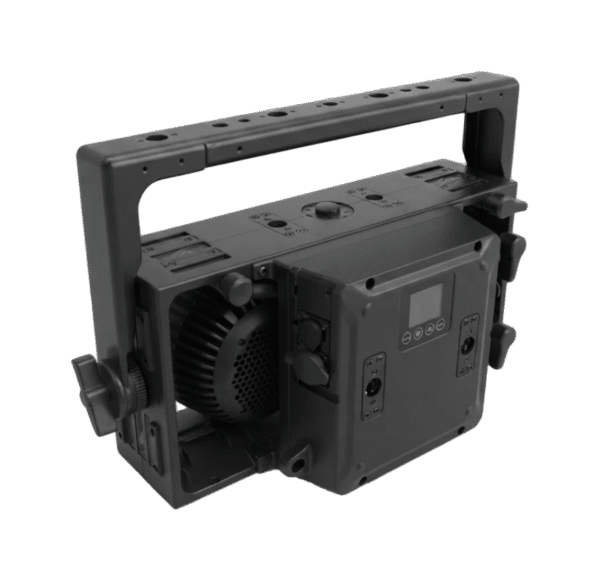

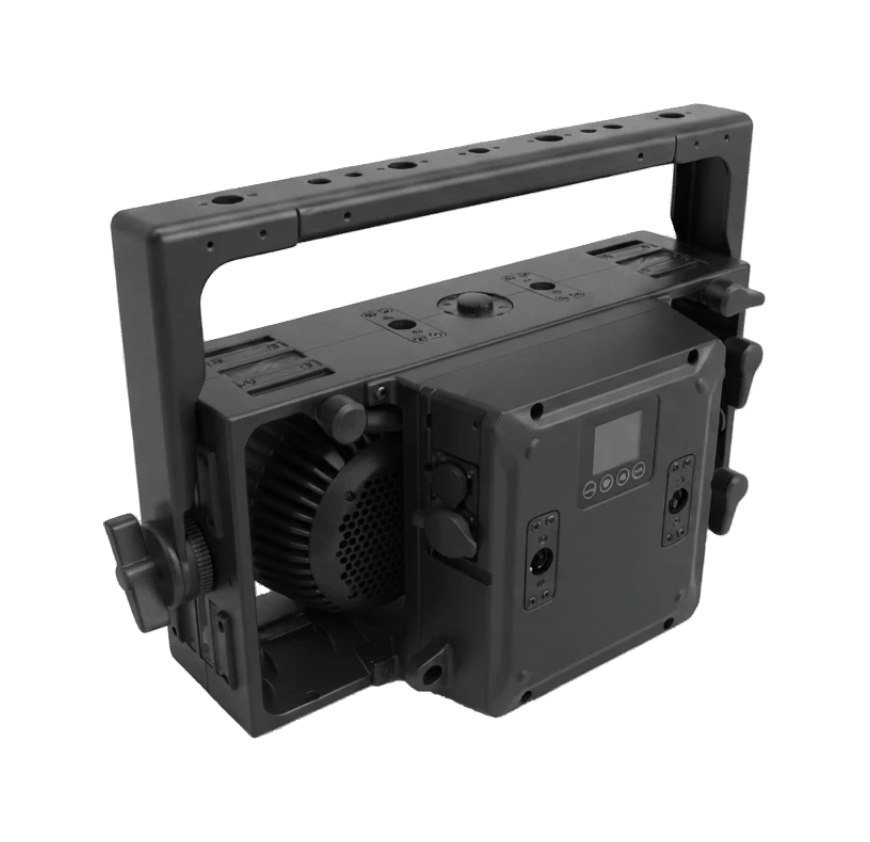

- Display: TFT display with four buttons and LCD Touch Screen
- Native Beam Angle: 50°
- Initial Field Of View (spot Angle): 93°
- Light Output (all Leds On): 40600 LM
- Run Mode: DMX 512 / Master Slave / Auto Run
- Wireless DMX: CRMX Wireless DMX from Sweden (Optional)
- Built: in Effects: Color mixing, variable color chasing, strobing, and fading
- Id Setting: Maximum 66 ID setting for separate individual control
- Cooling: System: Smart temperature control with multi-mode fans
- Housing Material: Aluminum body
- Surface Treatment: Anti-salt & Anti-UV painting
- IP Rating: IP65 weather-resistant
- Operating Temperature: -40°C ~ 45°C (-40°F ~ 113°F)
- Net Weight: (N.W): 9.2 KG
- Dimensions: 495 x 299 x 199 mm
- Standard Configuration: 1x BLINDER2RGBAL, 1x True one power cable
