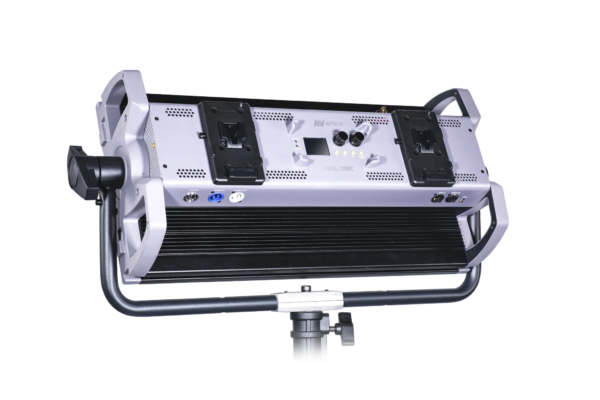

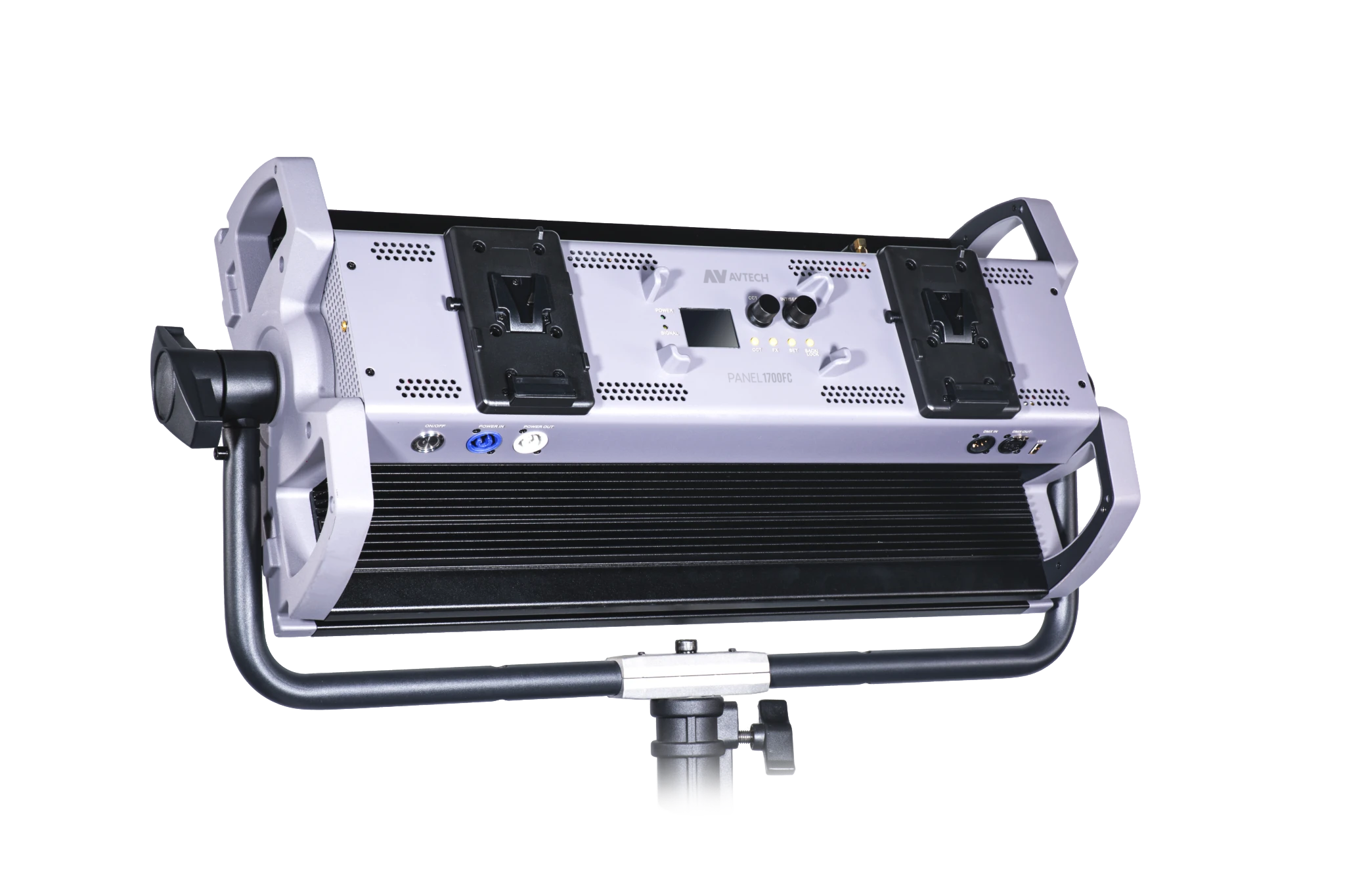

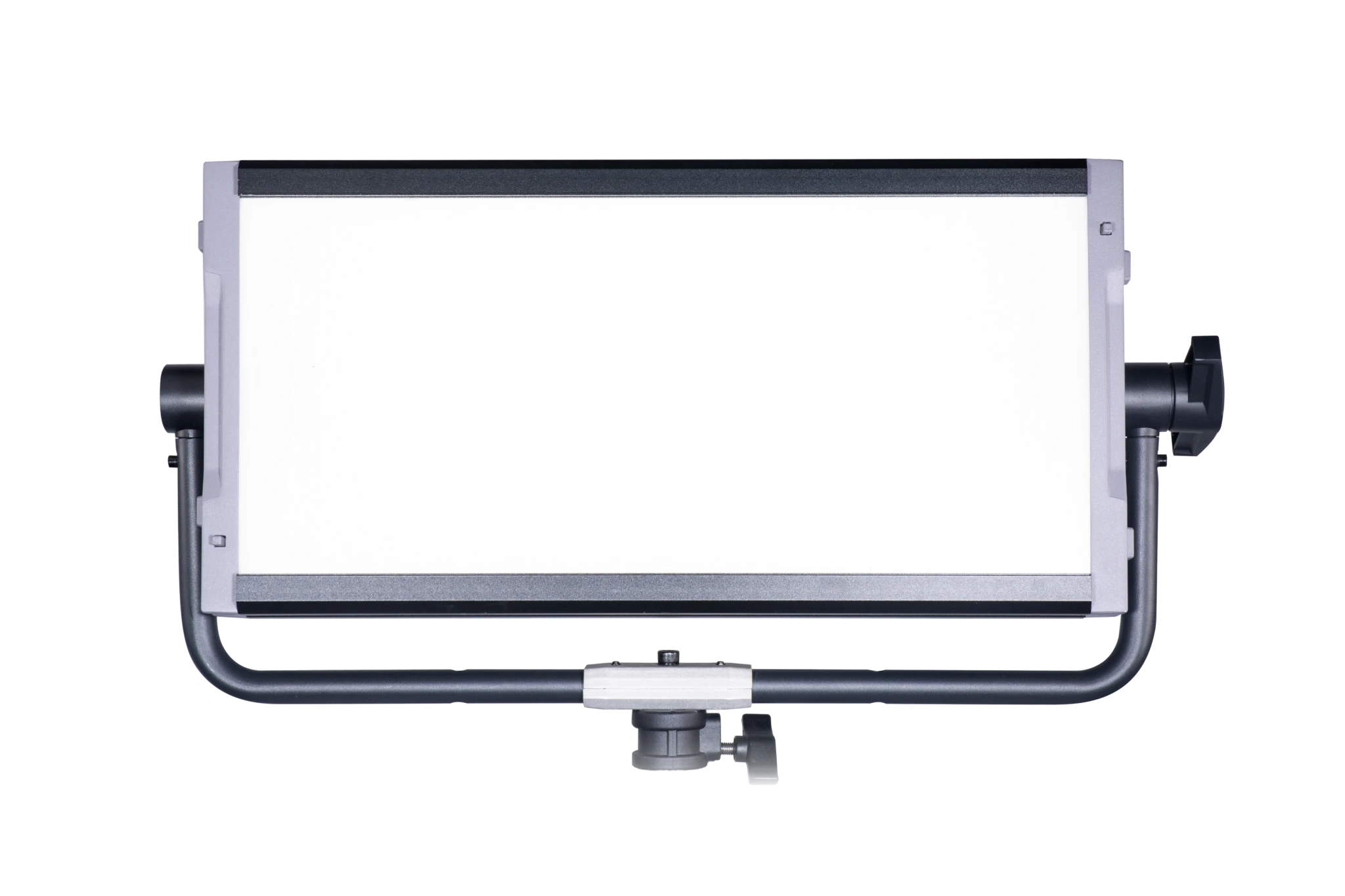

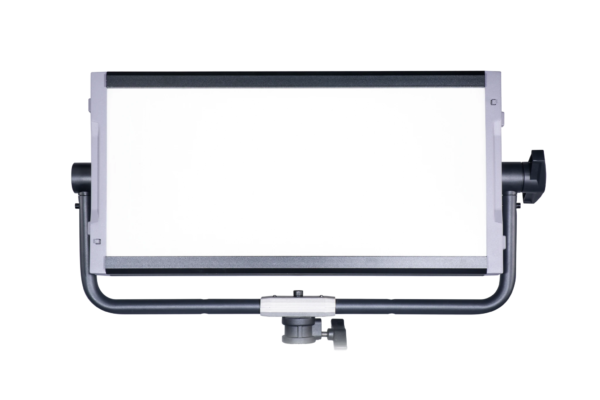

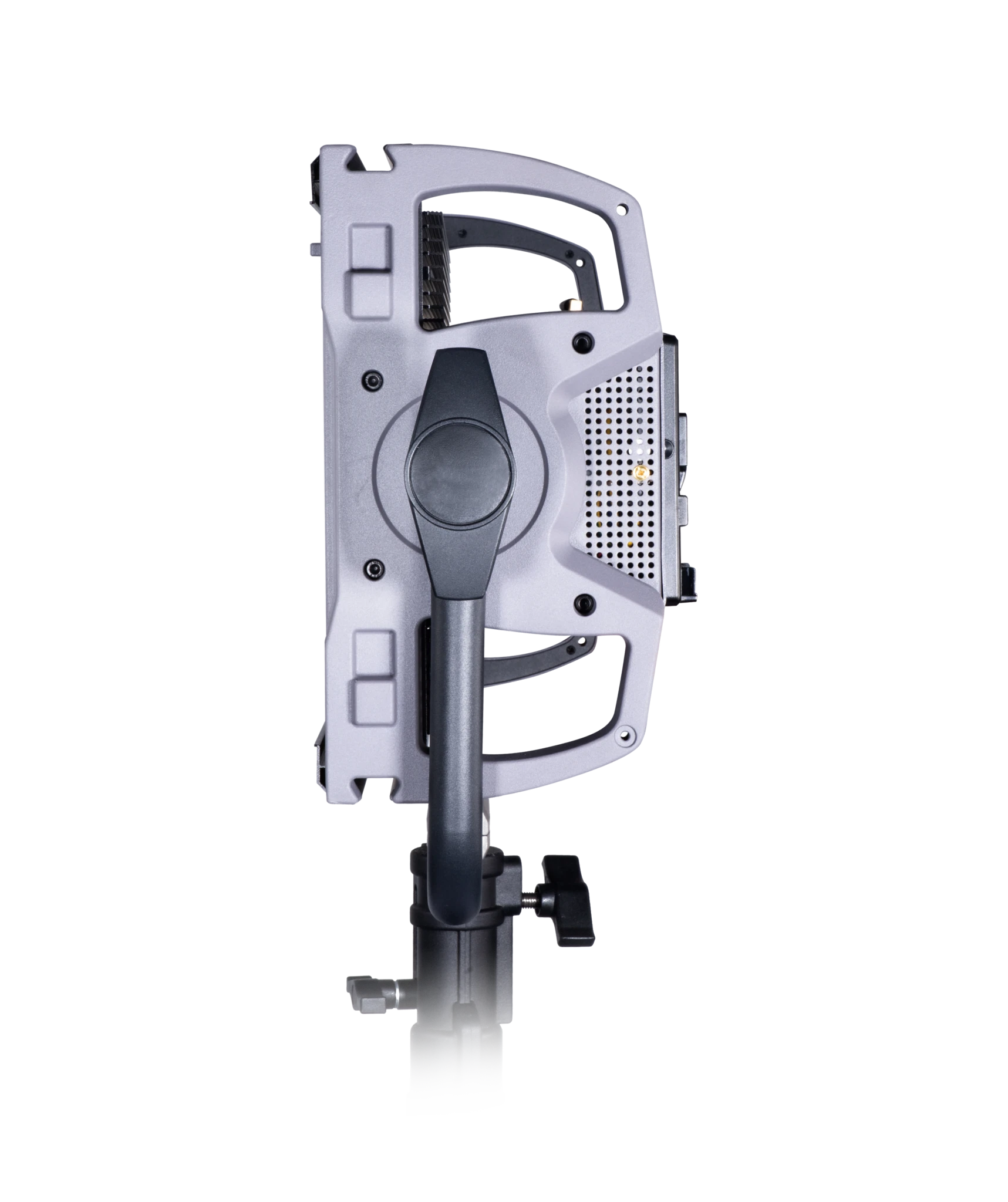

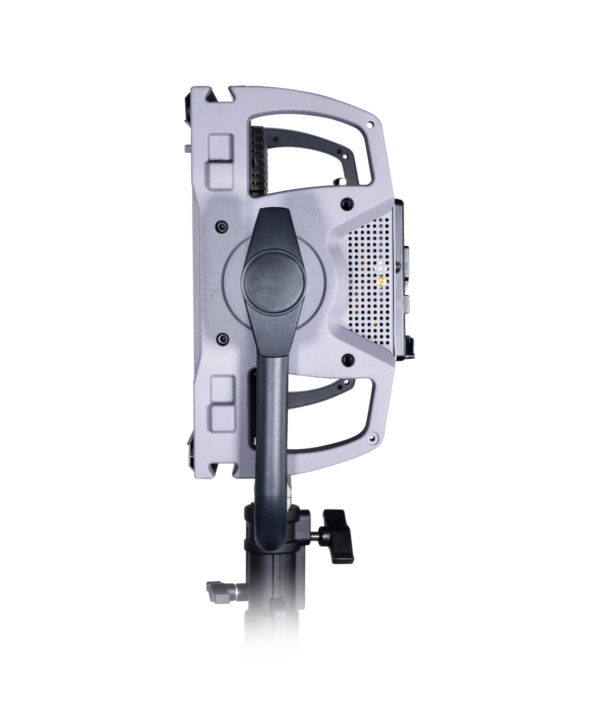

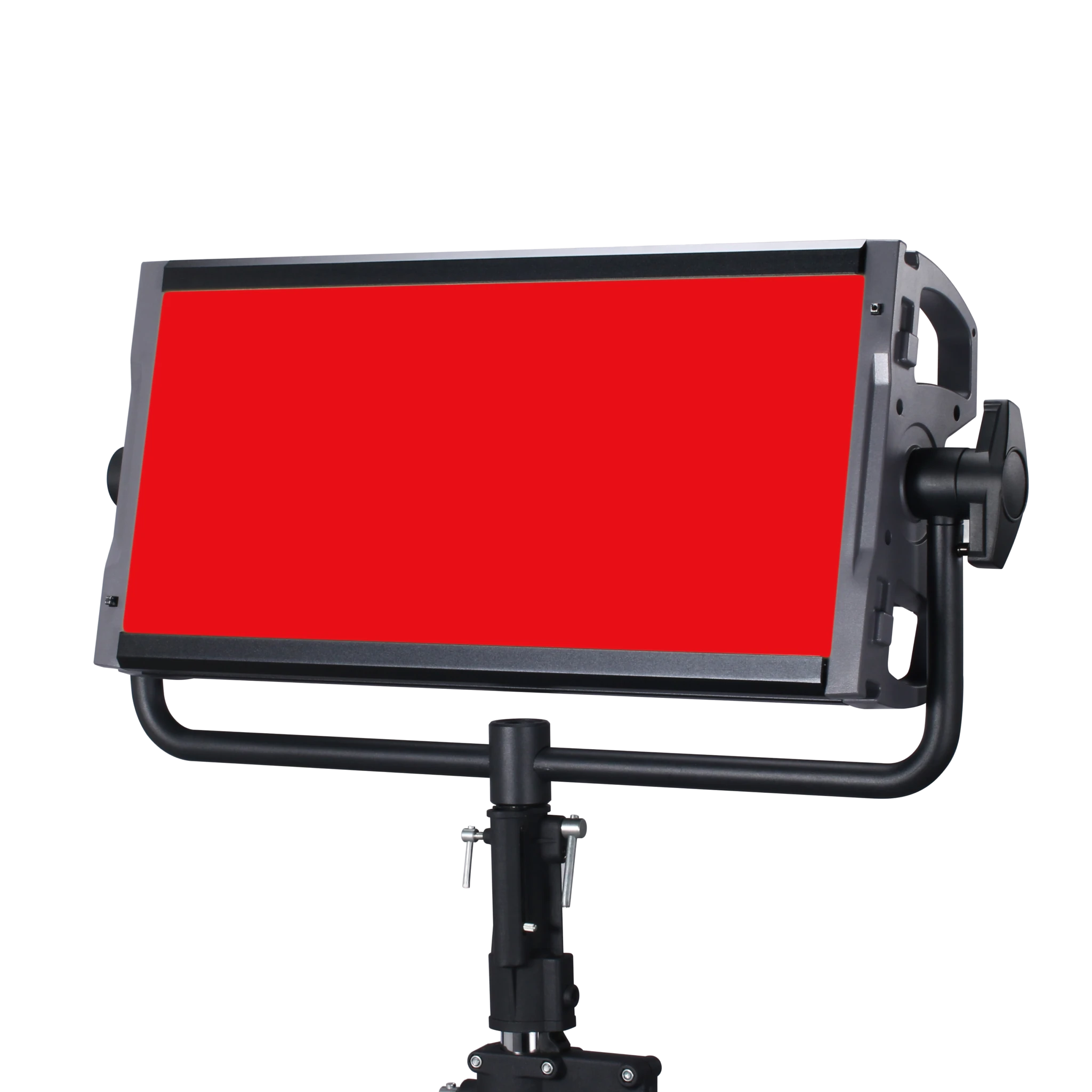

The PANEL1700FC is an ultra-powerful, high-output full-color LED panel engineered for the most demanding film sets, television broadcasts, and high-end outdoor productions. Built with a rugged weather-resistant design and rated IP65, it ensures maximum reliability even in extreme weather conditions. Powered by a massive 3,648-piece 1W LED array (combining Red, Green, Blue, Cool White, and Warm White), it delivers a mammoth 1300W output of soft, uniform light with a broad 110° coverage.
Designed for uncompromising visual fidelity, the panel features a wide color temperature range of 2700K to 10000K (±100K) with extraordinary color rendering scores (CRI ≥97, TLCI ≥98, CQS ≥96), ensuring perfect skin tones and flawless camera performance.
The PANEL1700FC offers ultimate control flexibility via DMX512, RDM, Wireless DMX, and WiFi-DMX. It features extensive operating protocols—including dedicated Ultimate DMX modes for CCT, HSI, RGBW, XY, GEL, and FX—and supports both 8-bit and 16-bit dimming for seamless control. Equipped with PowerCon TRUE1 power passthrough, 3-pin (or optional 5-pin) XLR connectors, an intuitive LCD screen, and DMX software update capabilities, it represents the pinnacle of large-scale soft light engineering.
Specifications
- Light Source: 3648pcs 1W LEDs (608 R + 608 G + 608 B + 608 CW + 1216 CW/WW)
- Beam / Field angle: 110°
- Color temperature: 2700K – 10000K tunable (±100K)
- CRI (Color Rendering Index): ≥97
- CQS (Color Quality Scale): ≥96
- TLCI (Television Lighting Consistency Index): ≥98
- Control options: DMX512, RDM, Wireless DMX, WiFi-DMX
- DMX Channel Modes: CCT & RGBCW, CCT & HSI, CCT, HSI, RGBCW, XY (8-bit & 16-bit options)
- Remote Channel Modes: Ultimate DMX 8-bit (CCT, HSI, RGBW, XY, GEL, EFFECT modes)
- Electronic dimming: 8 & 16 bits (0 – 100%)
- Software update: Via DMX
- AC power in/thru: PowerCon TRUE1 in & out
- DMX data in/thru: 3-Pin XLR in/out (5-Pin XLR optional)
- Display Screen: LCD display
- Input Voltage: AC 100 – 240V, 50/60 Hz
- Power consumption: 1300W
- IP Rating: IP65
- Dimensions: 880 x 475 x 182 mm
- Weight: 29.5 kg
