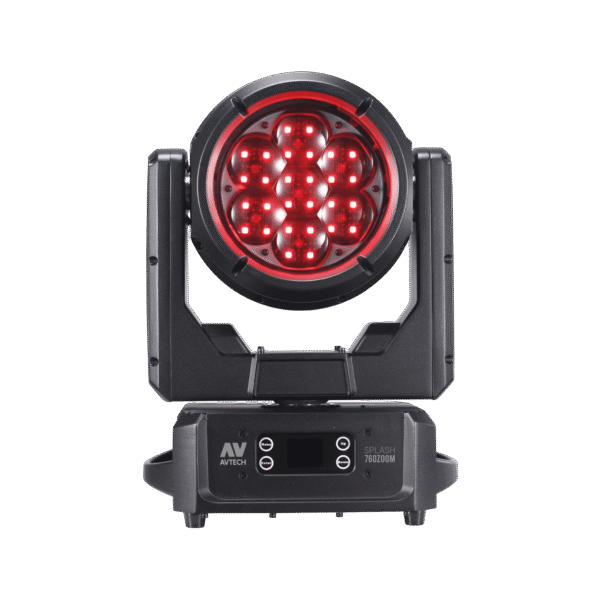

SPLASH760ZOOM

💧 IP65 Rated

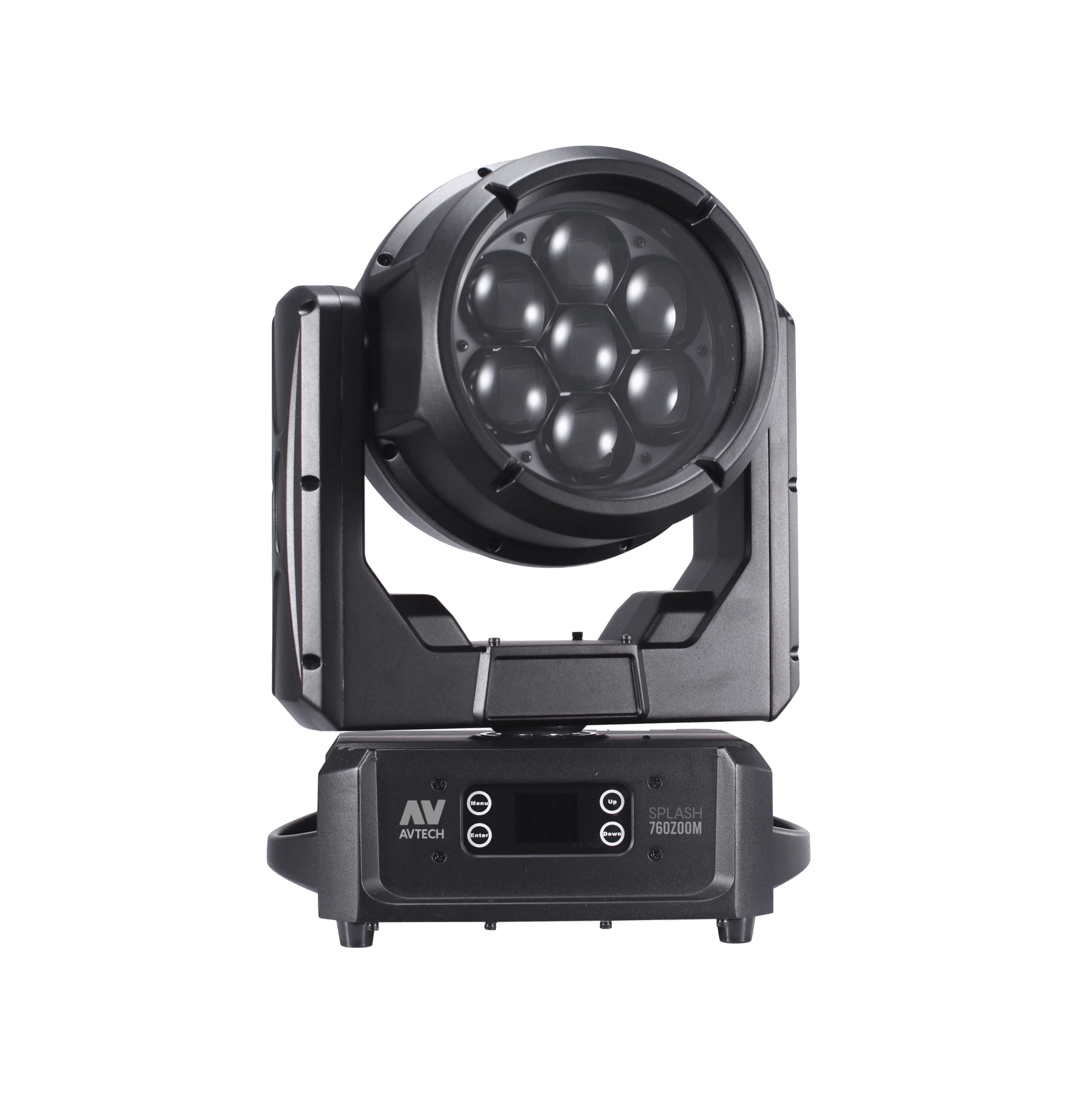

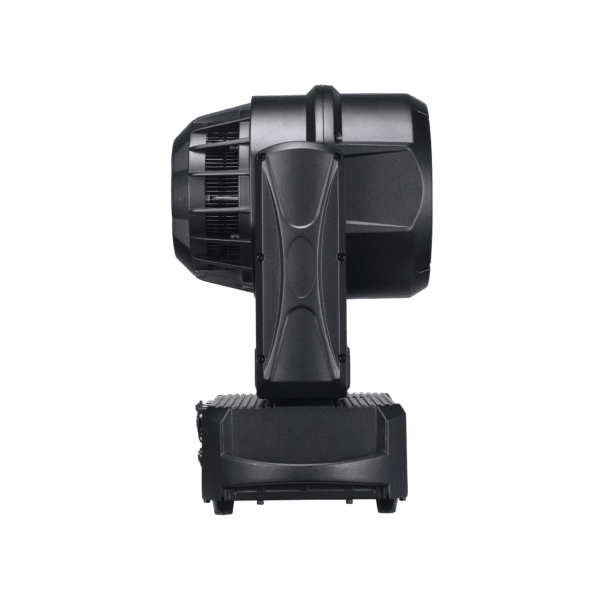

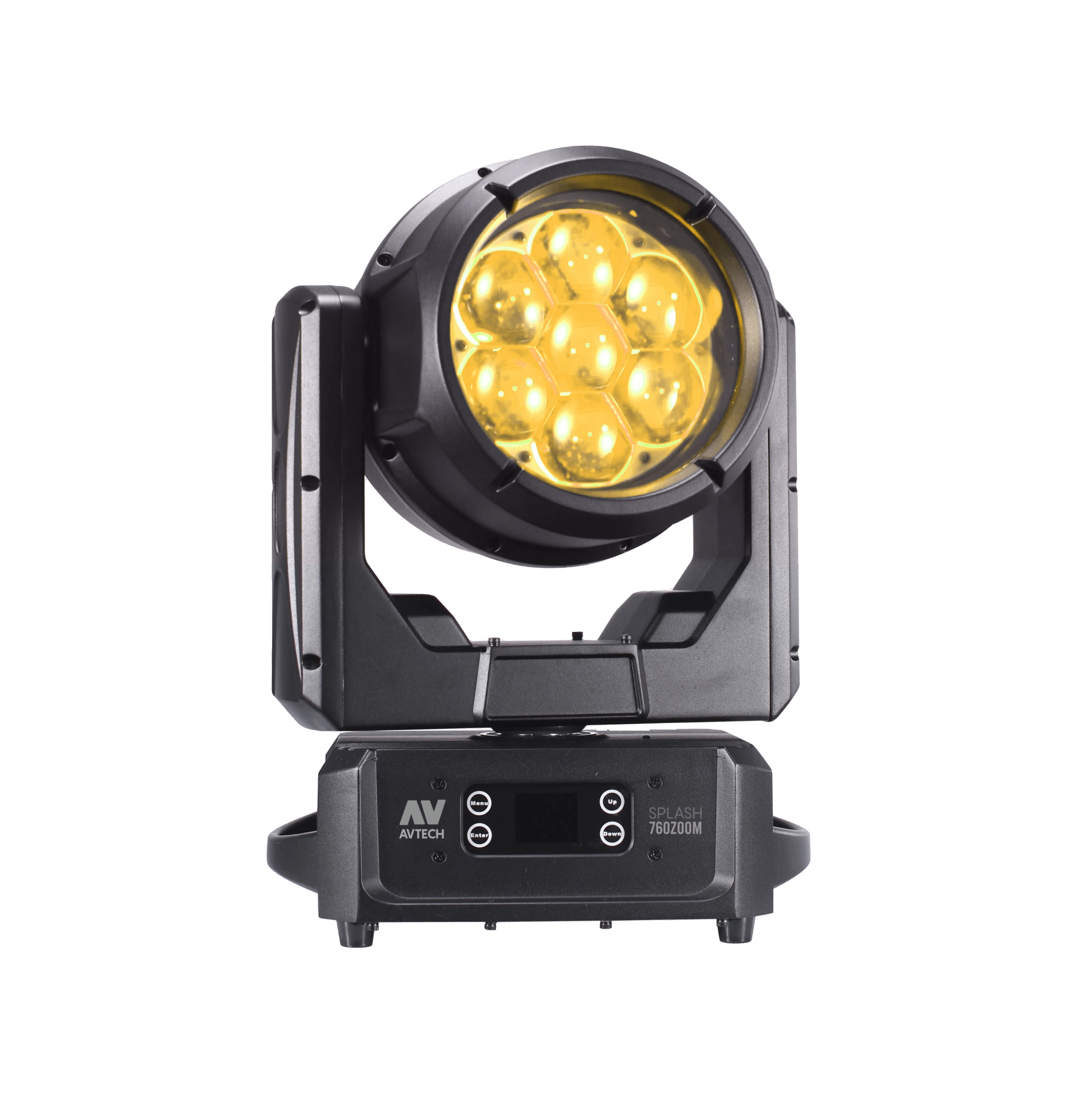

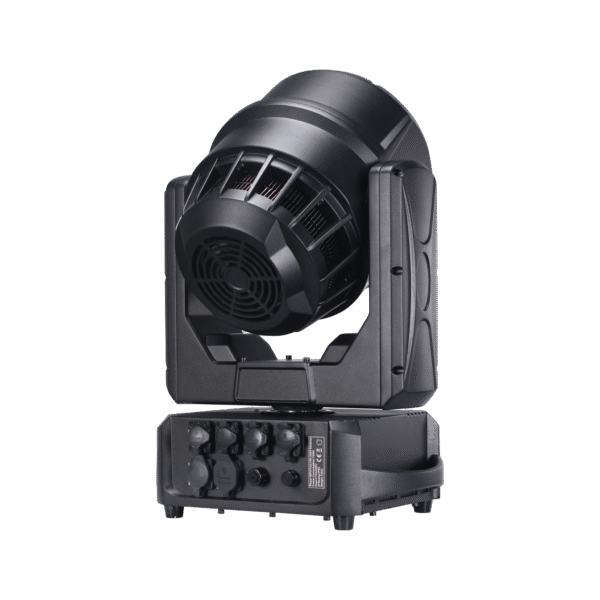

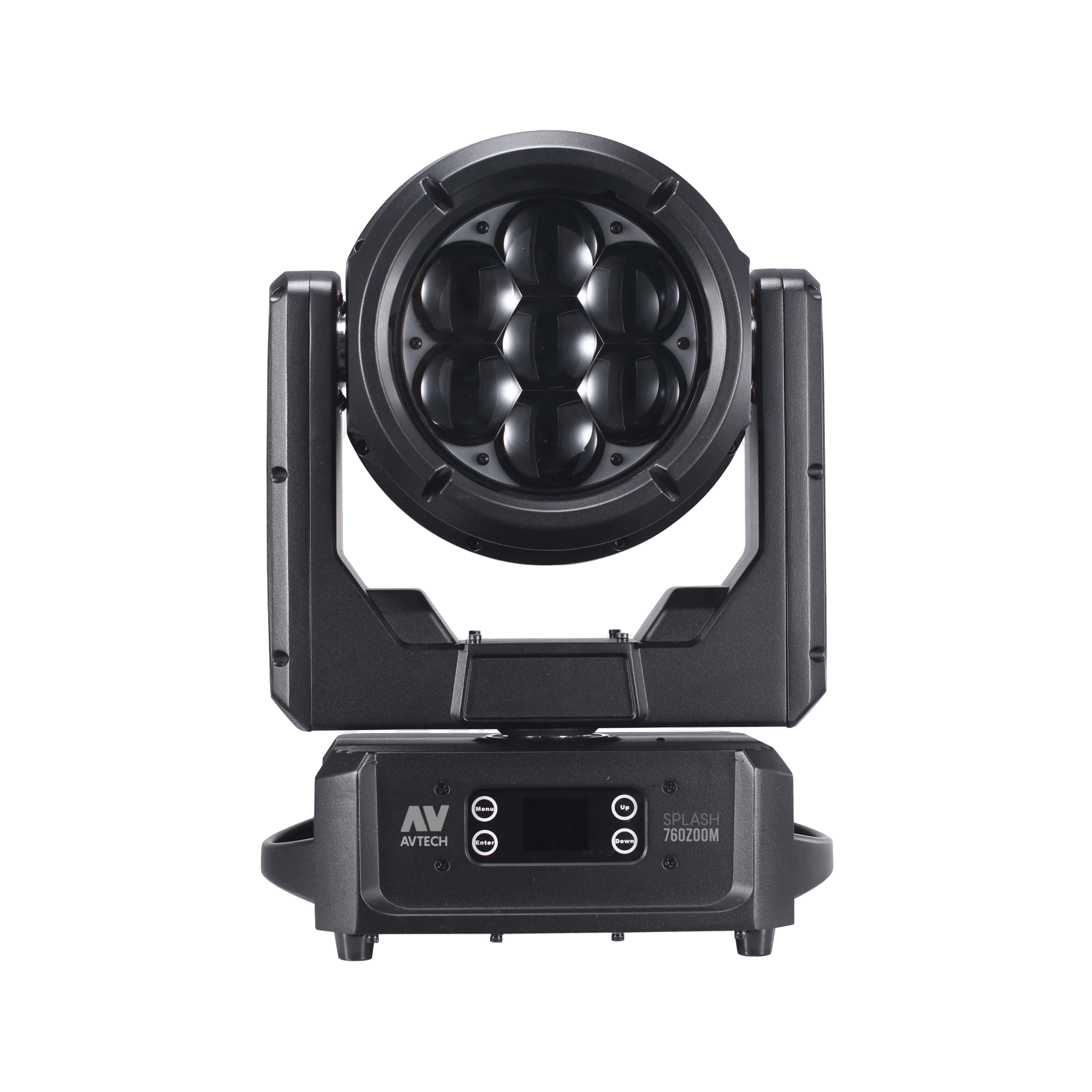

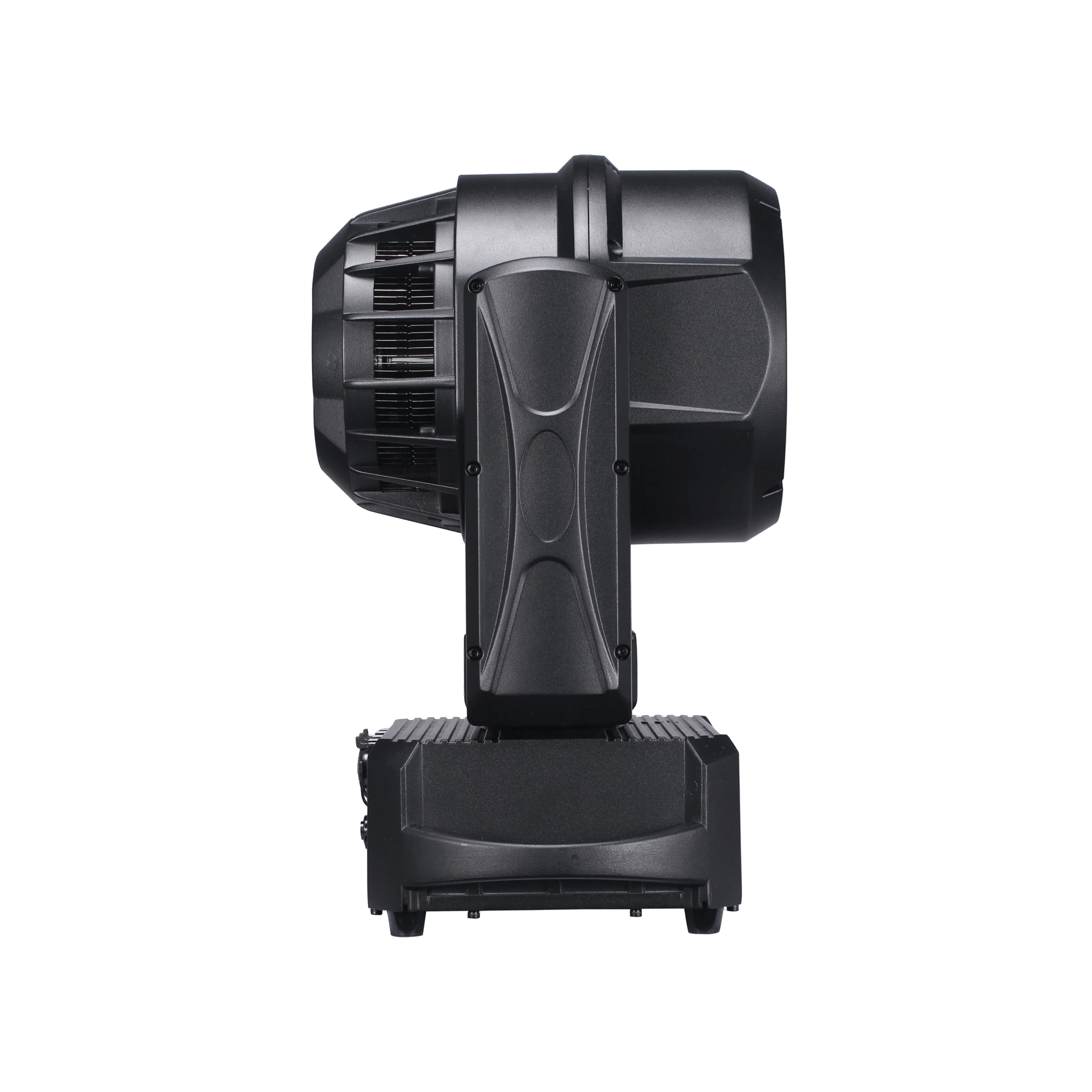

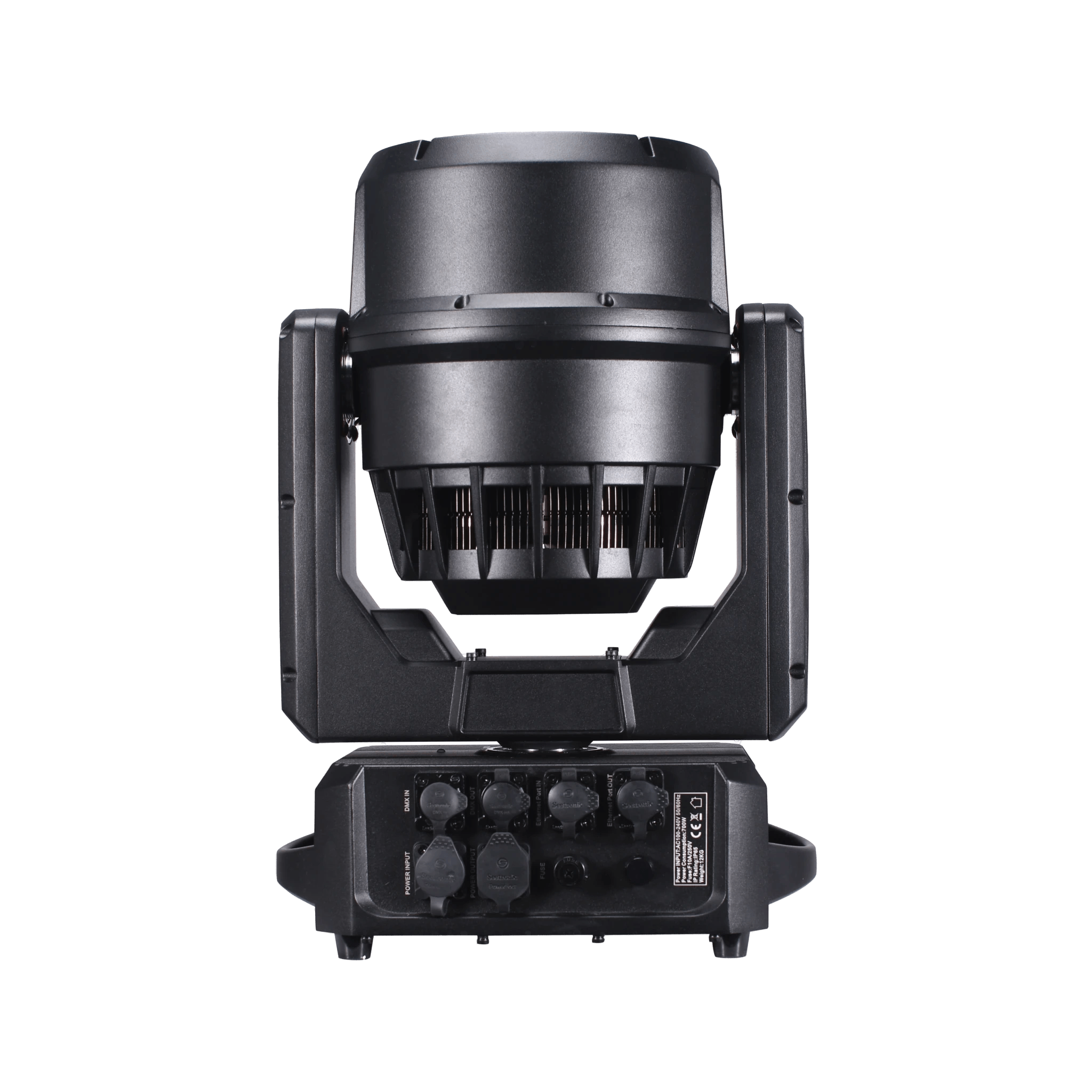

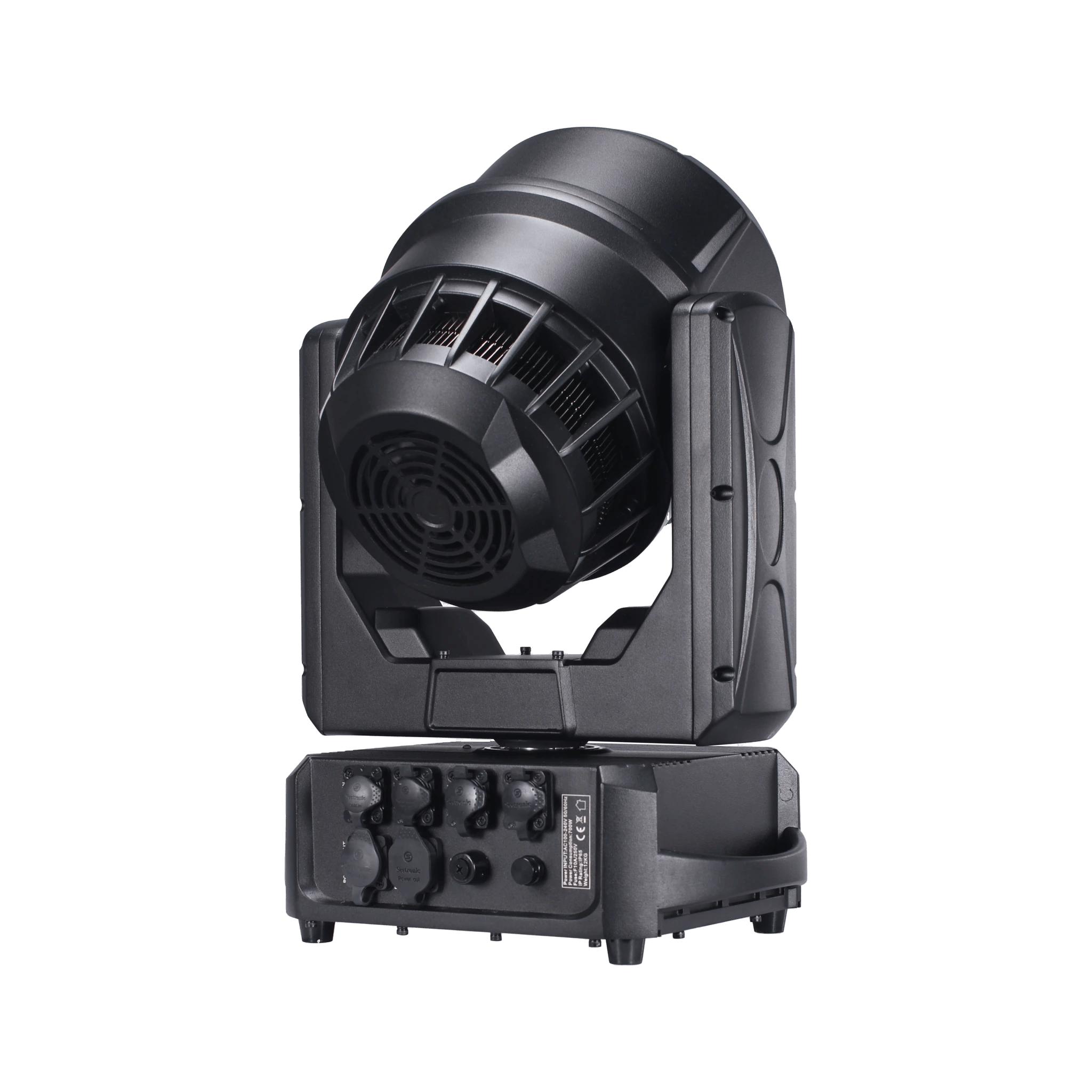

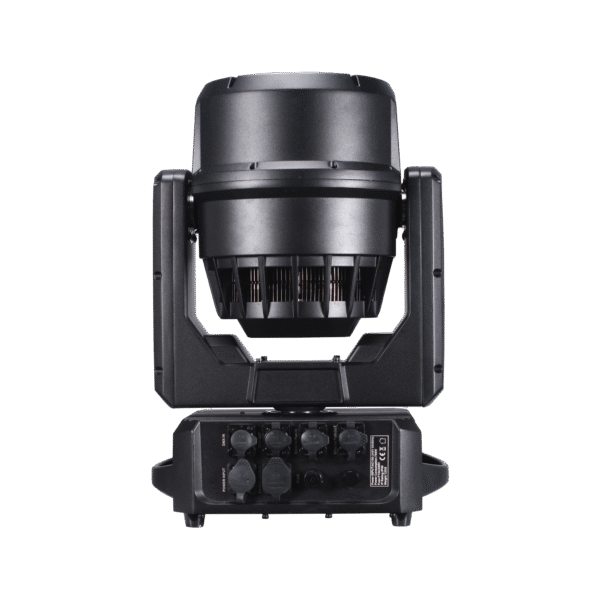

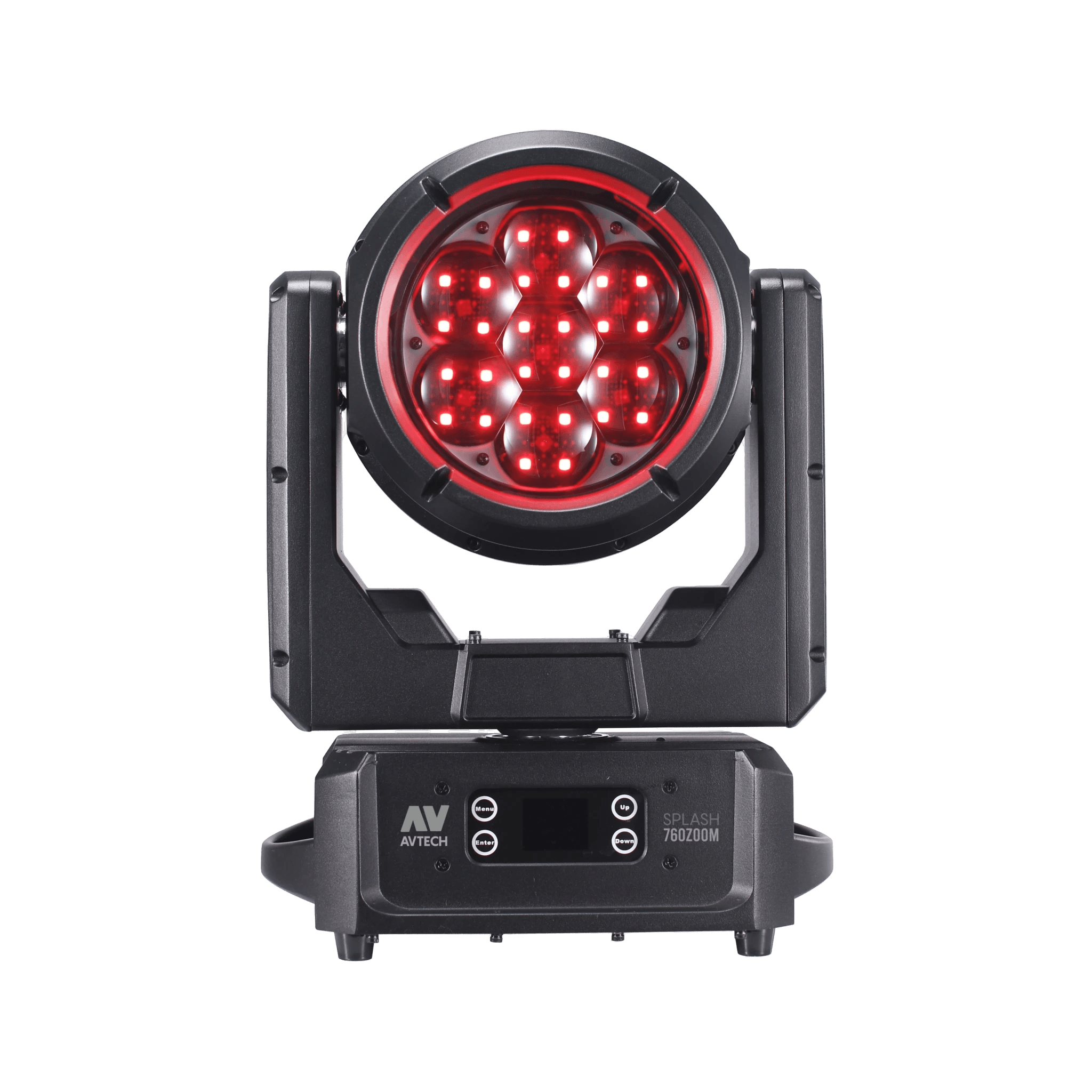

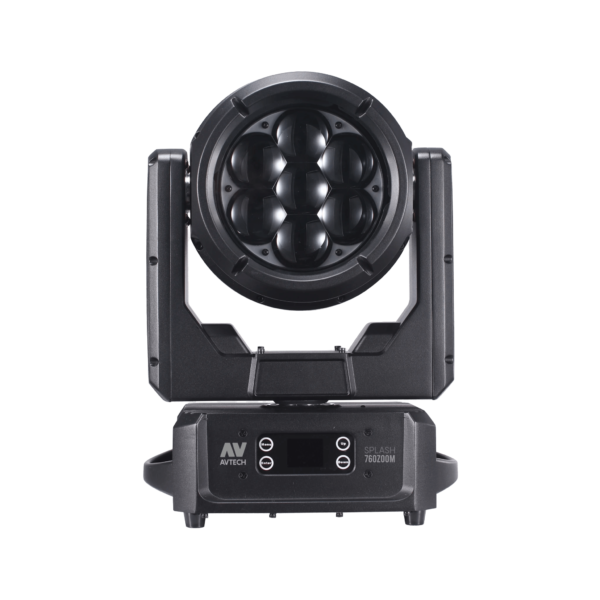

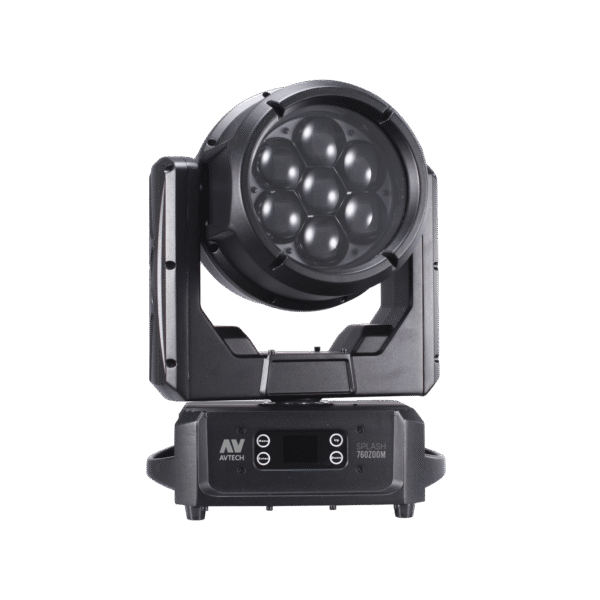

The SPLASH760ZOOM is a 520W LED WASH moving head, it features 7 high-powered RGBW Osram Ostart LEDs and 28 additional RGB LEDs as background lighting, providing a luminous output of 28,000 lumens at 3 degrees and 5 meters. The zoom range is from 3 to 45 degrees, with a motorized linear zoom for high-optical efficiency. It also offers CTO color temperature adjustment from 2500K to 8000K, and lens rotation for added versatility. The light also has pixel control and is compatible with DMX/RDM and ArtNet protocols. It has a mains power supply of 100-240V and 50/60Hz. Ideal for illuminating large spaces such as stages, concert venues, and TV studios

SKU: SPLASH760ZOOM Categories: , ,

Description

The SPLASH760ZOOM is a 520W LED WASH moving head, it features 7 high-powered RGBW Osram Ostart LEDs and 28 additional RGB LEDs as background lighting, providing a luminous output of 28,000 lumens at 3 degrees and 5 meters. The zoom range is from 3 to 45 degrees, with a motorized linear zoom for high-optical efficiency. It also offers CTO color temperature adjustment from 2500K to 8000K, and lens rotation for added versatility. The light also has pixel control and is compatible with DMX/RDM and ArtNet protocols. It has a mains power supply of 100-240V and 50/60Hz. Ideal for illuminating large spaces such as stages, concert venues, and TV studios.



Specifications

  • Light Source: 7*60W RGBW Osram Ostart LEDs +28pcs RGB Leds as background
  • Luminous: 28000lm@3°@5M
  • Zoom Range: 3° to 45° with a high-optical efficiency,motorised linear zoom
  • CTO: 2500K to 8000K
  • Lens Rotation: YES
  • Pixel Control: YES
  • Protocols: DMX/RDM and ArtNet (optional)
  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 520W
  • Dimensions (WxHxD): 456 x 310 x 263 mm
  • IP Range: IP65
  • Wight: 10.5 kg
