Description

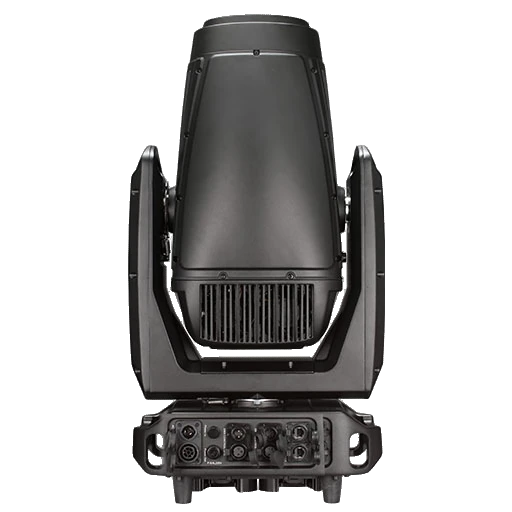

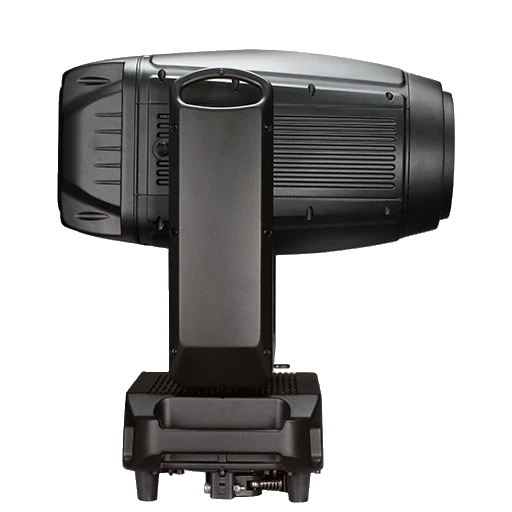

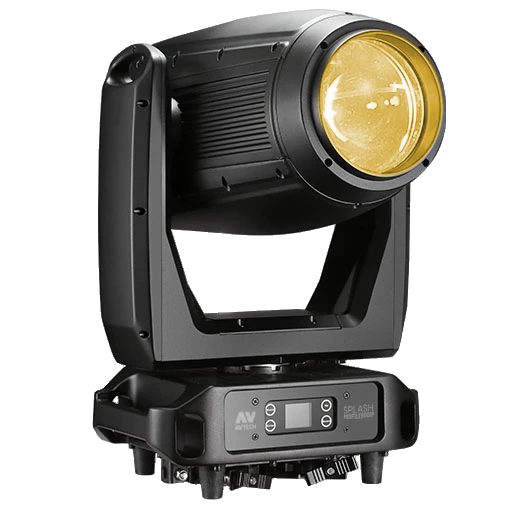

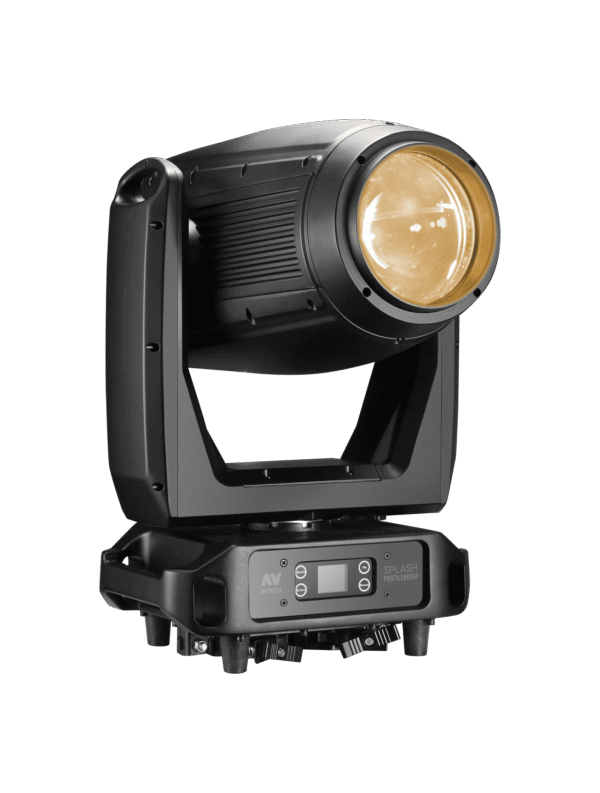

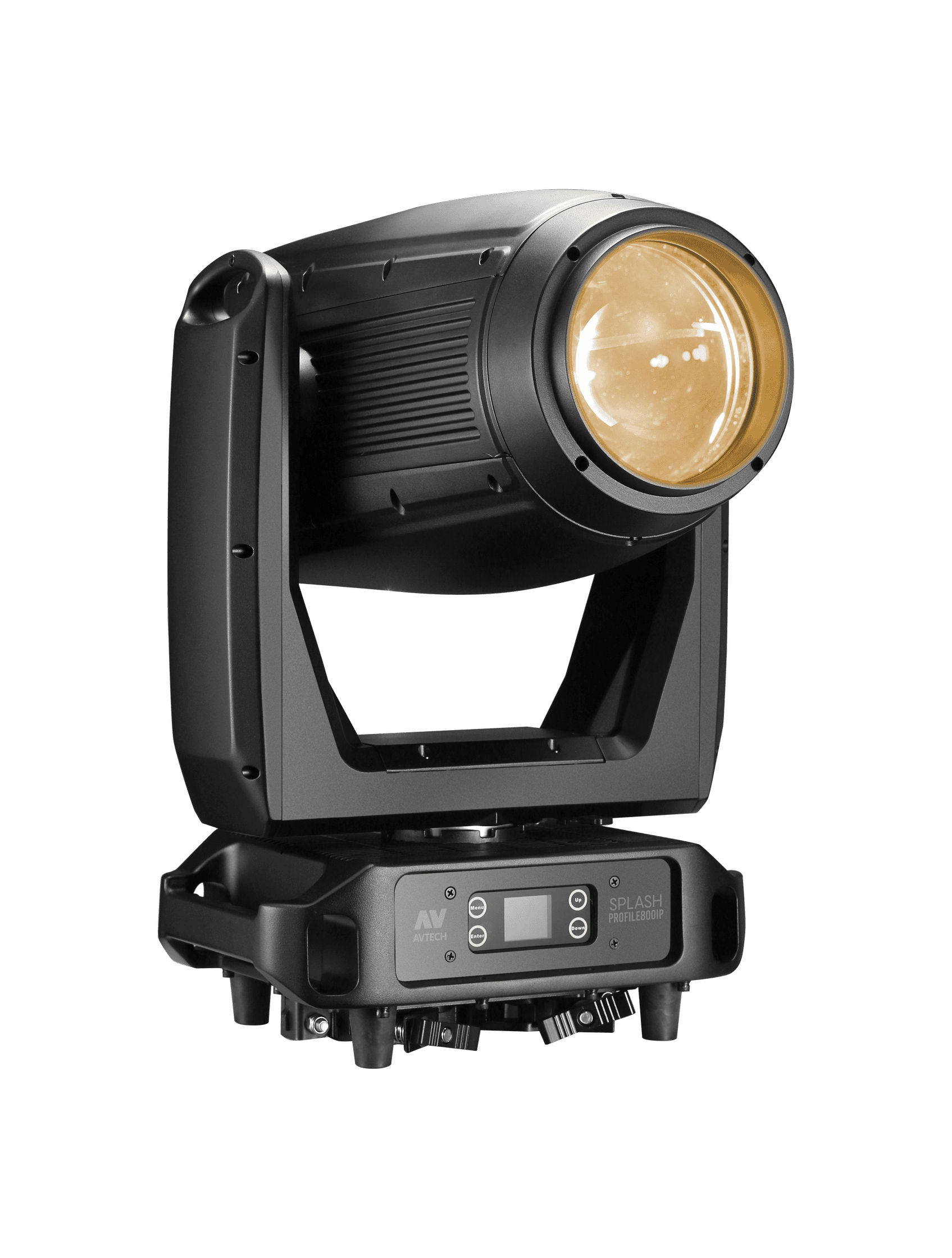

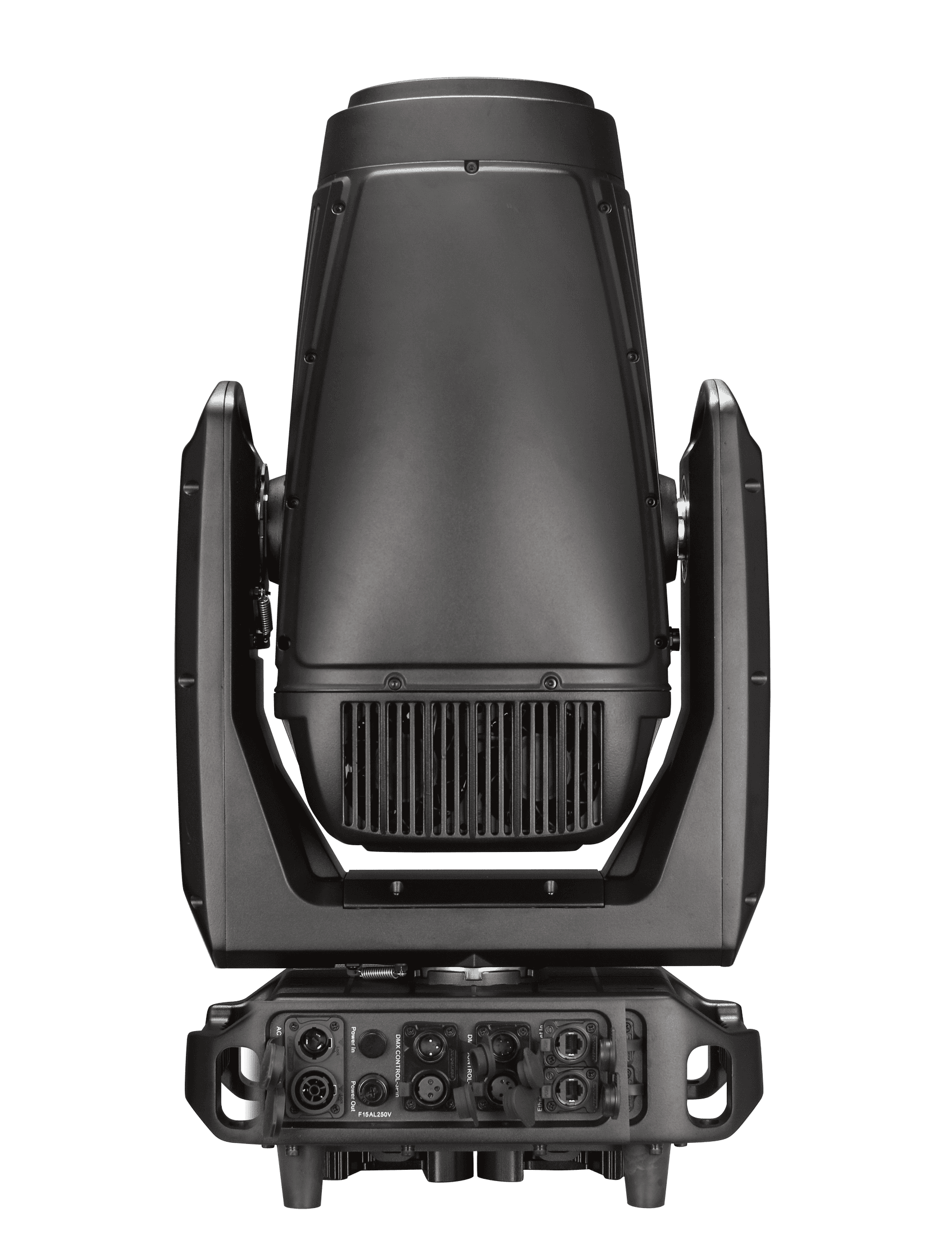

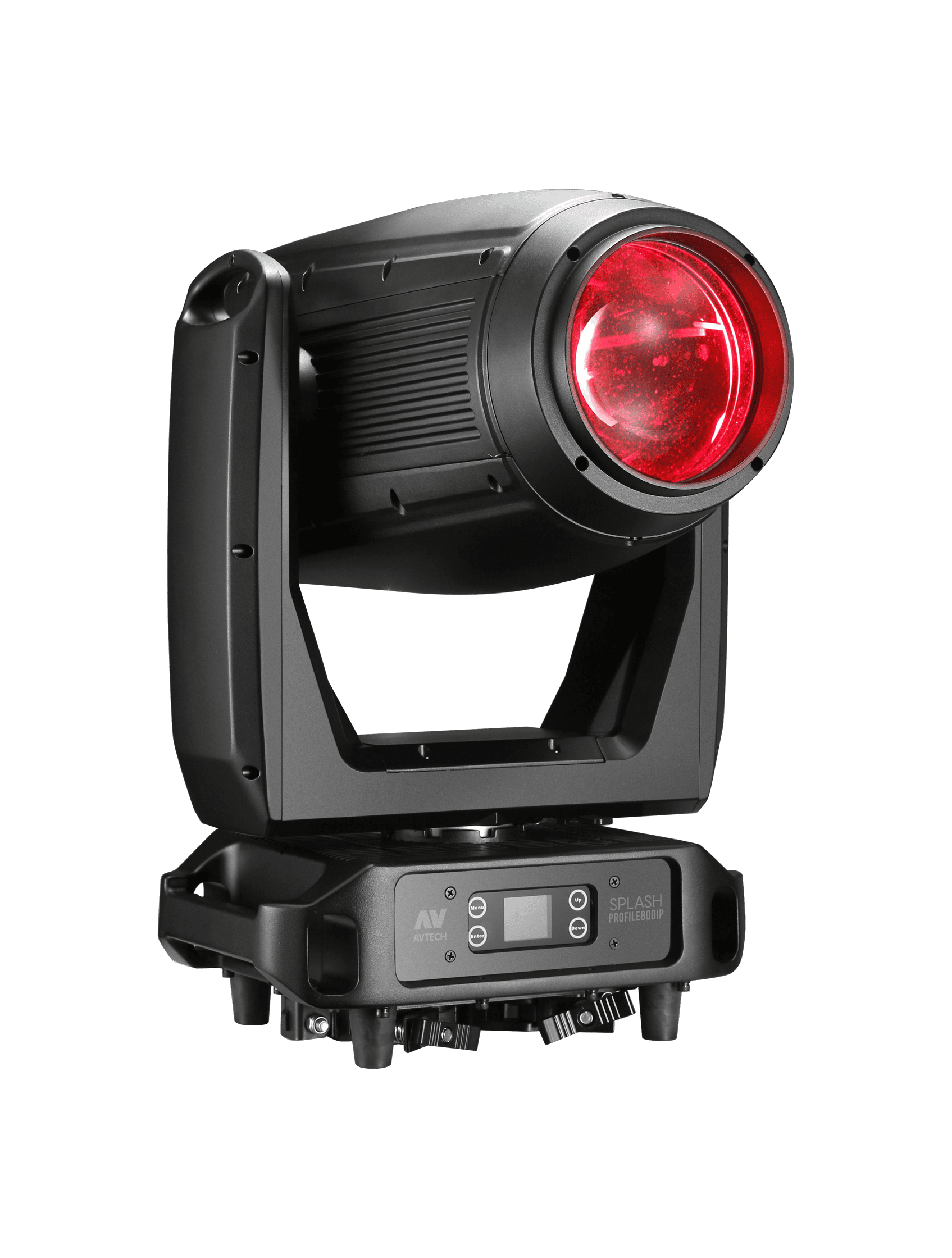

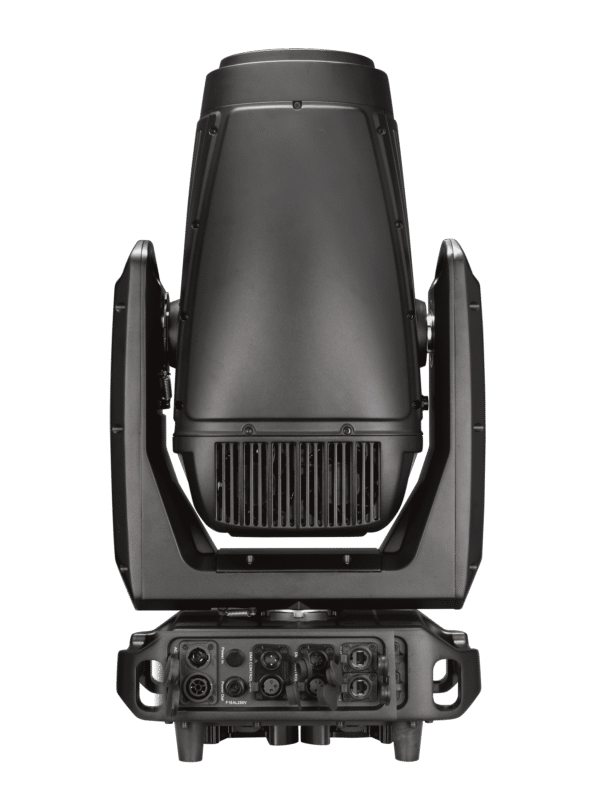

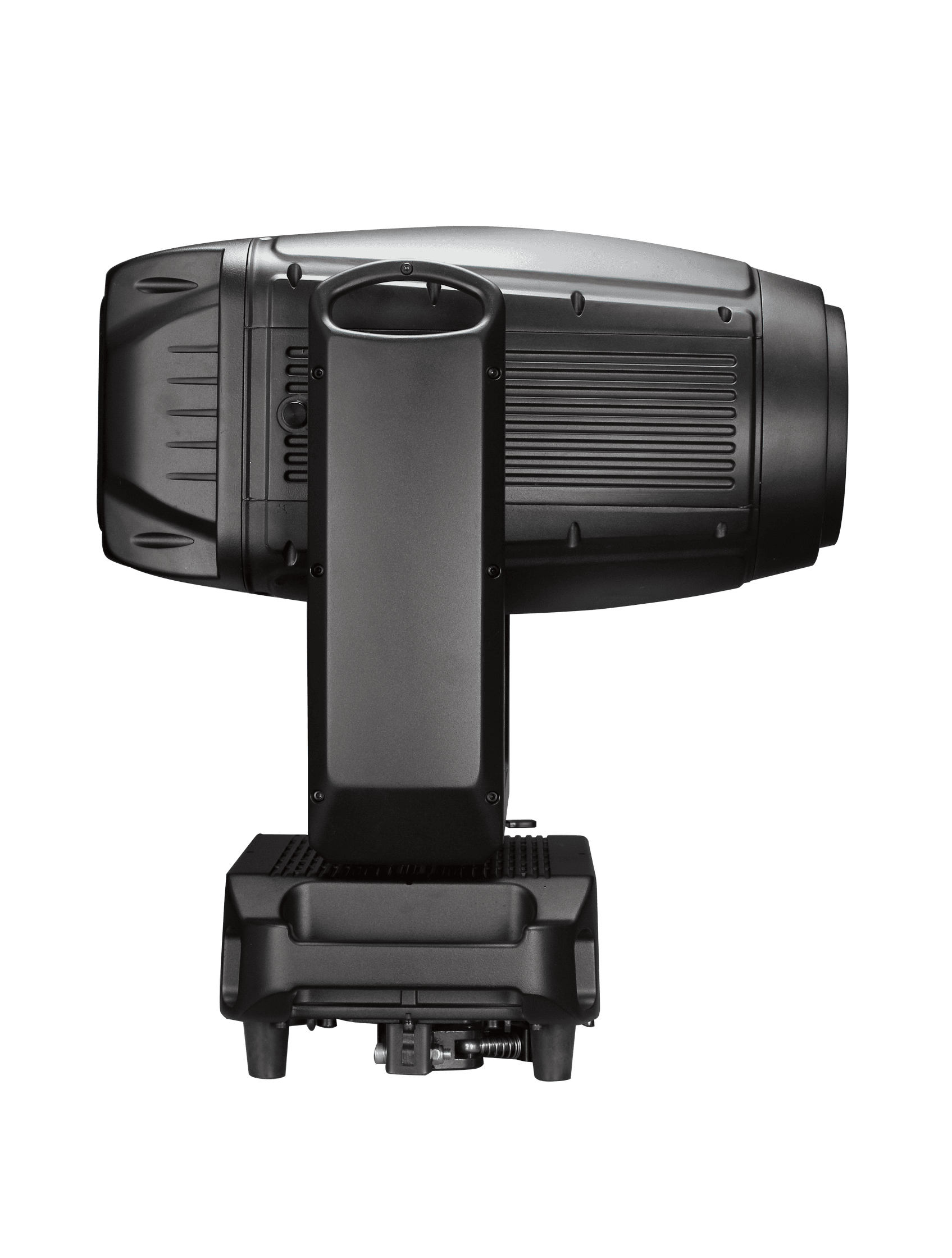

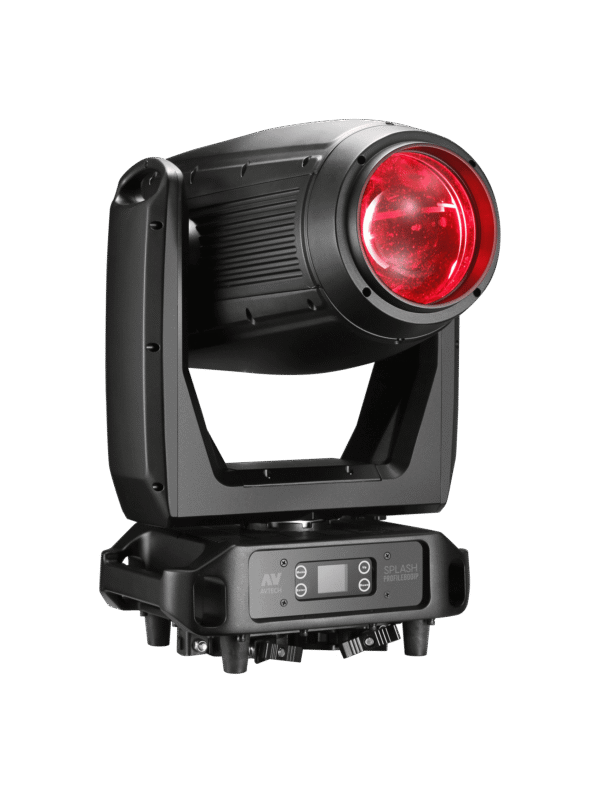

SPLASHPROFILE800IP is a high-performance 800W LED profile fixture engineered for the most demanding environments. Featuring a rugged IP65 weather-resistant rating, it delivers a powerful 31,500 lumens of output with professional-grade framing shutters and seamless CMY color mixing. It is the ultimate lighting tool for outdoor concert touring, stadium events, and high-end broadcast productions that require durability and precision optics.
Specifications
- LED Source: 800W Engine
- Luminous Flux: 31,500 lm
- Beam Angle: 5° – 45°
- Power Consumption: 970W
- Color Temperature: 7,000K (with linear CTO 2700K–7000K)
- CRI: Ra72 (High-Brightness) / Ra95 (High-CRI Mode)
- Color System: Infinite CMY + 5 colors + CRI filter
- Effects: Rotating Gobo Wheel (7), Static Gobo Wheel (8), Animation Wheel, Dual Prisms (4-facet + 4-line)
- Framing System: 4 independent blades with ±60° module rotation
- Protocols: DMX512, RDM, Art-Net, sACN
- Refresh Rate: 400 Hz – 24 kHz
- IP Rating: IP65
- Dimensions: 358 × 240 × 672 mm (Quick-lock version)
- Weight: 30 kg (Quick-lock) / 31.5 kg (Integrated clamp)
