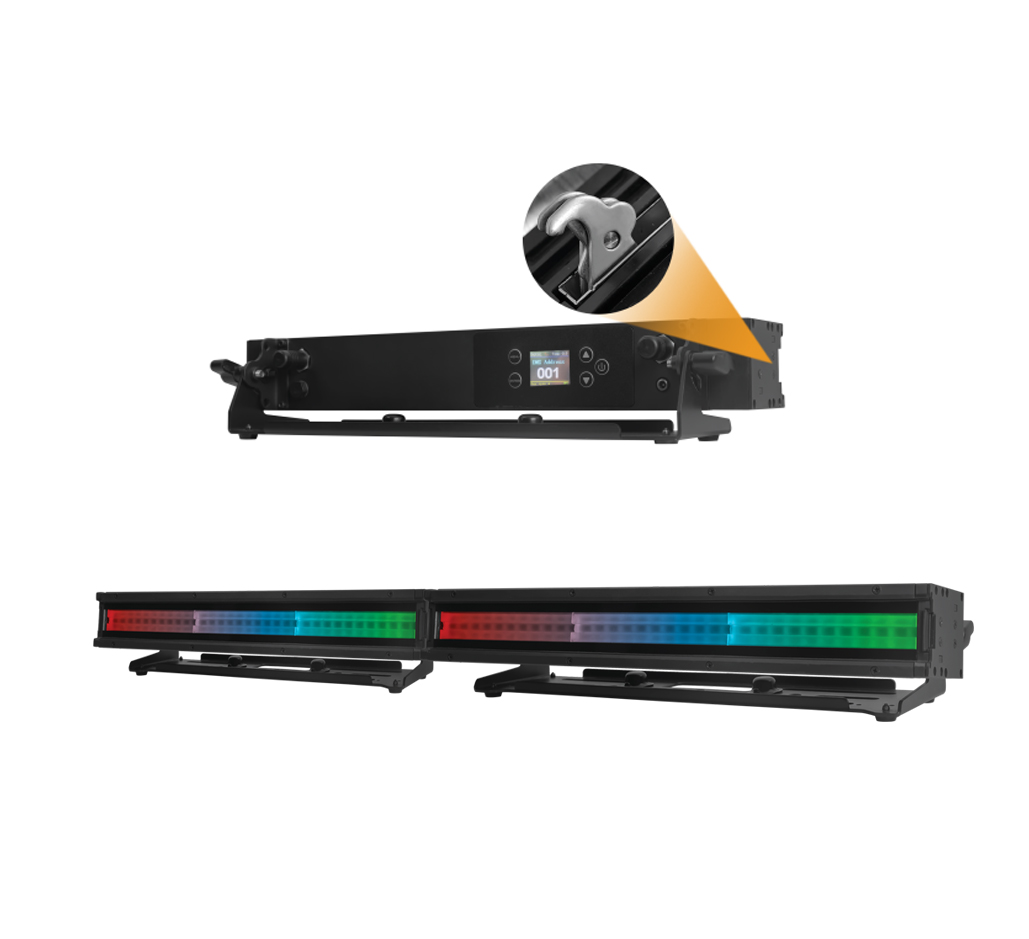

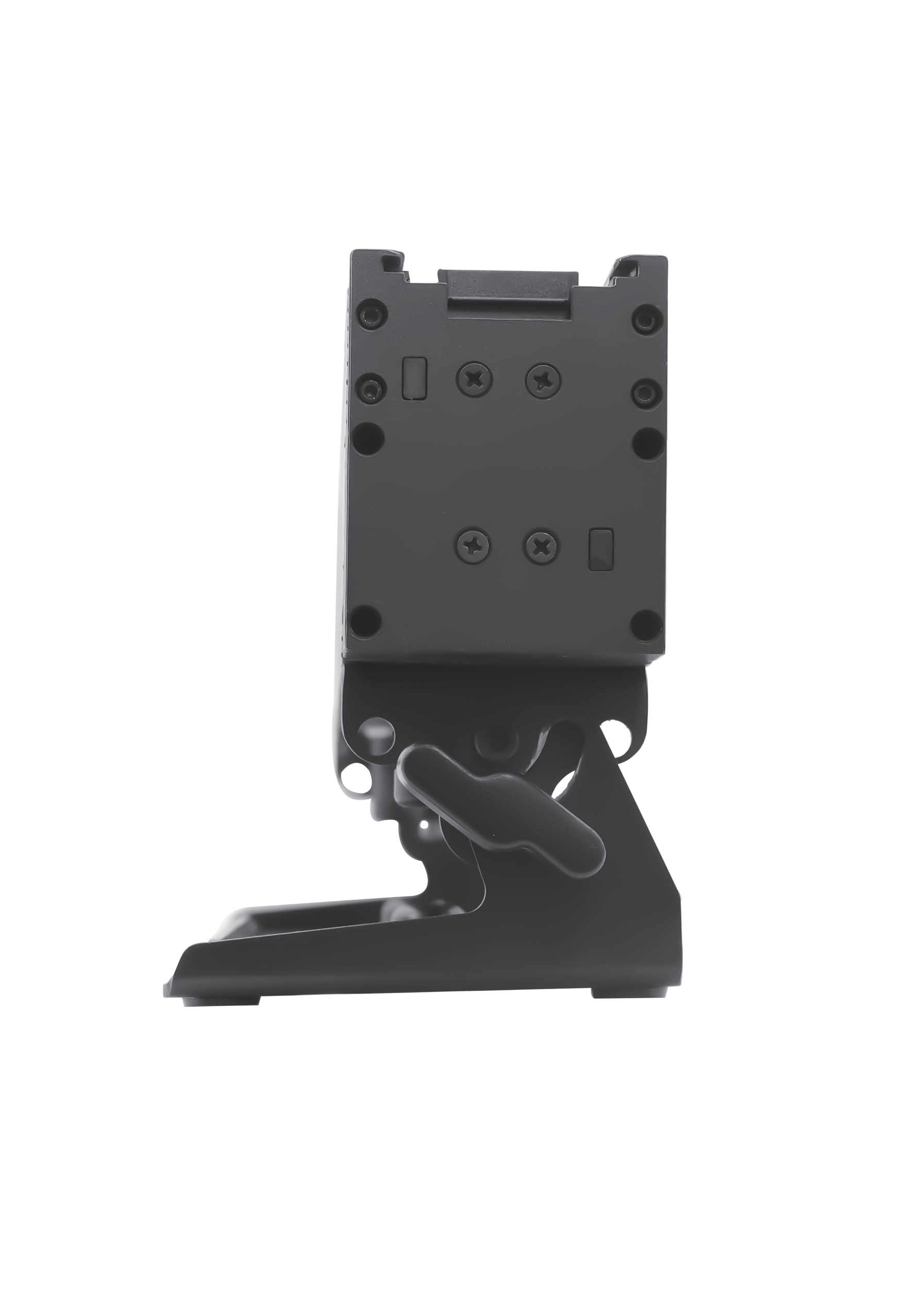

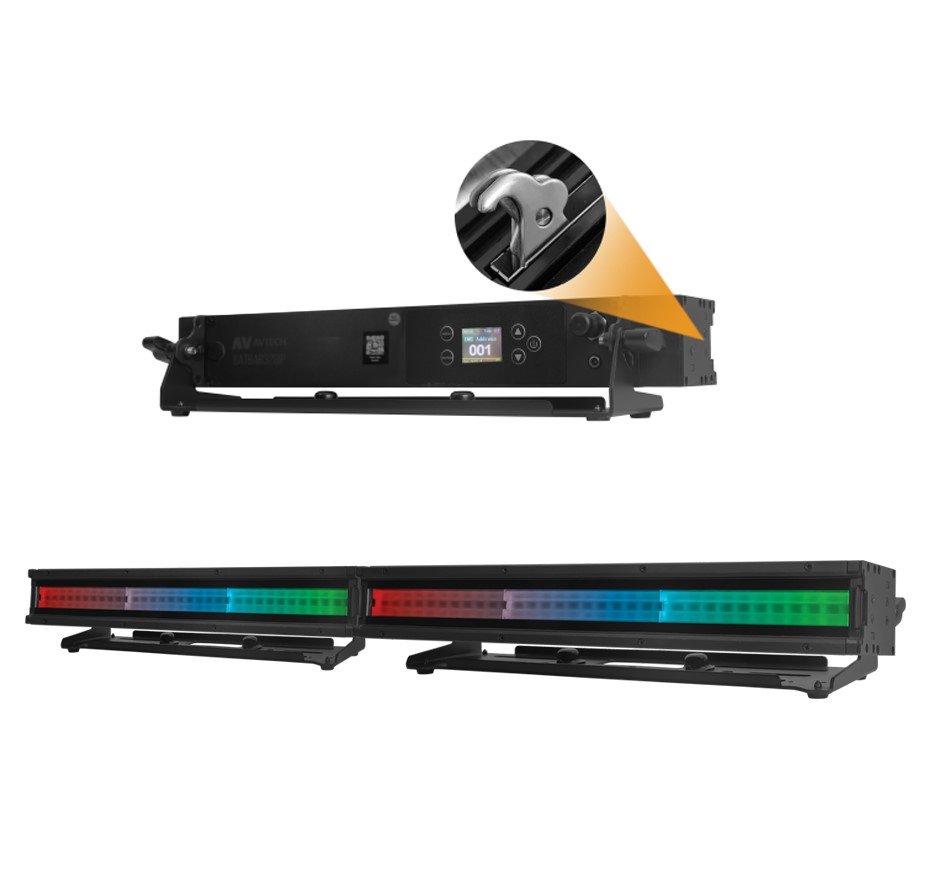

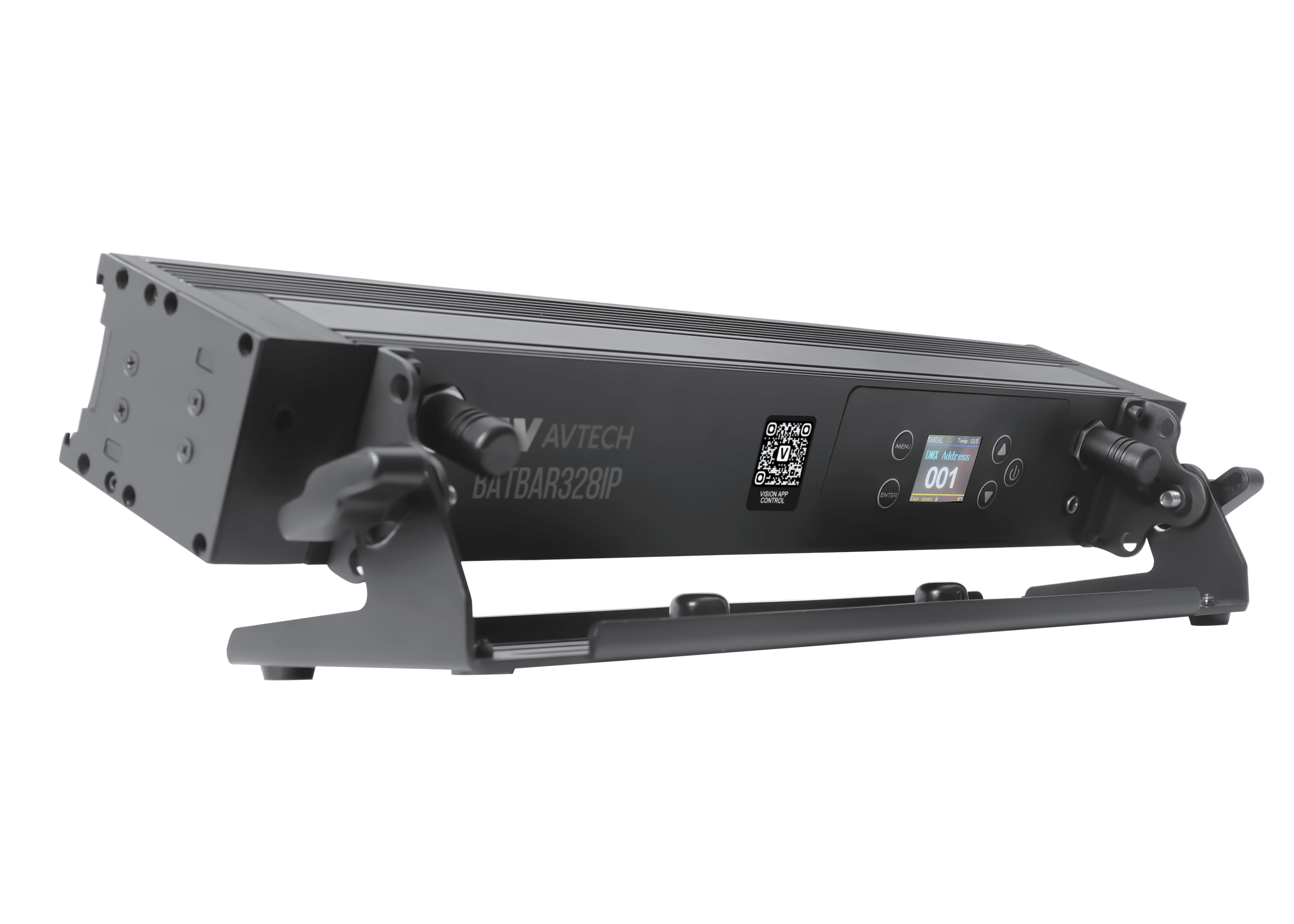

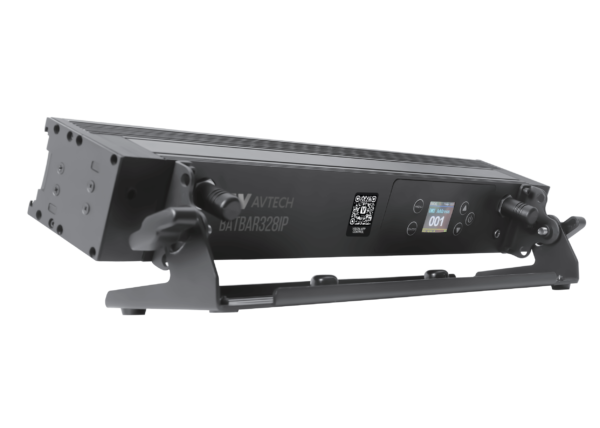

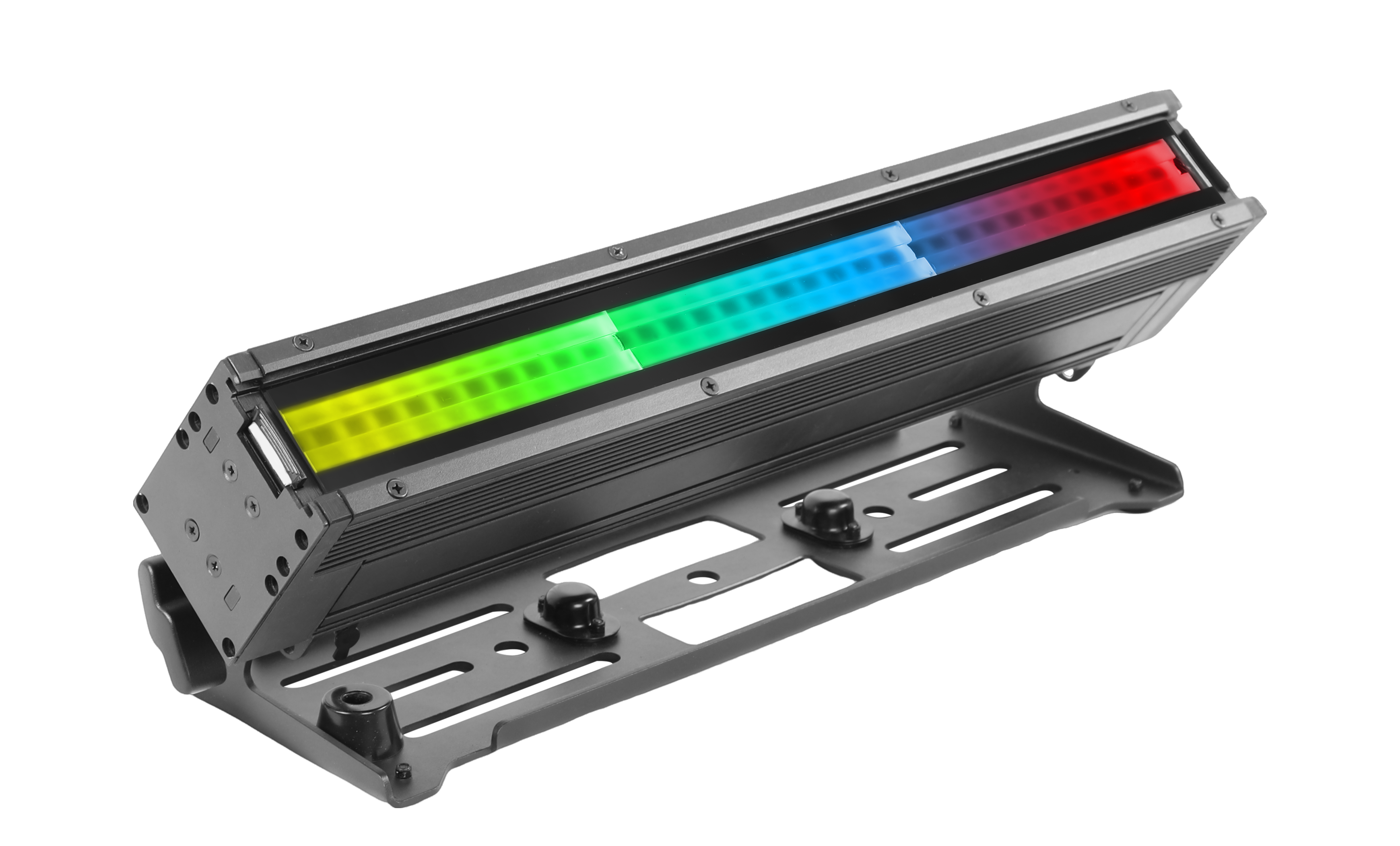

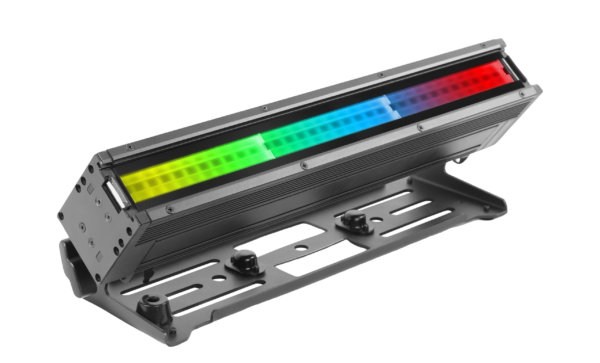

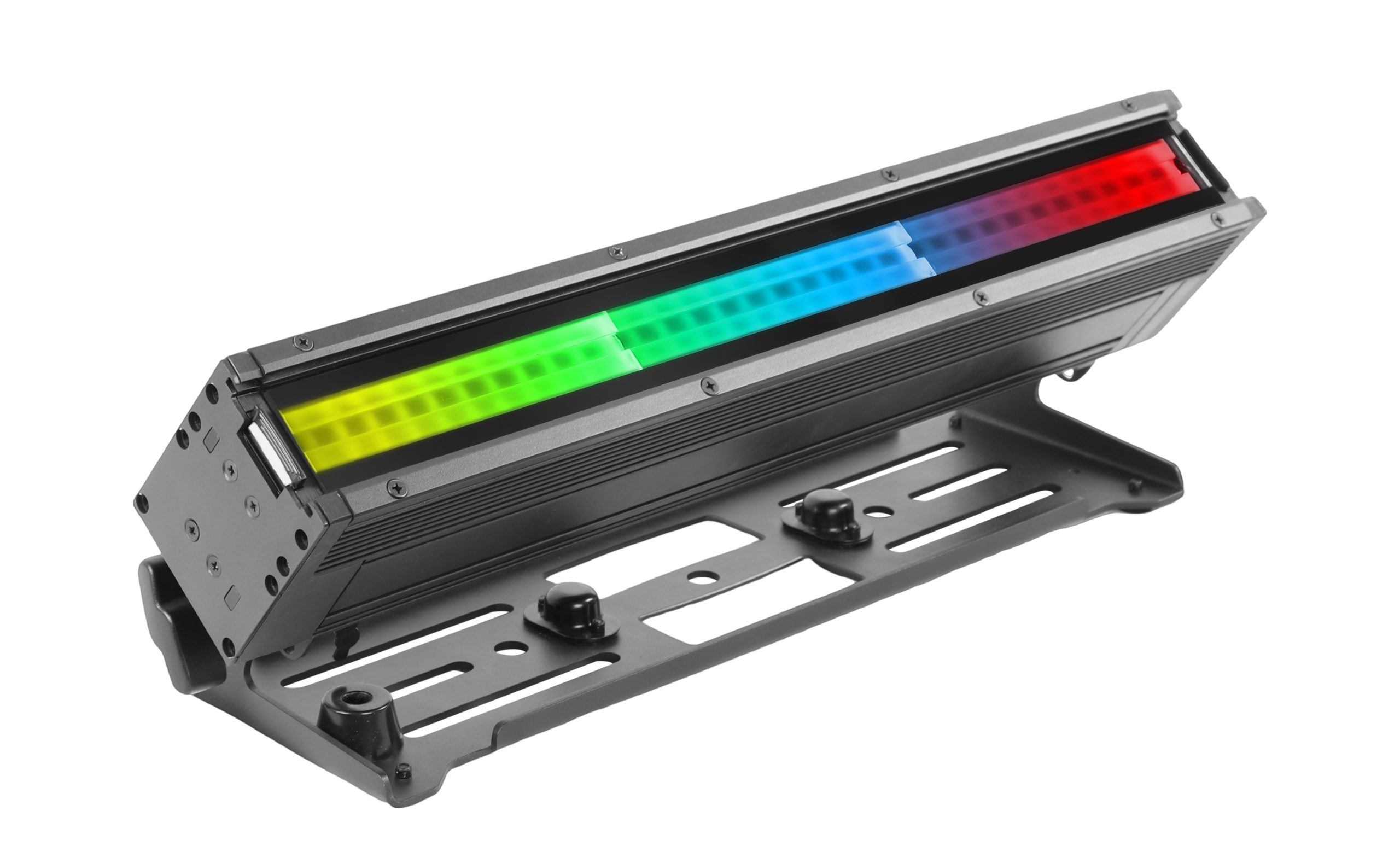

The BATBAR328IP is a high-performance, IP65-rated battery-powered LED pixel bar designed for professional lighting designers, rental companies, and event productions. Equipped with 32×8W RGB+L LEDs and precision 8-section control, this versatile fixture delivers rich, vibrant color mixing and outstanding brightness with a CRI of up to 90.
With built-in wireless DMX and Bluetooth control options, a durable aluminum housing, and long-lasting lithium battery power, the BATBAR328IP is the perfect solution for both indoor and outdoor applications. Ideal for concerts, architectural lighting, stage productions, and mobile events, it combines innovative technology with user-friendly features to deliver unmatched creative freedom and operational flexibility.
LED Configuration: 32×8W RGB+L LEDs with high-efficiency output and exceptional color mixing.
Specifications
- LED: 32 × 8W RGB+L LEDs
- Lens: Standard 30°
- Field of View: 110° spot angle
- Built-in Effects: Color mixing, dimming curves, strobing (0-20Hz), auto programs
- Lens Material: Optical-grade lens with tempered front glass
- Power: 65W (Max)
- Input Voltage: DC 18V
- Power Supply Unit: Adapter with auto-ranging input (included)
- Battery: Lithium Battery
- Charging Time: 10 Hours
- Runtime: 3-4 Hours at Full Power / 7 Hours in Auto Mode
- Control Protocol: DMX 512 & RDM (9 DMX modes: 3/4/8/12/16/17/17D/32/41 CH)
- Display: and Setting: LCD Display with Flip Function and Manual Buttons
- Slide Filter: Frost filter (optional)
- Separately Control: Optional Bluetooth and Wireless DMX (LumenRadio or Generic wireless)
- Run Mode: DMX 512 / Manual / Auto / Wireless
- Color: Options: Fine sand black (RAL 9004)
- Cooling: Passive chassis cooling
- Safety Features: 4 safety wire connection points
- IP Rating: IP65 Rated
- Material: Aluminum Body
- Dimensions: 516 × 130 × 167 mm
- Weight: 4.4 kg
- Experience Next: level creativity with the <strong data-start=”1158″ data-end=”1173″>BATBAR328IP</strong>, a rugged and highly adaptable LED pixel bar designed to meet the demands of today’s dynamic lighting environments. Featuring <strong data-start=”1300″ data-end=”1320″>32×8W RGB+L LEDs</strong> and <strong data-start=”1325″ data-end=”1349″>8-zone pixel control</strong>, it offers exceptional color rendering, precision dimming, and flexible programming options. Whether you’re lighting a stage, accenting architecture, or enhancing a live event, the BATBAR328IP provides the reliability and performance needed to stand out. <strong>Specifications</strong> <ul> <li>LED: 32 × 8W RGB+L LEDs</li> <li>Lens: Standard 30°</li> <li>Field of View: 110° spot angle</li> <li>Slide Filter: Frost filter (optional)</li> <li>Power: 65W (Max)</li> <li>Voltage: DC 18V</li> <li>Input Voltage: DC Connector</li> <li>Battery: Lithium Battery</li> <li>Charge Time: 10 Hours</li> <li>Working Time: 3-4 Hours at Full Power / 7 Hours in Auto Mode</li> <li>Built-in Effect: Color mixing, dimming curves, strobing (0-20Hz), auto programs</li> <li>Control: DMX 512 & RDM (9 DMX modes: 3/4/8/12/16/17/17D/32/41 CH)</li> <li>Separately Control: Optional Bluetooth and Wireless DMX (LumenRadio or Generic wireless)</li> <li>Run Mode: DMX 512 / Manual / Auto / Wireless</li> <li>Power Supply Unit: Adapter with auto-ranging input (included)</li> <li>Color Options: Fine sand black (RAL 9004)</li> <li>Cooling: Passive chassis cooling</li> <li>Safety Features: 4 safety wire connection points</li> <li>Display and Setting: LCD Display with Flip Function and Manual Buttons</li> <li>Waterproof: IP65 Rated</li> <li>Lens Material: Optical-grade lens with tempered front glass</li> <li>Material: Aluminum Body</li> <li>Dimensions: 516 × 130 × 167 mm</li> <li>Weight: 4.4 kg</li> </ul> <h2></h2> <h2></h2> <div class=”div-downloads”> <h2 class=”downloads”>Downloads</h2> </div>
