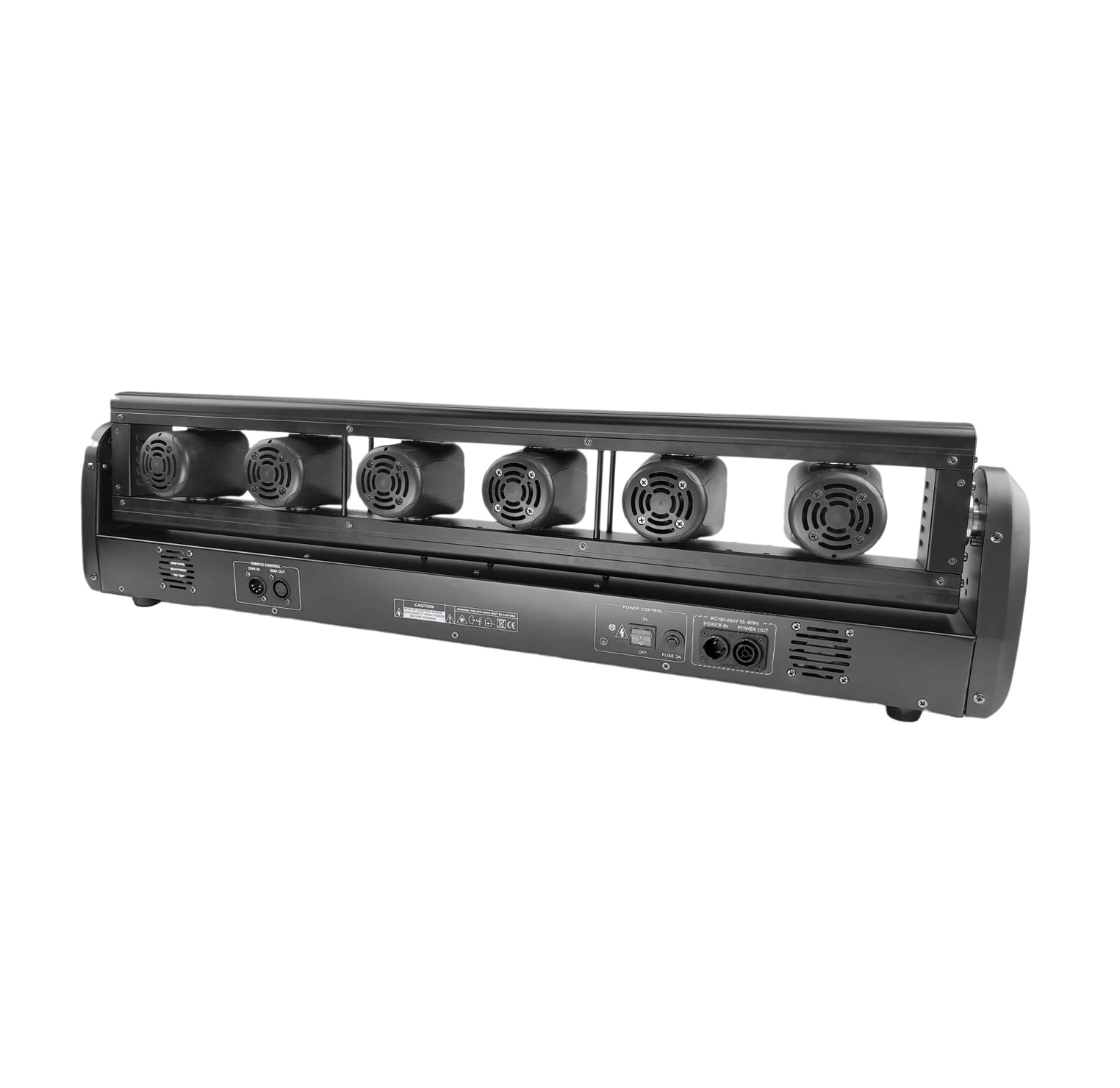

Professional 6-Head Full-Color Laser System
Take your lighting production to the next level with the LASERARRAY6RGB. This professional-grade laser bar combines six high-intensity RGB laser sources into a single, sleek fixture, capable of creating massive “fan” effects, razor-sharp tunnels, and rhythmic waves that cut through any atmosphere.
Dynamic Performance & Precision Engineered for versatility, the LASERARRAY6RGB features high-torque stepper motors providing a smooth 180° tilt, allowing you to sweep the entire room with light. With analog modulation, you get smoother color transitions and a more sophisticated palette compared to standard TTL lasers.
Specifications
- Power Consumption: ≤200W
- Power: Connector: PowerCon In & Out
- DMX Channels: 14 / 35 / 42 CH
- Control Modes: Sound / Automatic / DMX512 / Master-slave
- Control Protocol: Technology: RDM bidirectional data transmission & DMX512 upgradeable
- Display: Full-color LCD
- Massive Visual Impact: 6 independent heads projecting wide, ultra-bright RGB beams.
- Flexible Control: Sound, Auto, Master-Slave, and DMX512 modes.
- Advanced Hardware: Equipped with 7 high-torque stepper motors for fast, fluid movement.
- Professional Connectivity: PowerCon In/Out for easy daisy-chaining and a full-color LCD for intuitive navigation.
- Universal Application: The perfect centerpiece for clubs, touring bands, mobile DJs, and medium-sized event spaces.
- Rated Voltage: AC100~240V 50/60Hz
- Laser Color: RGB Full Color
- Beam Diameter: φ15mm
- Motor: 7pcs 42 high torque stepper motors
- Modulation: Analog
- Rotation: Y-axis 240° rotation / Individual heads 140° rotation
- Application: Indoor small to medium events
- Function Modes: DMX, Auto, Sound, M/S
- Dimensions: 931 x 109 x 237 mm
- Weight: 13kg
