Description

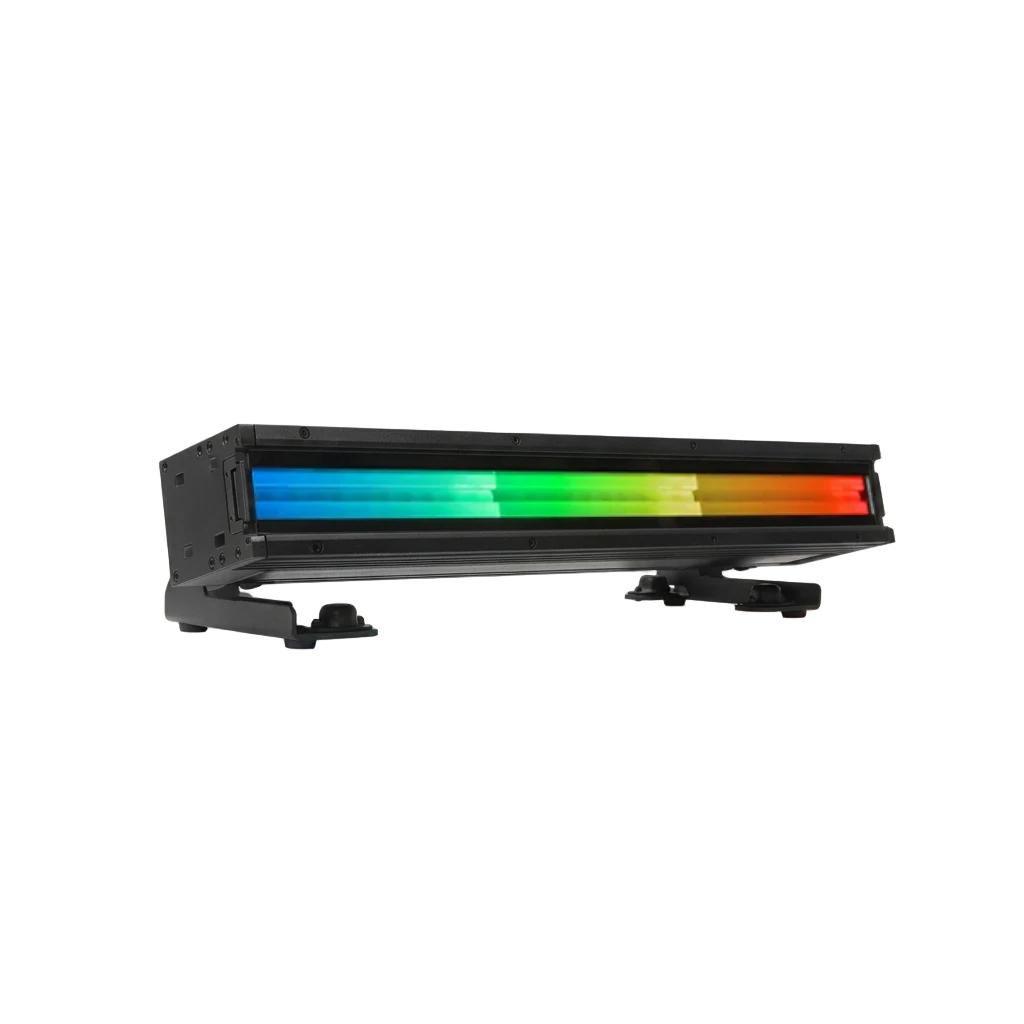

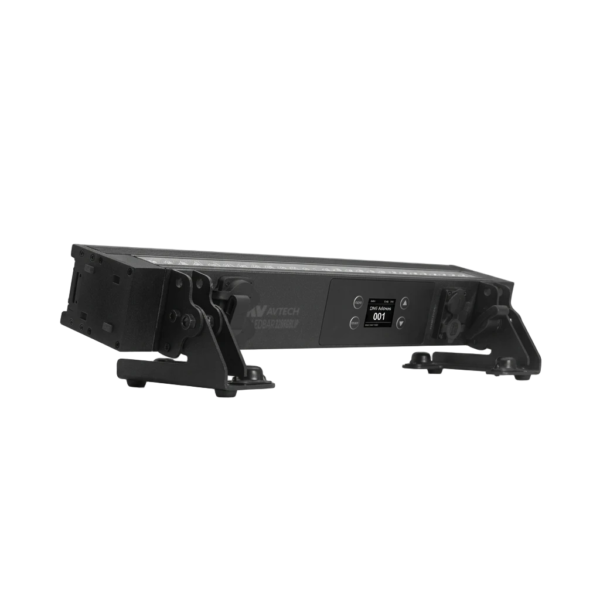

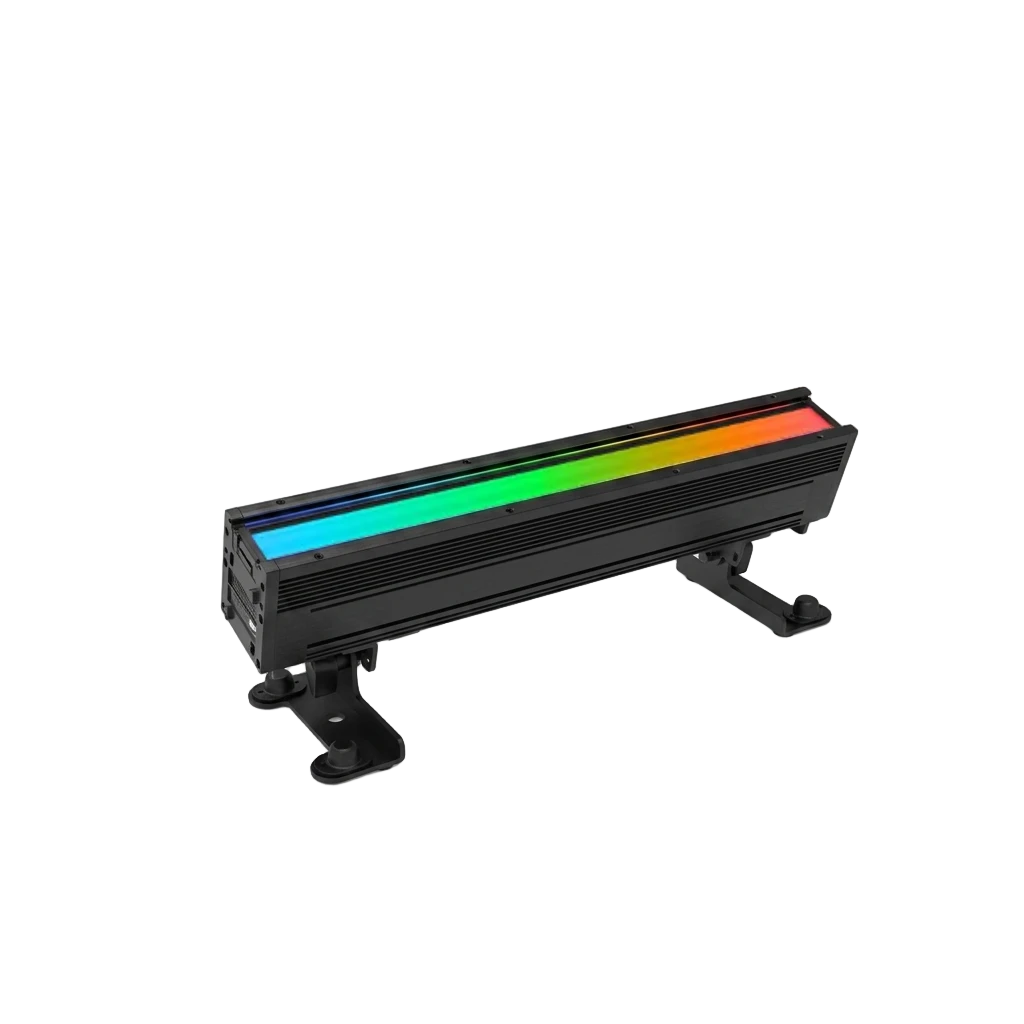

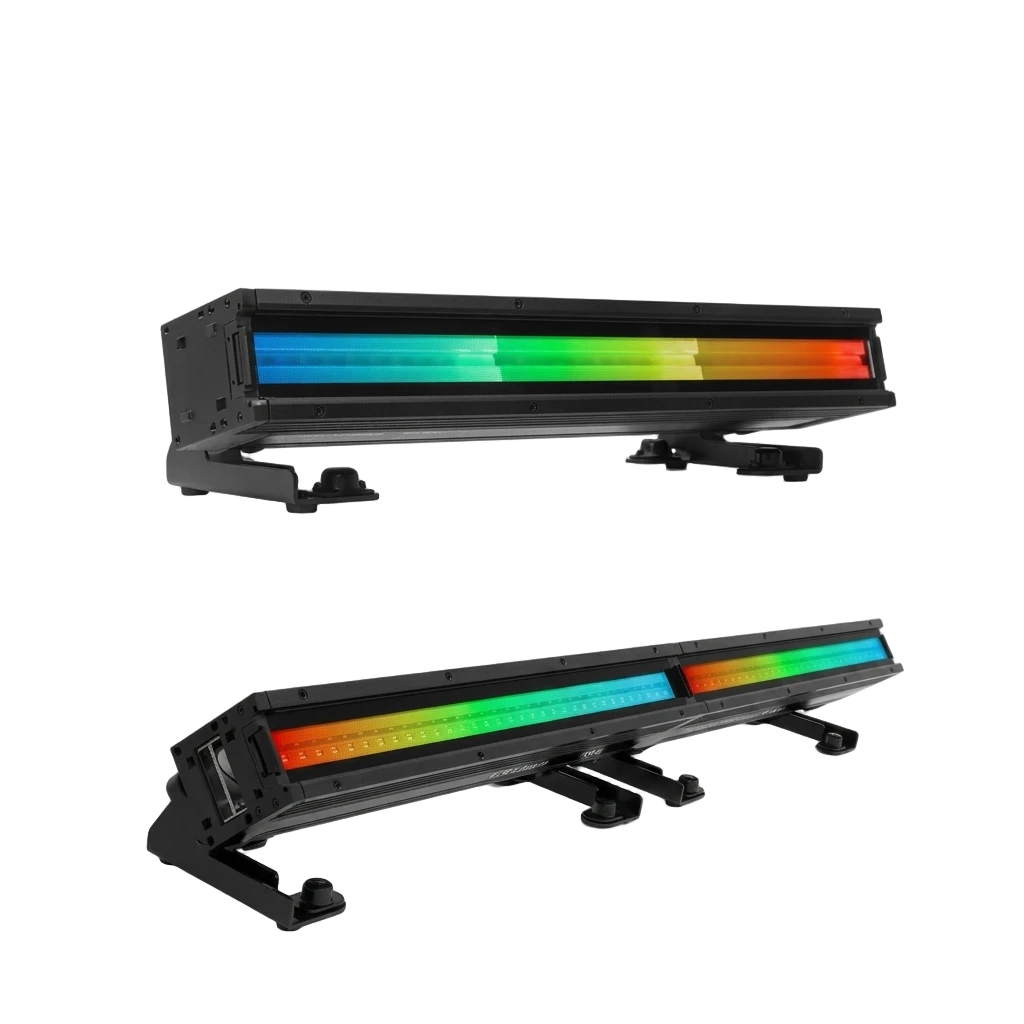

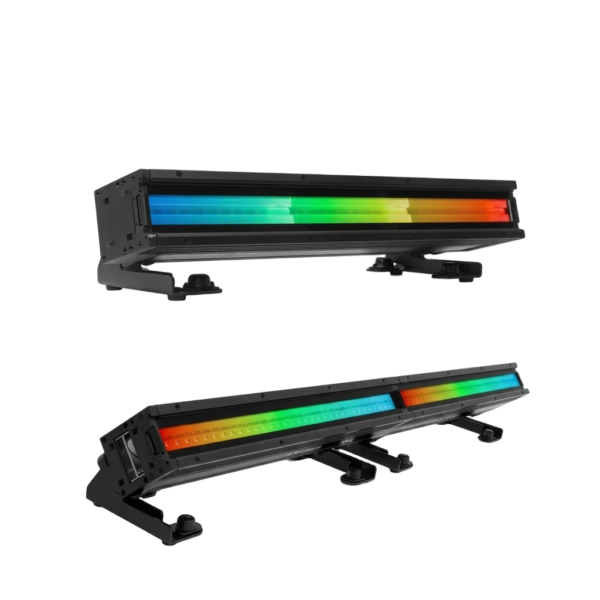

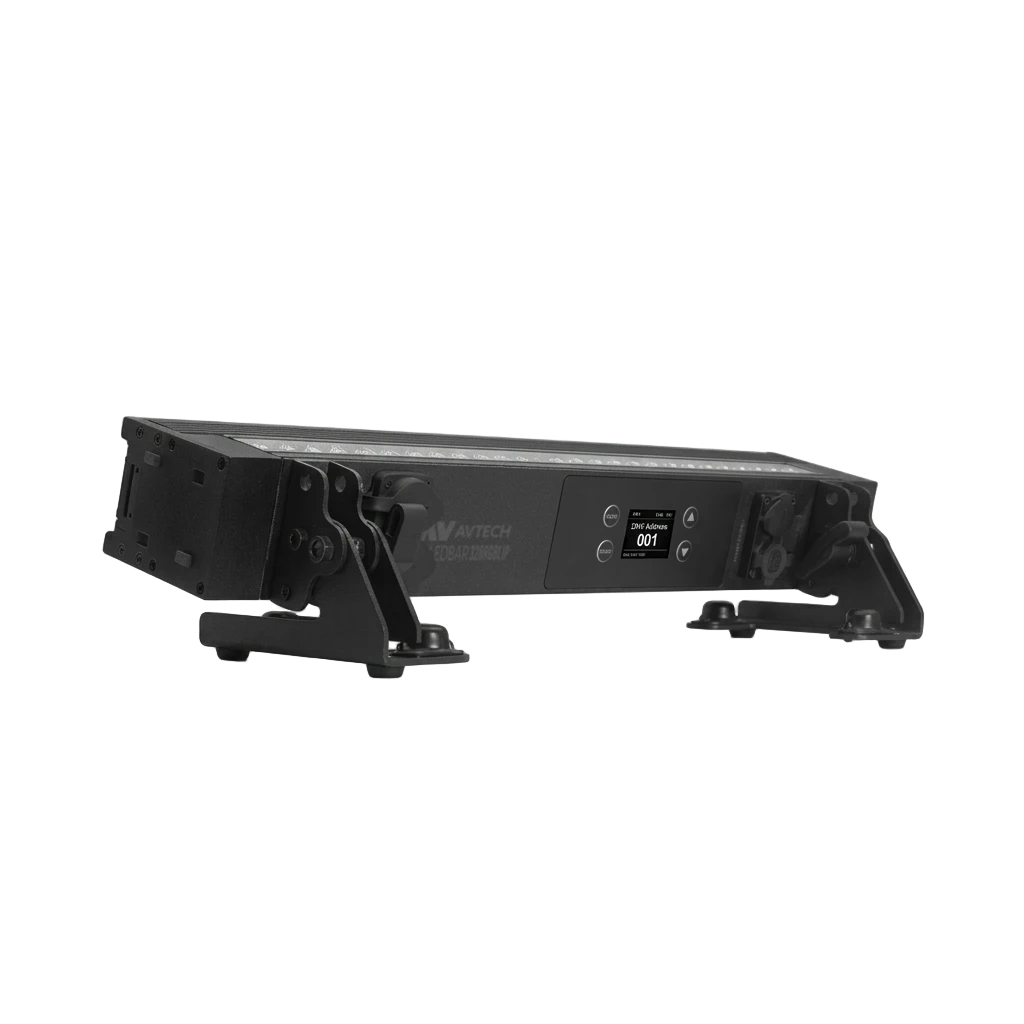

The LEDBAR328RGBLIP provides a versatile and powerful solution for facade and stage lighting where space is limited but maximum color accuracy is required. With its 32x8W RGB+L configuration, the addition of the Lime (L) LED enables high-quality white tones (CRI ≥90) and rich pastel shades that are unattainable with standard RGB systems. It features 8 independent pixel-mapping sections, full compatibility with DMX, RDM, and Mobile App control, and a quick-setup mounting system with internal magnets to ensure perfect alignment between units. Its magnesium-aluminum alloy chassis ensures long-term durability and excellent thermal management for outdoor environments.
Specifications
- Light Source: 32 x 8W RGB+L LEDs (Red, Green, Blue, Lime)
- Luminous Flux: 5,468 LM
- CRI/Ra: ≥90
- Color Temperature Range: 2500K – 10000K
- Native Beam Angle: 60° x 10°
- Pixel Control: 8 Independent Sections
- Control Protocols: DMX512-A, RDM, App Control, 2.4G Remote
- DMX Channels: 3 / 4 / 8 / 12 / 16 / 17 / 17D / 32 / 41 CH
- PWM Frequency: Adjustable from 600Hz to 25,000Hz (Flicker-free)
- Tilt Adjustment: 0 – 90° Manual
- Protection Rating: IP65 / IK07
- Construction: Magnesium-Aluminum Alloy
- Power Consumption: 80W Max
- Input Voltage: 100 – 240V, 50/60Hz
- Dimensions: 516 x 140 x 173 mm
- Net Weight: 4.3 kg
