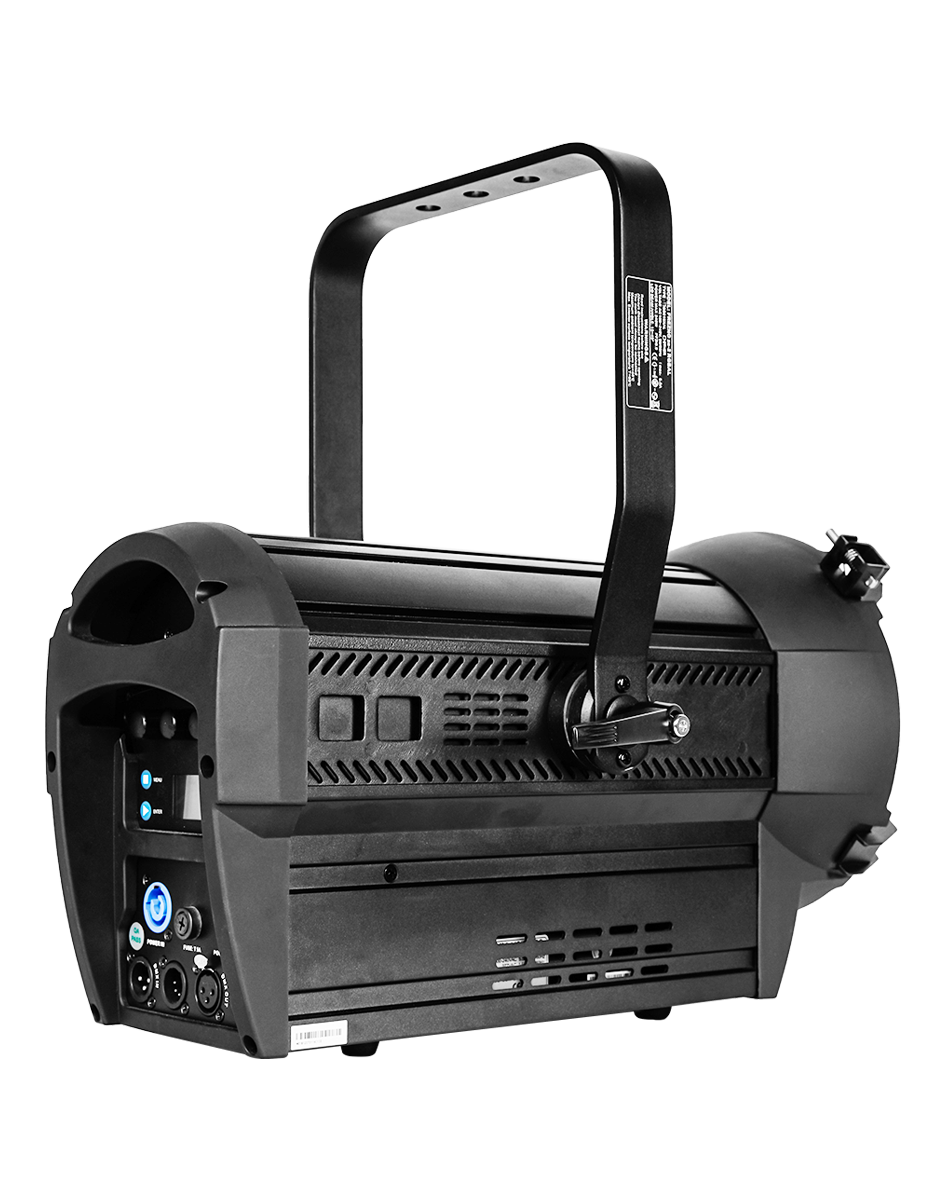

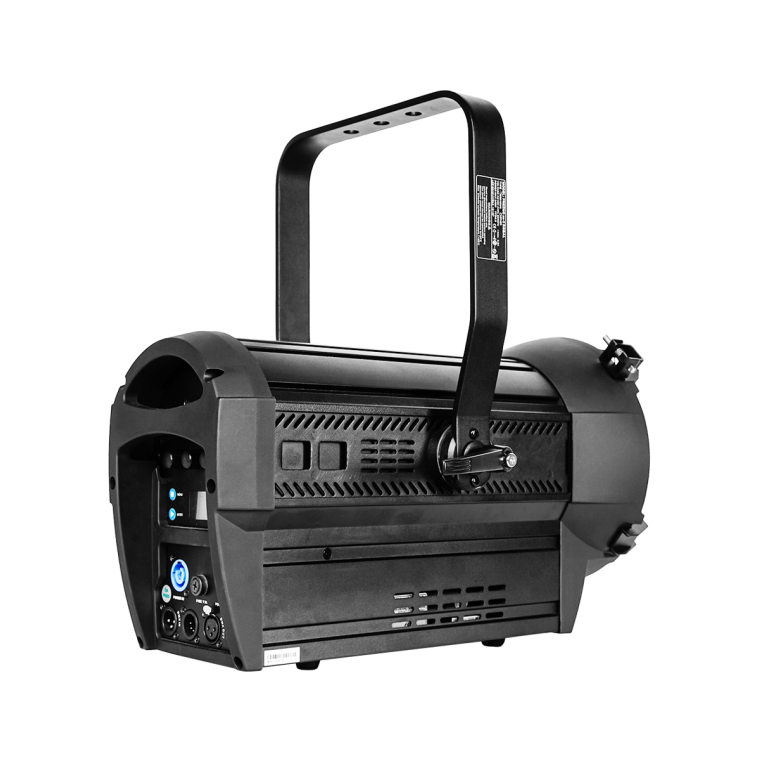

As an innovative 5 color Fresnel, LUNA.FR2XAL is applied with high-effective optics system, thus generating in excellent color-mixing performance. With HSIC intelligent system, you can mix any color you wanted easily. Color temperatures from 27OOK to 8OO0K, 16 kinds of professional color are programmed. It is an ideal product for professional lighting in TV station, studio, exhibition, conference hall, theater etc.
Specifications
- Light Source: 200W LED RGBAL.
- Color Temperature: 2700K, 8000K.
- CRI: Ra ≥90.
- CQS: >90.
- Beam Angle: 15°-45°.
- Input Voltage: 100-240VAC, 50/60Hz.
- Power: 240W.
- Drive Current: 1.5.
- Dimming: 0-100%16Bit.
- Control Protocol: DMX 512, RDM.
- Display: On board Control, 0-25Hz Strobe.
- DMX Modes: HSIC(8CHS), SSP (10CHS), TOUR (13CHS), TR16(19CHS).
- Cooling: Forced Convection.
- Dimensions: 810x285x261mm.
- Weight: 7.6kg.
- Material: Extruded aluminum.
- Color: Black.
- Operating Temperature: 0°C-45°C.
- IP Rating: IP20.
- Power Connection: Power in/out.
- DMX Connection: DMX in/out.
- CE, MET.
| AVOLITES | |
|---|---|
| AVTECHSMART_LUNAFE2TU.d4 | nDownload |
| AVTECHSMART_LUNAFR2XAL.d4 | nDownload |
| MA | |
| avtech_smart@[email protected] | Download |
| avtech_smart@[email protected] | Download |
| avtech_smart@[email protected] | Download |
| avtech_smart@[email protected] | Download |
| [email protected]@std.p.xml | Download |
| AVTECH_SMART@[email protected] | Download |
| AVTECH_SMART@[email protected] | Download |
