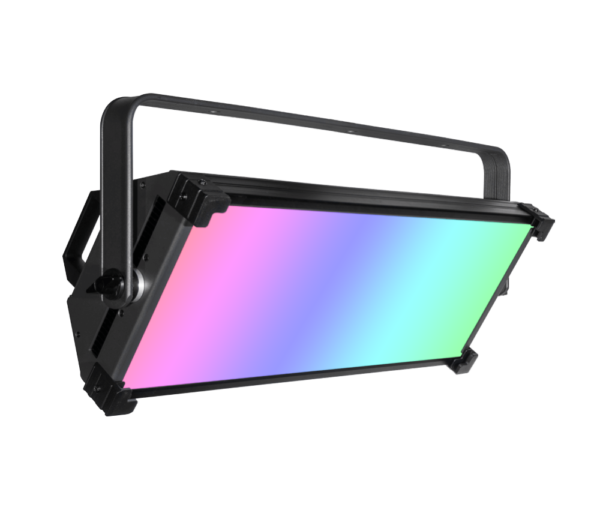

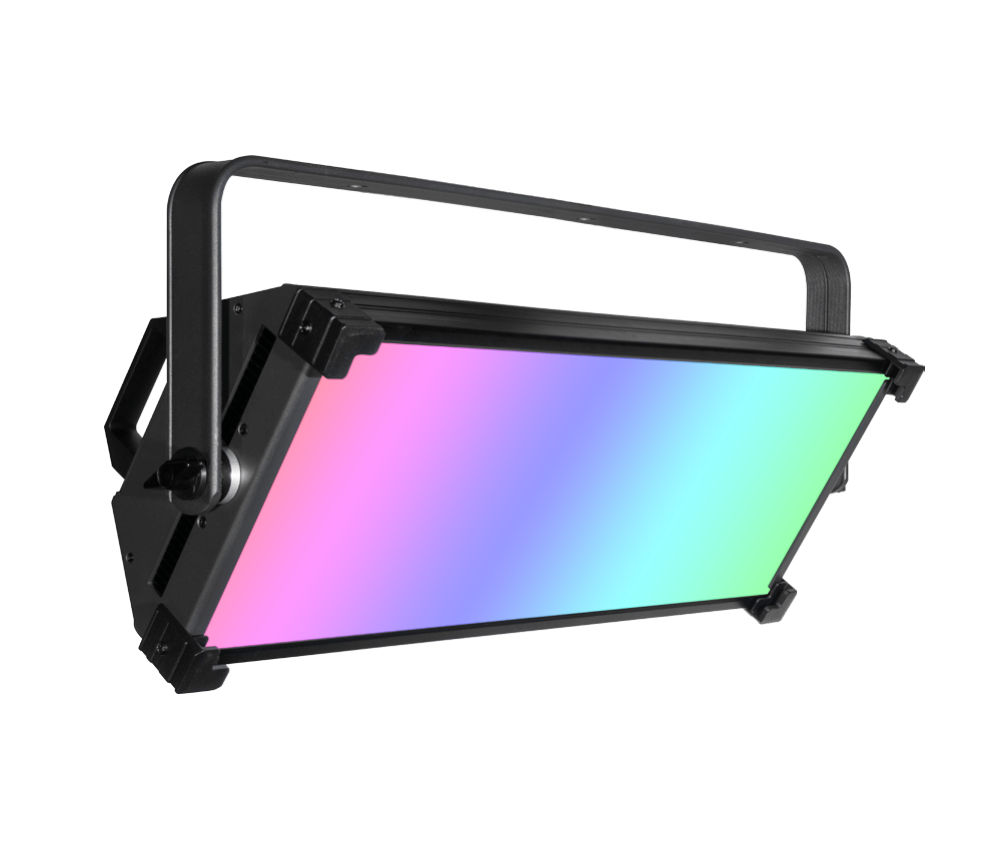

The PANEL300FC is a 300Watt full color RGBWW LED studio panel light. It has an even and wide wash effect, perfect control lighting area through the eight leaf barndoor accesory. Moreover, equipped with high output RGBWW LEDs, CRI >95, TLCI >98 brings excellent light quality.
It is specially designed for TV studios, video shootings. Full color RGBWW LED with wide color temperature range from 2800K up to 10000K, offering vivid colors and accurate white light, super bright, uniform coverage and even lighting, super silent operation for all circumstances, high CRI >95, TLCI >98, support DMX and RDM protocols, dimmer curves selectable, smooth dimming, flicker free operation, LCD display, dimmer frequency 1.2 – 20.0 KHz, 8 – leaf barn door.
Specifications
- Light Source: 4320pcs SMD RGBWW LED
- Beam Angle: 120°
- Color Temperature: 2800K – 10000K
- CRI/Ra: CRI >95, TLCI >98
- Power Supply: AC100 – 240V, 50/60Hz
- Power Consumption: 300W max (turbo mode)
- Frequency: 1.2 – 20.0 KHz
- DMX Channels: 2 / 7 / 11
- Control Modes: DMX, RDM
- Dimming Curves: selectable
- Lux: Full on 1000lux @2m
- Cooling: Forced air (low noise)
- Housing: Colour black, Aluminum
- Dimensions: 651 x 150 x 299mm
- Weight: 9.2 kg (barndoor incl.)
- Accessories(incl.): Power cable, Safety cable
- Accessories(opt.): Beehive diffuser, 8-leaf barndoor
- IP Rating: IP20

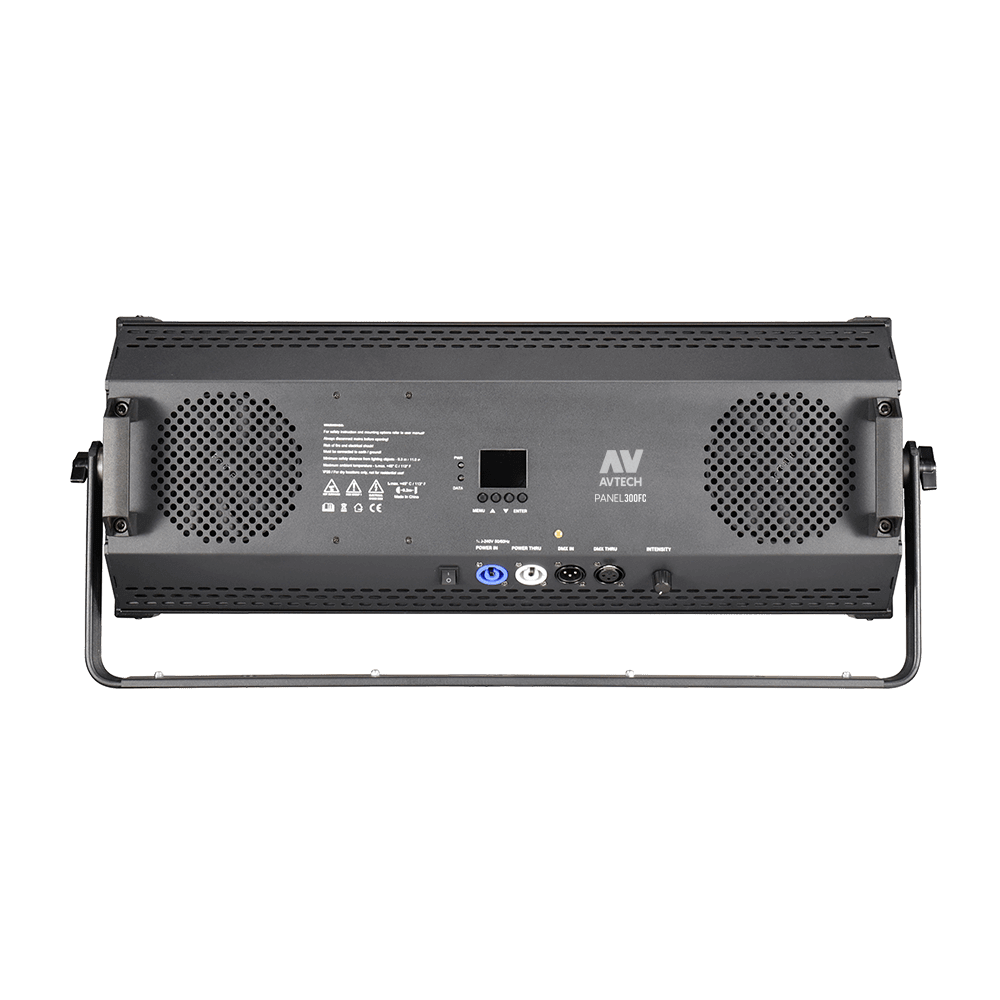

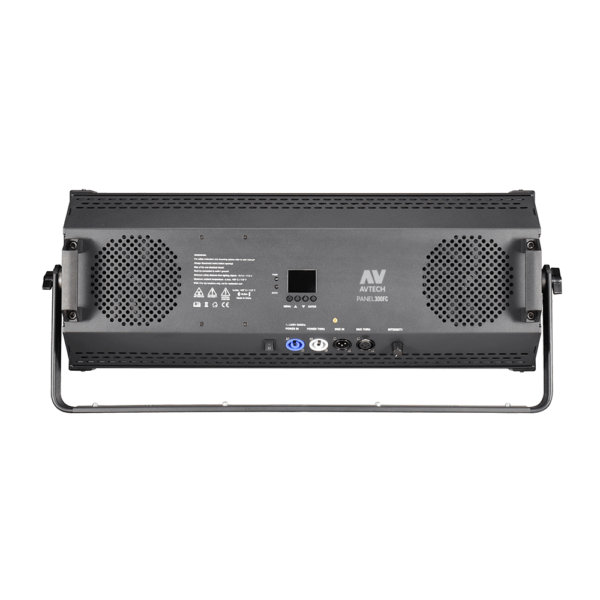

- Power Connection: PowerCON in & out
- DMX In/Out: 3-pin XLR in & out
