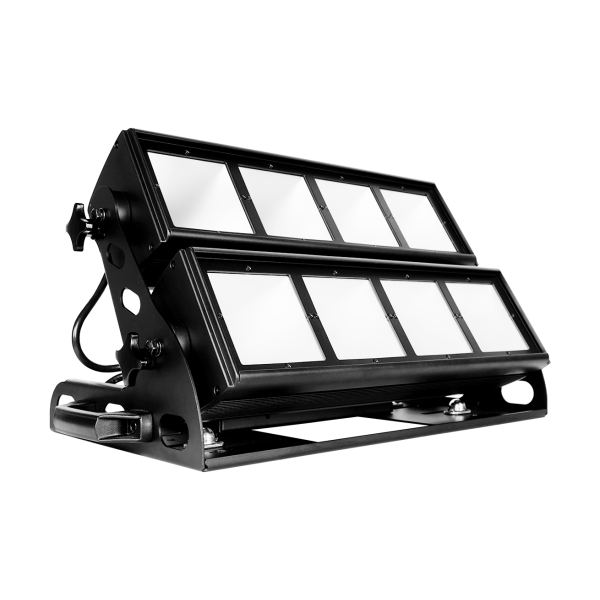

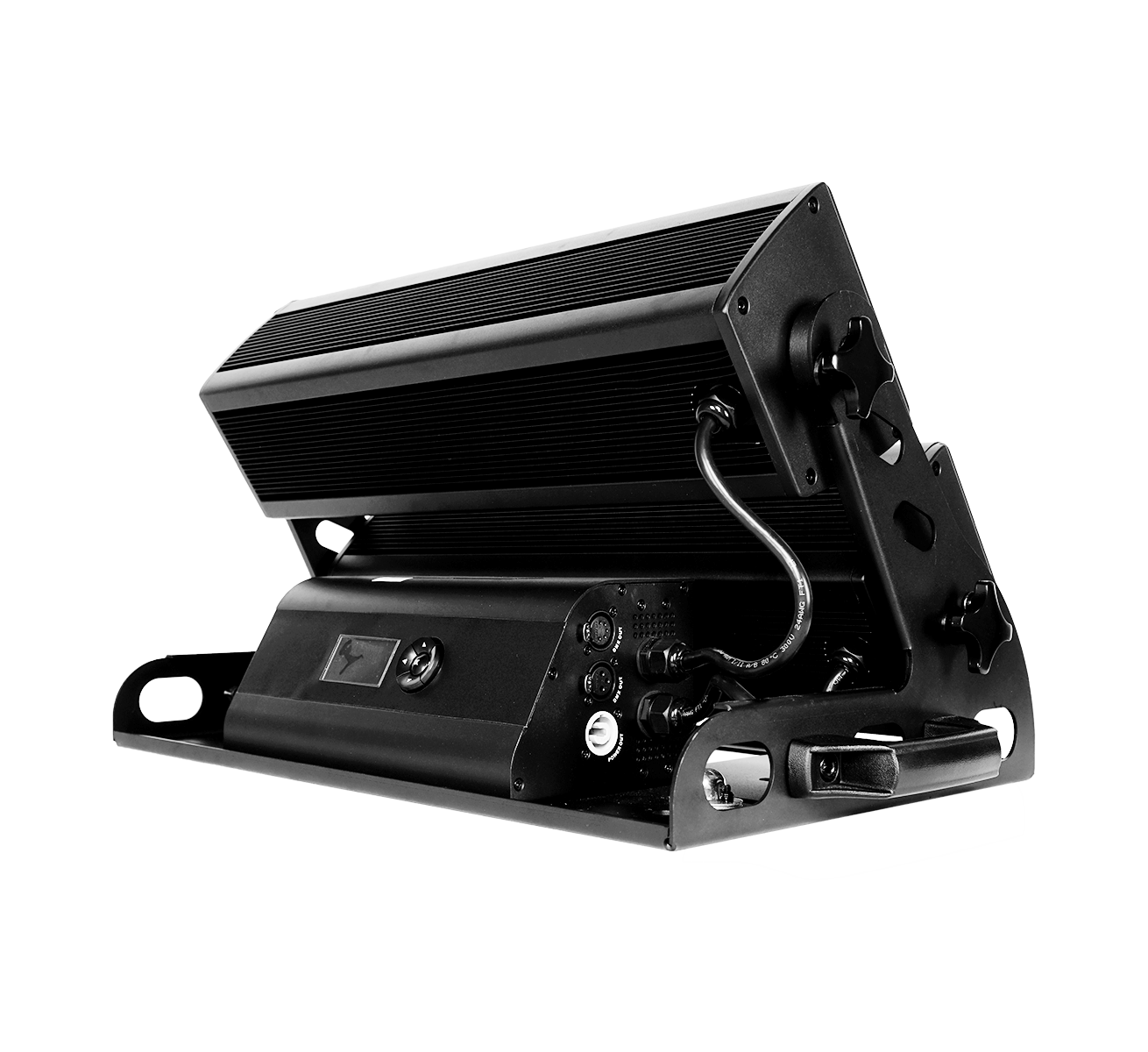

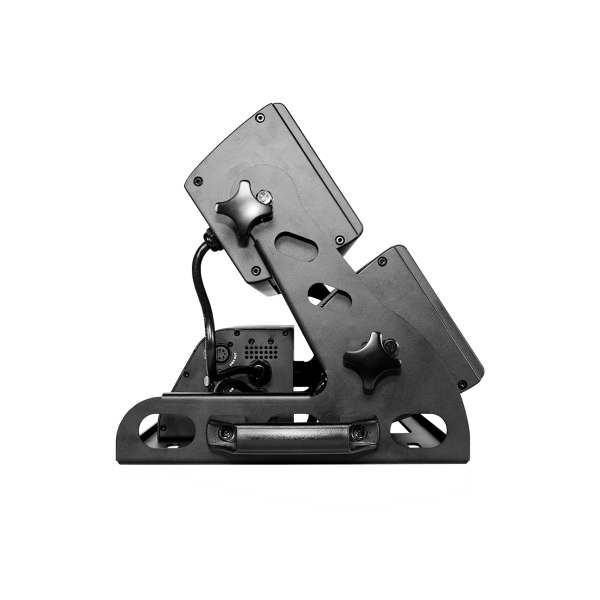

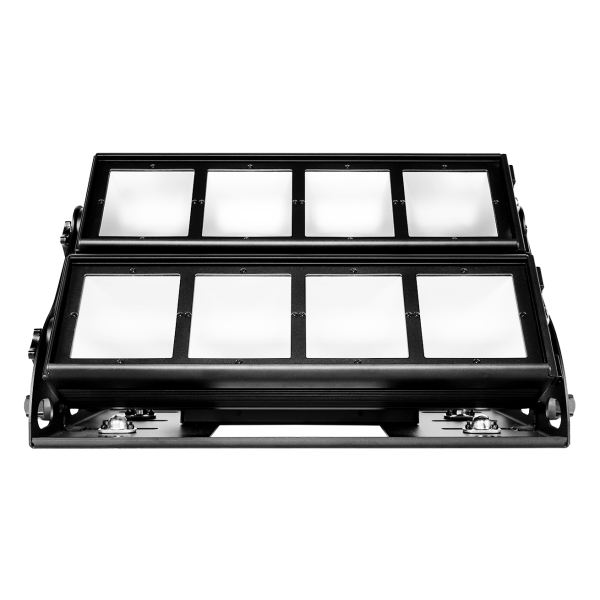

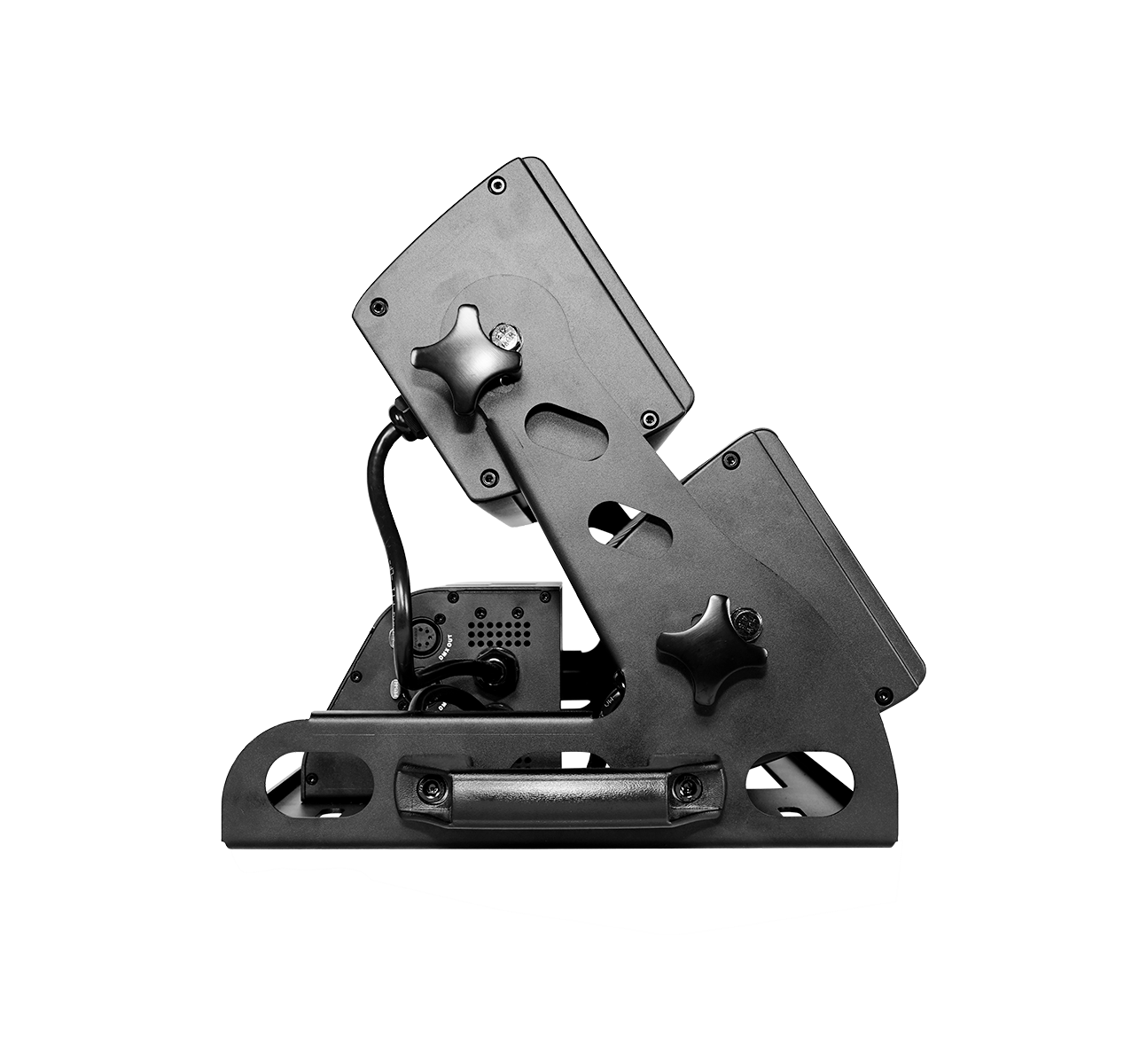

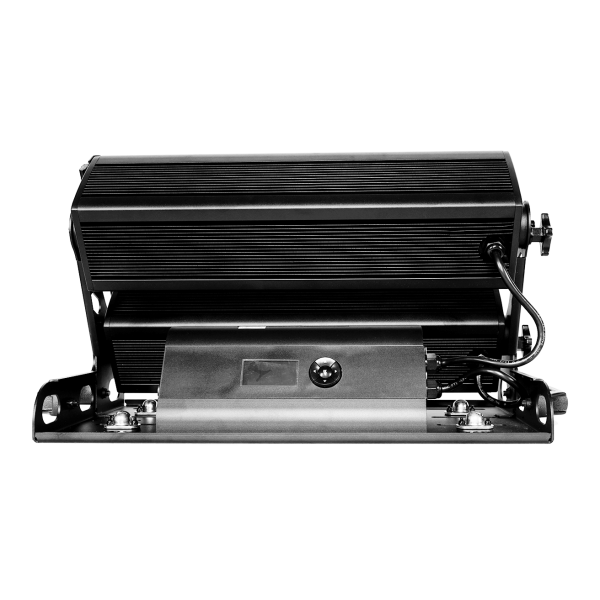

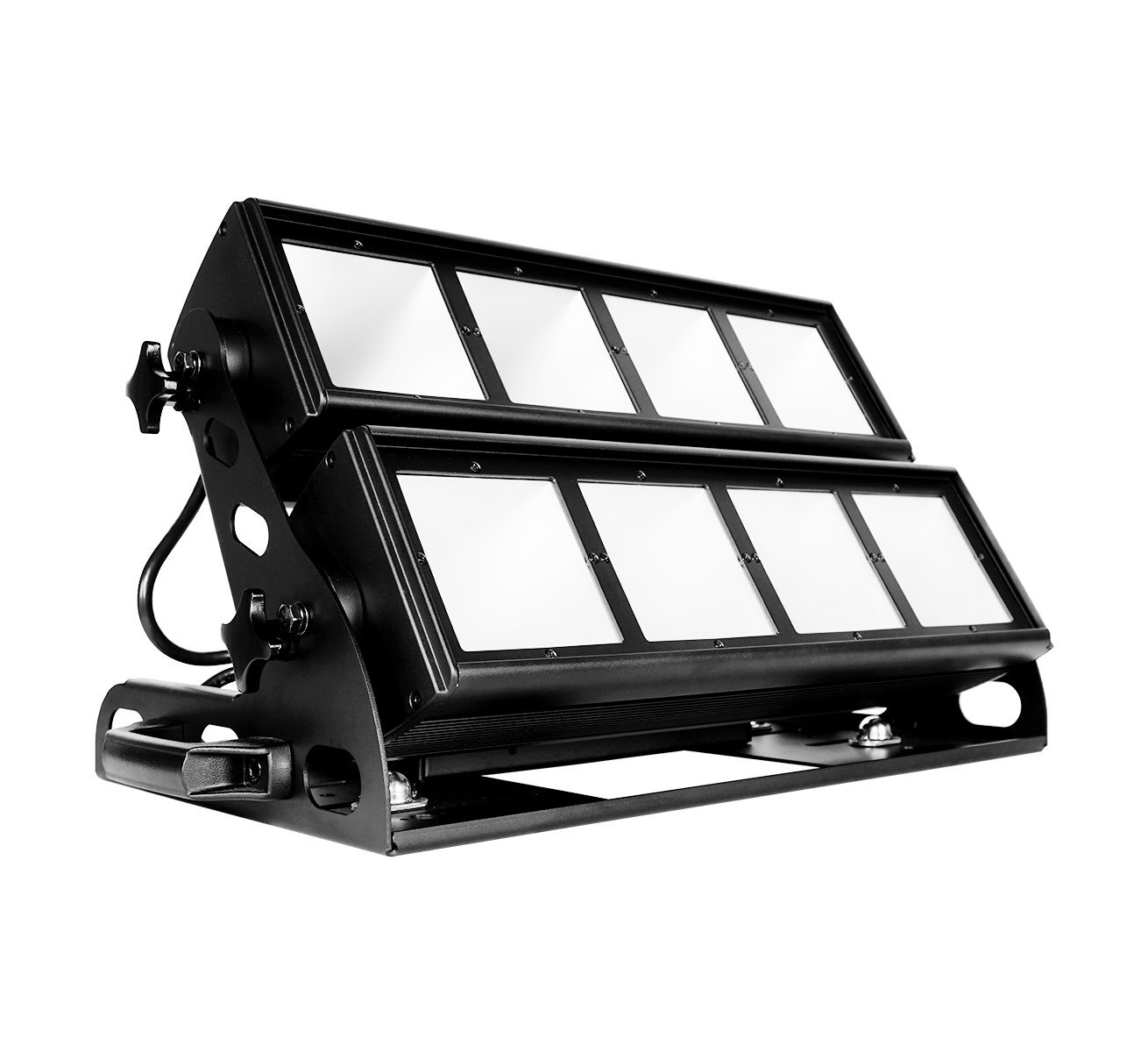

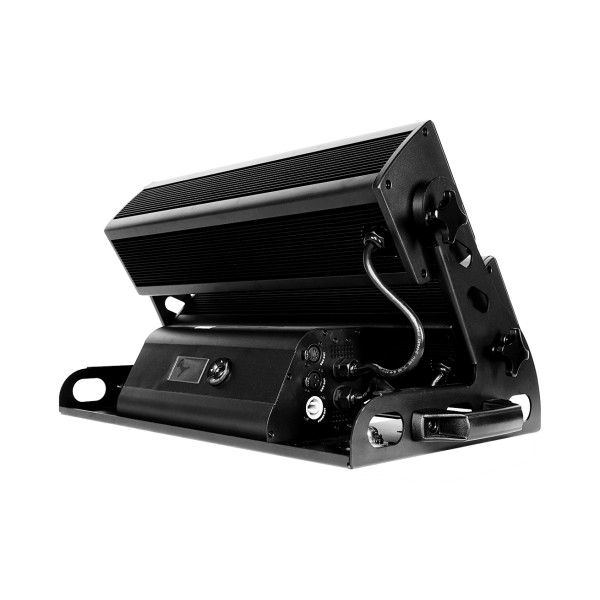

CYC.BIGXCA is powerful led, cyclorama, new innovational HISC system, extremely smooth color mixing, can replace the real 1250W traditional cyclorama, idea for theatre.
Specifications
- Light Source: 32xRed, 32xGreen, 32xBlue, 16xWhite, 16xAmber.
- Color Temperature: 3200K-10000K.
- CRI: Ra ≥90.
- CQS: >90.
- Beam Angle: 45°x60°.
- Input Voltage: 100-240VAC, 50/60Hz.
- Power: 310W.
- Drive Current: 700mA.
- Dimming: 0-100%16Bit.
- Control Protocol: DMX512.
- Display: On board Control,0-25Hz Strobe, Custom Mode.
- DMX Modes: HSIC(7CHS), ARC.1(3CHS), AR1.D(4CHS), ARC2(4CHS), AR3(5CHS), AR3D(6CHS), AR3.S(7CHS), TOUR (11CHS), TR16(17CHS), PIXEL.1(6CHS), PIXEL.3(10CHS), PIXEL.16(22CHS).
- Cooling: Direct Convection.
- Dimensions: 622x310x327mm.
- Weight: 15kg.
- Material: Extruded aluminum.
- Color: Black.
- Operating Temperature: 0°C-45°C.
- IP Rating: IP20.
- Power Connection: Power in/out.
- DMX Connection: DMX in/out.
- CE, MET.
