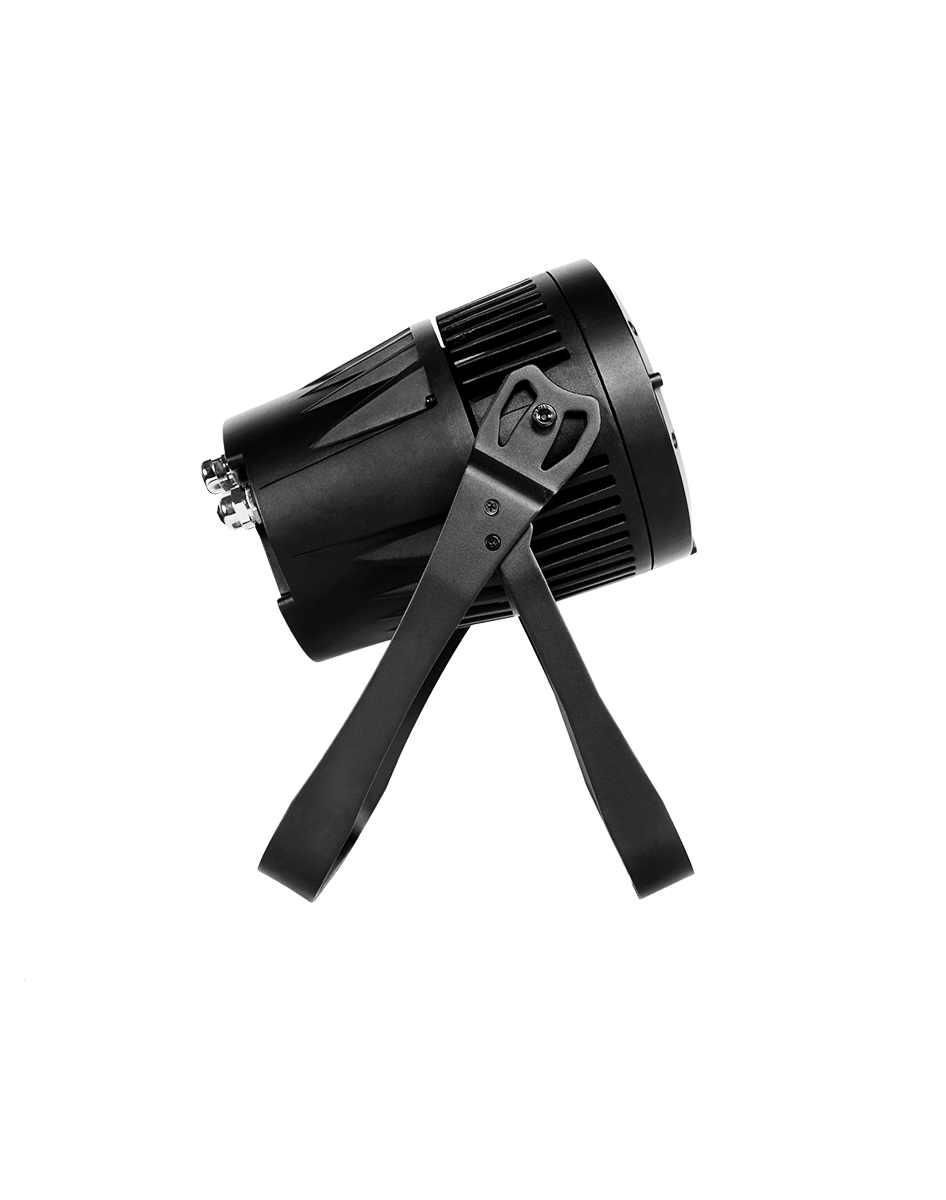

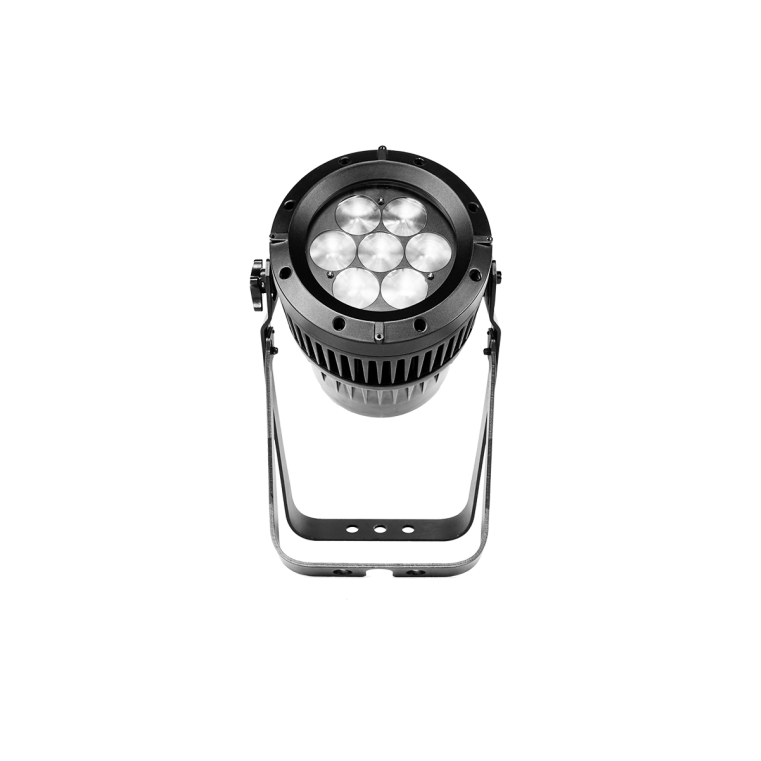

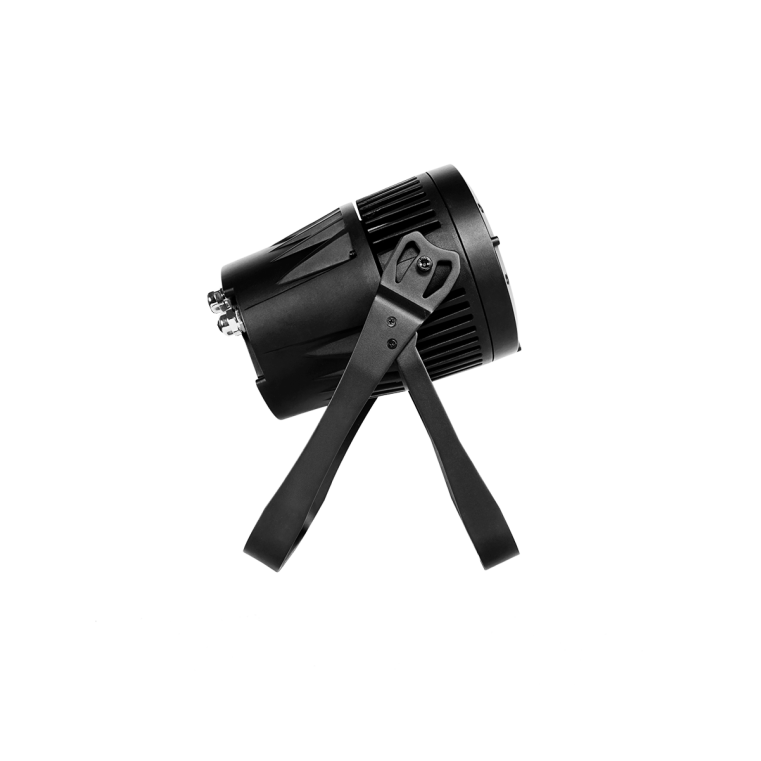

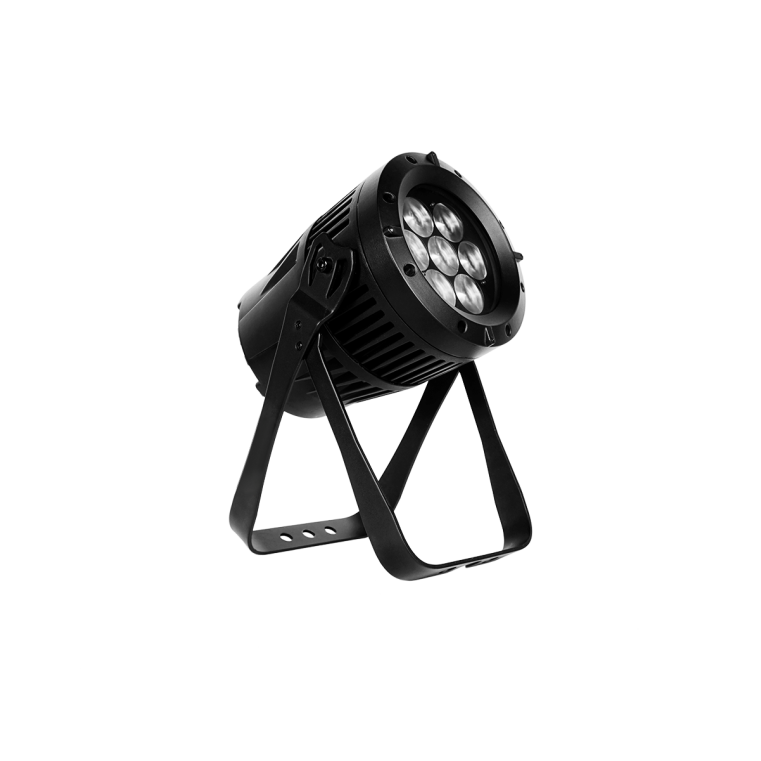

ARC.Z720IP with the successes of the 1st Generation, we upgrade it with more efficiency led resource, brightness is 15% higher than the G1,with 8-40 Electronic zoom system canbe controlled smooth and accurate.
Specifications
- Light Source: 7x20W (RGBW).
- Beam Angle: 8° -40°.
- Input Voltage: 100-240VAC, 50/60Hz.
- Power: 128W.
- Drive Current: 950mA.
- Dimming: 0-100% 16Bit.
- Control Protocol: DMX512, RDM.
- Display: On board Control,0-20Hz Strobe Sustom Mode.
- DMX Modes: TOUR/12CHS, ARC1/3CHS, AR1.D/4CHS, ARC.2/4CHS, AR2.D/5CHS, AR2.S/6CHS, HSV/3CHS, TR16/17CHS, AR2.Z/7CHS, FULL/25CHS.
- Cooling: Direct Convection.
- Dimensions: 334x191x236mm (SS345XCEM), 355x191x236mm (SS345XCE indoor), 325x283x236mm (SS345XCET outdoor).
- Weight: 6.6kg.
- Material: Die-cast aluminum.
- Color: Black.
- Operating Temperature: 20°C-45°C.
- IP Rating: IP65 (SS345XCEM), SS345XCE-Dry Location, SS345XCET-Dry /Damp/Wet Location/lP66 (with LED dispaly cover installed).

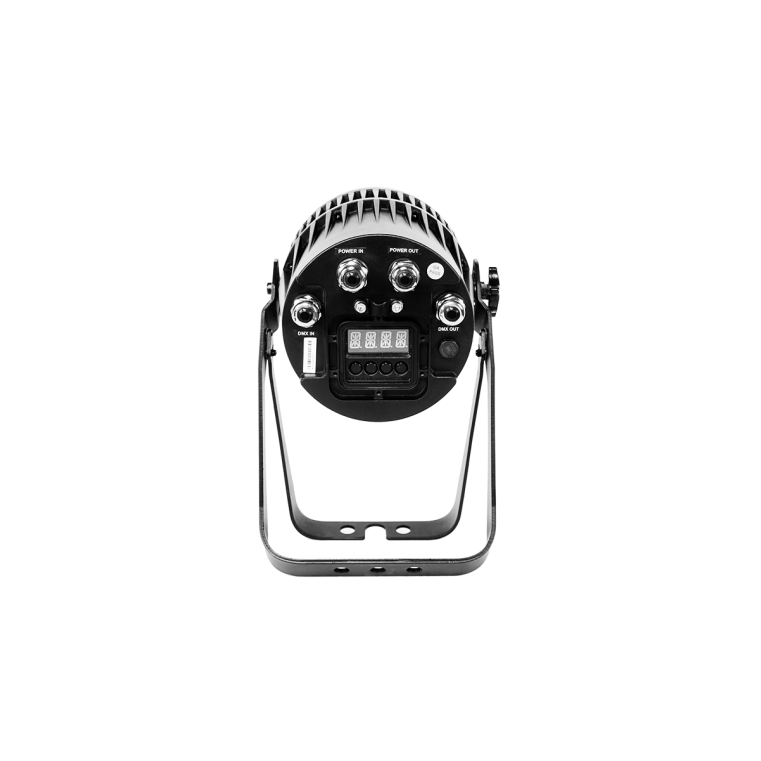

- Power Connection: Power in/out.
- DMX Connection: DMX in/out.
- CE, MET.
