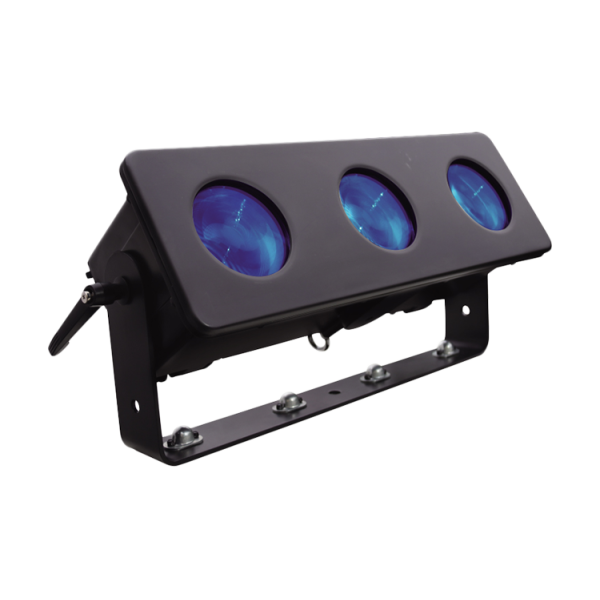

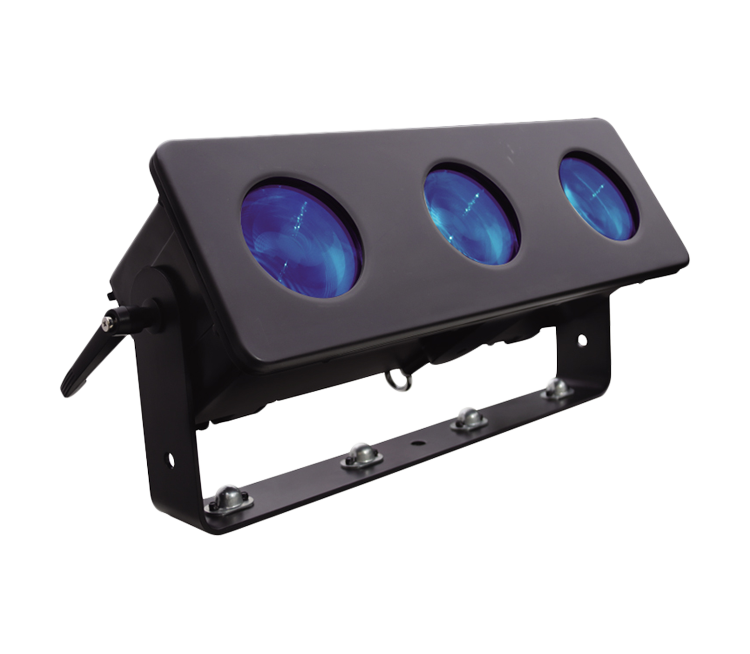

ARCX3ZOOM is a breakthrough-innovative fixture, with independent zoom for 3 LED heads, also individualcontrol of each color. Applied with advanced HSIC color mixing system, can create very even colors.The smooth and precise electronic zoom 4.5-45°, brings a very strong beam effects on small angle,also a perfect wash effect on large angle. ARCX3ZOOM can work as the backlight in the venue,side light, top light etc., which is suitable for all kinds of applicsations, large and medium-sized concert, rental events etc.
Specifications
- Light Source: 3x60W (RGBW)
- Beam Angle: 4.5°-45°
- Input Voltage: 100-240VAC,50/60Hz
- Dimming: 0-100% 16Bit
- Control Protocol: DMX512,RDM,ARTNET
- Display: On board Control，0-25Hz Strobe，Custom Mode
- DMX Modes: HSIC/12CHS，PIXEL.1/17CHS，PIXEL.2/20CHS， TR16/20CHS，HALO/10CHS
- Max. Power: 230W
- Cooling: Direct Convection
- Dimensions: 616x180x262mm
- Weight: 10.5kg
- Material: Die-cast aluminum
- Color: Black
- Operating Temperature: 20℃-45℃
- IP Rating: IP65
- Arcx3zoom Is A Breakthrough: innovative fixture, with independent zoom for 3 LED heads, also individualcontrol of each color. Applied with advanced HSIC color mixing system, can create very even colors.The smooth and precise electronic zoom 4.5-45°, brings a very strong beam effects on small angle,also a perfect wash effect on large angle. ARCX3ZOOM can work as the backlight in the venue,side light, top light etc., which is suitable for all kinds of applicsations, large and medium-sized concert, rental events etc. Optical system <ul> <li>Light source:3x60W (RGBW)</li> <li>Angle:4.5°-45°</li> </ul> Electrical Specs <ul> <li>Voltage:100-240VAC,50/60Hz</li> <li>Max. Power:230W</li> <li>Power Connection:Power in and out DMX xlr:DMX in and out,RJ45 in</li> </ul> Control System <ul> <li>Dimmer:0-100% 16Bit</li> <li>Cooling:Direct Convection</li> <li>Control:DMX512,RDM,ARTNET</li> <li>Display:On board Control，0-25Hz Strobe，Custom Mode</li> <li>Con Personality:HSIC/12CHS，PIXEL.1/17CHS，PIXEL.2/20CHS， TR16/20CHS，HALO/10CHS</li> </ul> Appearance <ul> <li>Size:616x180x262mm</li> <li>Weight:10.5kg</li> <li>Casing:Die-cast aluminum</li> <li>Color:Black</li> </ul> Work Environment <ul> <li>Ambient Temp:-20℃-45℃</li> <li>IP Rated:IP65</li> </ul> Certification <ul> <li>CE, MET.</li> </ul>
- Power Connection: Power in and out DMX xlr:DMX in and out,RJ45 in
- CE, MET.
