Description

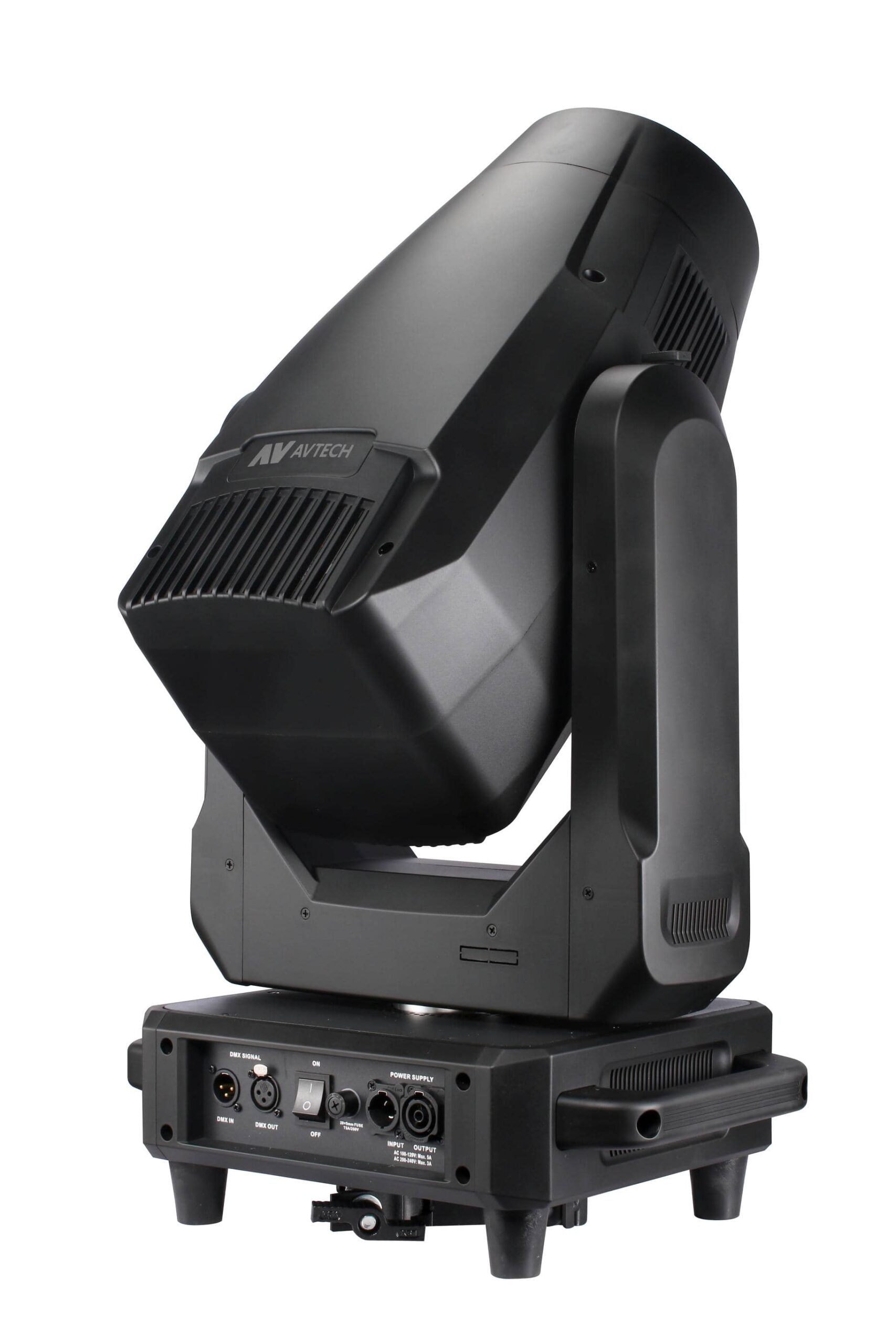

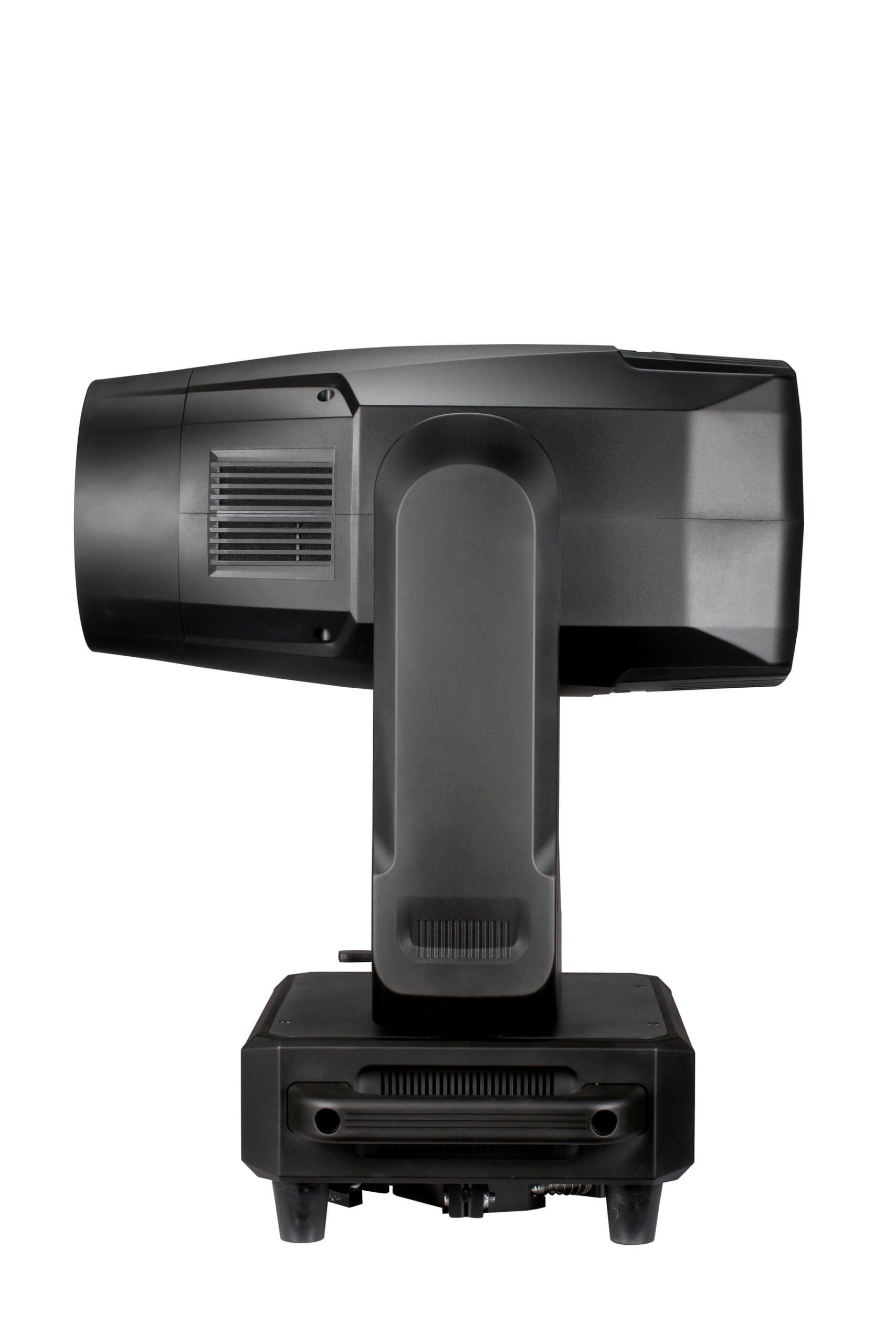

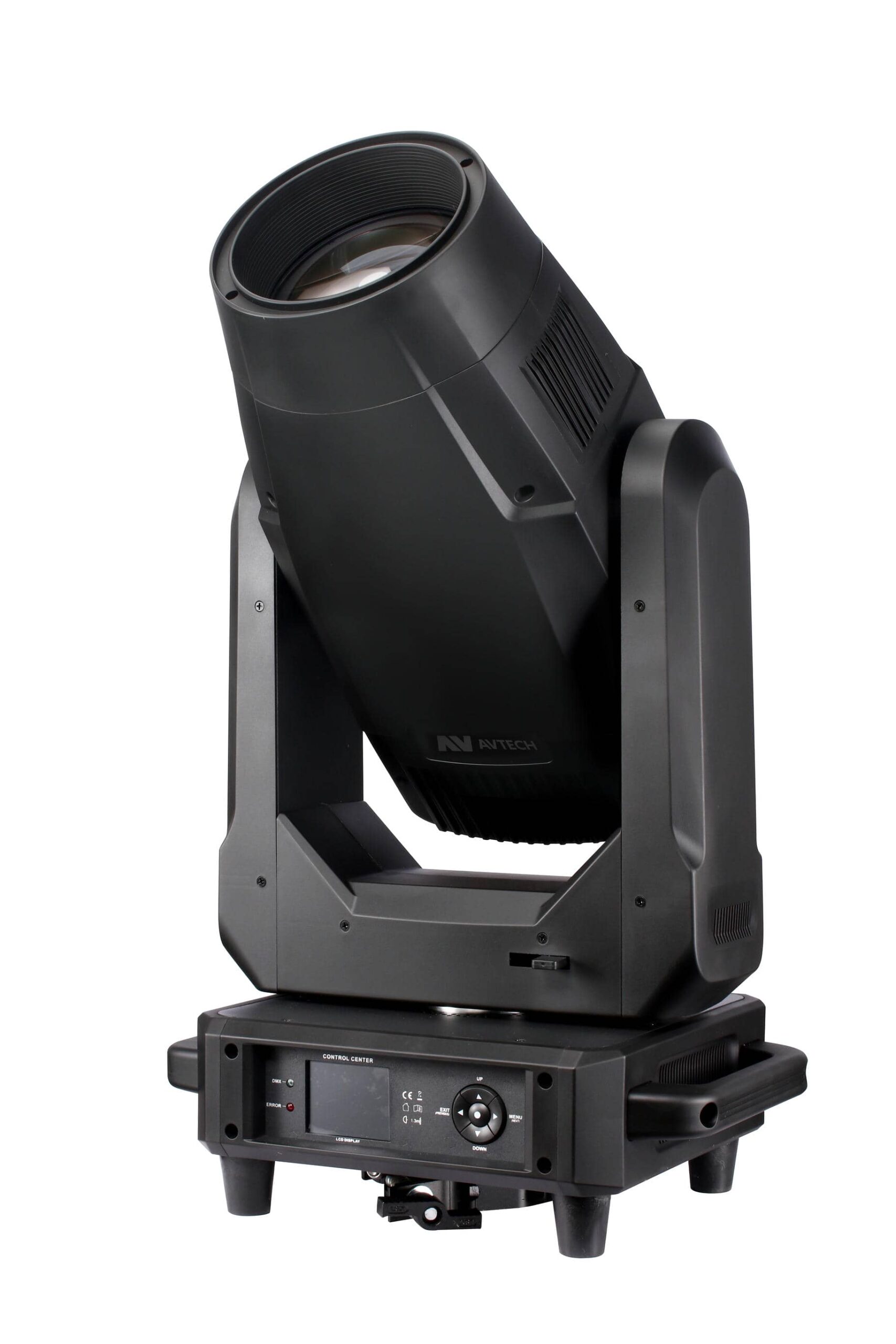

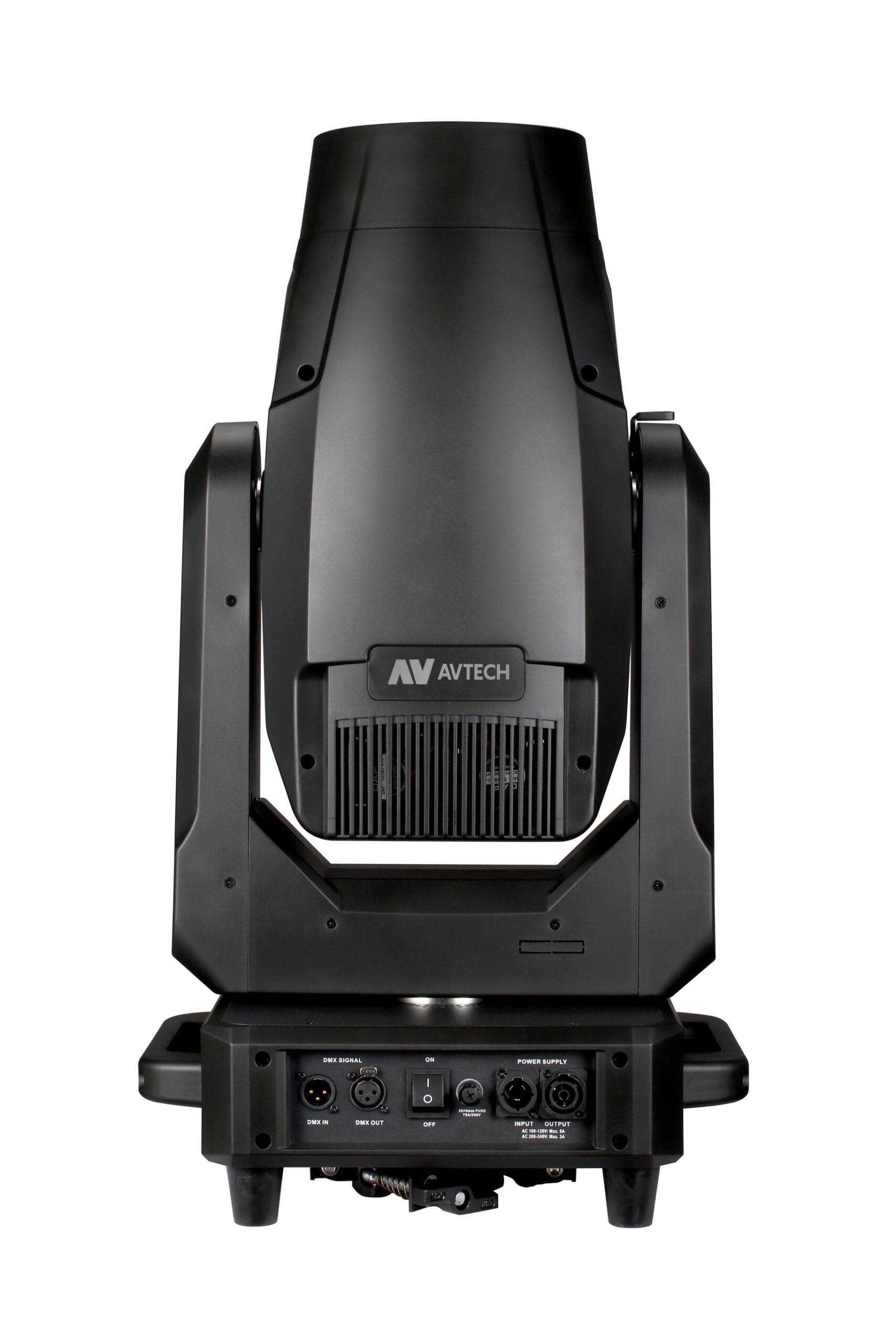

The 550W LED BSW Moving Head is a high-performance, multipurpose lighting fixture engineered for professional stage and event applications. Combining Beam, Spot, and Wash capabilities in a single chassis, it delivers exceptional versatility, precision, and reliability for demanding lighting designs.
Specifications
- Technical Specifications
- Light Source: 550W LED Engine
- Rated Lifespan: 20,000 hours
- Power Consumption: 800W @ 220V
- Input Voltage: 100–240V AC, 50/60Hz
- Beam Angle: 3° – 40° (Zoom range)
- Color Temperature: 7,000K
- Movement Range: 540° Pan / 270° Tilt
- Color System: CMY + CTO Color Mixing + 1 Color Wheel (8 colors + open)
- Gobo System: 1 Fixed Wheel (12 gobos + open) + 7 Rotating Gobos
- Effects: 8-Facet Prism + 6-Row Linear Prism; Independent Frost Filter
- Dimming: 0–100% Linear Adjustment
- Control Protocols: DMX512, RDM, Master/Slave, Auto, and Standalone Scene Modes
- DMX Channel Modes: 22CH / 26CH
- Ingress Protection: IP20
- Data/Power Connections: Seetronic PowerCon (In/Thru); 3-pin Locking XLR
- Operating Temperature: -20°C to 40°C
- Dimensions: 383 x 274 x 668 mm
- Weight: 23.3 kg (51.37 lbs)
