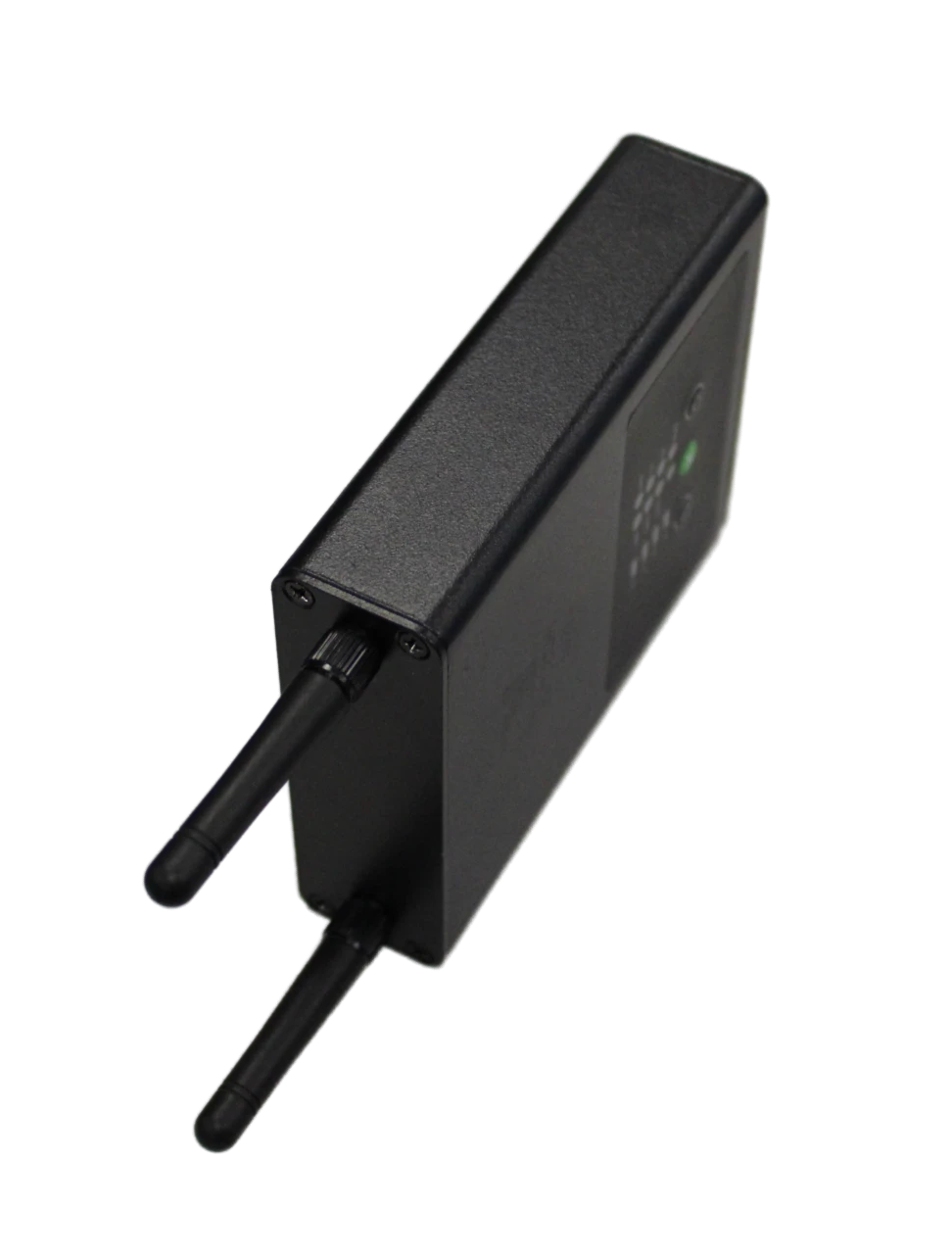

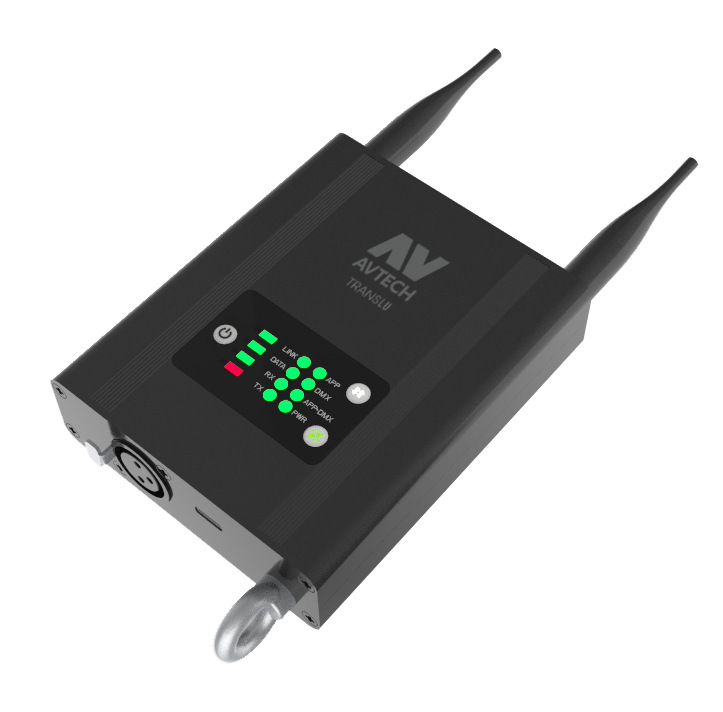

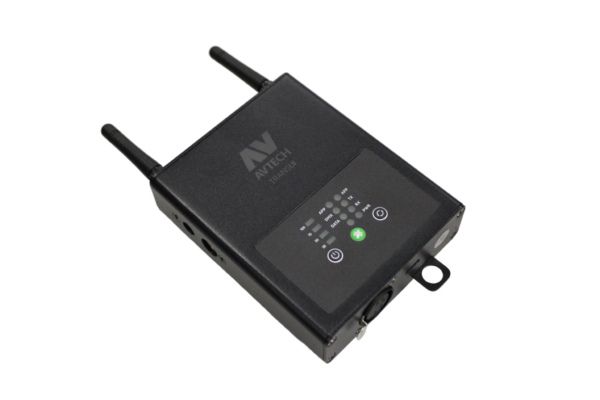

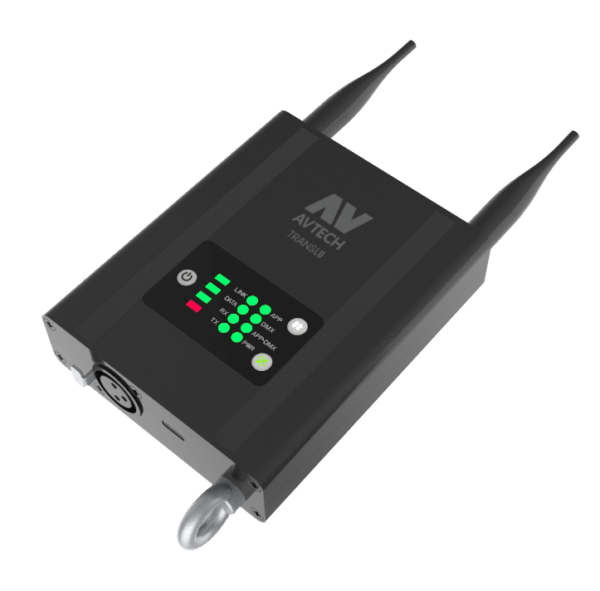

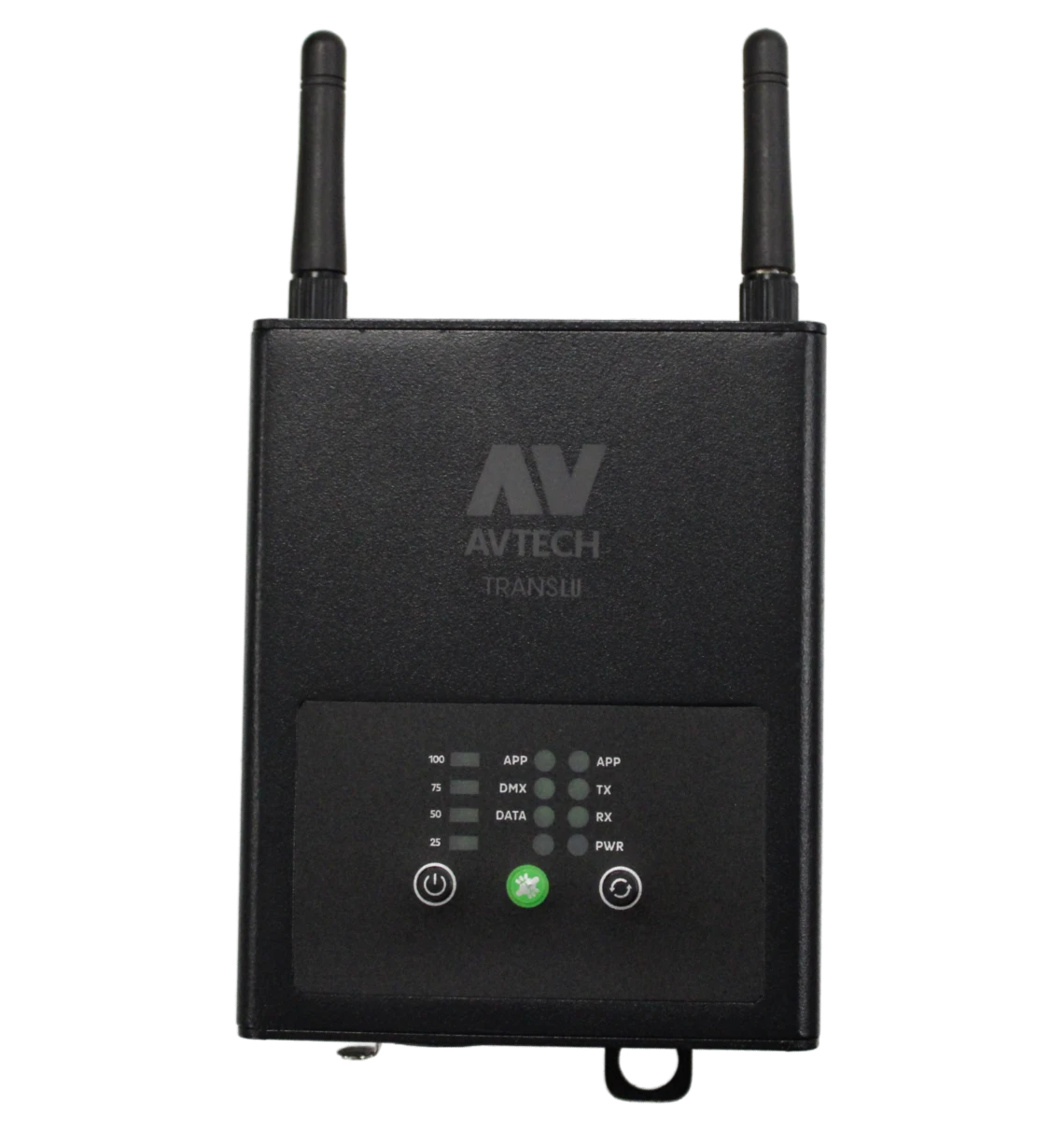

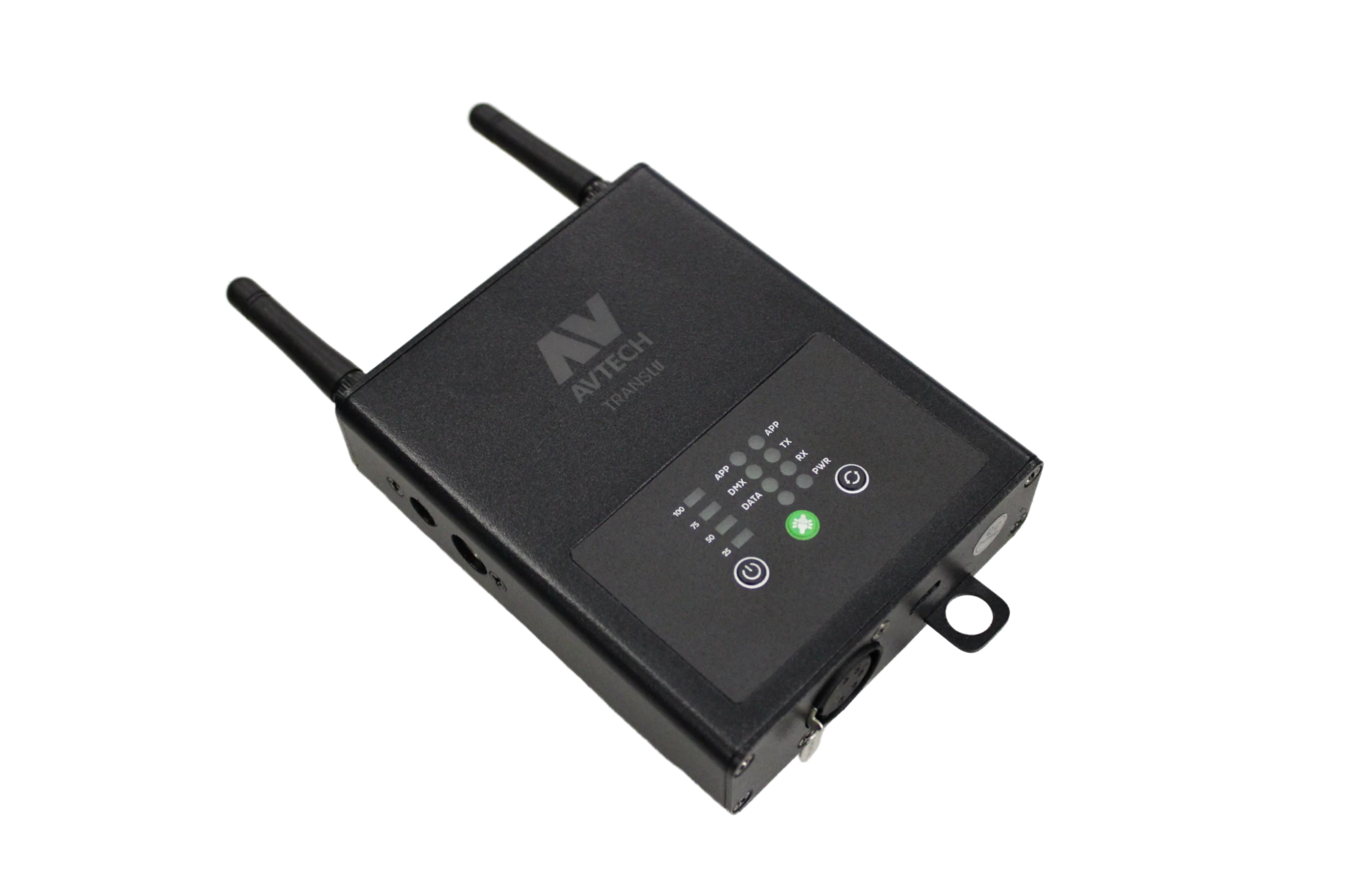

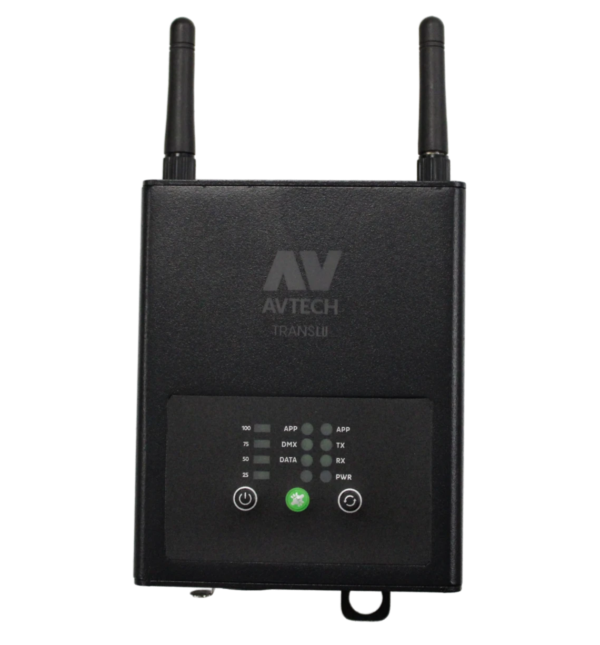

The TRANSLU WDMX & APP TRX is a professional wireless DMX transceiver designed for reliable signal transmission and reception. It supports CRMX and W-DMX technologies, along with Bluetooth app control for flexible setup and management.
With a built-in long-life battery and a range of up to 500 meters, it provides a portable and efficient solution for events, stage lighting, and installations where reducing cabling without compromising performance is essential.
Specifications
- Power: input: USB-C (DC 5V)
- Battery: Runtime: 220 h (APP mode)
- Charging Time: 6 hours
- Control Protocols: DMX512 and RDM ANSI E1.20
- DMX Universes: 1 universe (up to 512 channels)
- DMX Latency: < 5 ms
- Wireless Compatibility: CRMX, W-DMX G3, W-DMX G4S
- Operating Frequencies: 2.4 GHz, 5.2 GHz, 5.8 GHz
- Max Range: up to 500 m (line of sight)
- Transmission Power: Normal mode: 100 mW
- Max Mode: up to 450 mW
- DMX Connectors: 3-pin XLR (input/output)
- Bluetooth Frequency: 2.360 GHz – 2.500 GHz
- Receiver Sensitivity: -103 dBm @ BLE 125 kbps
- Antenna: 3dBi directional (included)
- Dimensions: 95 x 193 x 38 mm
- Weight: 0.42 kg
- Operating Temperature: -20 °C to 45 °C
- IP Rating: IP20 (indoor use only)
- -95 dBm @ BLE 1M
- 88 h (TX mode)
- 440 h (RX mode)
