ZENIT800XCE create the new vision for LED moving wash; It applying the latest 40W RGBW optical technology, smooth and precise zoom system from 4.5-36 , homogenous color mixing, individual pixel control, extremely fast X/Y; The design is fashioned, compact and lightweight, suitable for various applications as TV station, concert, rental, hall, banquet.
Specifications
- Light Source: 3x40W (RGBW), (RGBA optional).
- Beam Angle: 4.5°-36°.
- Input Voltage: 100-240VAC, 50/60Hz.
- Power: 140W.
- Drive Current: 2.5A.
- Dimming: 0-100%16Bit.
- Control Protocol: DMX512, RDM, Art Net, W-DMX (optional).
- Display: On board Control, Custom Mode, 0-25Hz Strobe.
- DMX Modes: HSIC (13CHS), PERSON1 (13CHS), PERSON2(21CHS), PIXEL (21CHS), CMY (ISCHS).

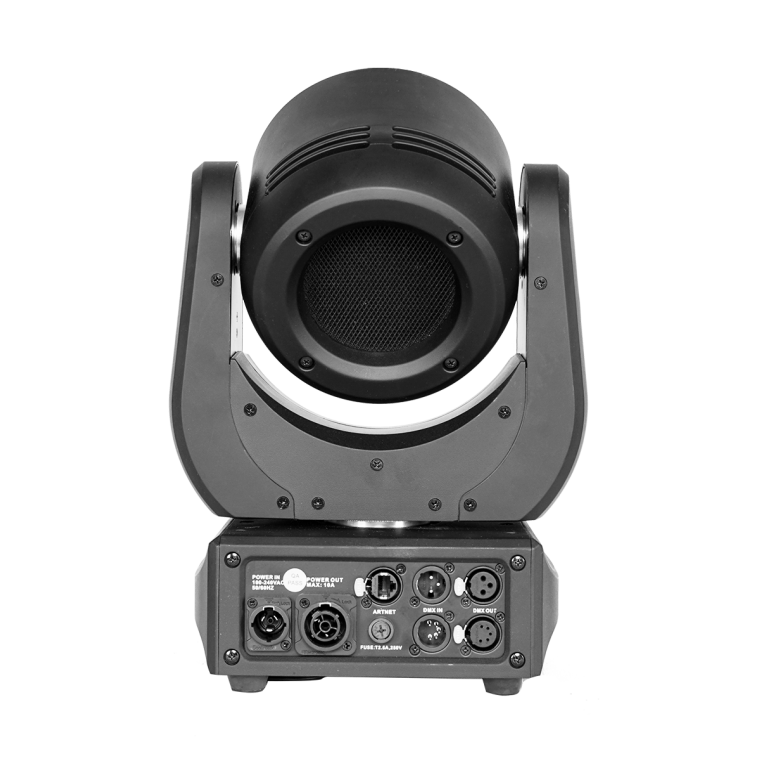

- Signal Socket: 3pin in and out, 5pin in and out, RJ45 in.
- Pan/tilt Rotation: 540° /270°(8-16bit).
- Cooling: Forced Convection.
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges.
- Dimensions: 338x260x185mm.
- Weight: 6.2kg.
- Material: Flame-retardant plastic (VO).
- Color: Black.
- Operating Temperature: 0-45ºC.
- IP Rating: IP20.
- Power Connection: Power in and out.
- CE, MET.
