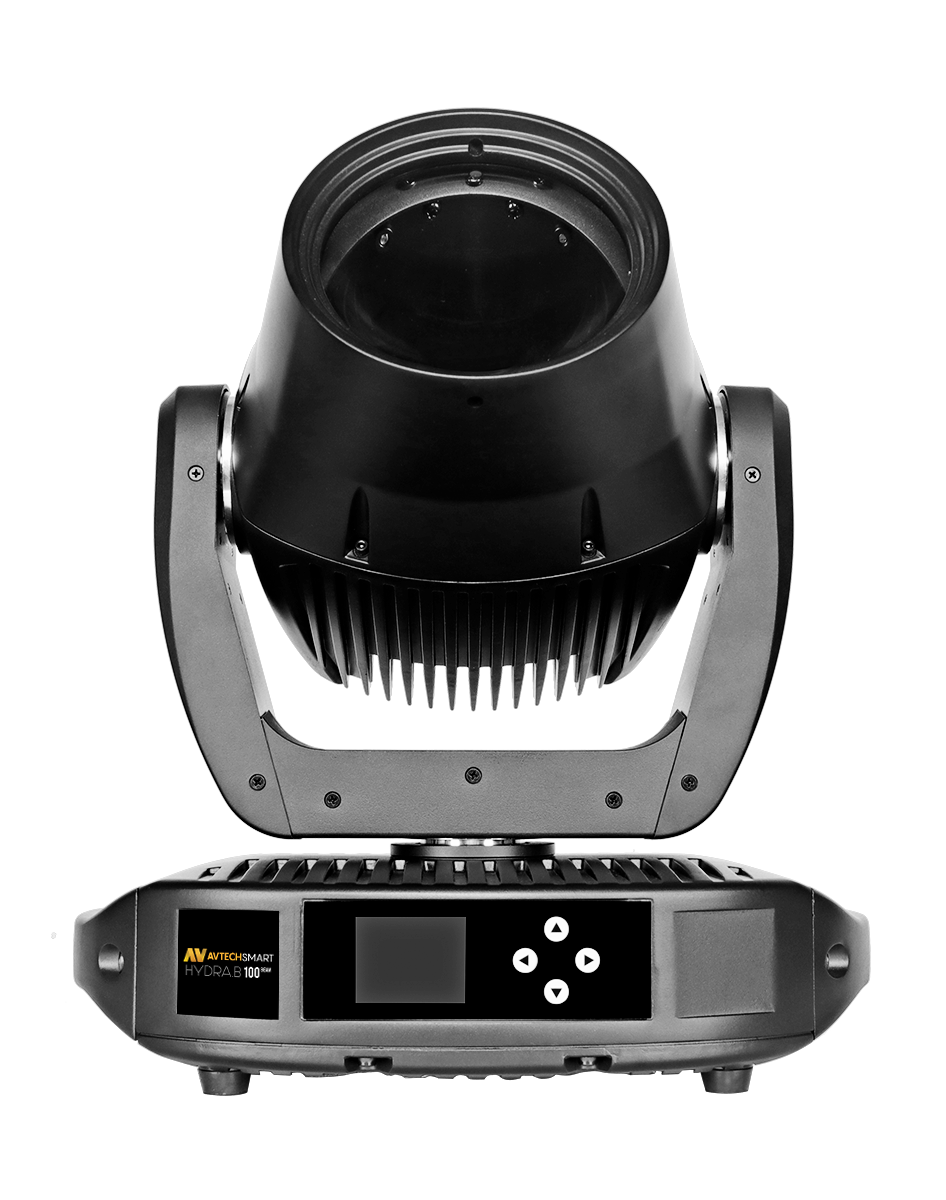

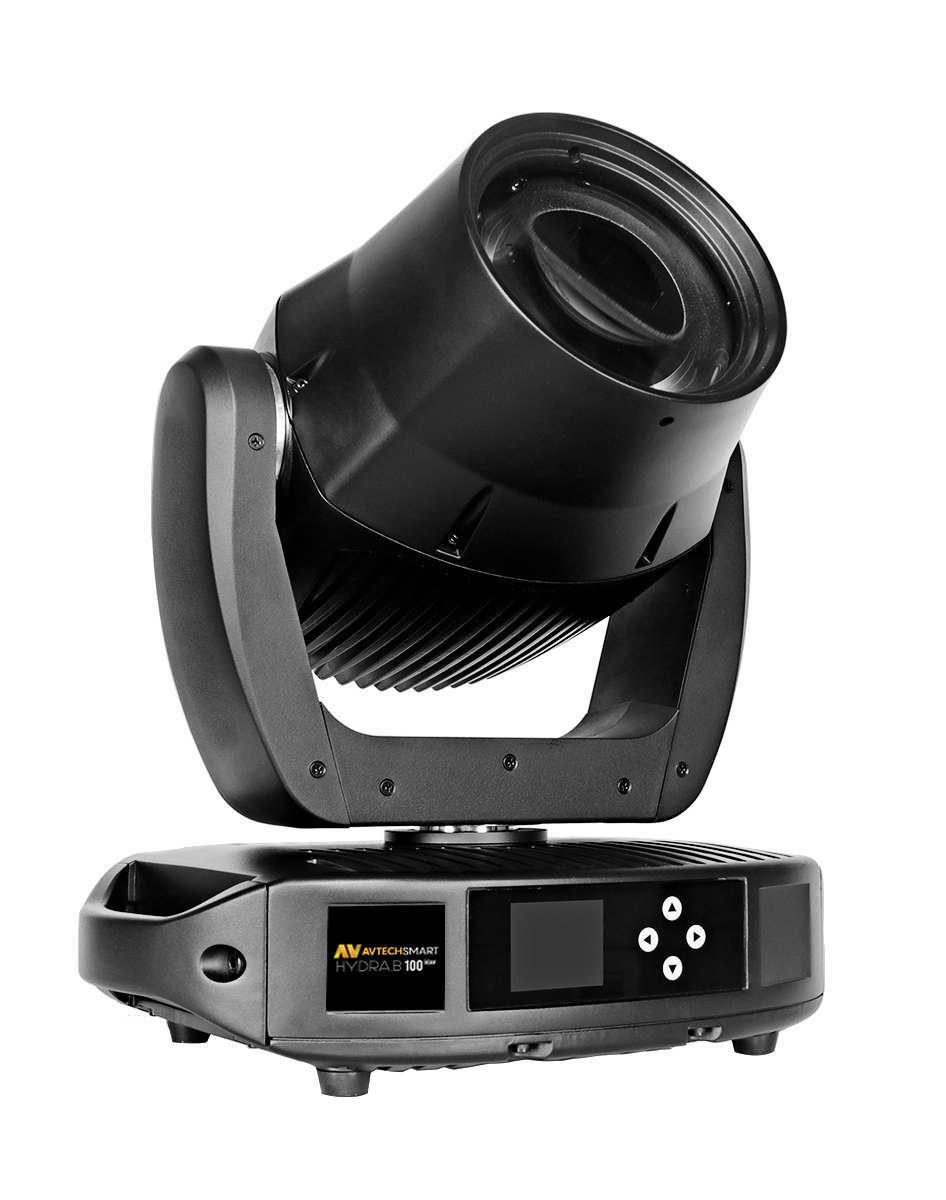

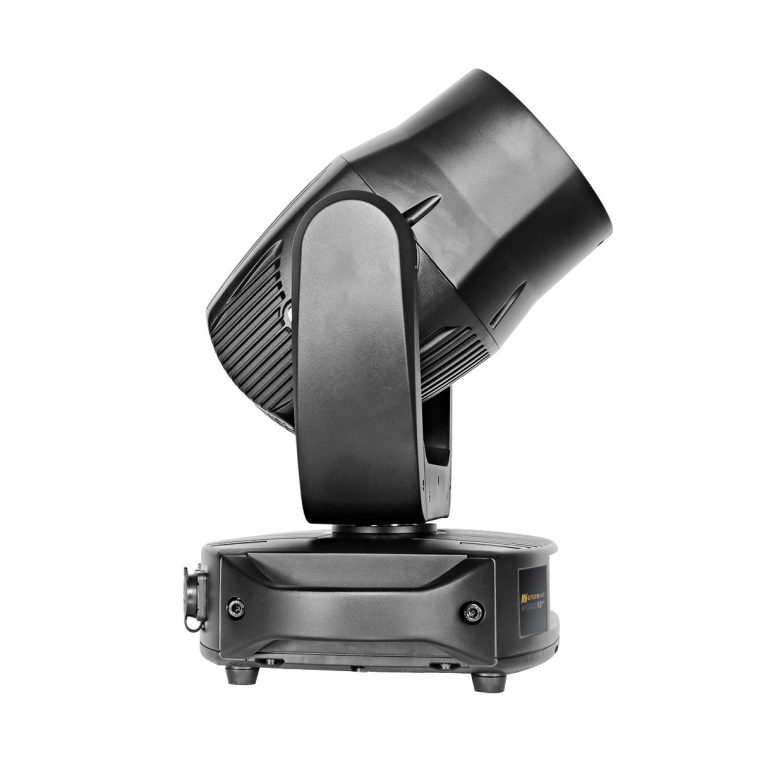

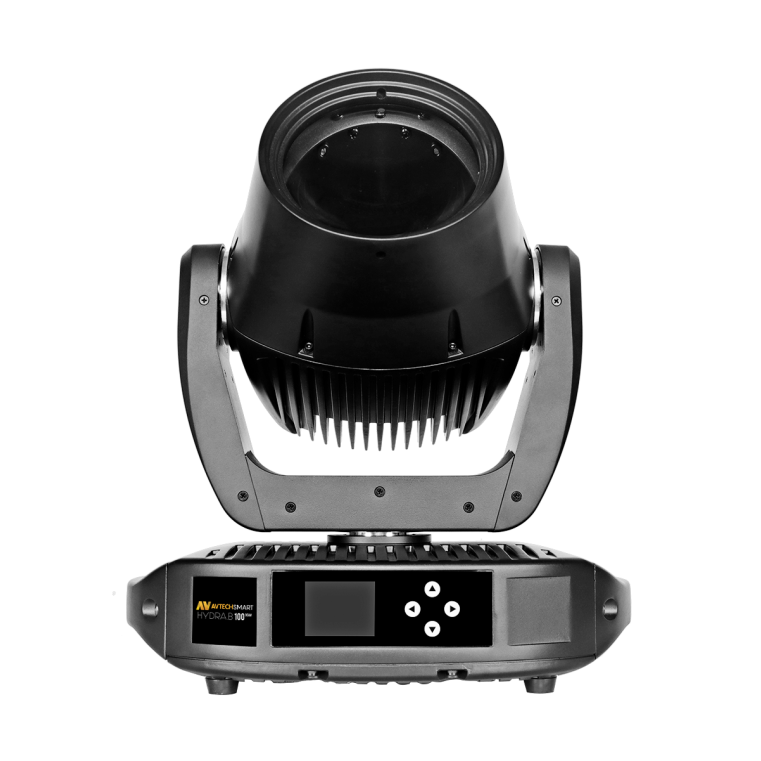

HYDRA.B100BK BEAM is an ultra-compact IP beam Moving head, which deliver unbelievable strong and powerful output, Provide a solid fat, sharp and clean beam at 1.7°. It has a super-fast and precise X/Y movement, professional beam effect, fast multi-gobo exchanging and clean projection. It is an ideal product for outdoor concerts/events, amusement park, theme park and the rental touring market
Specifications
- Light Source: 100W module.
- Beam Angle: 1.7°.
- Input Voltage: AC100-240V, 50/60Hz.
- Power: 180W.
- Drive Current: 3.8A.
- Dimming: 0-100%16Bit.
- Control Protocol: DMX512, ROM, ARTNET, W-DMX (optional), Web Server.
- Display: On board Control, Custom Mode, 0-25Hz Strobe.
- DMX Modes: BASIC/12CHS, STANDARD/15CHS, Extend/18CHS.
- Signal Sacker: 3pin.
- Pan/tilt Rotation: 540°/270°(8-16bit).
- Cooling: Forced Convection.
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt
- Rotating Gobo: 8 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotation.
- Colors: One color wheel(9 dichroic -filters+ White, Rainbow-flow effect).
- Prism: 1 pcs 8+16 facet prism prisms with bi-directional rotation, Speed adjustable,One piece of linear prism with bi-directional rotation, Speed adjustable.
- Focus: Motorized linear focus.
- Dimensions: 410x280x483mm.
- Weight: 22kg.
- Material: Flame-retardant plastic (VO) ,Die-cast aluminum.
- Color: Black.
- Operating Temperature: 20 °C-45 C.
- IP Rating: IP65.
- Hydra.b100bk Beam Is An Ultra: compact IP beam Moving head, which deliver unbelievable strong and powerful output, Provide a solid fat, sharp and clean beam at 1.7°. It has a super-fast and precise X/Y movement, professional beam effect, fast multi-gobo exchanging and clean projection. It is an ideal product for outdoor concerts/events, amusement park, theme park and the rental touring market Optical system <ul> <li>Light source: 100W module.</li> <li>Angle: 1.7°.</li> </ul> Electrical Specs <ul> <li>Voltage: AC100-240V, 50/60Hz.</li> <li>Power: 180W.</li> <li>Drive Current: 3.8A.</li> <li>Power Connection: Power in/out.</li> <li>Signal sacker: 3pin.</li> <li>5pin in and out, RJ45 in and out.</li> </ul> Control System <ul> <li>Pan/Tilt rotation: 540°/270°(8-16bit).</li> <li>Dimmer: 0-100%16Bit.</li> <li>Cooling: Forced Convection.</li> <li>Control: DMX512, ROM, ARTNET, W-DMX (optional), Web Server.</li> <li>Display: On board Control, Custom Mode, 0-25Hz Strobe.</li> <li>Con Personality: BASIC/12CHS, STANDARD/15CHS, Extend/18CHS.</li> <li>Special: Pan/Tilt movement blackout, User-selectable pan/tilt</li> </ul> ranges, gravitation sensor for auto screen positioning. Effect synthetic system <ul> <li>Rotating Gobo: 8 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotation.</li> <li>Colors: One color wheel(9 dichroic -filters+ White, Rainbow-flow effect).</li> <li>Prism: 1 pcs 8+16 facet prism prisms with bi-directional rotation, Speed adjustable,One piece of linear prism with bi-directional rotation, Speed adjustable.</li> <li>Focus: Motorized linear focus.</li> </ul> Appearance <ul> <li>Size: 410x280x483mm.</li> <li>Weight: 22kg.</li> <li>Casing: Flame-retardant plastic (VO) ,Die-cast aluminum.</li> <li>Color: Black.</li> </ul> Work Environment <ul> <li>Ambient Temp: -20 °C-45 C.</li> <li>IP Rated: IP65.</li> </ul> Certification <ul> <li>CE, MET.</li> </ul>
- Power Connection: Power in/out.

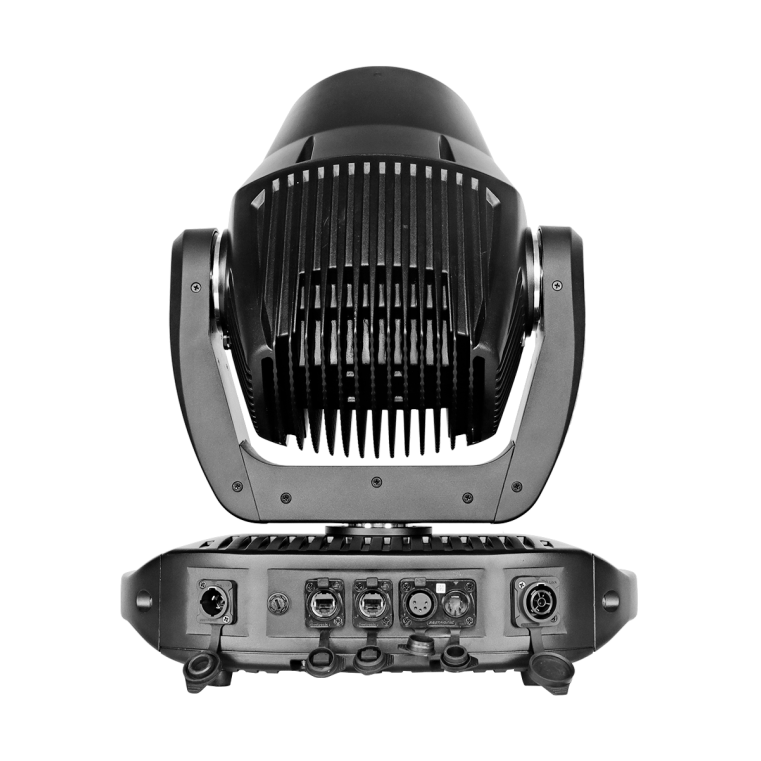

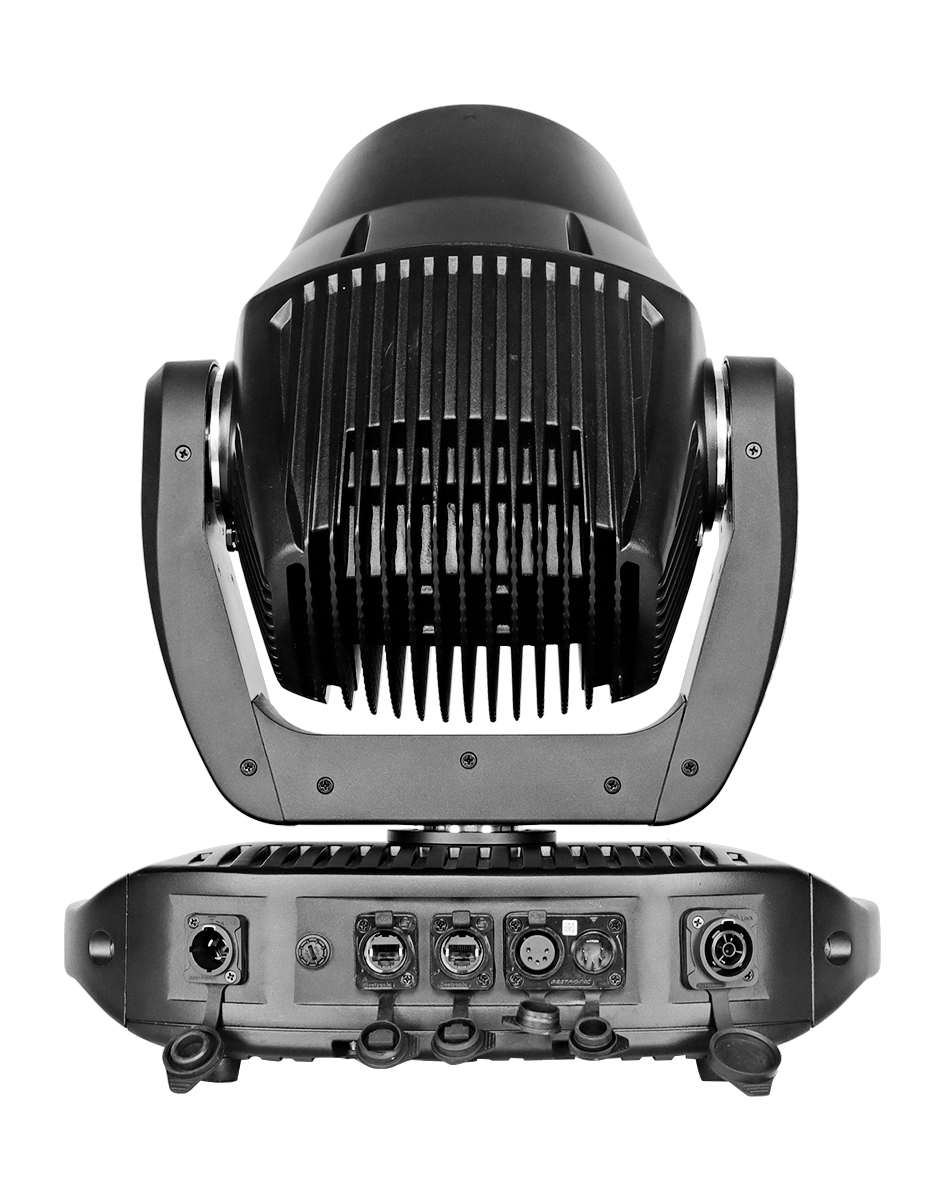

- 5pin in and out, RJ45 in and out.
- CE, MET.
