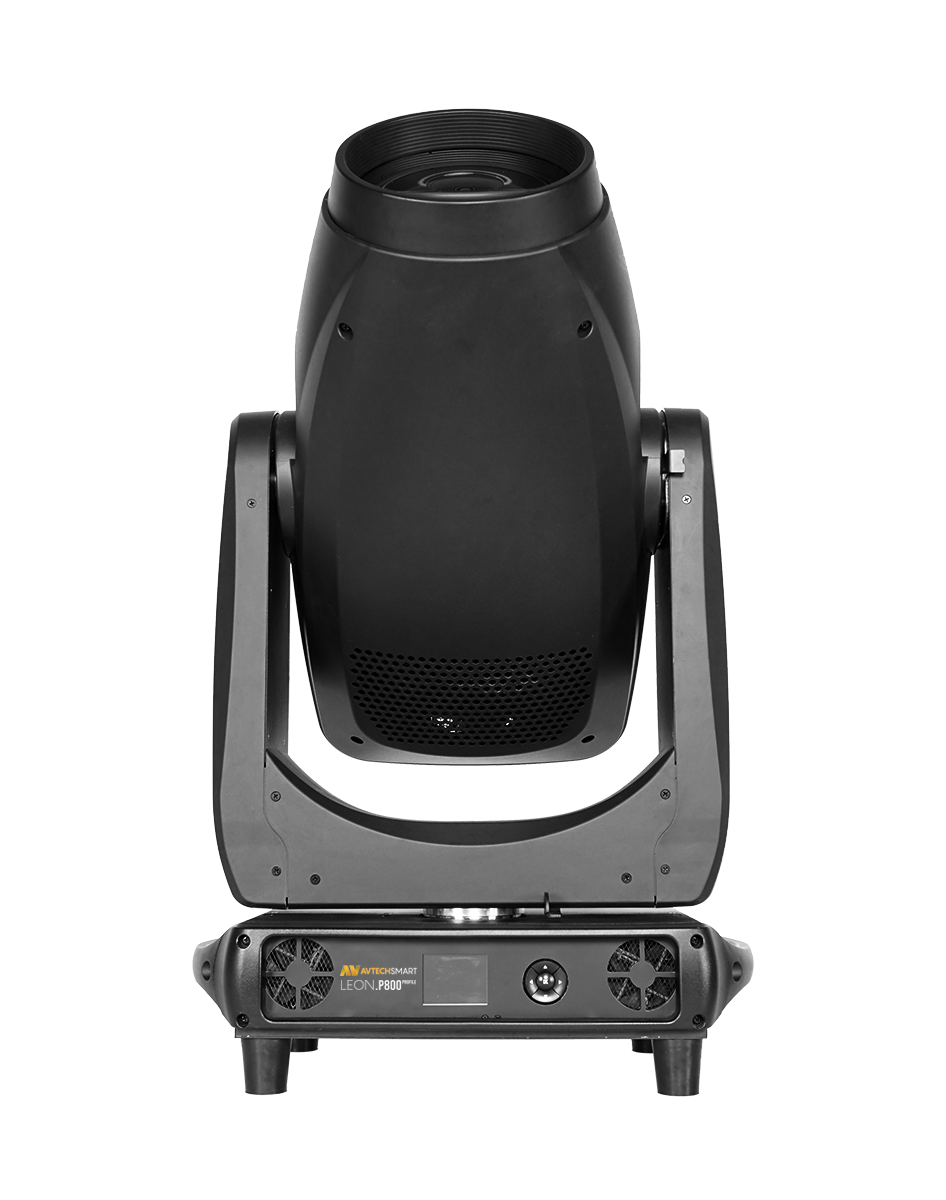

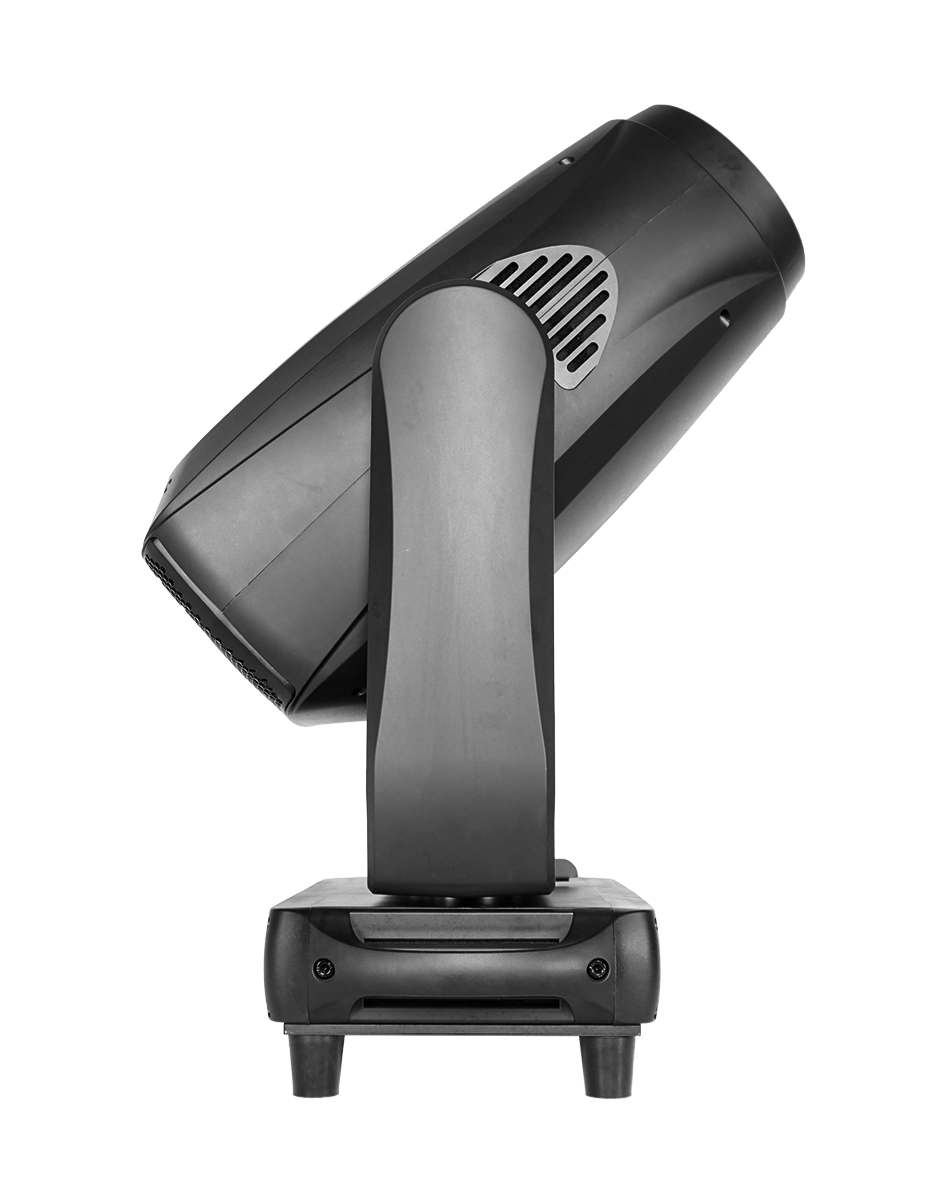

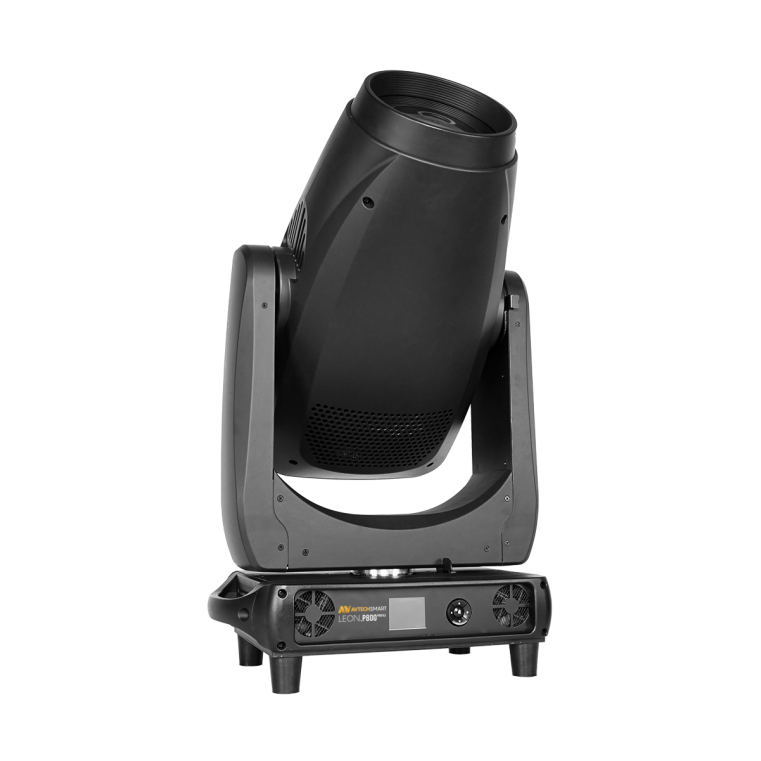

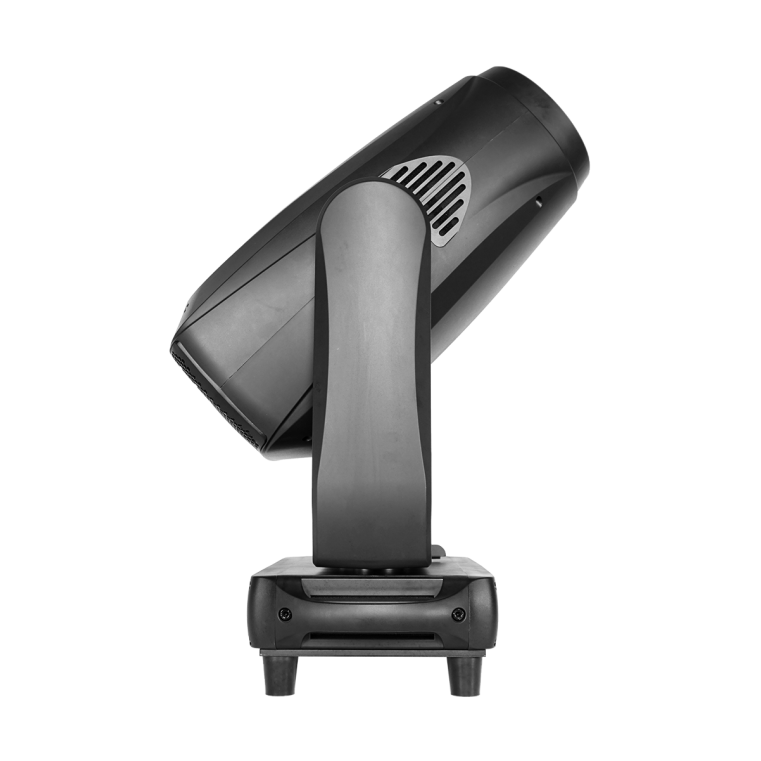

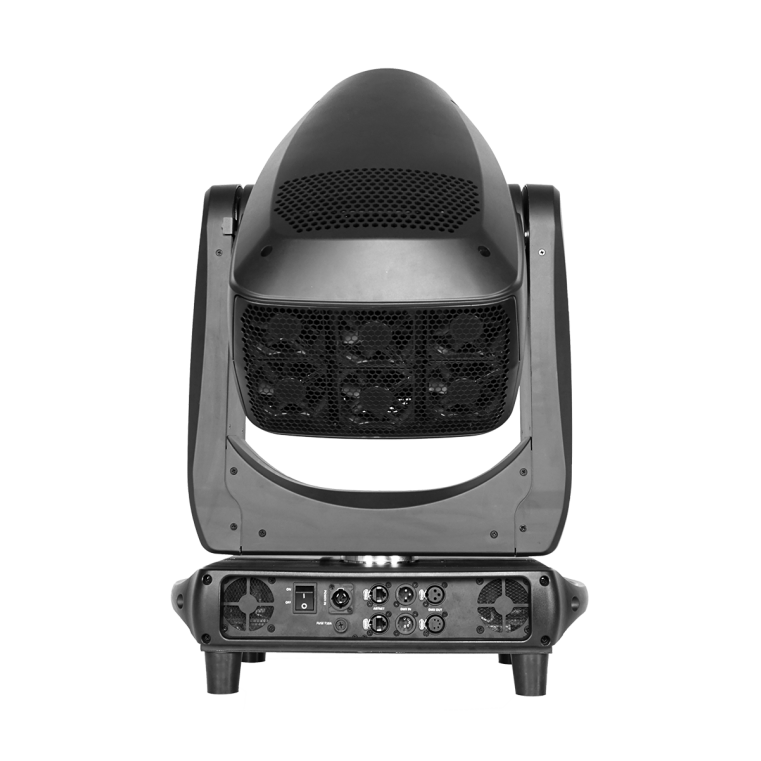

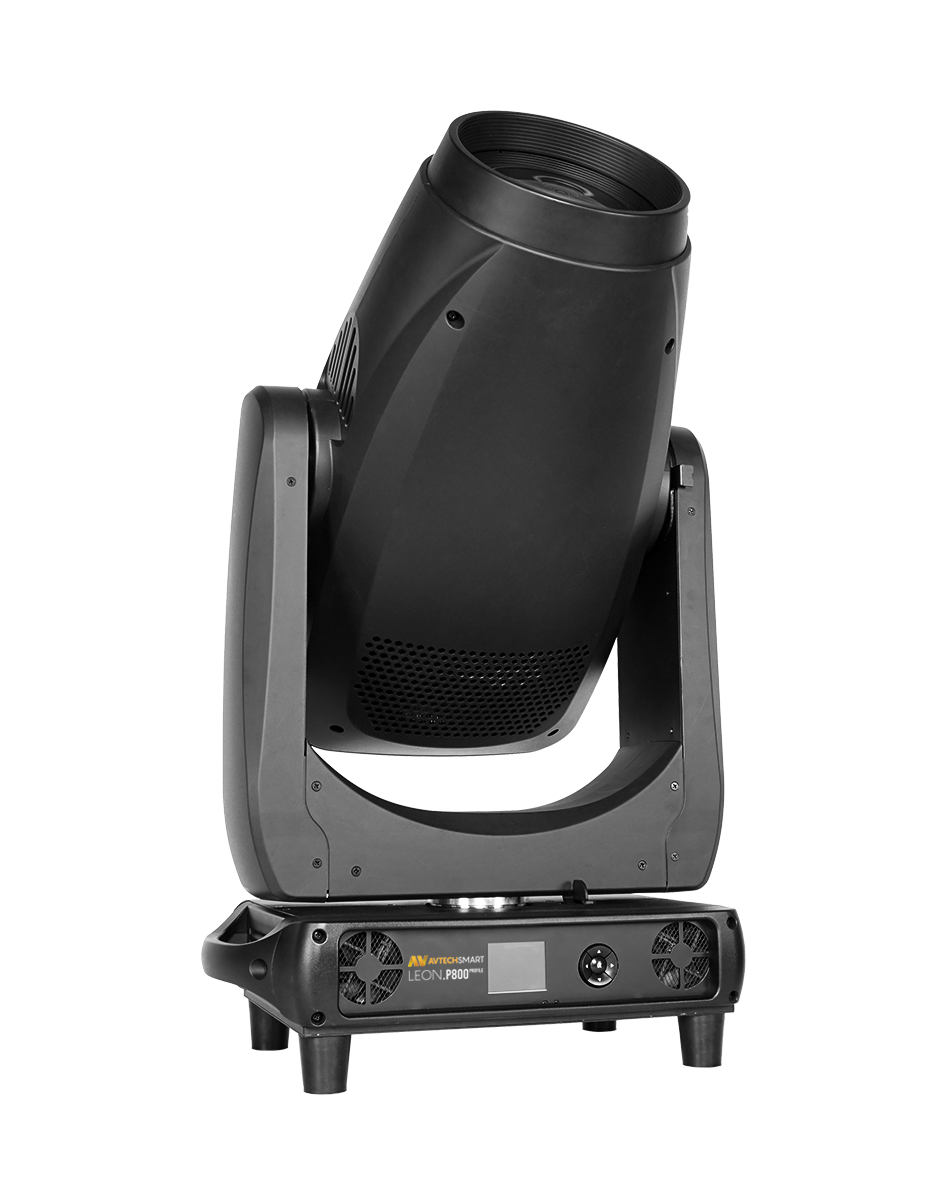

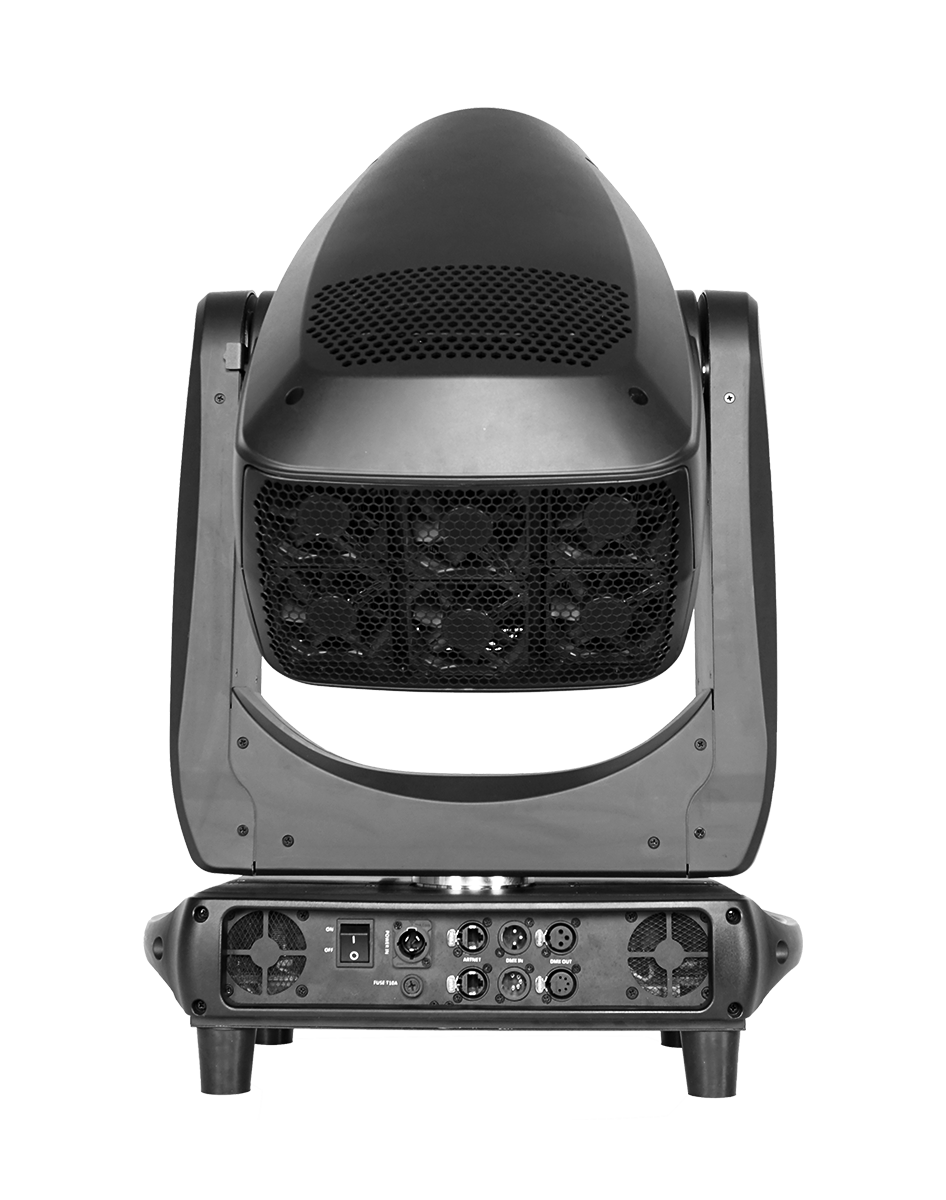

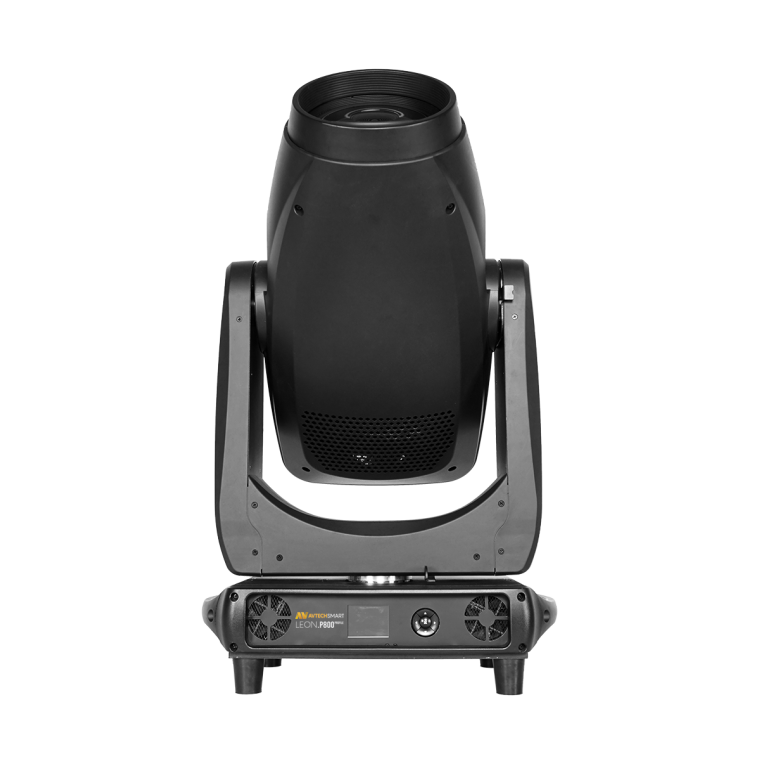

LEON.P800 is a ultra-compact moving beam with supper narrow angle 1.7°. And it is super high effeciency by using big lens 152mm design. It’s incredible double prism can create a stronger and sharper beam effect. It is an ideal product for concerts, events, theme park, TV and remtal market.
Specifications
- Light Source: 130W module
- Beam Angle: 1.7°
- Input Voltage: AC100-240V，50/60Hz
- Dimming: 0-100%16Bit
- Control Protocol: DMX512，RDM，W-DMX (optional)
- Display: On board Control, Custom Mode,0-25Hz Strobe
- DMX Modes: BASIC/13CHS, STANDARD/15CHS, Extend/18CHS
- Max. Power: 200W
- Signal Socker: 3pin or 5pin in and out
- Pan/tilt Rotation: 540°/270°(8-16bit)
- Cooling: Forced Convection
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges
- Static Gobo Wheel: 14+1 Gobos+ White, Gobo-flow effect, Gobo shake
- Colors: One color wheel(9 dichroic -filters+ White，Rainbow-flow effect)
- Prism: 1pcs 8+16 facet prism prisms with bi-directional rotation, Speed adjustable,One piece of linear prism with bi-directional rotation, Speed adjustable
- Effect Gobo: Rainbow effect rotating gobo wheel
- Dimensions: 330X249X521mm
- Weight: 15kg
- Material: Flame-retardant plastic（V0）
- Color: Black
- Operating Temperature: 0℃-45℃
- IP Rating: IP20
- Leon.p800 Is A Ultra: compact moving beam with supper narrow angle 1.7°. And it is super high effeciency by using big lens 152mm design. It’s incredible double prism can create a stronger and sharper beam effect. It is an ideal product for concerts, events, theme park, TV and remtal market. Optical system <ul> <li>Light source: 130W module</li> <li>Angle: 1.7°</li> </ul> Electrical Specs <ul> <li>Voltage: AC100-240V，50/60Hz</li> <li>Max. Power: 200W</li> <li>Power Connection: Power in/out</li> <li>Signal socker: 3pin or 5pin in and out</li> </ul> Control System <ul> <li>Pan/Tilt rotation: 540°/270°(8-16bit)</li> <li>Dimmer: 0-100%16Bit</li> <li>Cooling: Forced Convection</li> <li>Control: DMX512，RDM，W-DMX (optional)</li> <li>Display: On board Control, Custom Mode,0-25Hz Strobe</li> <li>Con Personality: BASIC/13CHS, STANDARD/15CHS, Extend/18CHS</li> <li>Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges</li> </ul> Effect synthetic system <ul> <li>Static gobo wheel: 14+1 Gobos+ White, Gobo-flow effect, Gobo shake</li> <li>Colors: One color wheel(9 dichroic -filters+ White，Rainbow-flow effect)</li> <li>Prism: 1pcs 8+16 facet prism prisms with bi-directional rotation, Speed adjustable,One piece of linear prism with bi-directional rotation, Speed adjustable</li> <li>Effect Gobo : Rainbow effect rotating gobo wheel</li> </ul> Appearance <ul> <li>Size: 330X249X521mm</li> <li>Weight: 15kg</li> <li>Casing: Flame-retardant plastic（V0）</li> <li>Color: Black</li> </ul> Work Environment <ul> <li>Ambient Temp: 0℃-45℃</li> <li>IP Rated: IP20</li> </ul> Certification <ul> <li>CE, MET</li> </ul>
- Power Connection: Power in/out
- CE, MET
