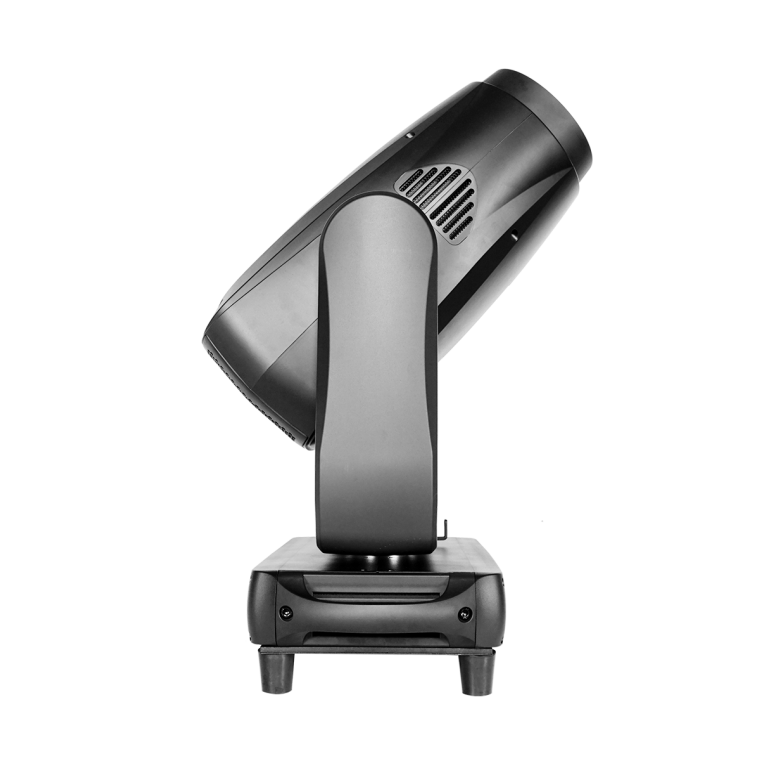

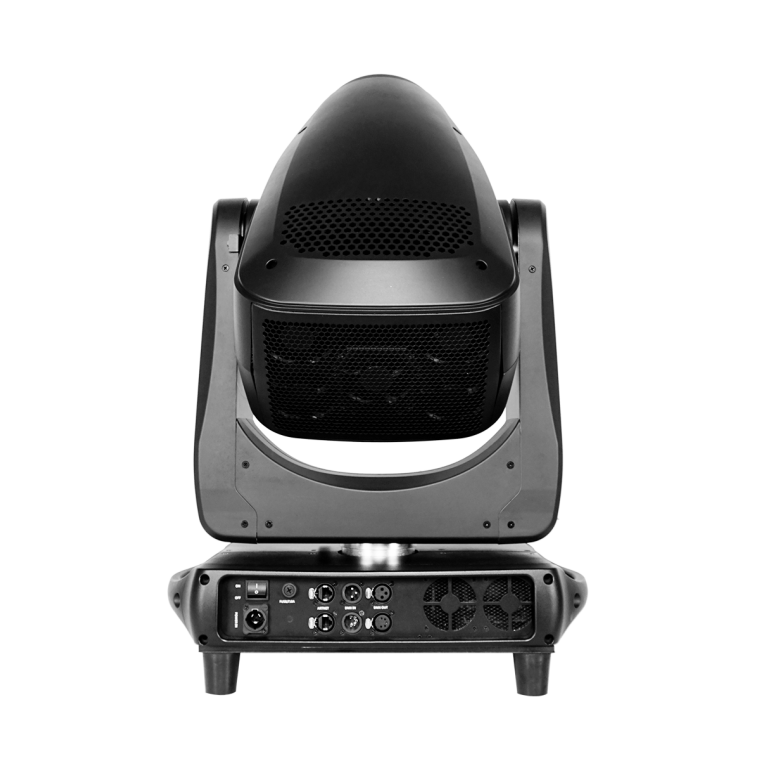

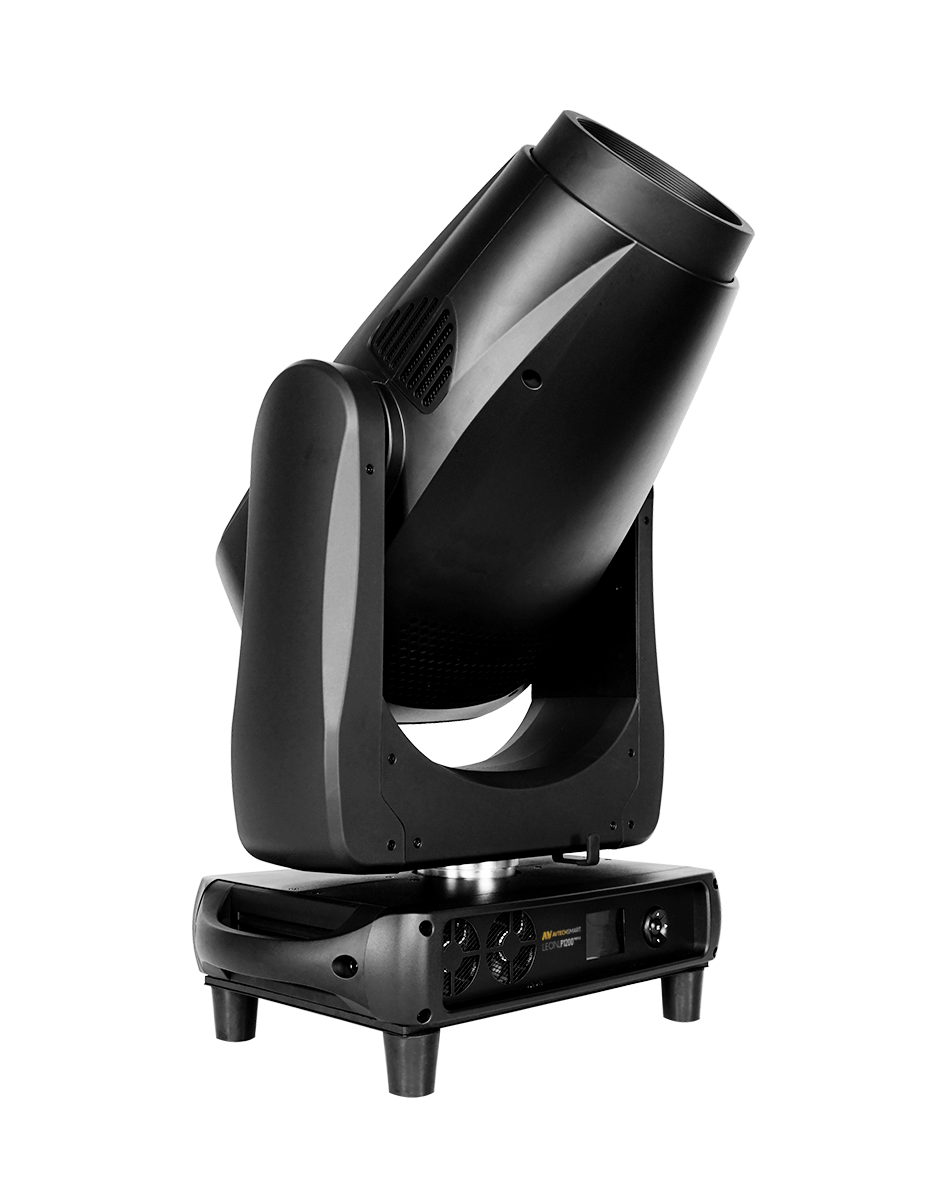

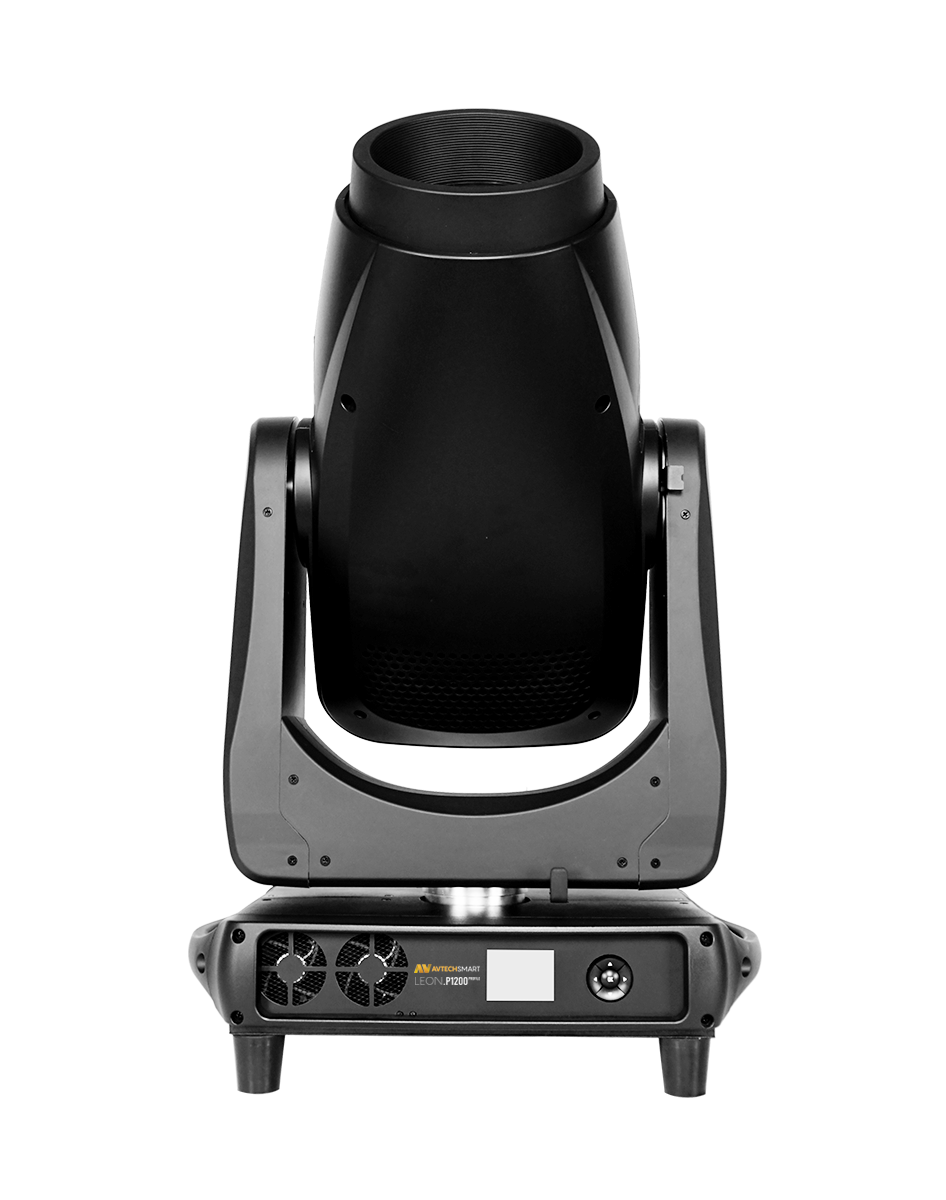

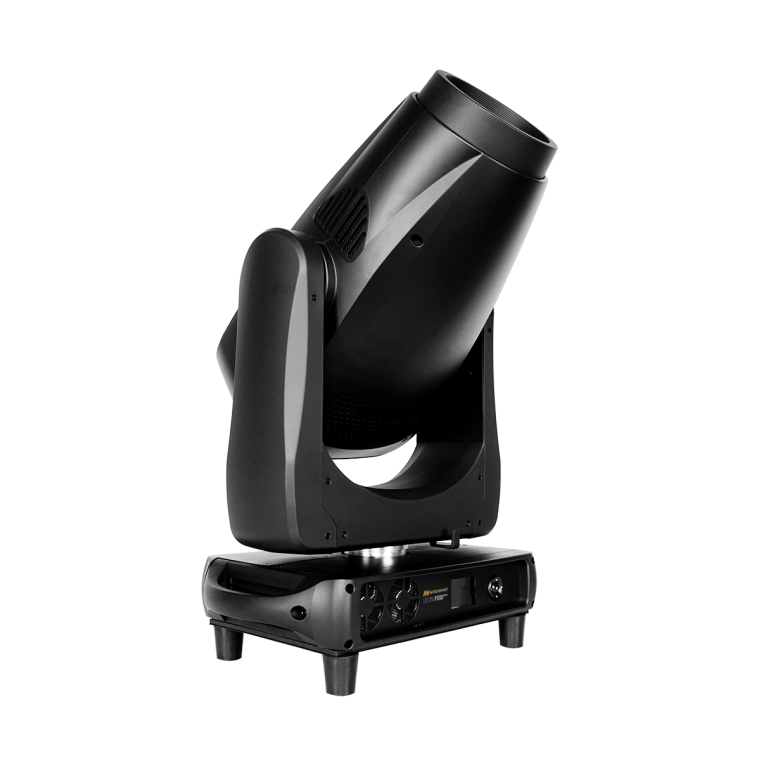

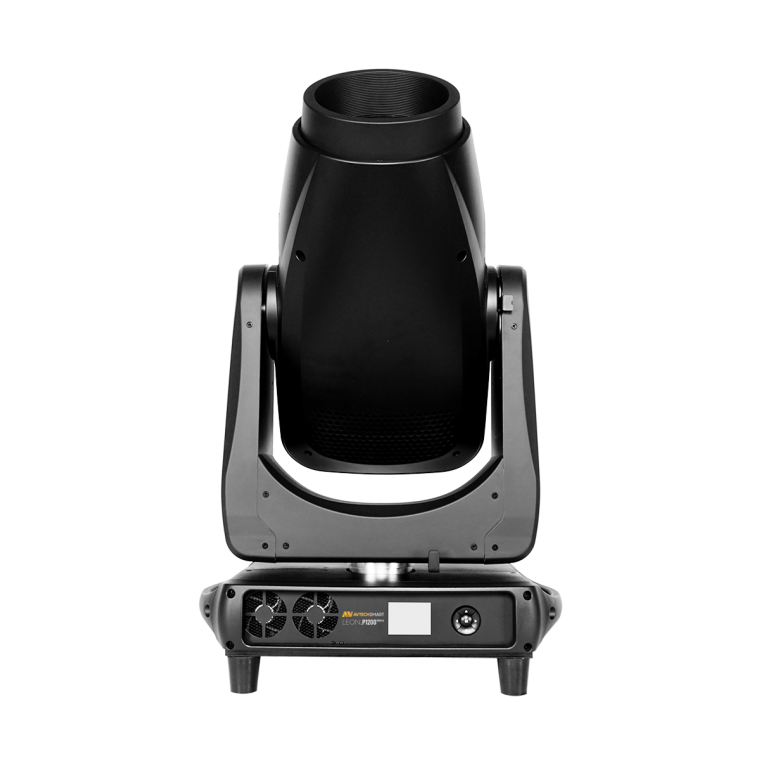

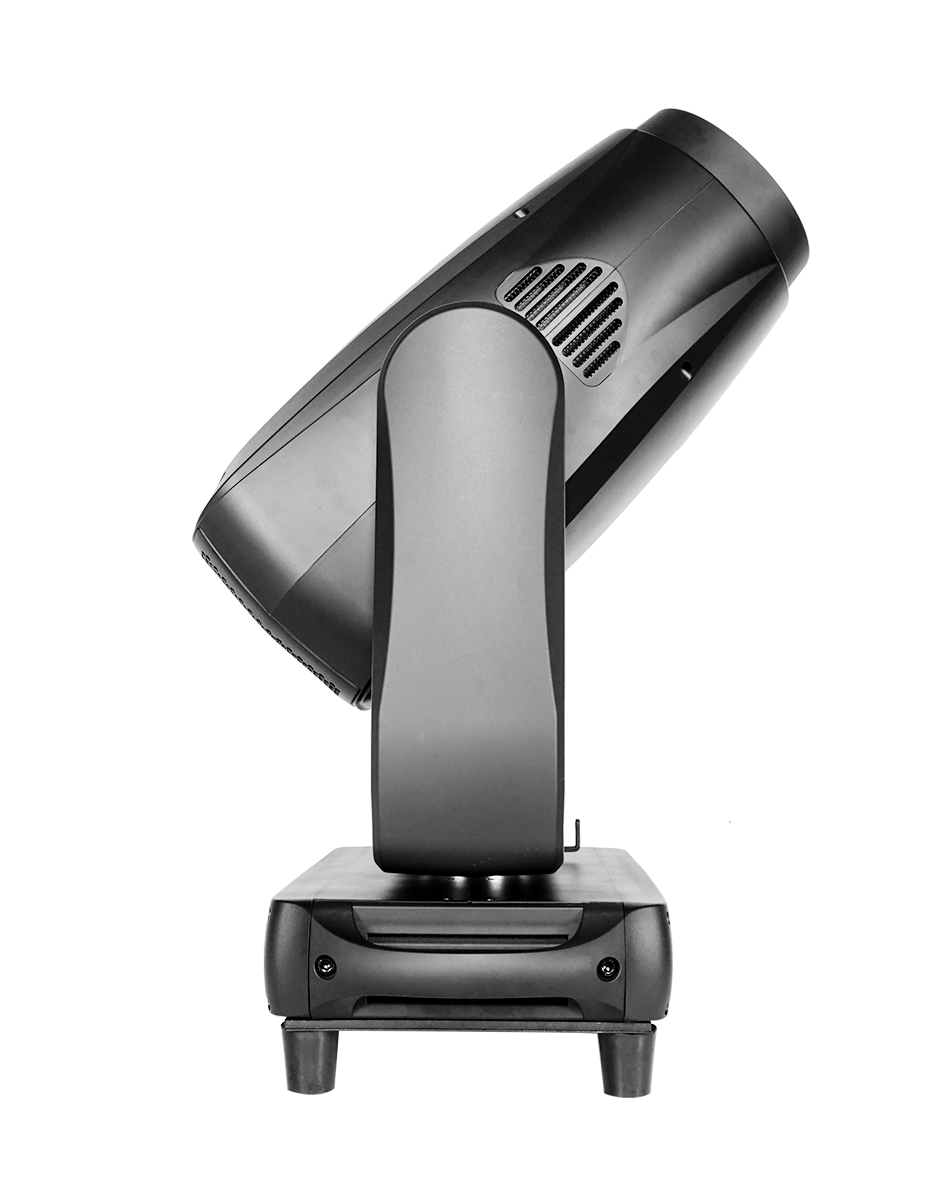

LEON.W600 WASH is a high power LED WASH moving head, with 600W efficient LED optical system, smooth electronic zoom (7°-62° Fresnel lens and 3°-65°optional PC lens), precise X/Y positioning, 2 color wheel, with high quality CMY and linear CTO. It is an ideal product for TV, theater, concerts, events and rental market.
Specifications
- Light Source: 1200W module
- Beam Angle: 5,5º-55º
- Input Voltage: AC100-240V，50/60Hz
- Dimming: 0-100% 16Bit
- Control Protocol: DMX, etherCON RJ45 in / out
- Display: On board Control, 5 buttons for personal settings
- DMX Modes: BASIC, STANDARD, 36/42/45
- Max. Power: 1500W
- Signal Socket: 3pin or 5pin in and out
- Pan/tilt Rotation: 540°/270°(8-16bit)
- Cooling: Forced Ventilation
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges
- Static Gobo Wheel: 7 roto + open
- Colors: 6 colors + open
- Prism: 1pcs 4 facet prism prisms with bi-directional rotation, Speed adjustable,One piece of linear prism with bi-directional rotation, Speed adjustable
- Effect Gobo: Gobo rotation L <> R, gobo shake, continuous rotation of gobo wheels
- Dimensions: 483x283x827mm
- Weight: 42kg
- Material: Flame-retardant plastic（V0）
- Color: Black
- Operating Temperature: 0℃-45℃
- IP Rating: IP20
- Power Connection: Power in/out
- CE, MET
