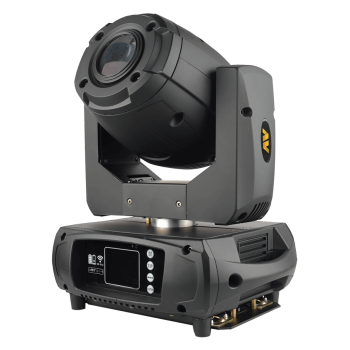

The R2DSPOT150 is a LED moving head that features a 150W white LED as its light source and a 15° beam angle. The moving head can be controlled using DMX, Auto, Sound, or Master/Slave modes, and it offers 16/14/12/10 DMX channels. It comes with 7 colors + white for color options, 8 fixed gobos + open, and 6 rotating gobos + open. It has a 1-8 facet rotating prism and features automatic correction for its pan/tilt, which can rotate up to 540°/270°. Equipped with a high speed 3-phase motor that enables smooth movement, it comes with a 4-button LCD display.
Specifications
- Light Source: 150W white LED
- Beam Angle: 15°
- Power: PowerCon In & Out
- Display: 4-button LCD display
- Control Protocol: DMX, Auto, Sound, Master/Slave
- DMX Channels: 16/14/12/10 ch.
- Colors: 7 colors + white
- 1 Static Gobo Wheel: 1 8 gobos + open
- 1 Rotating Gobo Wheel: 6 gobos + open
- Prism: 1 8-facet prism, rotating
- Focus: Motorized focus
- Pan/tilt: 540°/270°, automatic correction
- Dimensions: 270*270*470 mm
- Weight: 10.5 kg
