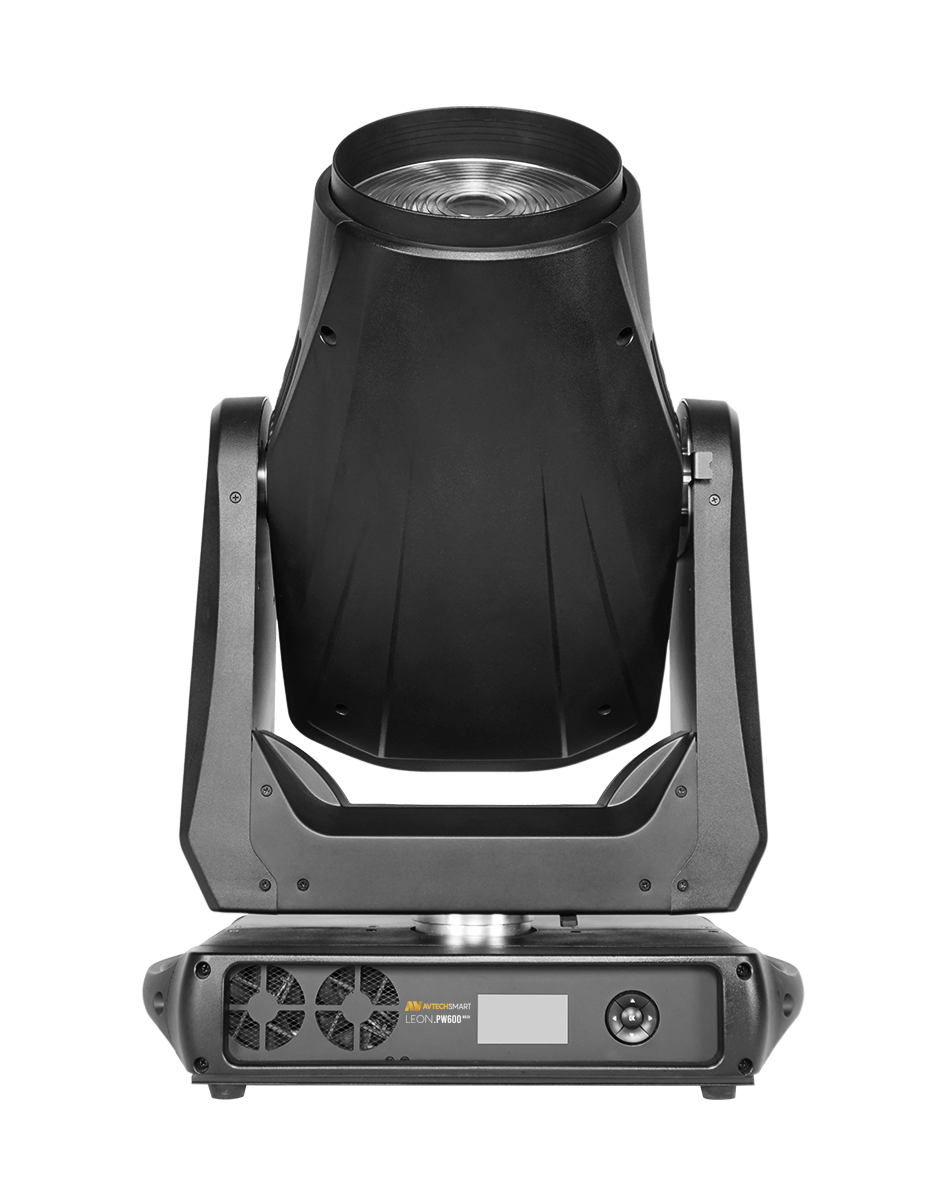

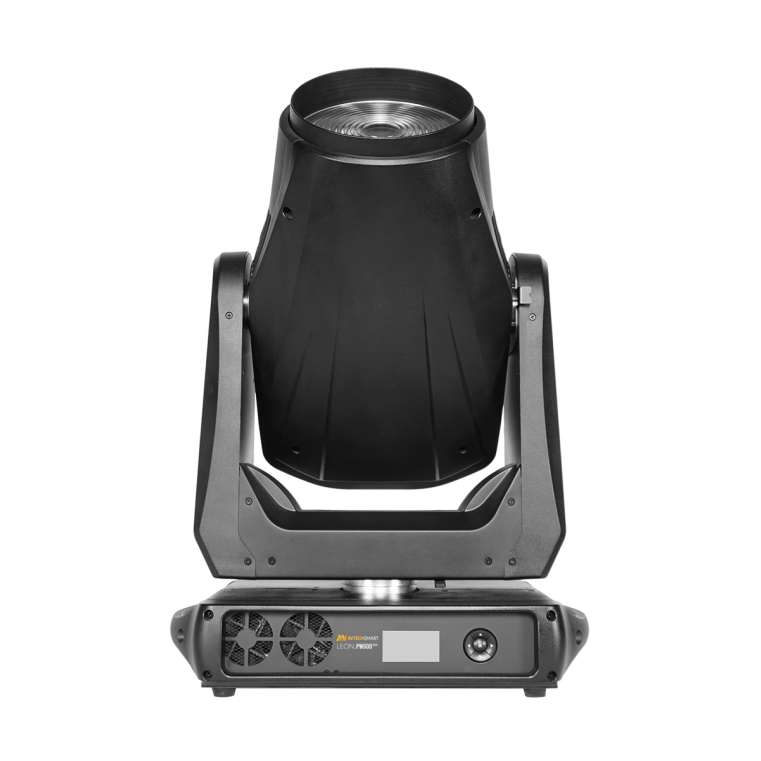

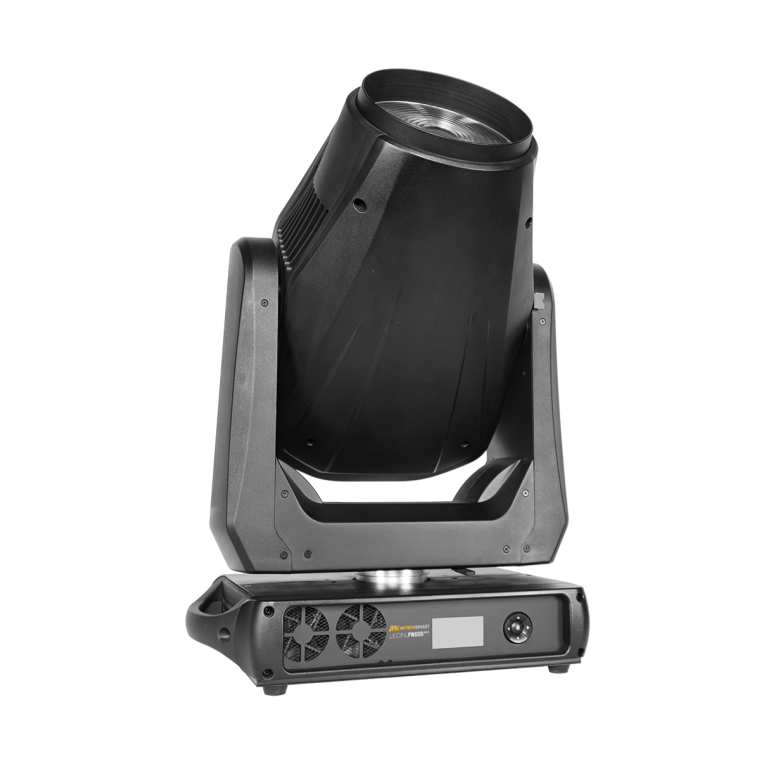

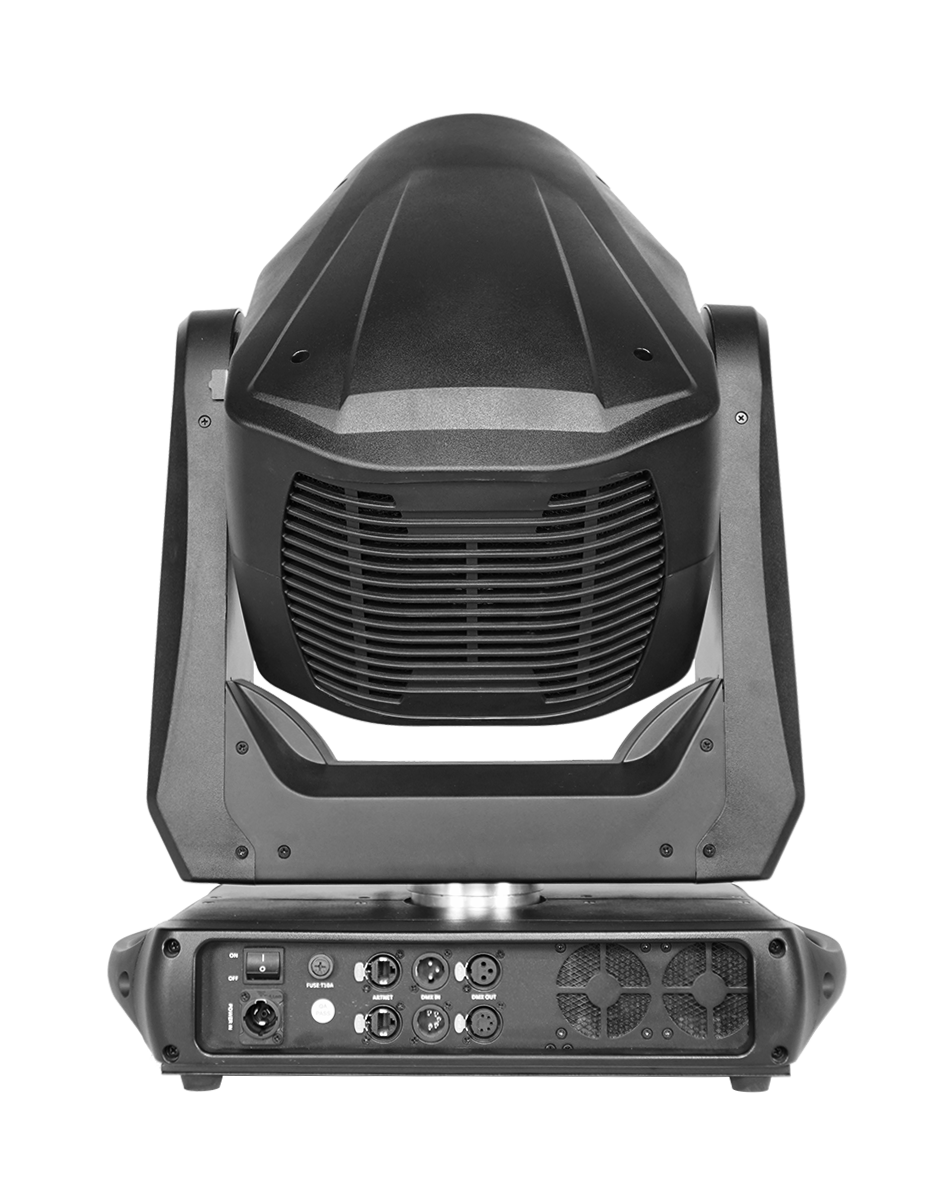

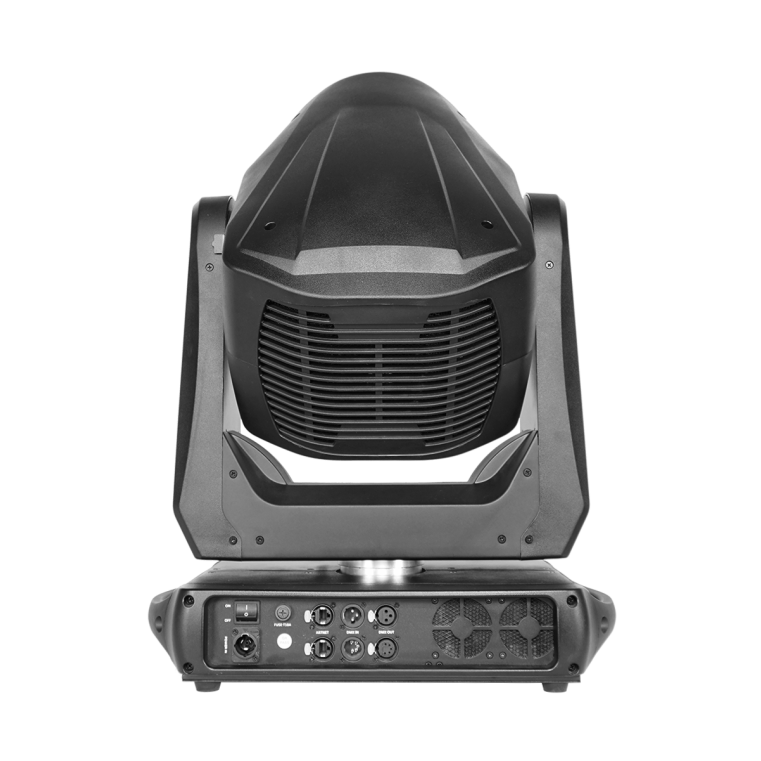

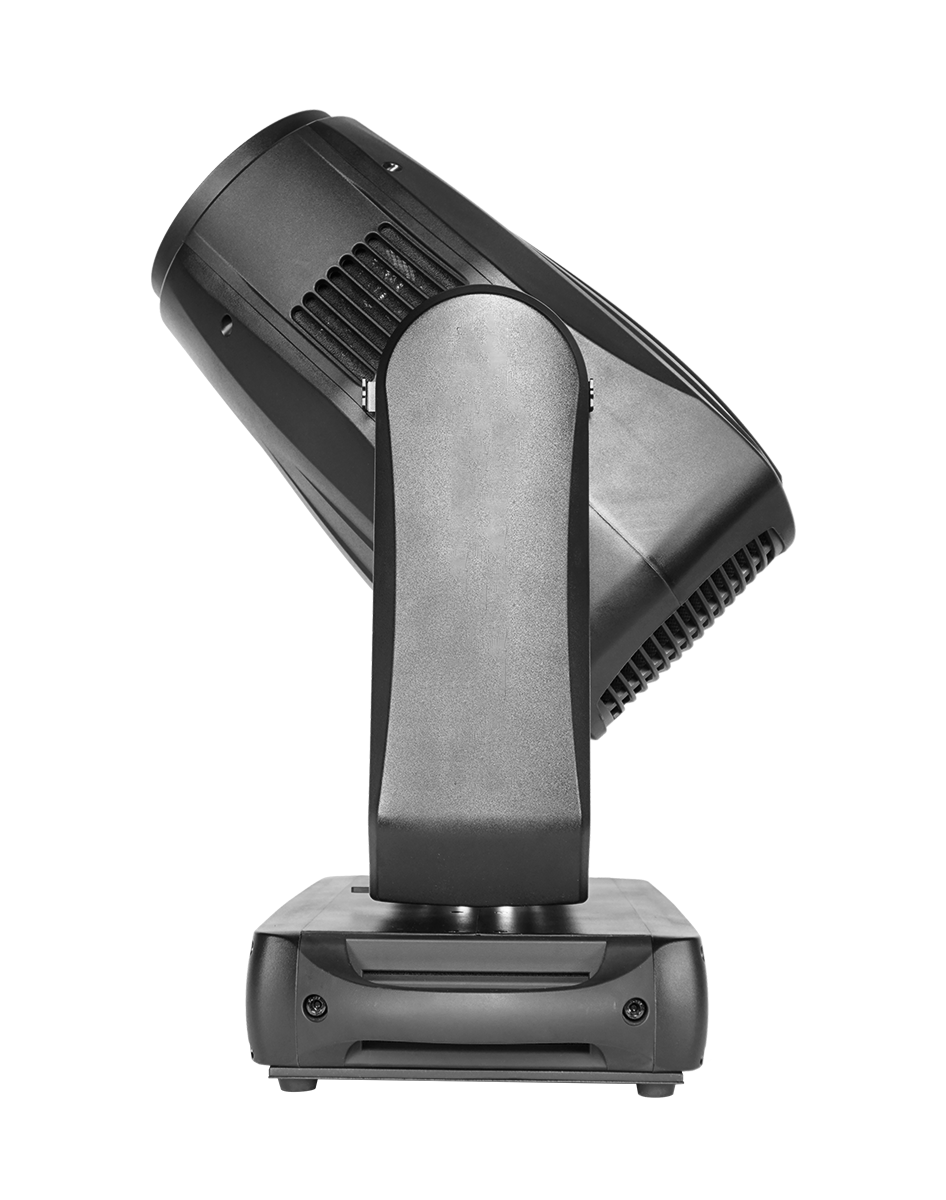

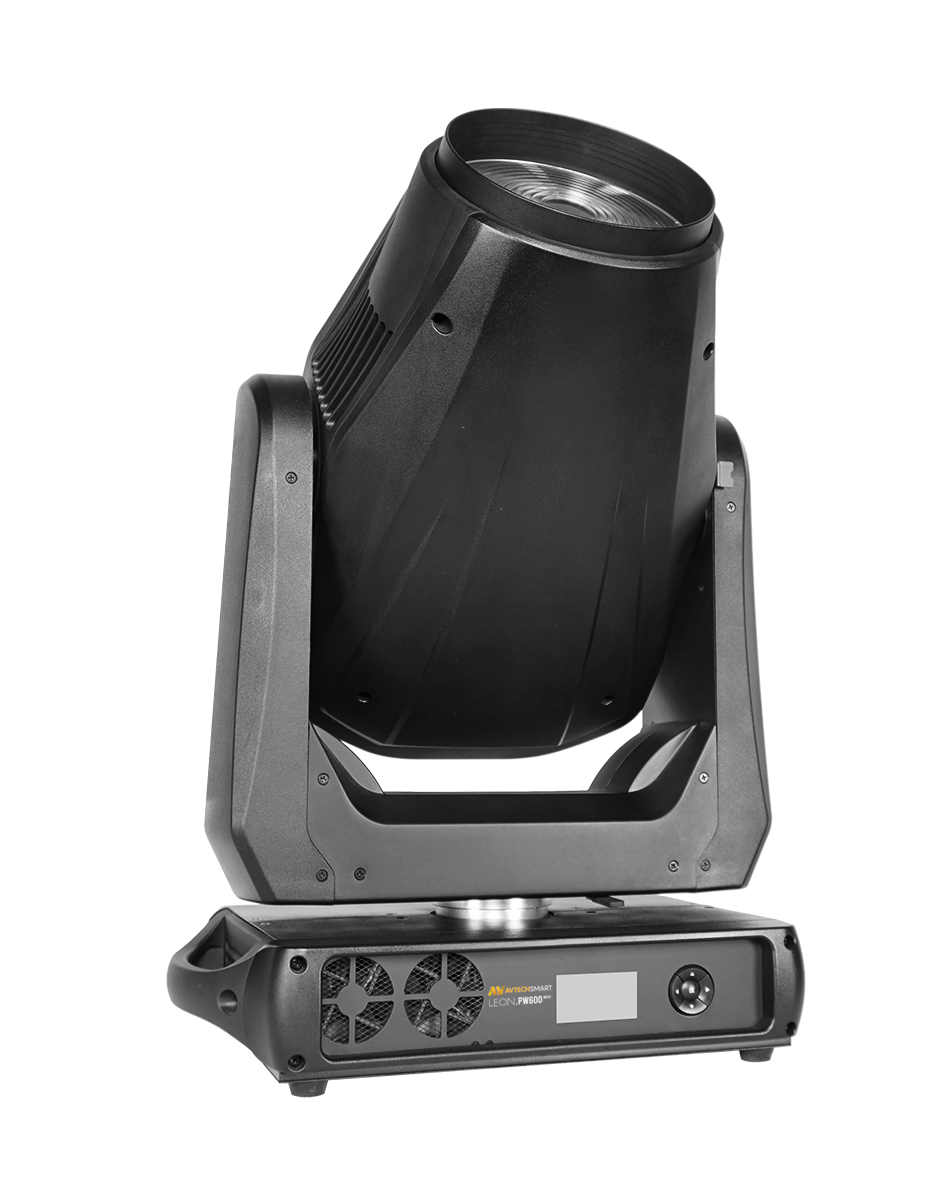

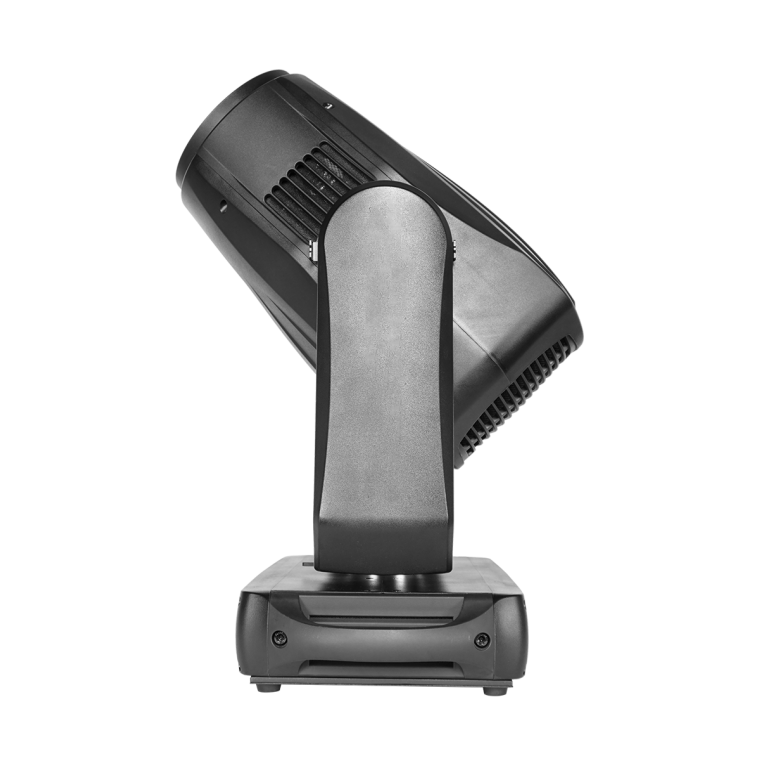

The high power Moving framing wash light PROFILE WASH ,with efficiency 600W LED optic system, smooth electronic zoom (Fresnel lens 7°–62° and PC lens 3°–65°optional)Precise X/Y positioning professional performance, 2 color wheels, CMY and linear CTO, framing system for variety of cutting effects; LEON.PW600 is a cool head for theatre, TV, concert hall, events and rental markets.
Specifications
- Light Source: 600W module.
- Beam Angle: Fresnel glass lens:7°-62°, Fresnel PC Lens: 3°-65°.
- CRI: Ra> 70, (Ra>90 optional).
- Input Voltage: 100-240VAC, 50/60Hz.
- Power: 800W
- Drive Current: 3A.
- Dimming: 0-100%16Bit.
- Control Protocol: DMX512, ROM, ARTNET, W-DMX (optional).
- Display: On board Control, Custom Mode, 0-25Hz Strobe.
- DMX Modes: STANDARD/30CHS, BASIC/27CHS.
- Signal Socket: 3pin/5pin in and out, RJ45 in and out.
- Pan/tilt Rotation: 540°/270°(8-16bit).
- Cooling: Forced Convection.
- Special: Pan/Tilt movement blackout, User-selectable
- Colors: Two color wheel (7dichroic-filters+White, Rainbow-flow effect).
- Cmyk: CMY wheel, Linear CTO function.
- Framing: 1 Framing module: 4 framing blades-45°-45°
- Iris: 5-100% linearly adjustable with macro.
- Focus: Motorized linear focus.
- Dimensions: 483x282x699mm.
- Weight: Fresnel glass lens: 32.5Kg
- Material: Flame-retardant plastic (VO).
- Color: Black.
- Operating Temperature: 0-45 ‘C.
- IP Rating: IP20.
- Power Connection: Power in.
- CE, MET.
