Description
LASERMOV12 is a high-tech moving head laser that integrates advanced electronics, mechanics, and optics to deliver an unparalleled lighting experience. Designed for precision and performance, it offers features that set a new standard in the industry.
Now available in two versions:
-
Standard Version: Equipped with RDM bidirectional data transmission and DMX512 update capabilities, supporting control modes such as sound, automatic, DMX512, and master-slave.
-

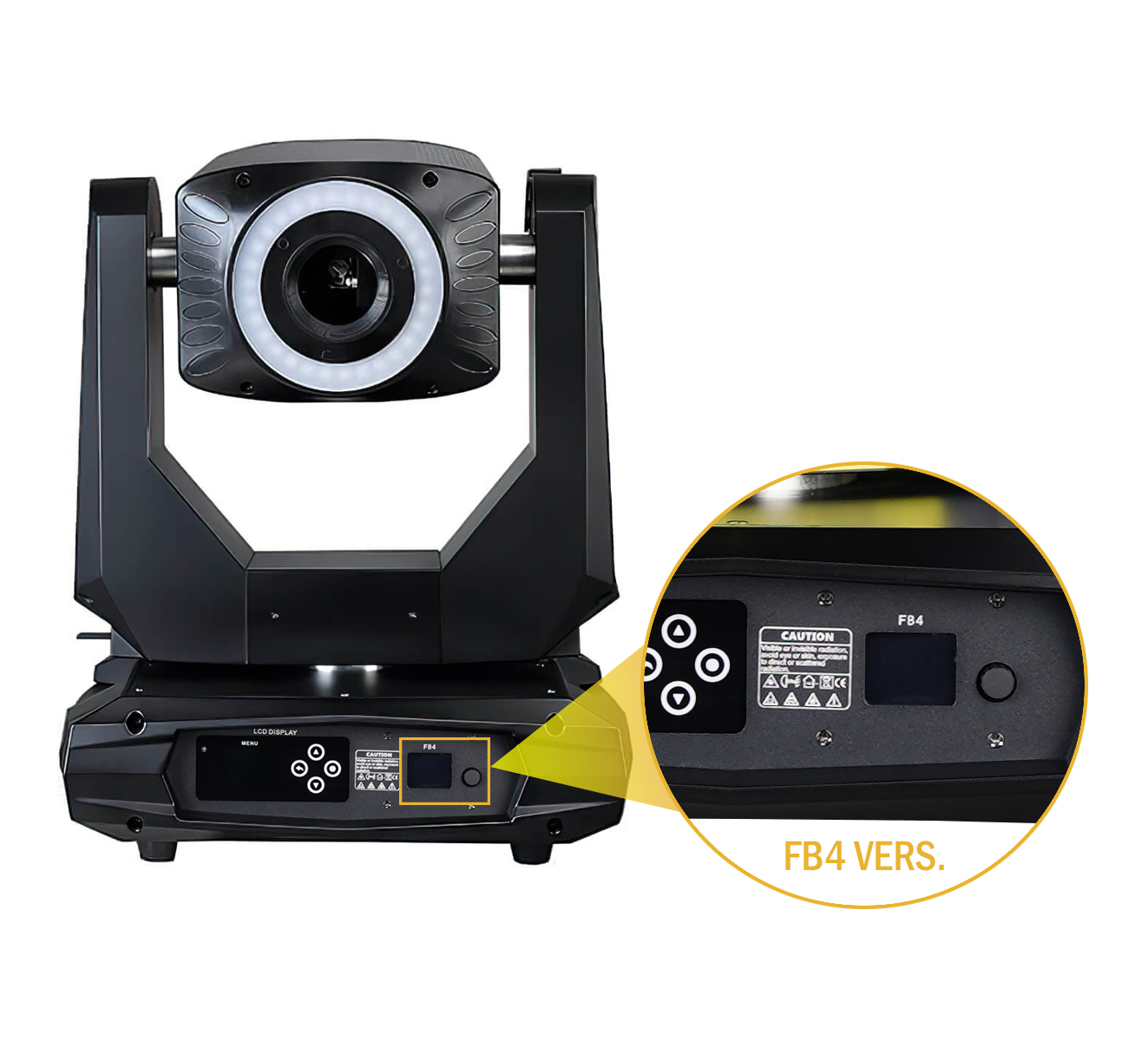

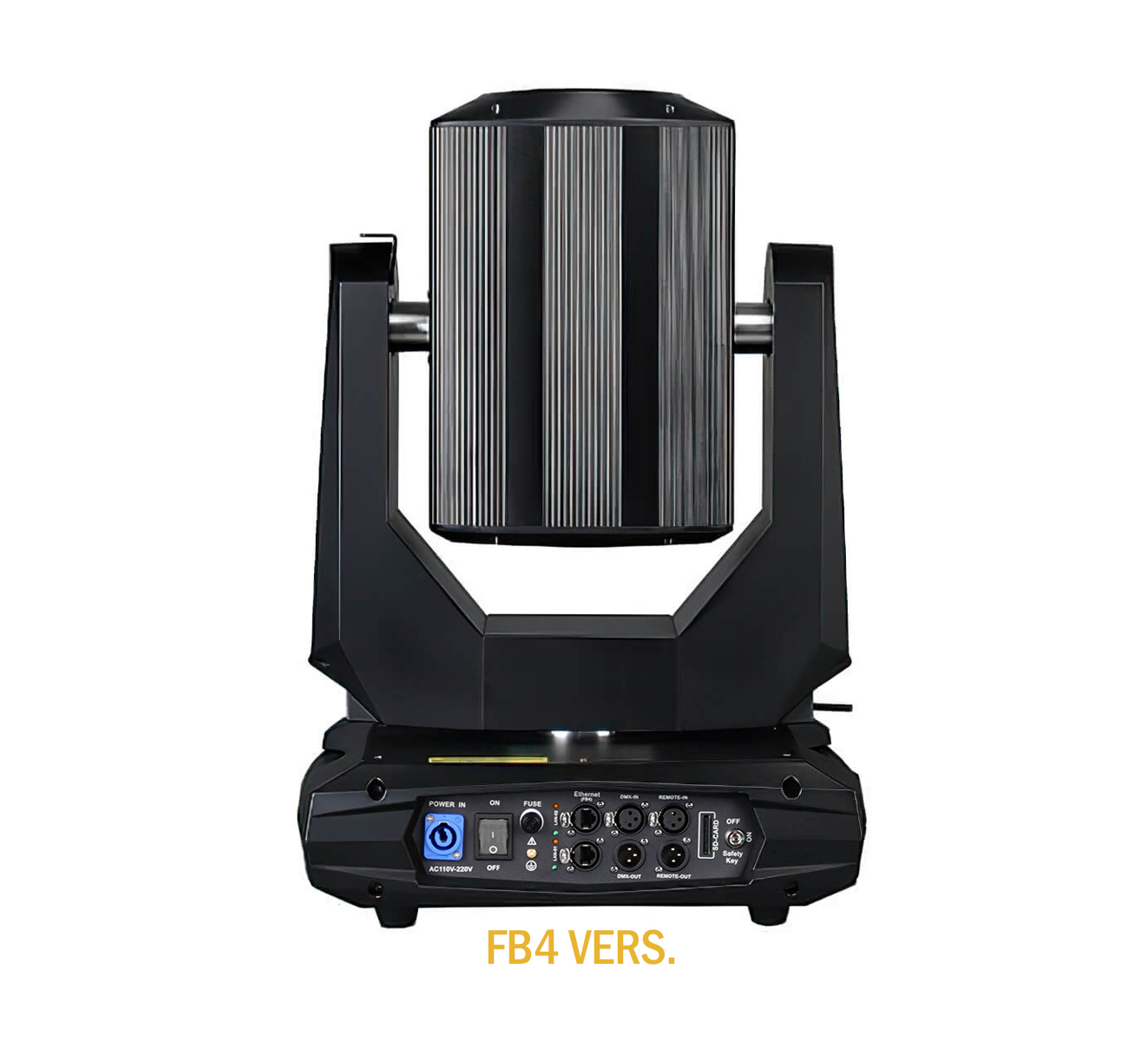

FB4 Integrated Version: Includes a built-in Pangolin FB4 interface, enabling advanced control options like Ethernet, ArtNet, ILDA, DMX, and stand-alone operation via SD card. This version is ideal for professionals seeking seamless integration with Pangolin’s QuickShow or BEYOND software.
Both versions feature:
- Stable and reliable operation with high luminous efficiency.
- Precise positioning and smooth X/Y axis rotation.
- Fast moving head speed for dynamic energy.
- Excellent sealing performance, dustproof design, and efficient heat dissipation.
- Vibrant, full-spectrum RGB laser technology with a 15mm beam diameter.
Perfectly suited for small to medium indoor events, the LASERMOV12 is designed to deliver high-impact visual effects in a variety of settings.
Specifications
- Rated Voltage: AC100~240V 50/60Hz
- Power Consumption: ≤200W
- Laser Color: RGB full color
- Beam Diameter: φ15mm
- Motors: 7 pcs 42 high torque stepper motors
- Modulation: Analog
- Rotation: Y-axis 240° rotation, each head 140° rotation
- Channels: 14/35/42 CH
- Control Modes:
- Standard Version: Sound, Automatic, DMX512, Master-Slave
- FB4 Version: Ethernet, ArtNet, ILDA, DMX512, SD Card (stand-alone)
- Control Technology:
- Standard Version: RDM bidirectional data transmission, DMX512 update
- FB4 Version: Integrated Pangolin FB4 interface
- Application: Small and medium indoor events
- Dimensions: 304 x 403 x 577 mm
- Weight: 27 kg
