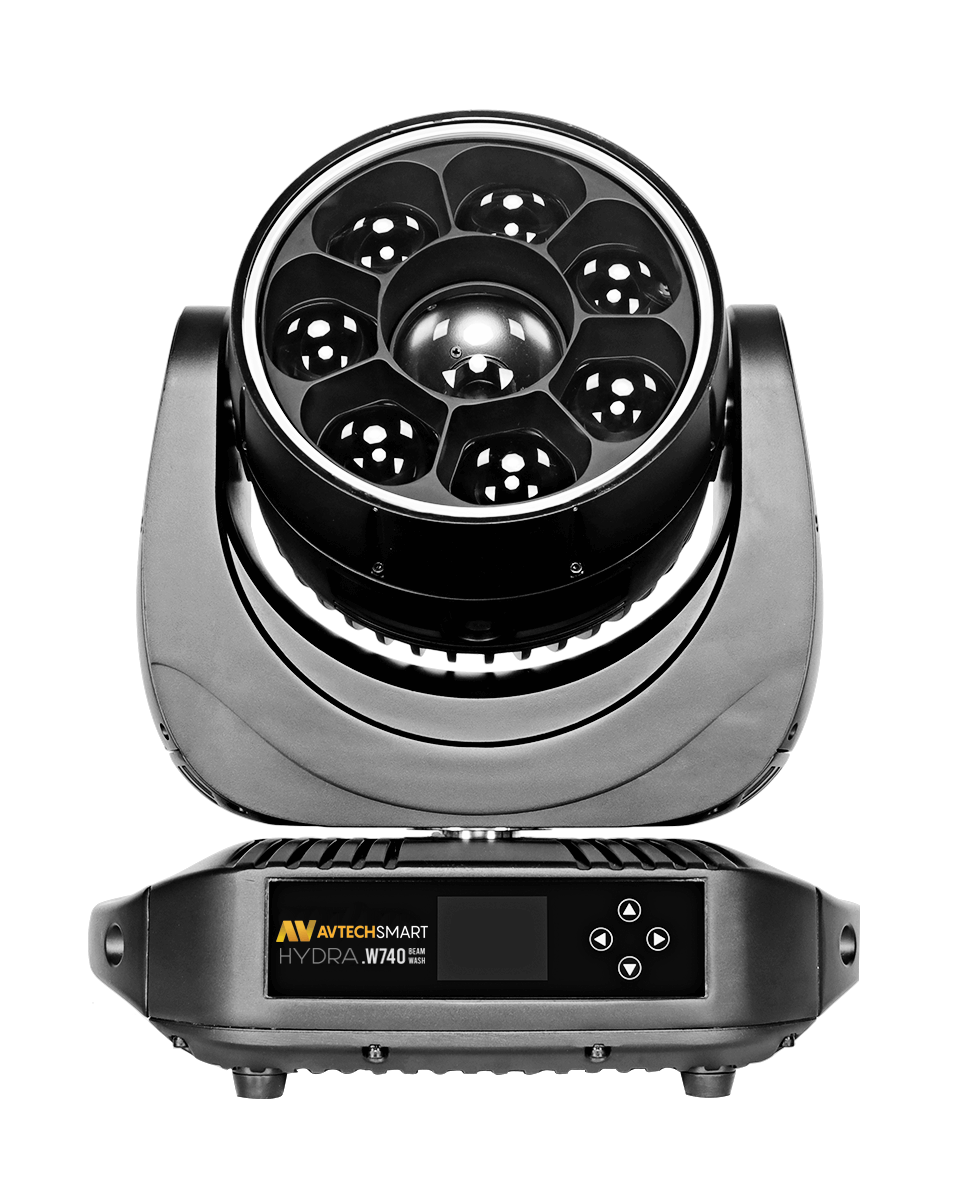

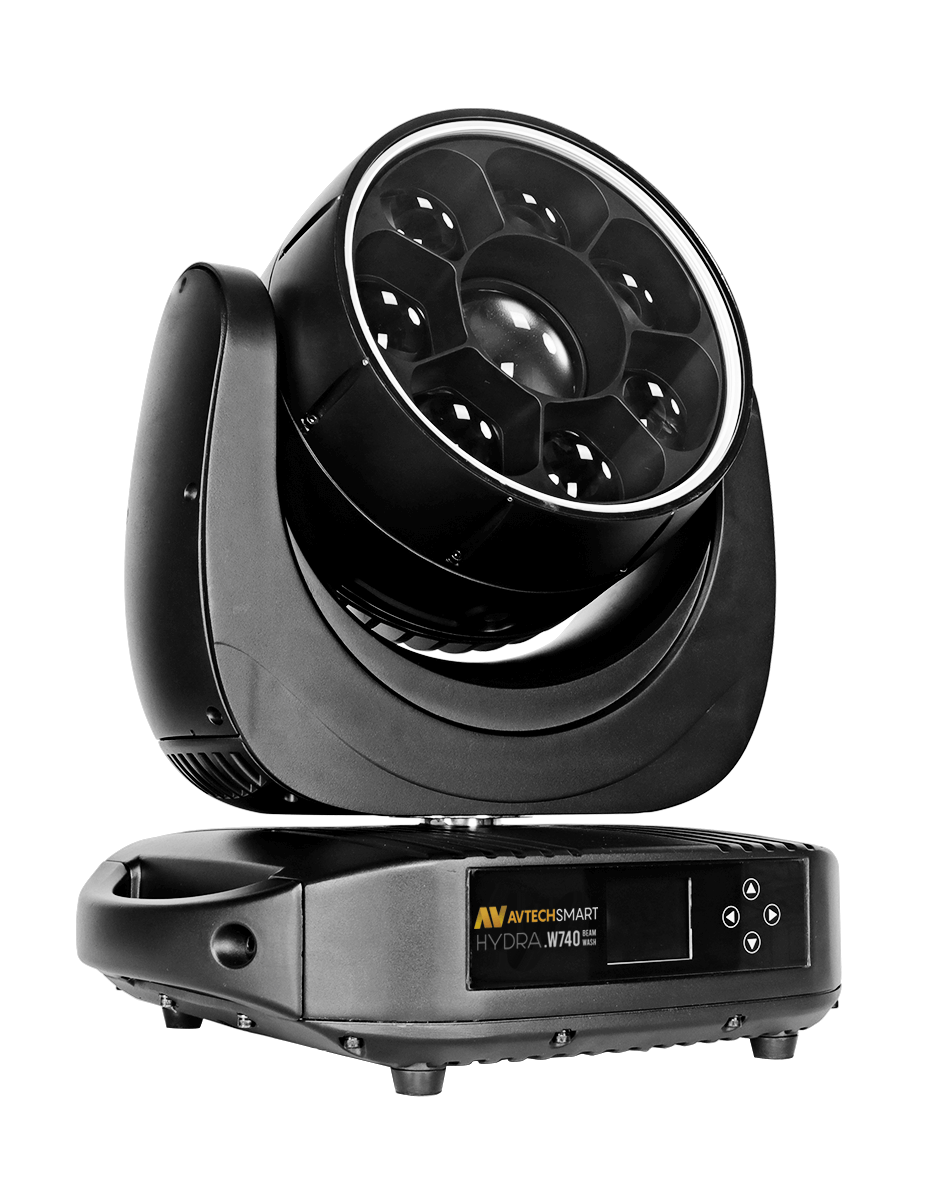

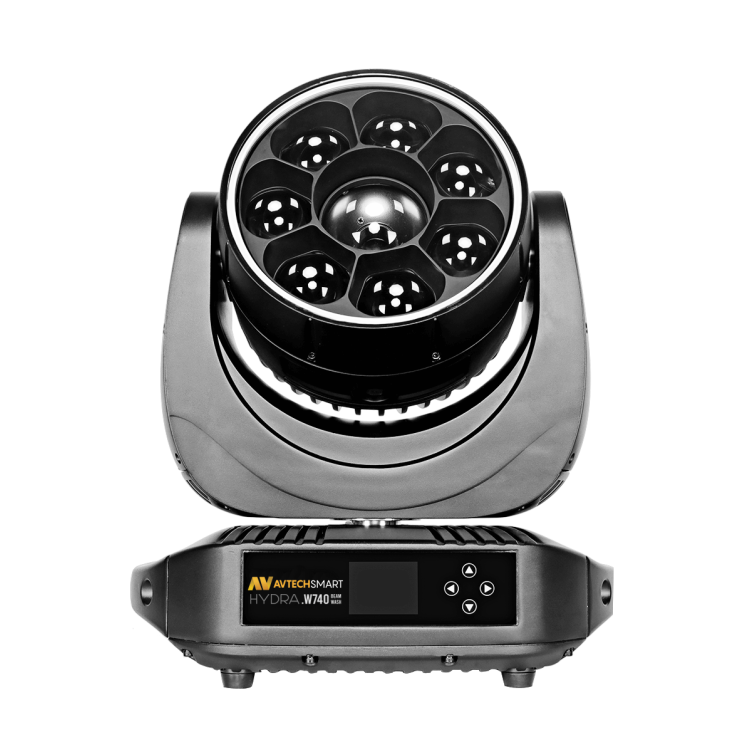

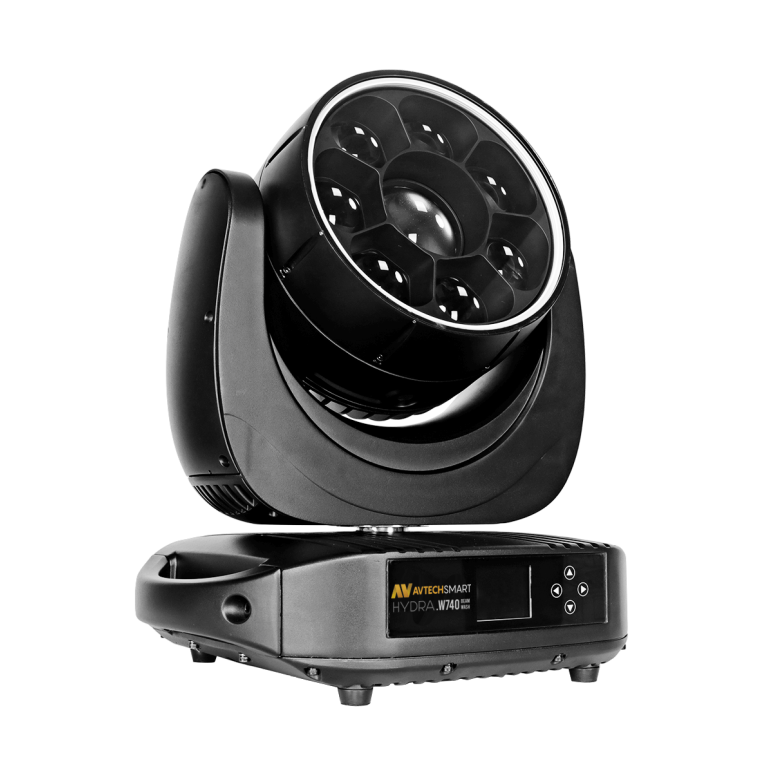

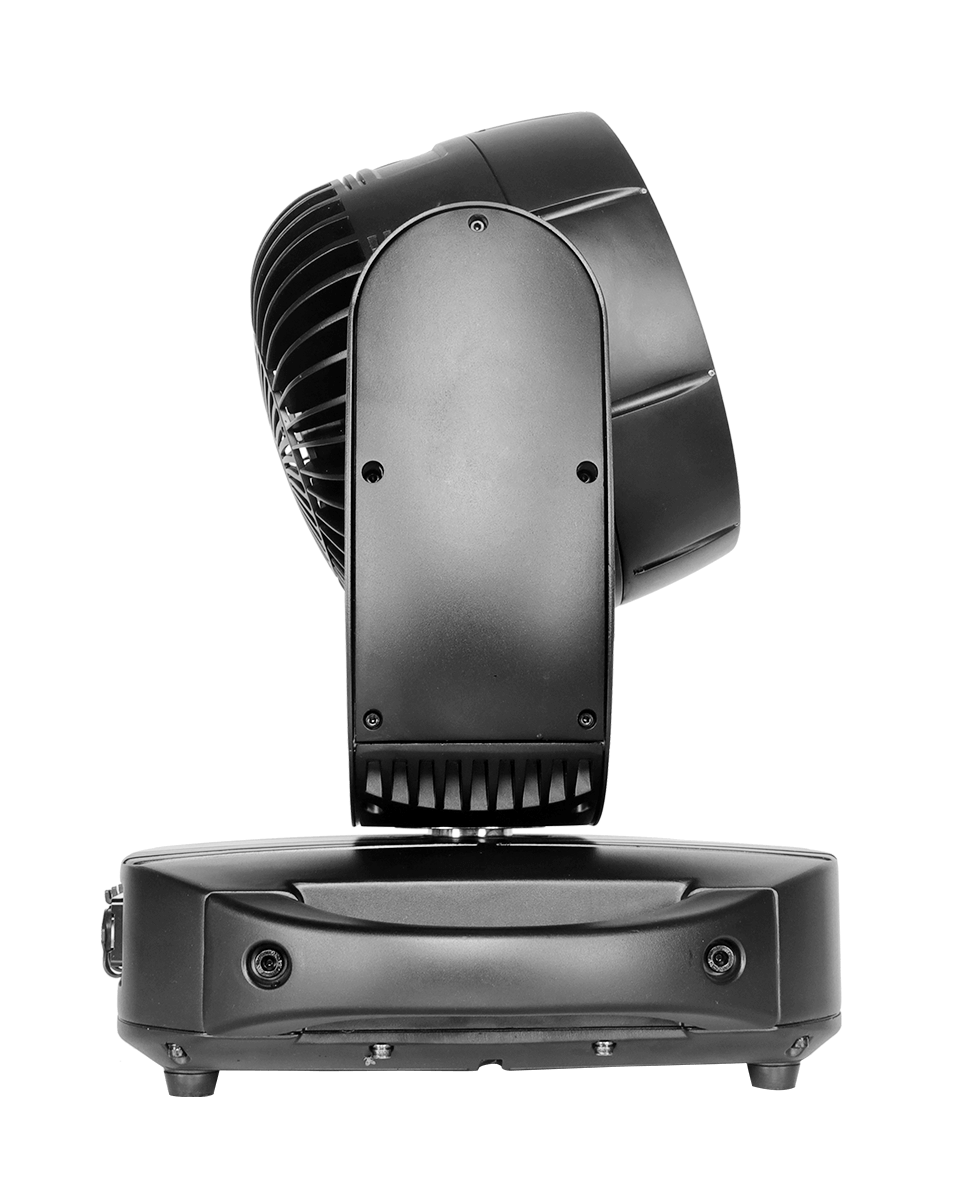

HYDRA.W740BK WASH is an innovative IP washing Moving head, combined with 7x40W and 60W RGBW LED, one LED ring effect and great optics design. It is built in HSIC system, mixing color much easier and faster, creating a brilliant color effect. Extremely perfect dynamic effect by individual pixel control. Beam angle 5°-35°, Field angle 8°-45°. Small compact with a very light weight 23KG. It is an ideal products for outdoor concerts/events, commercial complex, theme park, amusement park and rental touring market.
Specifications
- Light Source: 7X40W (RGBW,RGBA optional) + 60W(RGBW).
- LED: ring: Can present the rainbow effect.
- Beam Angle: 5°-35°.
- Input Voltage: AC100-240V,50/60Hz.
- Power: 350W.
- Drive Current: 4A.
- Dimming: 0-100% 16Bit.
- Control Protocol: DMX512, ROM, ARTNET, SACN, Web Server W-DMX (optional).
- Display: On board Control, Custom Mode,0-25Hz Strobe.
- DMX Modes: SSP/21 CHS, TOUR/26CHS, TR16/33CHS, CMY/27CHS, HSIC/23CHS, PIXEL/48CHS.
- Field Angle: 8° -45°.

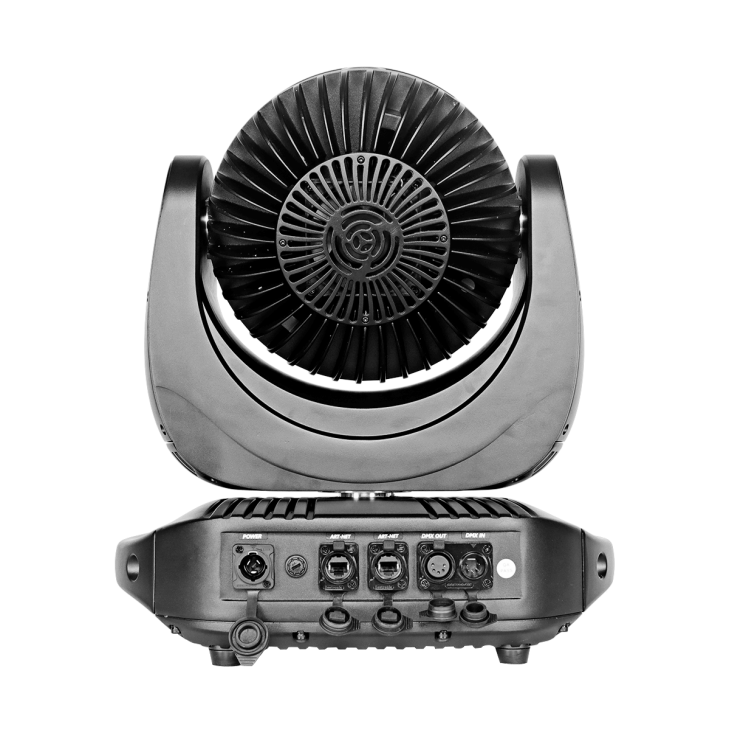

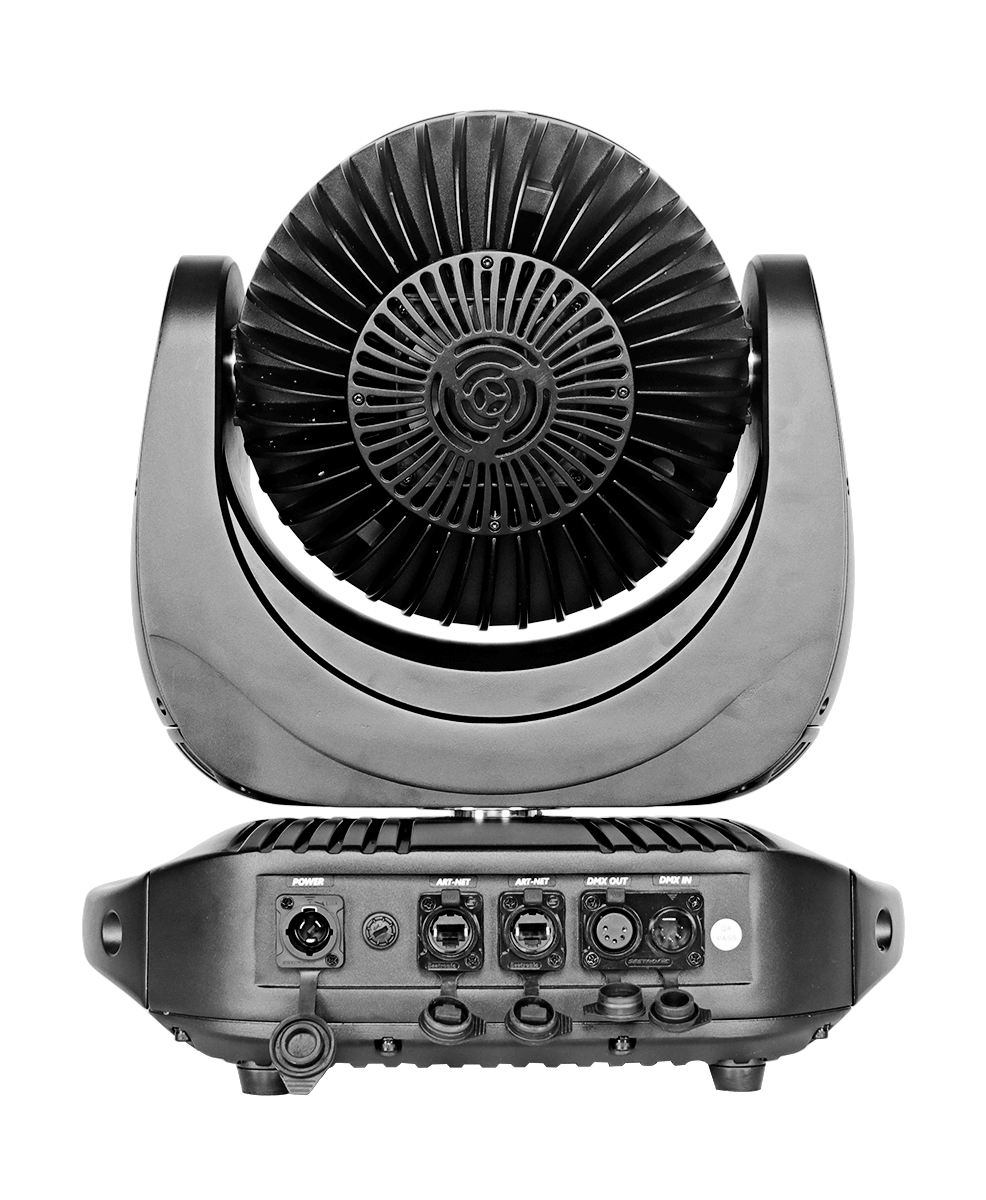

- Signal Sacker: 3pin I 5pin in and out, RJ45 in and out.
- Pan/tilt Rotation: 540°/220°.
- Cooling: Forced Convection.
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt
- Prism: One piece of 8 F prisms with bi-directional rotation, Speed adjustable.
- Unique Effec: Magic kaleidoscope.
- Dimensions: 416x356x488mm.
- Weight: 23kg.
- Material: Die-cast aluminum.
- Color: Black.
- Operating Temperature: 20 t-45 t.
- IP Rating: IP65.
- Power Connection: power in.
- CE, MET.
