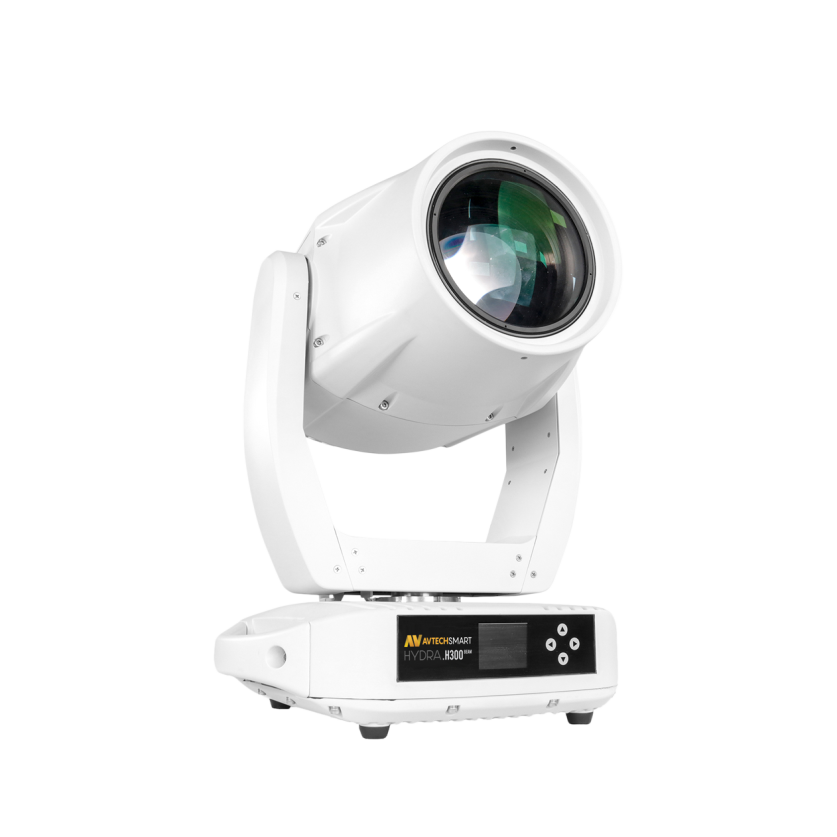

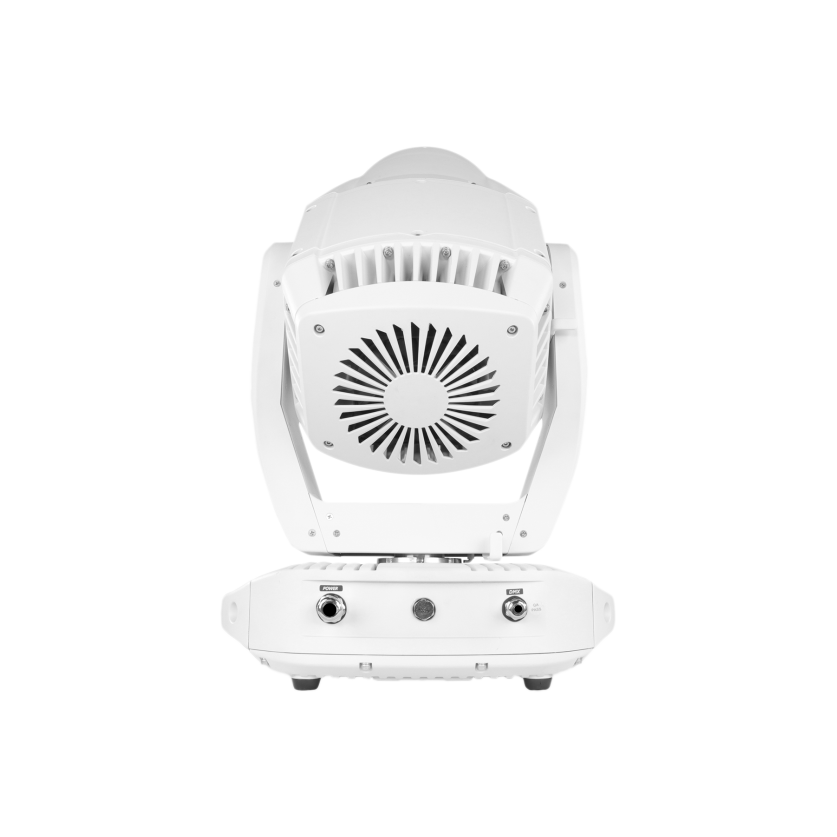

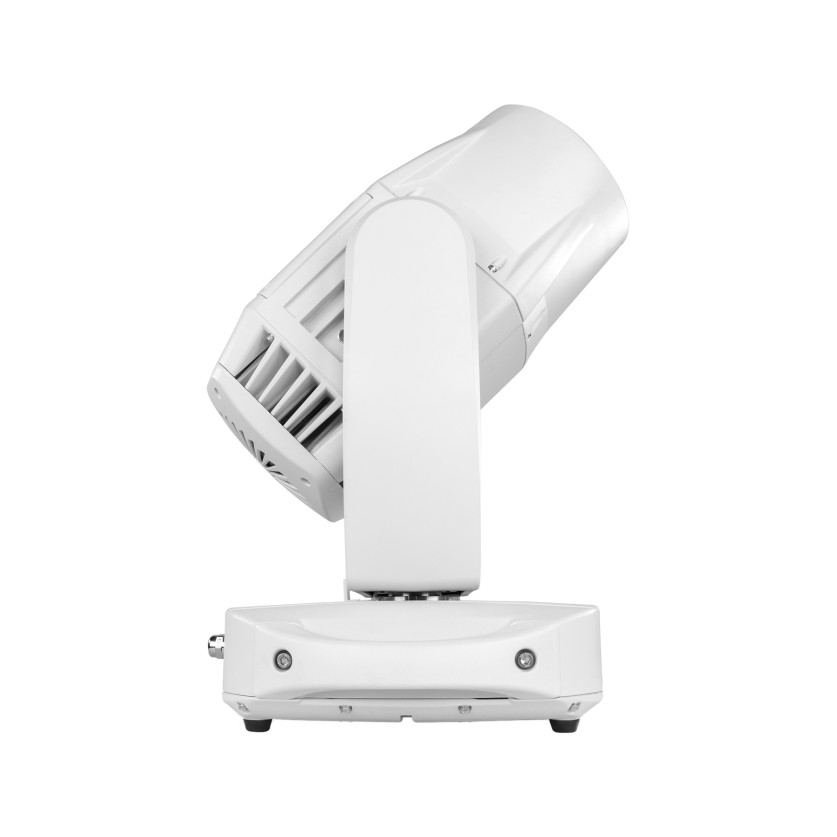

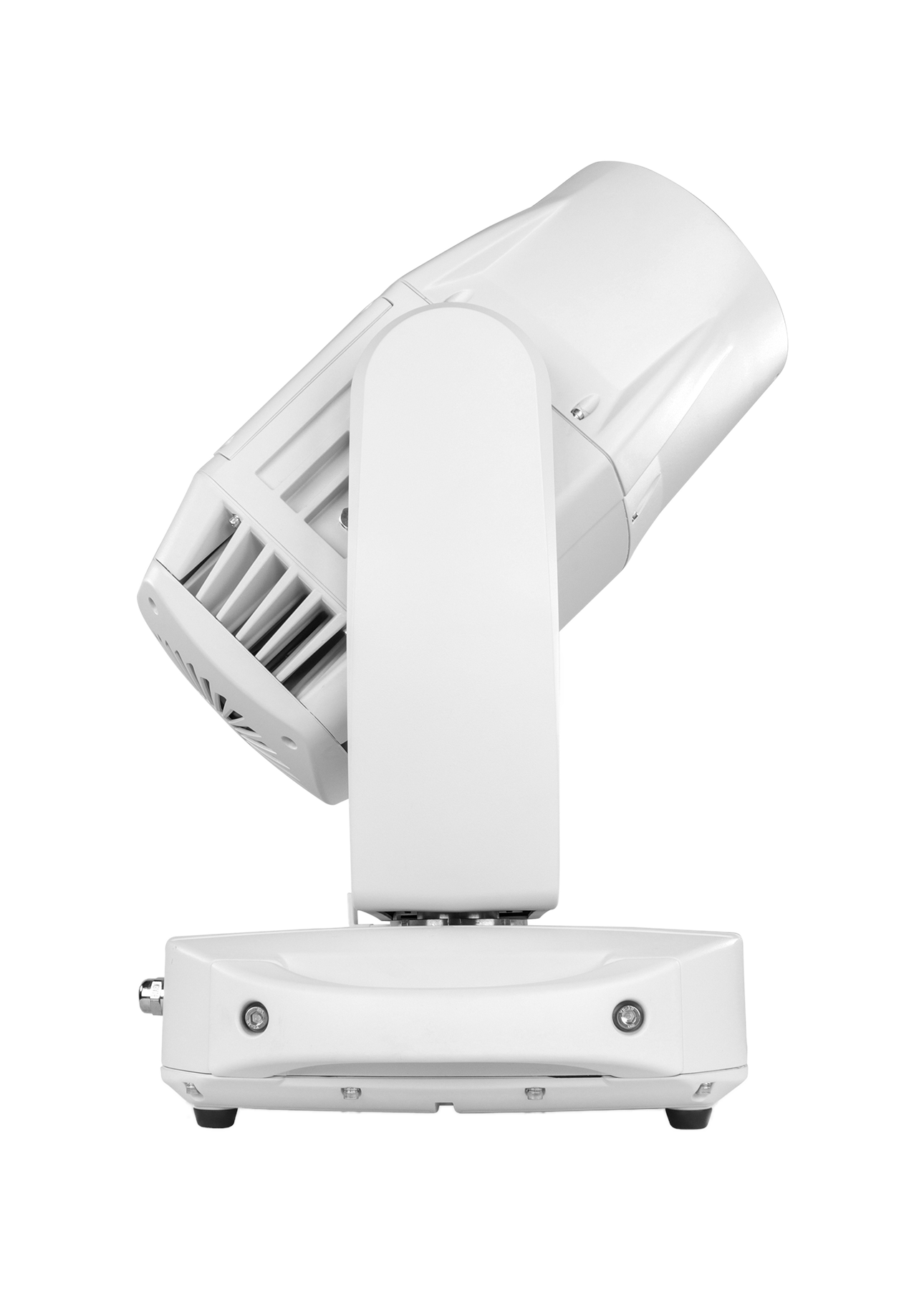

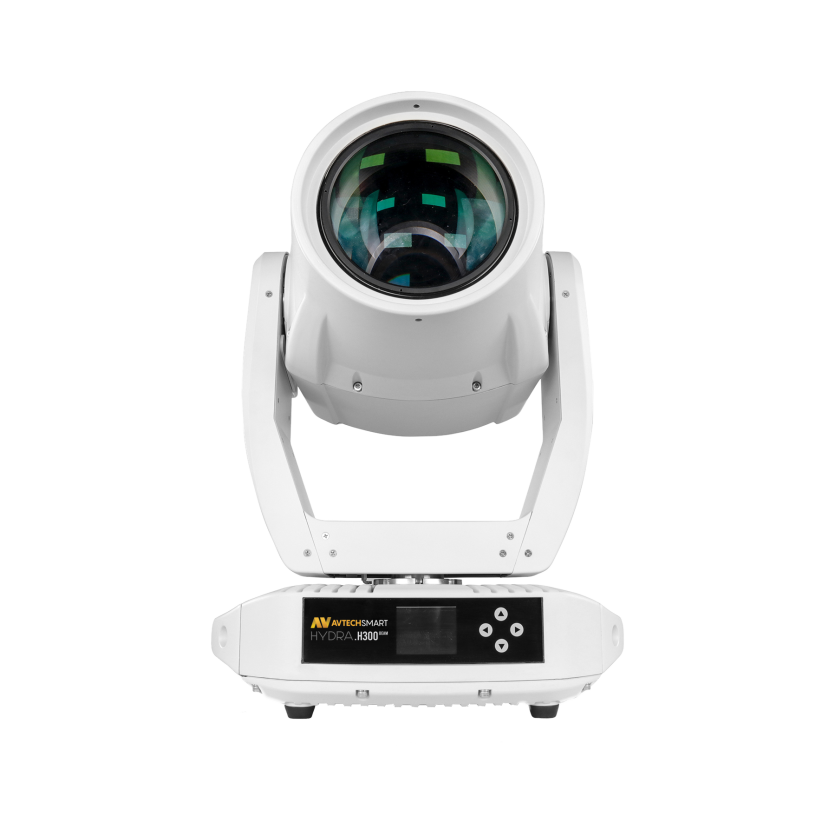

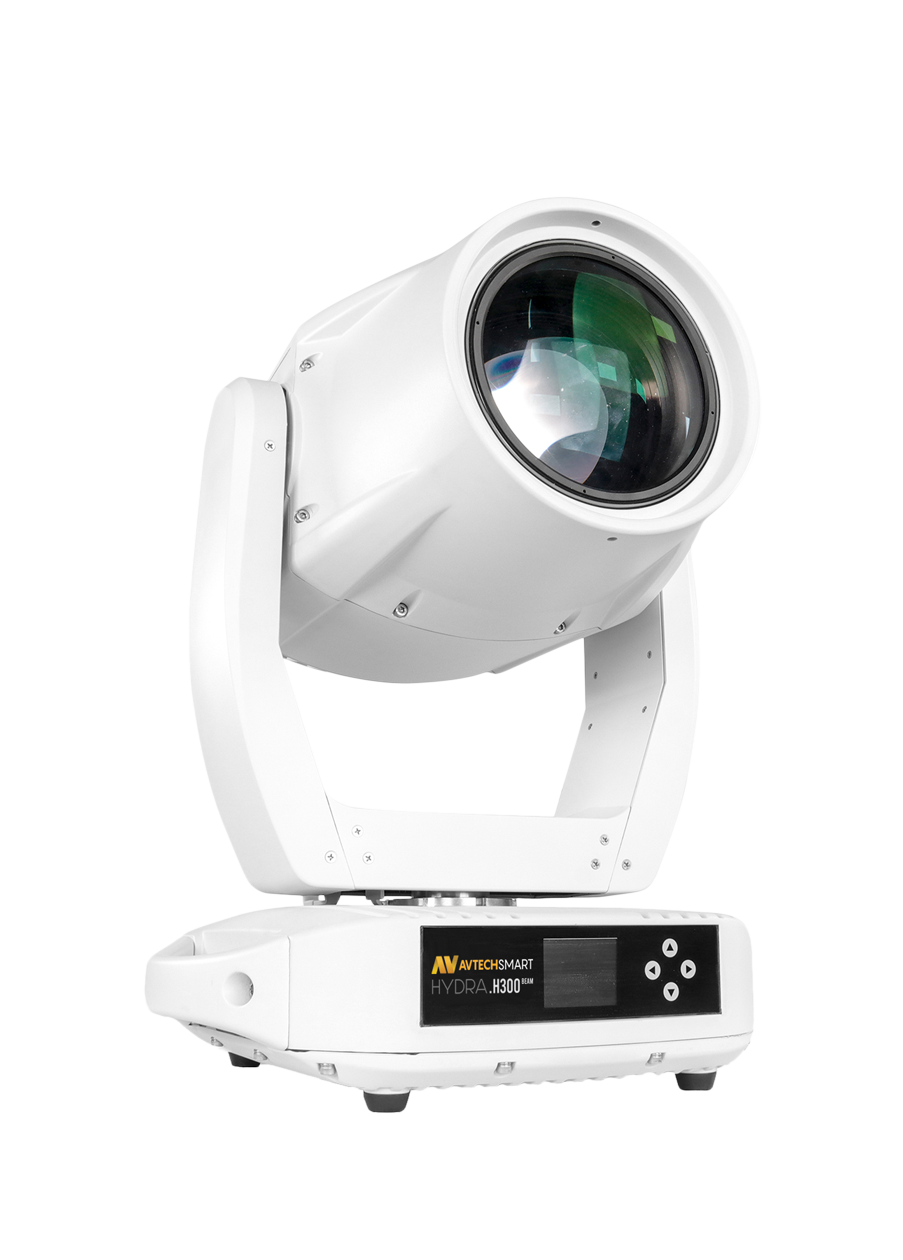

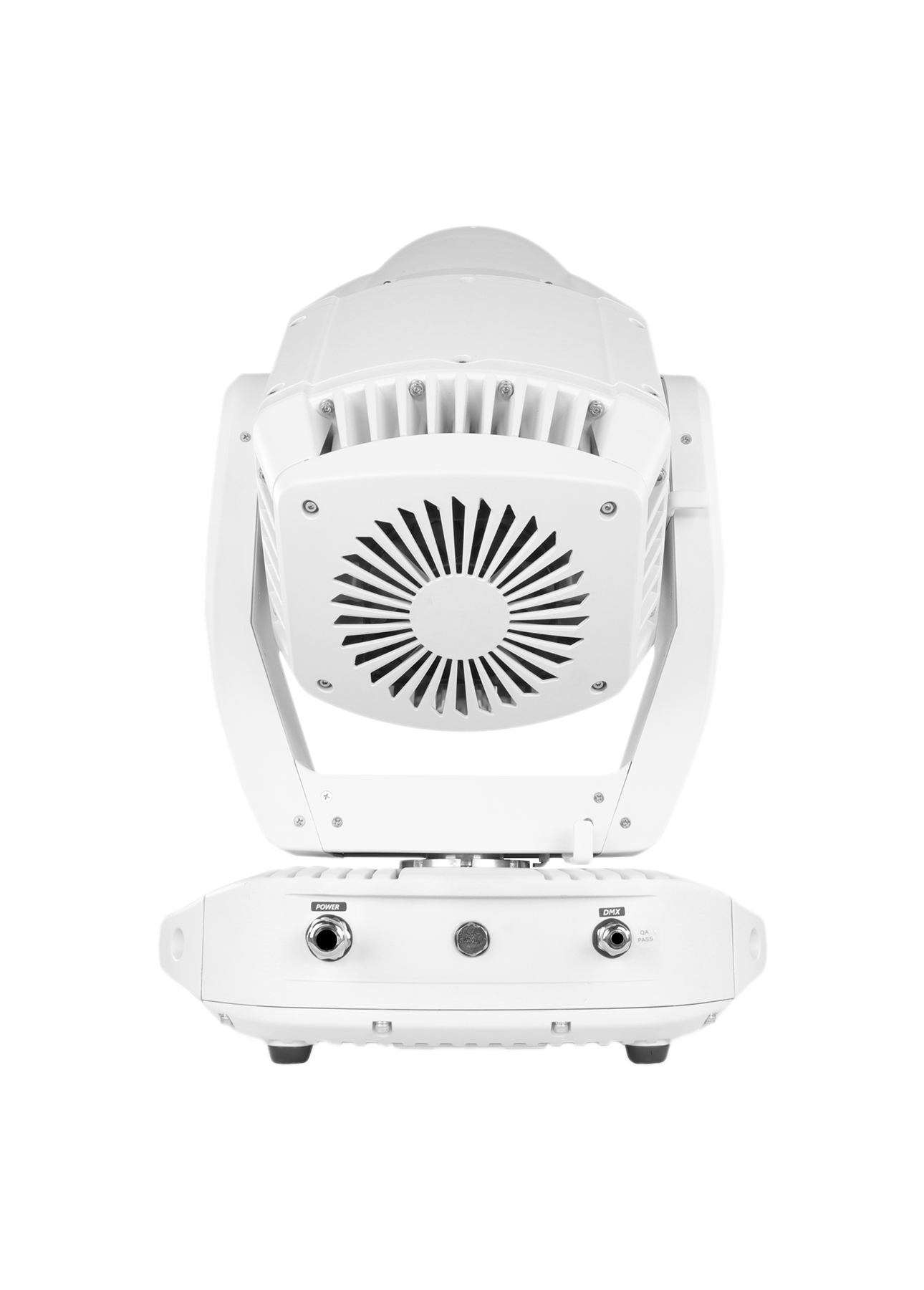

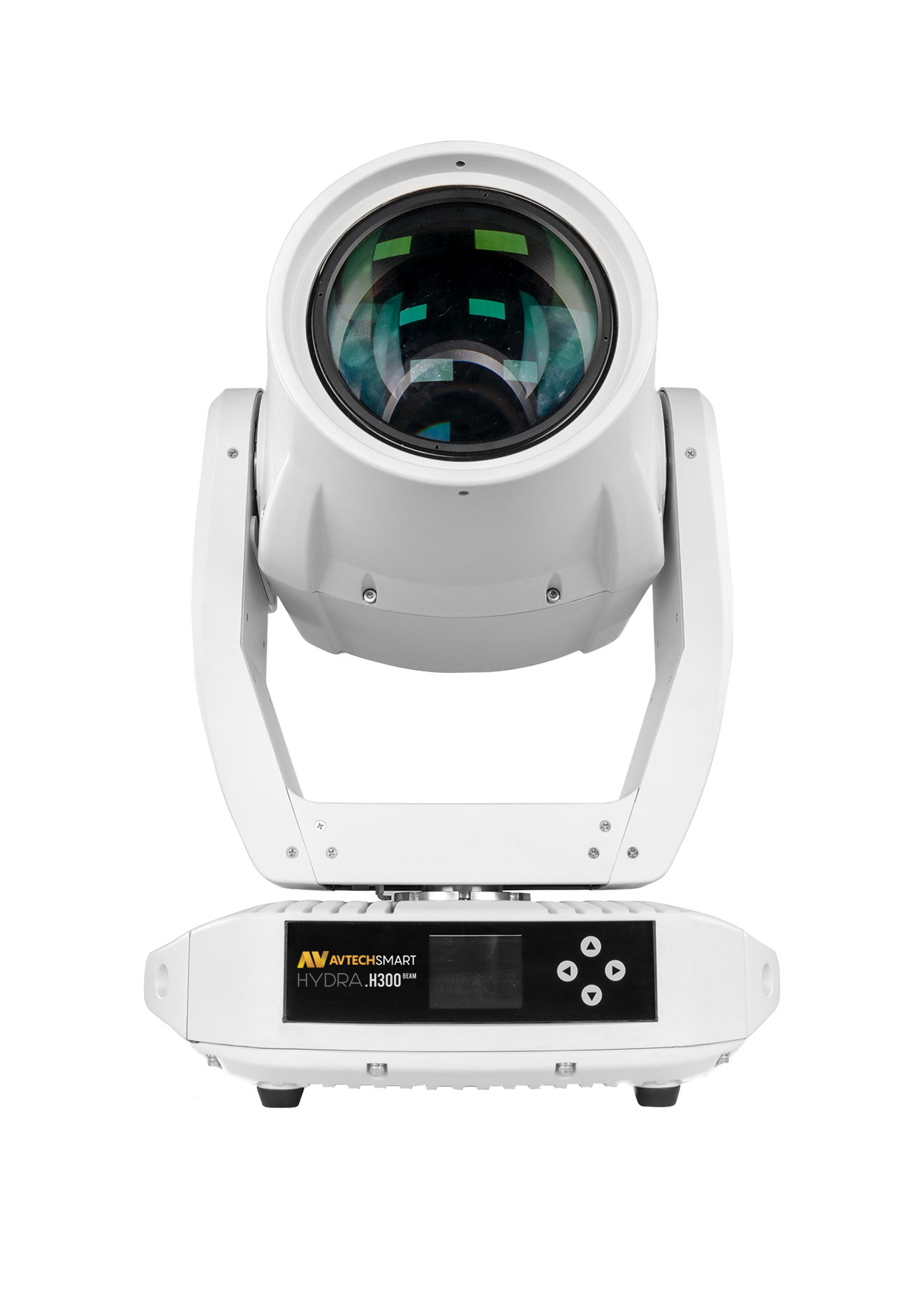

HYDRA.H300WH HYBRID is a powerful IP hybrid Moving head, with high-efficient optics, wide zoom angle from 3-30°,provides a strong Beam and Spot effect. It has fast and silent X/Y movement, professional high quality color wheel, extremely clean static and rotation gobo wheel projection, amazing double prism effect (8 facet and linear prism)! Perfect product for outdoor concerts/events, commercial complex, theme park, amusement park and rental touring market.
Specifications
- Light Source: 300W module.
- Beam Angle: 3-30°.
- Input Voltage: AC100-240V,50/60Hz.
- Power: 400W.
- Drive Current: 5ª.
- Dimming: 0-100%16Bit.
- Control Protocol: DMX512, ROM, ARTNET, SACN, W-DMX (optional).
- Display: On board Control, Custom Mode,0-25Hz Strobe.
- DMX Modes: BASIC/20CHS, STANDARD/24CHS.
- Signal Sacker: 3pin/5pin in and out, RJ45 in and out.
- Pan/tilt Rotation: 540° /270° (8-16bit).
- Cooling: Forced Convection.
- Web: Server.
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt.
- Rotating Gobo: 8 Gobos+White, Gobo-flow effect, Gobo shake, Bi-directional rotation.
- Static Gobo: 12 Gobos+ White, Gobo-flow effect, Gobo shake.
- Colors: CMY, One color wheel(8dichroic-filters+White, Rainbow-flow effect).
- Prism: One piece of 5 F prism with bi-directional rotation, Speed adjustable.
- Focus: Motorized linear focus.
- Frost: 1 Frost filter.
- Dimensions: 416x356x670mm.
- Weight: 34kg.
- Material: Flame-retardant plastic (VO), Die-cast aluminum.
- Color: Black.
- Operating Temperature: 20°C-45°C.
- IP Rating: IP65.
- Power Connection: Power in.
- Extend/28CHS.
- ranges, gravitation sensor for auto screen positioning.
- CE, MET.
