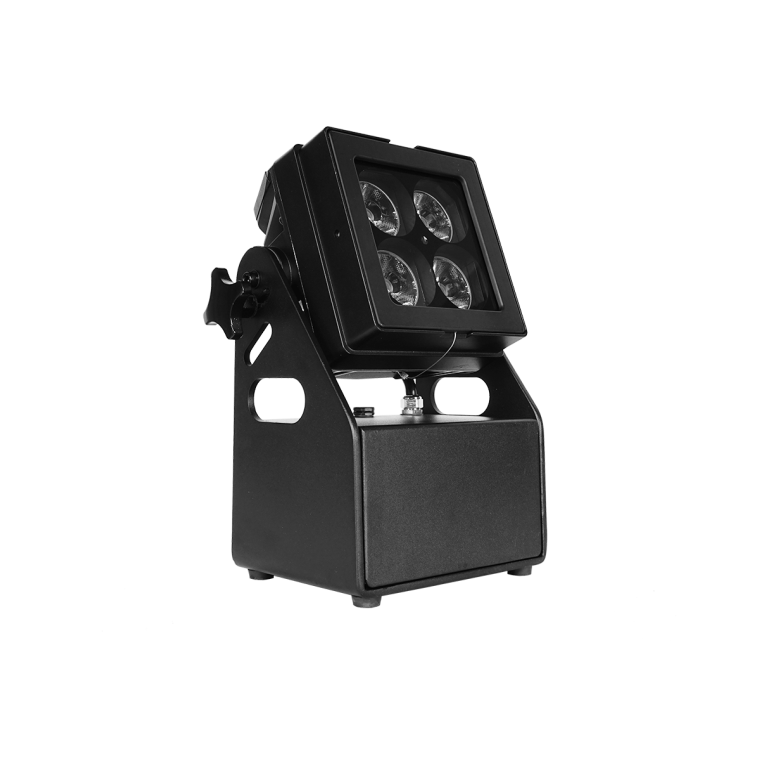

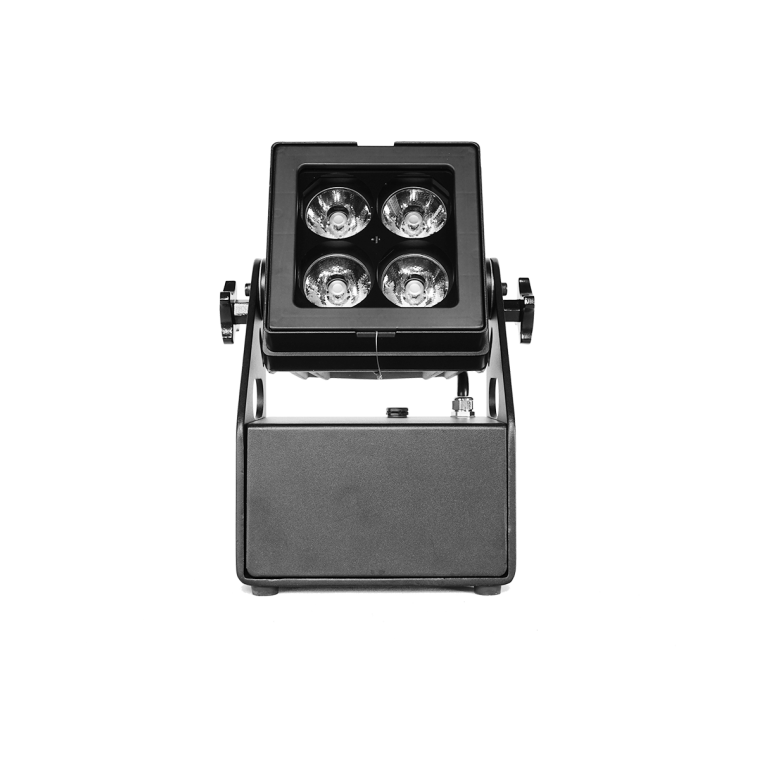

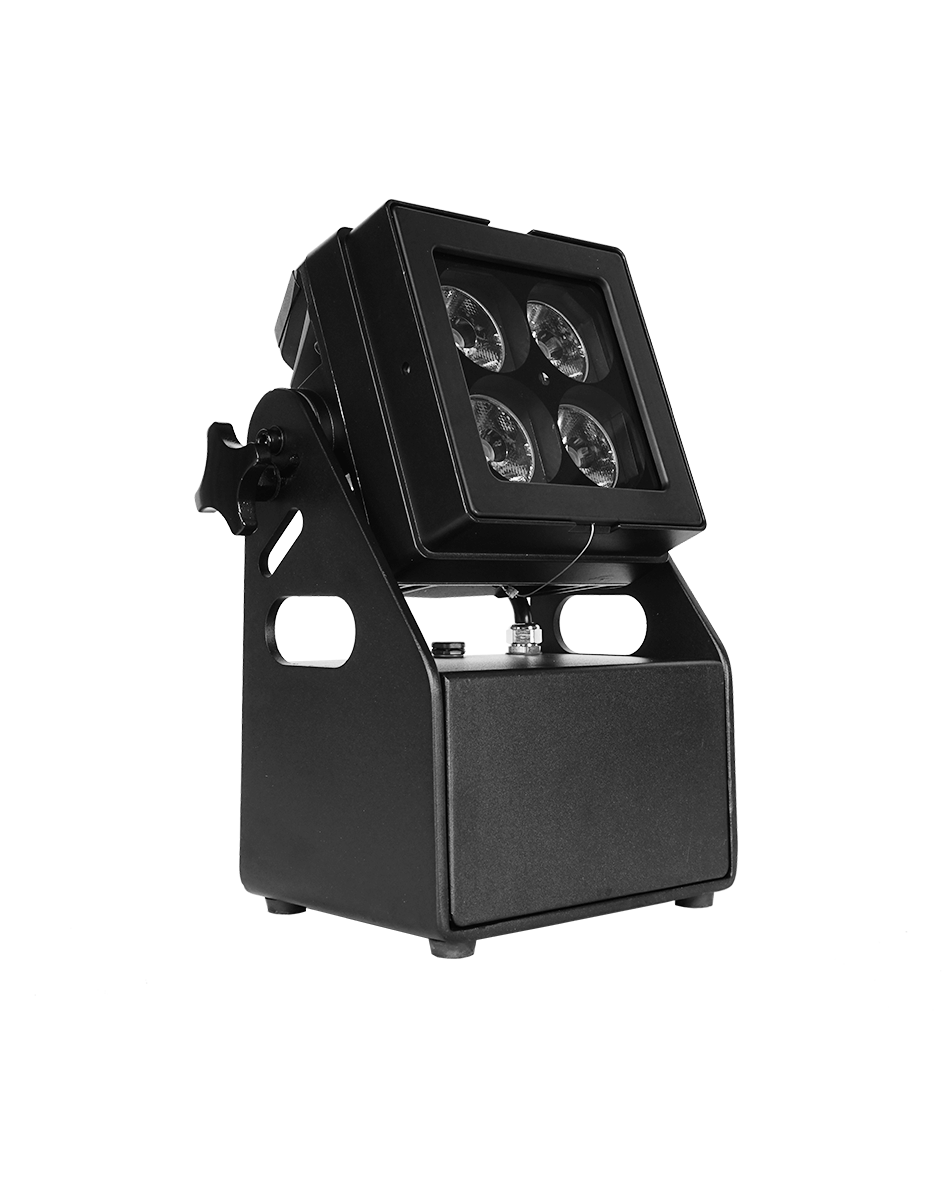

CUBEBAT420IP open a new era for uplight + wash. Special 6° optic design, takes higher efficiency for low projection distance and still keep the even color mixing, smart magnetic filter holder for wider wash application; 2-section pixel control produces dynamic effects; Flexible tilt 90°, can fit any angle application; The compact and rugged IP65 fixture is ideal for any kind of rental application.
Specifications
- Light Source: 4x20W (RGBW)
- Beam Angle: 6°
- Input Voltage: 0 100-240VAC,50/60Hz
- Power: 60W
- Drive Current: 1.2A
- Dimming: 0-100% 16Bit
- Control Protocol: DMX512, RDM, W-DMX (optional)
- Display: On board Control, Custom Mode, 0-25Hz Strobe
- DMX Modes: HSIC/7CHS, SSP/7CHS, TOUR/11CHS, PIXLE/11CHS
- Cooling: Direct Convection
- Dimensions: 233x132x274mm
- Weight: 6.3kg
- Material: Die-cast aluminum
- Color: Black
- Operating Temperature: 20°C-45°C
- IP Rating: IP65

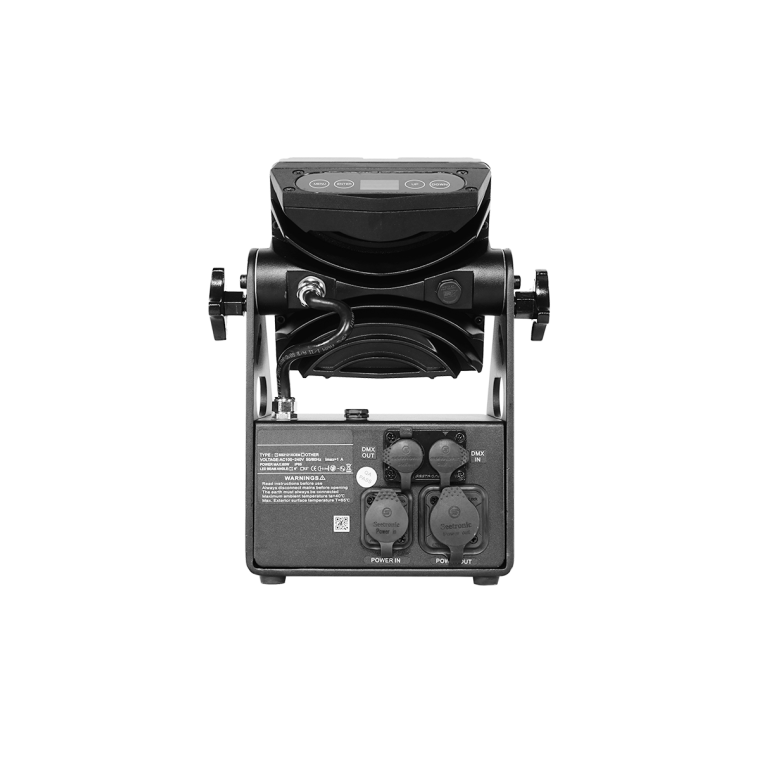

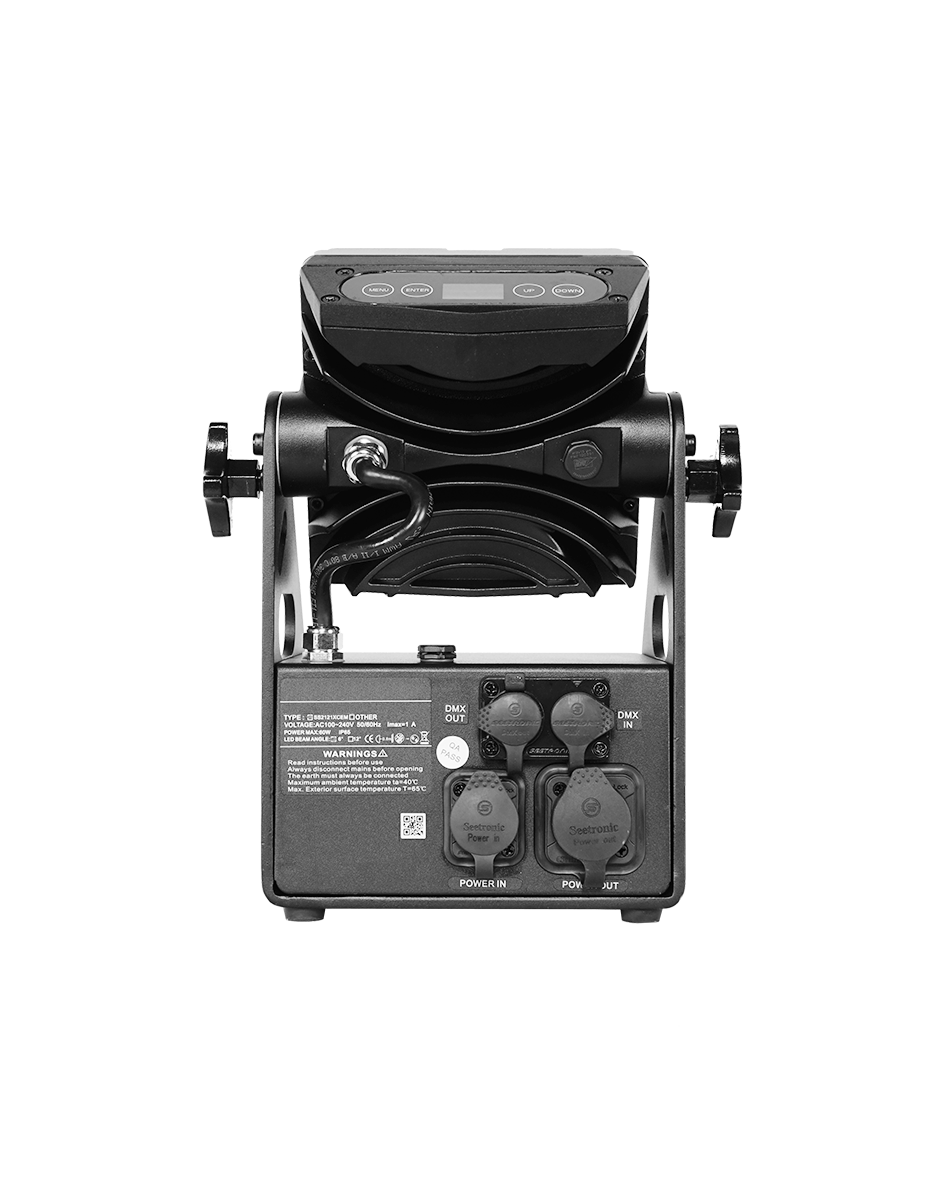

- Power Connection: Power in/out
- DMX Connection: DMX in/out
- CE
