Description

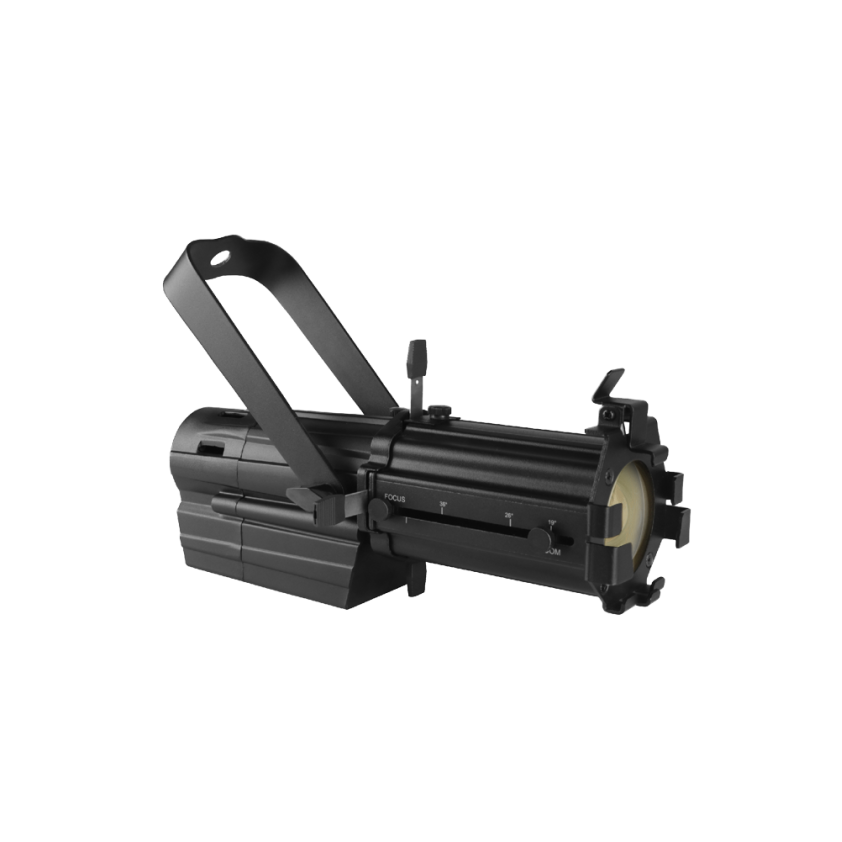

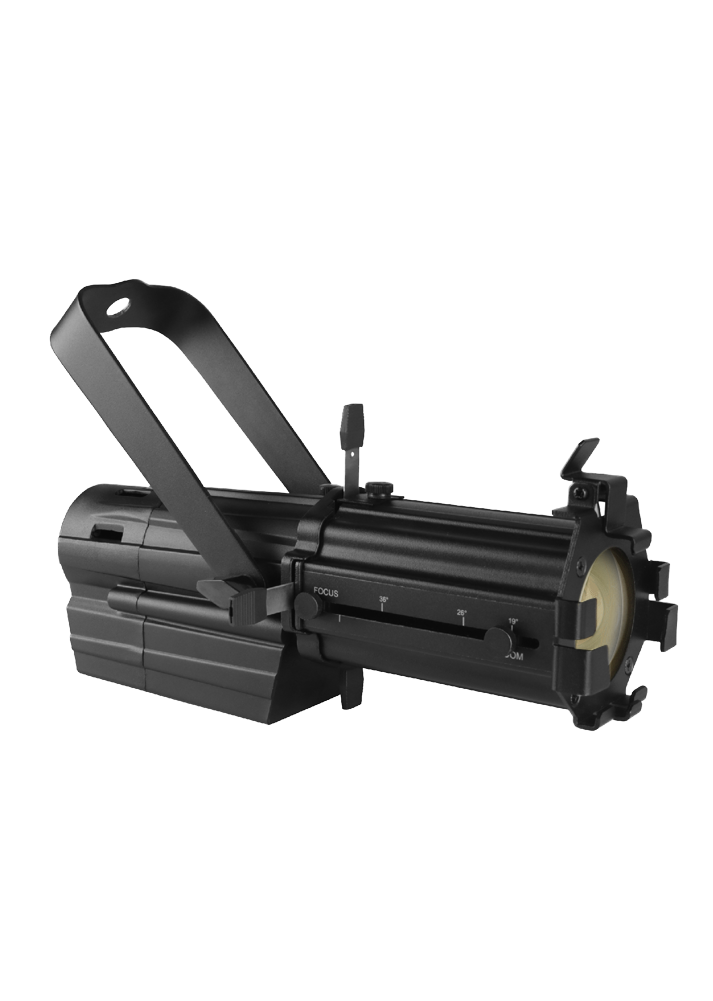

LUNA.MPRHDTU specifically design for replacing the traditional lamp Ellipsoidal, which control by the dimmer pack, with 0-100% dimming of thyristor, dimming smooth and no jitter, illuminate clear images, showing a bright and uniform beam, incorporate a variety of functions into lamps, light and free. It’s designed for mobile performances, ancient cultural exhibition halls, galleries, wedding performances, hotels, shopping malls, small studios and other small and medium-sized venues.
Specifications
| Model | LUNA.MPRHDTU | LUNA.MPRHDDY |
| Optical system | ||
| Light source | 40W COB | 40W COB |
| CCT | 3200K | 5600K |
| CRI | Ra ≥ 90 | Ra ≥ 90 |
| CQS | : > 90 | >90 |
| Angle | 19°-36° ( Manual control ) | 19°-36° ( Manual control ) |
| Electrical Specs | ||
| Voltage | 100-240VAC , | 220-240VAC |
| Max. Power | 25W | 25W |
| Drive Current | O.SA | O.SA |
| Power Connection | Power in | Power in |
| DMX XLR | DMX Spliter, IN/OUT | DMX Spliter, IN/OUT |
| Control System | ||
| Dimmer | 0-100% 16Bit I Manual | 0-100%16Bit I Manual |
| Cooling | Direct Convection | Direct Convection |
| Control | DMK RDM | Dimming Pack Con |
| Dimming knob | Manual knob dimming | Manual knob dimming control |
| Appearance | ||
| Size | 324x130x231mm | 324x130x231mm |
| Weight | 1.2kg | 1.2kg |
| Casing | Die-cast aluminum | Die-cast aluminum |
| Color | Black | Black |
| Work Environment | ||
| Ambient Temp | 0°C-45°C | 0°C-45°C |
| IP Rated | IP20 | IP21 |
| Certification | ||
| CE, MET |
