LEDBAR543RGBIP

💧 IP65 Rated

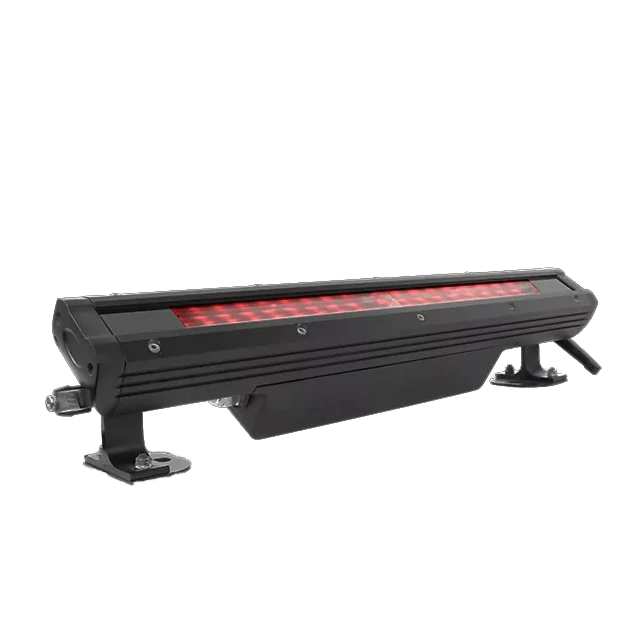

The LEDWALL543RGBIP is a high-performance wall washer designed to deliver exceptional lighting for architectural projects, outdoor building fronts, and professional events. Featuring 54 high-output 3W RGB 3-in-1 LEDs, it provides powerful, even color mixing and a wide spectrum of dynamic effects. Its 10° x 60° beam angle ensures precise wall-washing coverage, while the 0–100% smooth dimming and four selectable dimming curves allow for complete control over intensity and mood.

Built with a durable IP65-rated housing, the LEDWALL543RGBIP is engineered to withstand rain, dust, and extreme temperature variations, guaranteeing reliable performance in both indoor and outdoor environments. Whether illuminating a modern building, enhancing a stage design, or setting the ambiance for weddings, festivals, or corporate events, this fixture offers unmatched versatility and visual impact.

With its combination of robust construction, advanced control features, and vivid color output, the LEDWALL543RGBIP is the ideal solution for lighting designers, event planners, and architects seeking a professional-grade tool to bring creative visions to life.

SKU: LEDBAR543RGBIP Categories: , , , Tag:

Description

The LEDWALL543RGBIP is a high-performance wall washer designed to deliver exceptional lighting for architectural projects, outdoor façades, and professional events. Featuring 54 high-output 3W RGB 3-in-1 LEDs, it provides powerful, even color mixing and a wide spectrum of dynamic effects. Its 10° x 60° beam angle ensures precise wall-washing coverage, while the 0–100% smooth dimming and four selectable dimming curves allow for complete control over intensity and mood.

Specifications

  • Light Source: 54x3W high brightness 3-in-1 RGB LEDs
  • Lens: 10° x 60°
  • LED Type: SMD LED 3.5 x 3.5 mm
  • Power Consumption: 53W
  • Voltage: AC 110–240V, 50/60Hz
  • Dimming: Electronic, 0–100% without color variation
  • Built-in Color Programs: 55 presets
  • Built-in Effects: Color mixing, variable color chasing, strobing, fading
  • Control Modes: DMX-512 / Master-Slave / Auto Mode
  • Remote Control: IR remote included
  • Compatibility: RDM & DMX
  • Connections: Waterproof 3-pin DMX with power
  • DMX Functions: DMX-512 protocol, Auto, Static Color
  • Material: Aluminum body
  • Protection Class: I
  • Operating Temperature: -20℃ to 40℃
  • Net Weight: 2.1 kg

Downloads

LEDWALL2420IP

User manual
