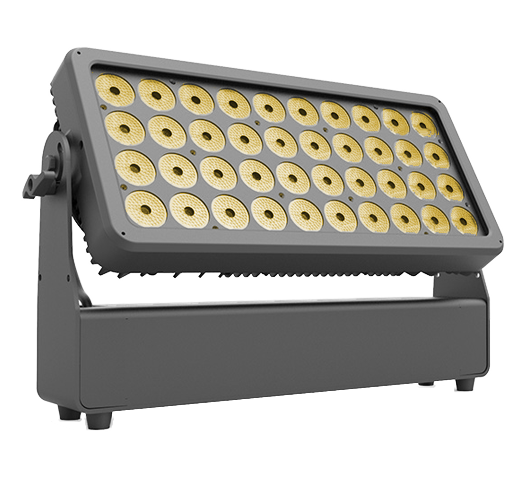

ARCUBE4010FC is a high profile professional architectural LED projector, designed for applications such as facade covering, or stage lighting in outdoor or indoor applications. ARCUBE4010FC is the result of a perfect combination between light power and color intensity thanks to the powerful LED source with the use of RGBW/FullColor LEDs and a new generation optical group that ensures an improved color calibration in efficiency and precision. Its robust design with IP66. 16-bit dimming mode. The color change is natural, with better color mixing. DMX512 protocol and RDM function. This model can be widely used in theme parks, theme cities, community parks and other places.
Color change is natural, with better color mixing
DMX512 protocol and RDM function
Specifications
- LED: 40x10W 4-in-1 RGBW
- Beam Angle: 10° , 20° , 40°
- Input Voltage: AC100 ~240V,50-6 0Hz
- Power: 400 W
- Drive Current: 750m A
- Dimming: 16Bit
- Control Protocol: DMX512 (Support for wireless DMX), RDM
- DMX Channels: 4CH, 6CH, 9CH, 20CH, 25CH
- Lumen Output: 9380l m
- Cooling: Fan cooling
- Function: Auto Run, User-Defined
- Dimensions: 532x319x141mm
- Weight: 12. 3Kg
- Housing Material: Die -cast Magnesium alloy
- Color: Black
- Electrical Safety Class: I
- EMC: EMC, EMI
- Operating Temperature: 20ºC~45ºC
- IP Rating: IP65
- Power Cable: input/output Neutrik integrated waterproof power
- DMX Cable: Seetronic 5pins waterproof DMX input/output
