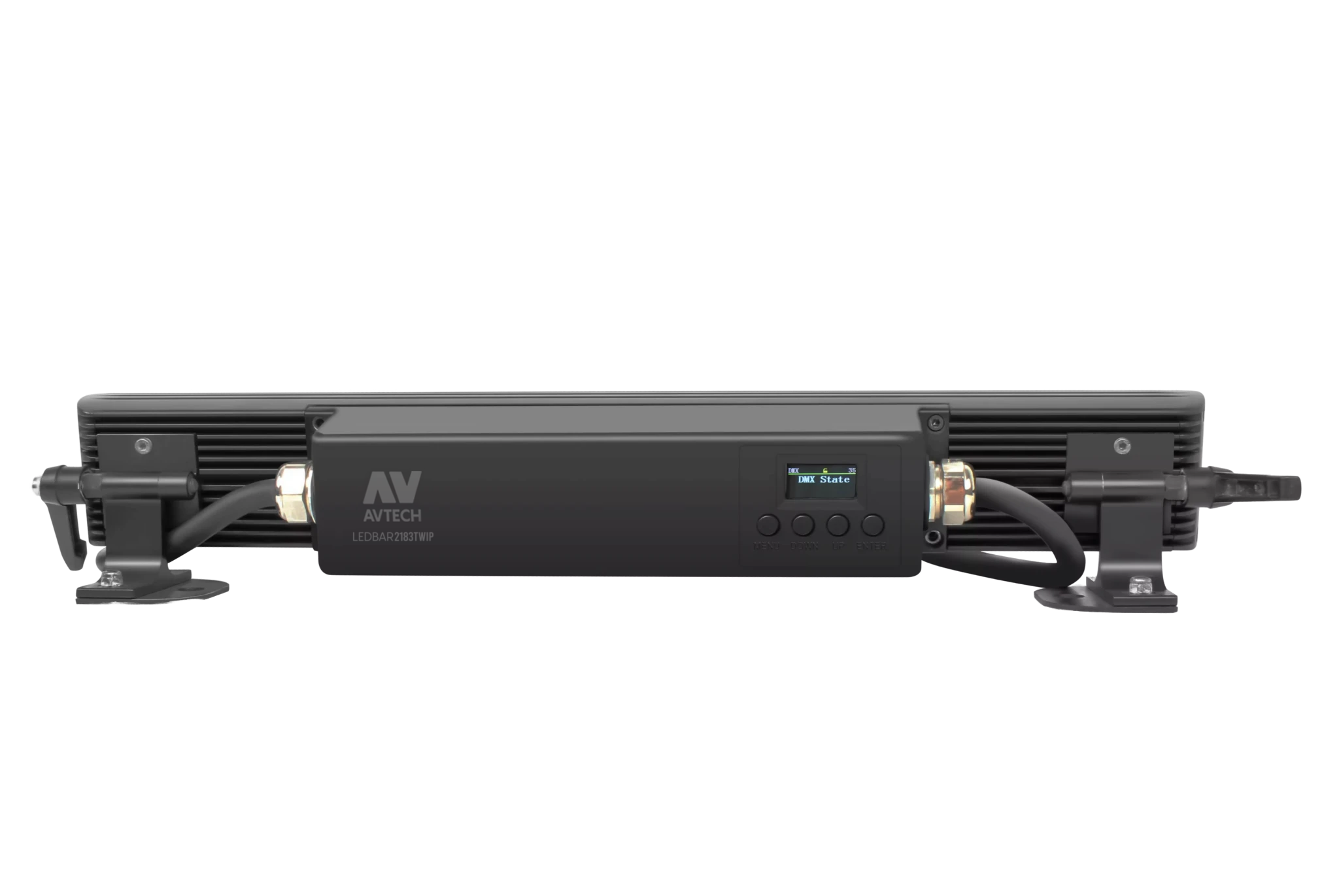

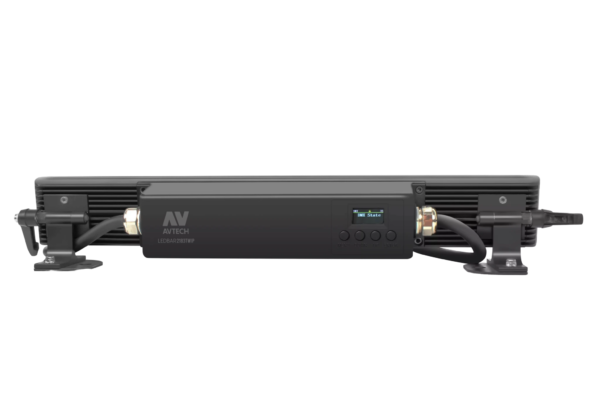

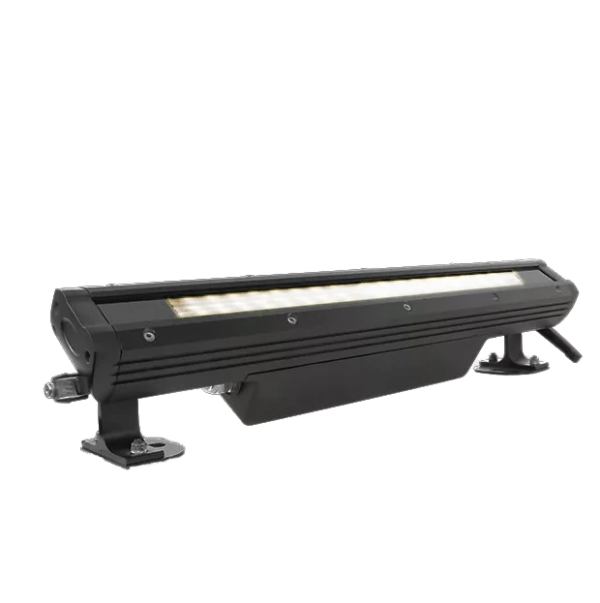

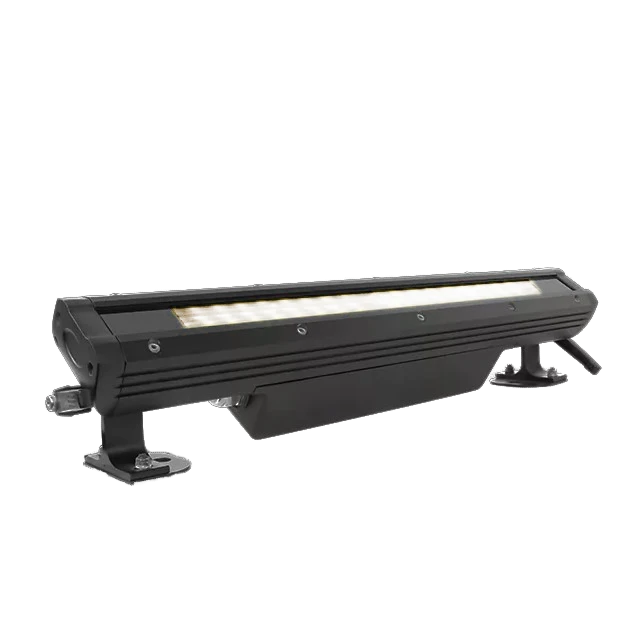

LEDBAR2183TWIP

💧 IP65 Rated

LEDBAR2183TWIP is a high-performance tunable white LED bar designed to deliver exceptional lighting for architectural projects, building facades, and professional events. Featuring 18x3W Warm White and 18x3W Cool White LEDs, it offers precise control over color temperature, allowing lighting designers to create atmospheres ranging from warm and inviting to bright and modern. The 10° x 60° beam angle ensures even coverage for wall washing and surface illumination, making it ideal for enhancing architectural details or setting the perfect mood for any occasion.

Built with a durable aluminum housing and IP65 protection, LEDBAR2183TWIP is engineered to withstand rain, dust, and extreme temperature variations, providing reliable performance in both indoor and outdoor environments. Its lightweight design and compact dimensions (395 x 53 x 81 mm) make it easy to install while maintaining a sleek, professional appearance.

Whether illuminating contemporary building facades, enhancing stage designs, or creating tailored lighting atmospheres for weddings, festivals, and corporate events, LEDBAR2183TWIP offers unmatched versatility and visual impact. With its combination of robust construction, adjustable color temperature, and precise light control, it is the perfect solution for architects, lighting designers, and event planners seeking a professional-grade lighting tool to bring their creative visions to life.

SKU: LEDBAR2183TWIP Categories: , , , Tag:

Description

LEDBAR2183TWIP is a high-performance tunable white LED bar designed to deliver exceptional lighting for architectural projects, building facades, and professional events. Featuring 18x3W Warm White and 18x3W Cool White LEDs, it offers precise control over color temperature, allowing lighting designers to create atmospheres ranging from warm and inviting to bright and modern. The 10° x 60° beam angle ensures even coverage for wall washing and surface illumination, making it ideal for enhancing architectural details or setting the perfect mood for any occasion.

Specifications

  • Light Source: 18x3W Warm White + 18x3W Cool White LEDs
  • Lens: 10° x 60°
  • LED Type: SMD LED 3.5 x 3.5 mm
  • Power Consumption: 53W
  • Voltage: AC 110–240V, 50/60Hz
  • Electronic Dimming: 0–100% smooth dimming
  • Built-in Color Programs: Tunable White adjustment (WW + CW)
  • Built-in Effects: Color temperature blending, fading
  • Run Mode: DMX 512 / Master-Slave / Auto Mode (if supported)
  • Remote Control: IR remote included
  • RDM & DMX: Supported if available
  • Waterproof Cable: 3-PIN DMX with power (if applicable)
  • Material: Aluminum body
  • Protection Class: IP65
  • Operating Temperature: -20℃ ~ 40℃
  • Net Weight: 2.1 kg
  • Dimensions: 395 x 53 x 81 mm

Downloads

LEDWALL2420IP

User manual
