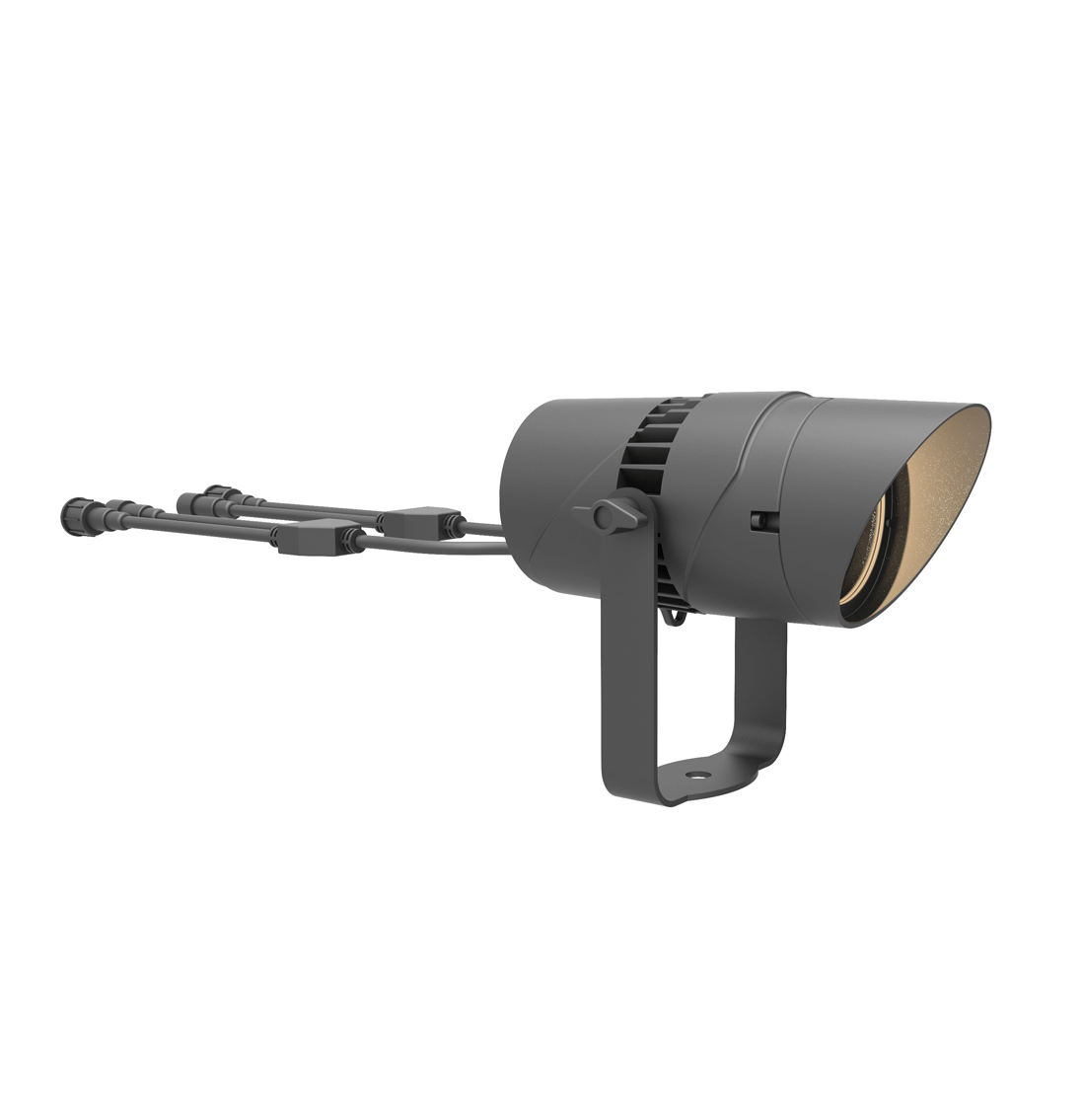

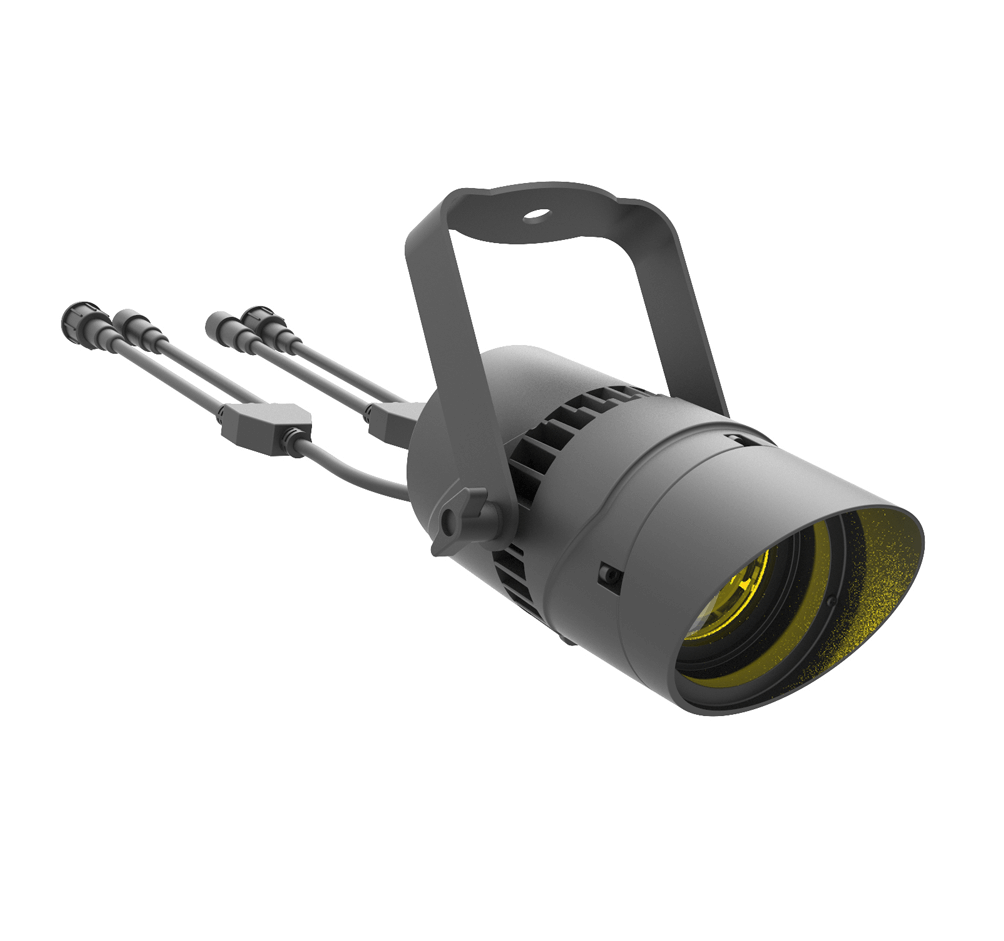

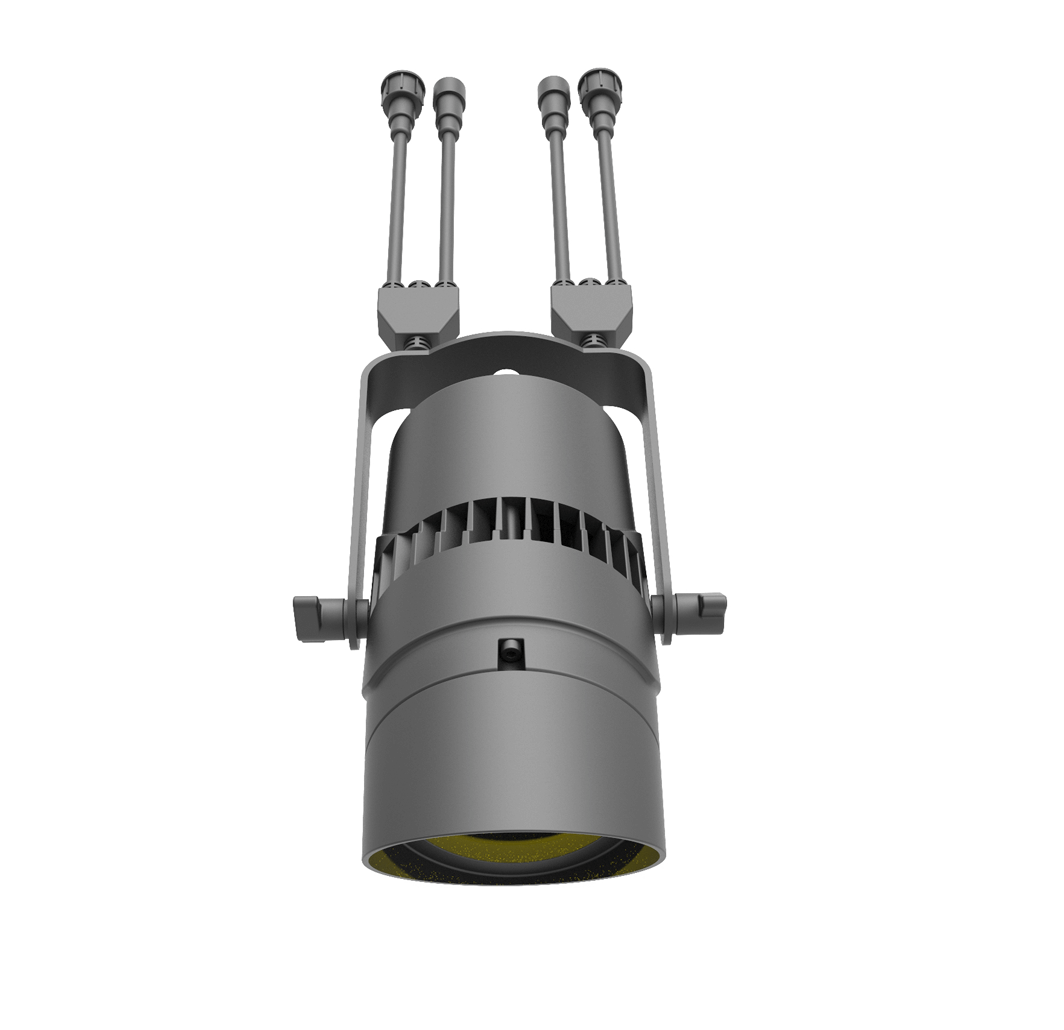

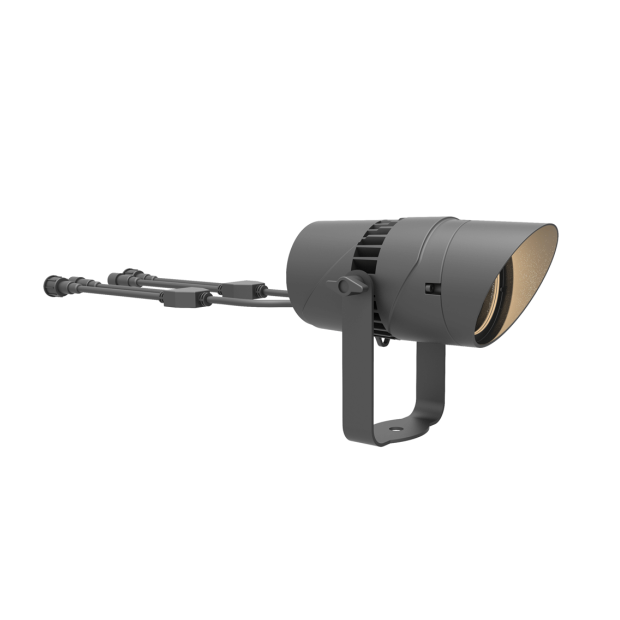

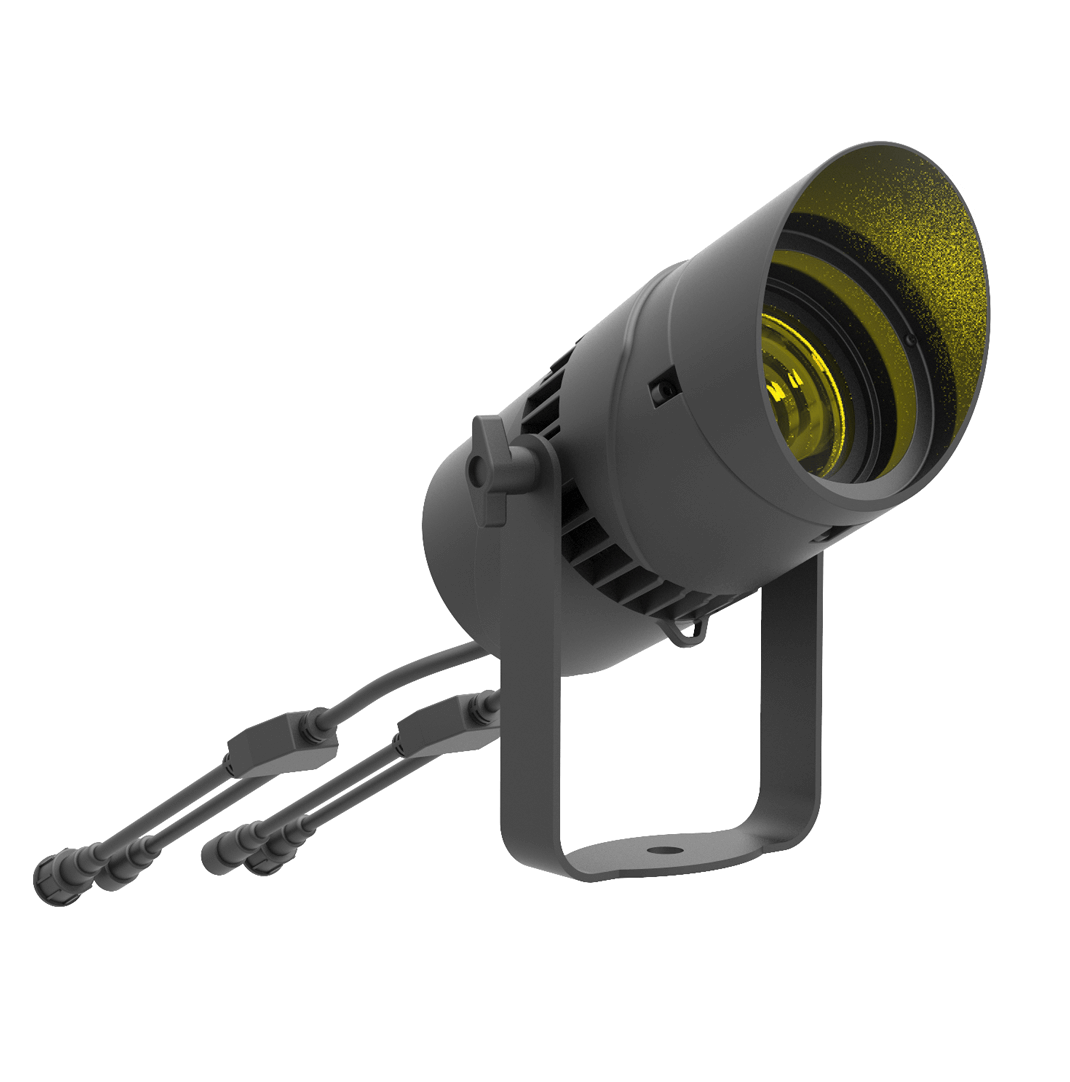

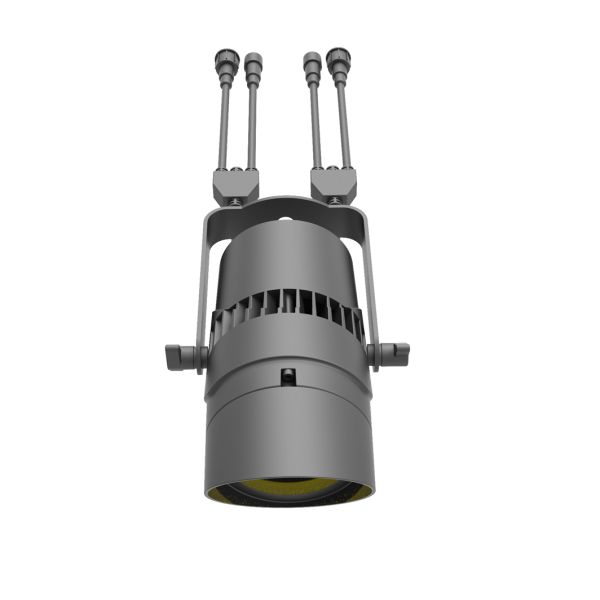

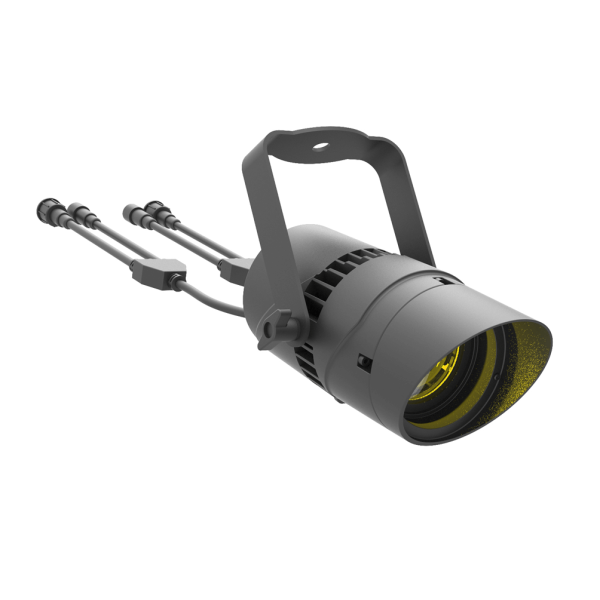

Ultra-compact projector, elegant with very sharp 4.5º beam optics. Also available with other optics (20º, 40º)
Ideal for all types of fixed installations, especially buildings, hotels, with DMX control, RDM excellent color quality and color mixing.
Specifications
- LED: 3pcs
- Beam Angle: 20 °/30 °/45 °/60 ° Optional
- CRI: Ra≥70
- Input Voltage: DC24V
- Power: 6W
- Power Factor: >0. 9
- Control Protocol: DMX512
- Spot Angle: 40°/60 °/80 °/100 ° Optional
- Lumen Output: 175lm
- Color: RGBW(W:3000/4000/6000K)
- Dimensions: 103x89x85mm
- Weight: 0.5kg
- Housing Material: Die-cast Aluminium
- Cooling: Natural convection cooling
- Segmented Control: Integral Control
- Channel: /
- Connection: 5pin rubber cable:input/output
- DMX Linking: 128pcs
- Certification: CE, RoHS
- IP Rating: IP65
- Ultra: compact projector, elegant with very sharp 4.5º beam optics. Also available with other optics (20º, 40º) Ideal for all types of fixed installations, especially buildings, hotels, with DMX control, RDM excellent color quality and color mixing. TECHNICAL DATA/SPECIFICATIONS. <ul> <li>LED: 3pcs</li> <li>Beam Angle: 20 °/30 °/45 °/60 ° Optional</li> <li>Spot Angle: 40°/60 °/80 °/100 ° Optional</li> <li>Lumen: 175lm</li> <li>CRI: Ra≥70</li> <li>Color: RGBW(W:3000/4000/6000K)</li> <li>Dimensions: 103x89x85mm</li> <li>Weight: 0.5kg</li> <li>Input Voltage: DC24V</li> <li>Power: 6W</li> <li>Power Factor: >0. 9</li> <li>Housing Material: Die-cast Aluminium</li> <li>Housing Color: Matt black / Grey</li> <li>Cooling: Natural convection cooling</li> <li>Control Protocol: DMX512</li> <li>Segmented Control: Integral Control</li> <li>Channel: /</li> <li>Power / Installation: Independent</li> <li>Connection: 5pin rubber cable:input/output</li> <li>Power Linking: 20pcs</li> <li>DMX Linking: 128pcs</li> <li>Certification: CE, RoHS</li> <li>IP Grade: IP65</li> </ul>
