Description

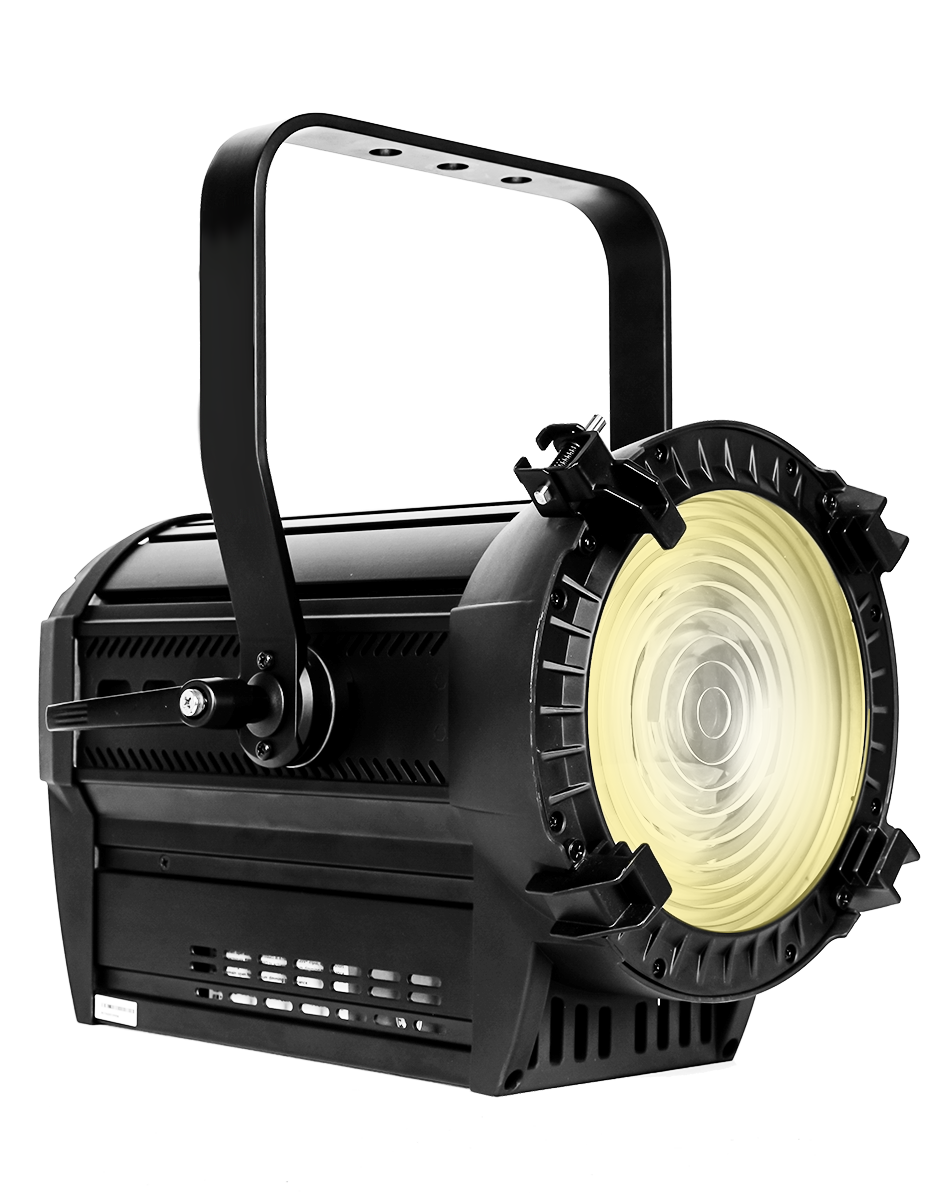

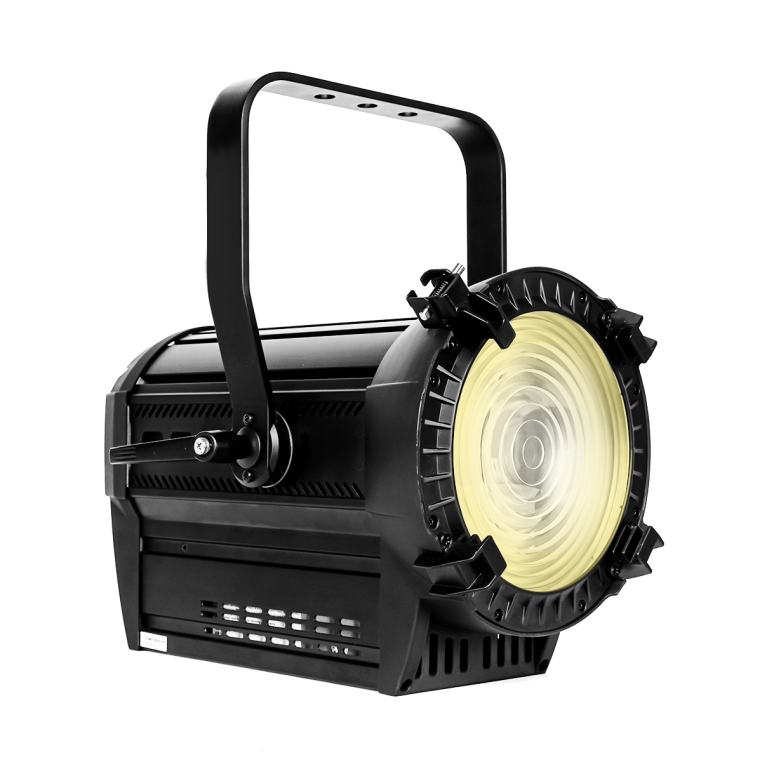

LUNA.FR2TU, WARM WHITE, is a professional Fresnel with high density integrated source, 50% higher output over the 1st great successful version, can truly replace the traditional 2000WFresnel. Equipped with smooth and precise manual and electronic zoom system, CRI>90, it is professional intelligent lighting designed for theater, TV studio, banquet, and all kinds of conference hall etc.
Optical system
- Light source: 200W
- CCT: 3200K
- CRI: Ra ≥90
- CQS: >90
- Angle: 15°-60°
Electrical Specs
- Voltage: 100-240VAC, 50/60Hz
- power: 200W
- Drive Current: 3A
- Power Connection: Power in/out
- DMX XLR: DMX in/out
Control System
- Dimmer: 0-100%16Bit
- Cooling: Forced Convection
- Control: DMX 512 [Dimming Pack Control, RDM (SS808SW HDD/SC HDD)]
- Display: On board Control, 0-25Hz Strobe
- Con Personality: UNO(1CH), DOS(2CHS), STD.P(5CHS)
- Zoom: Manual
Appearance
- Size: 417x286x260mm
- Weight: 6.6kg
- Casing: Extruded aluminum
- Color: Black
Work Environment
- Ambient Temp: 0°C-45°C
- IP Rated: IP20
Certification
- CE, MET
Libraries
| AVOLITES | |
|---|---|
| AVTECHSMART_LUNAFE2TU.d4 | Download |
| AVTECHSMART_LUNAFR2XAL.d4 | Download |
| MA | |
| avtech_smart@[email protected] | Download |
| avtech_smart@[email protected] | Download |
| avtech_smart@[email protected] | Download |
| avtech_smart@[email protected] | Download |
| [email protected]@std.p.xml | Download |
| AVTECH_SMART@[email protected] | Download |
| AVTECH_SMART@[email protected] | Download |
