Description

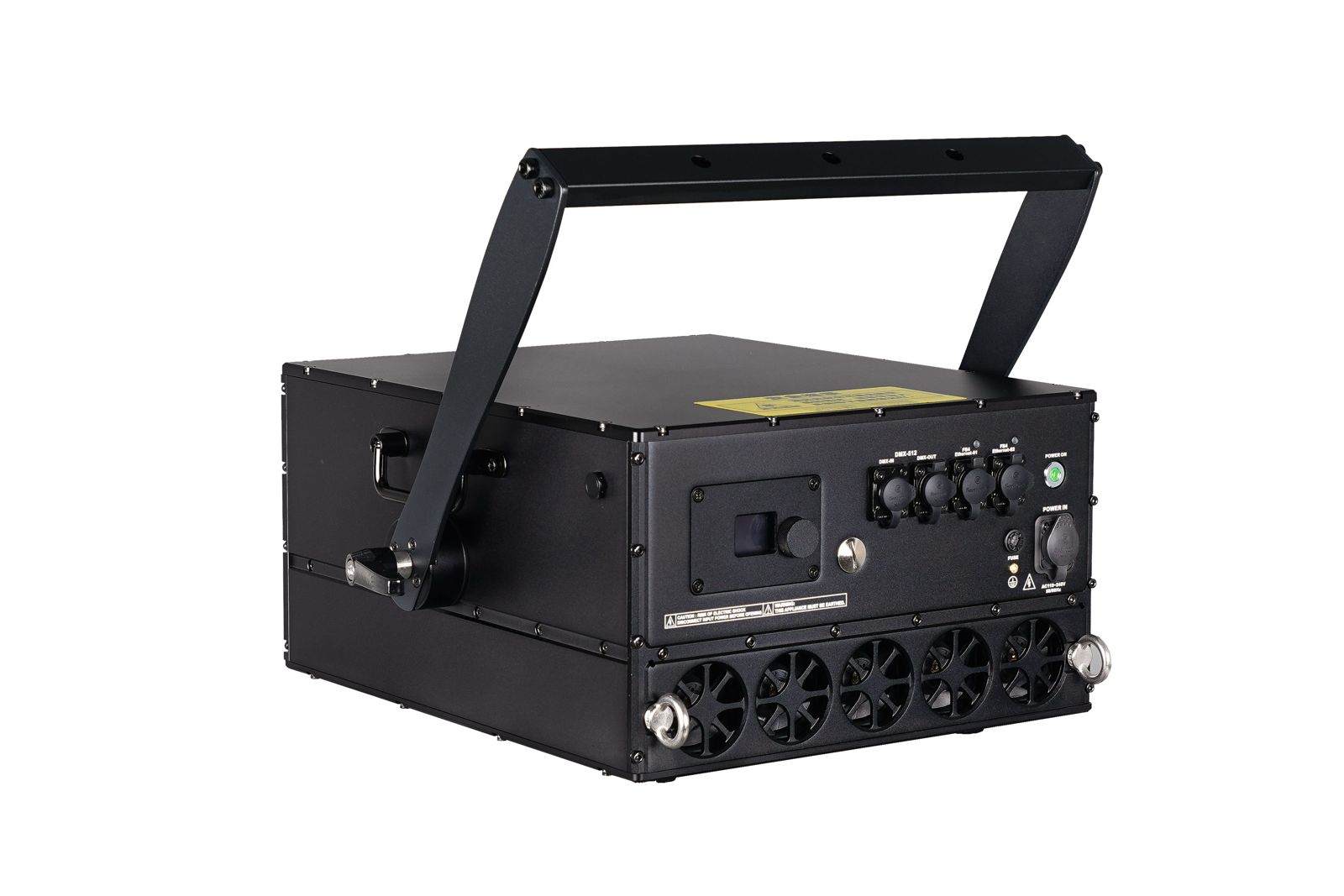

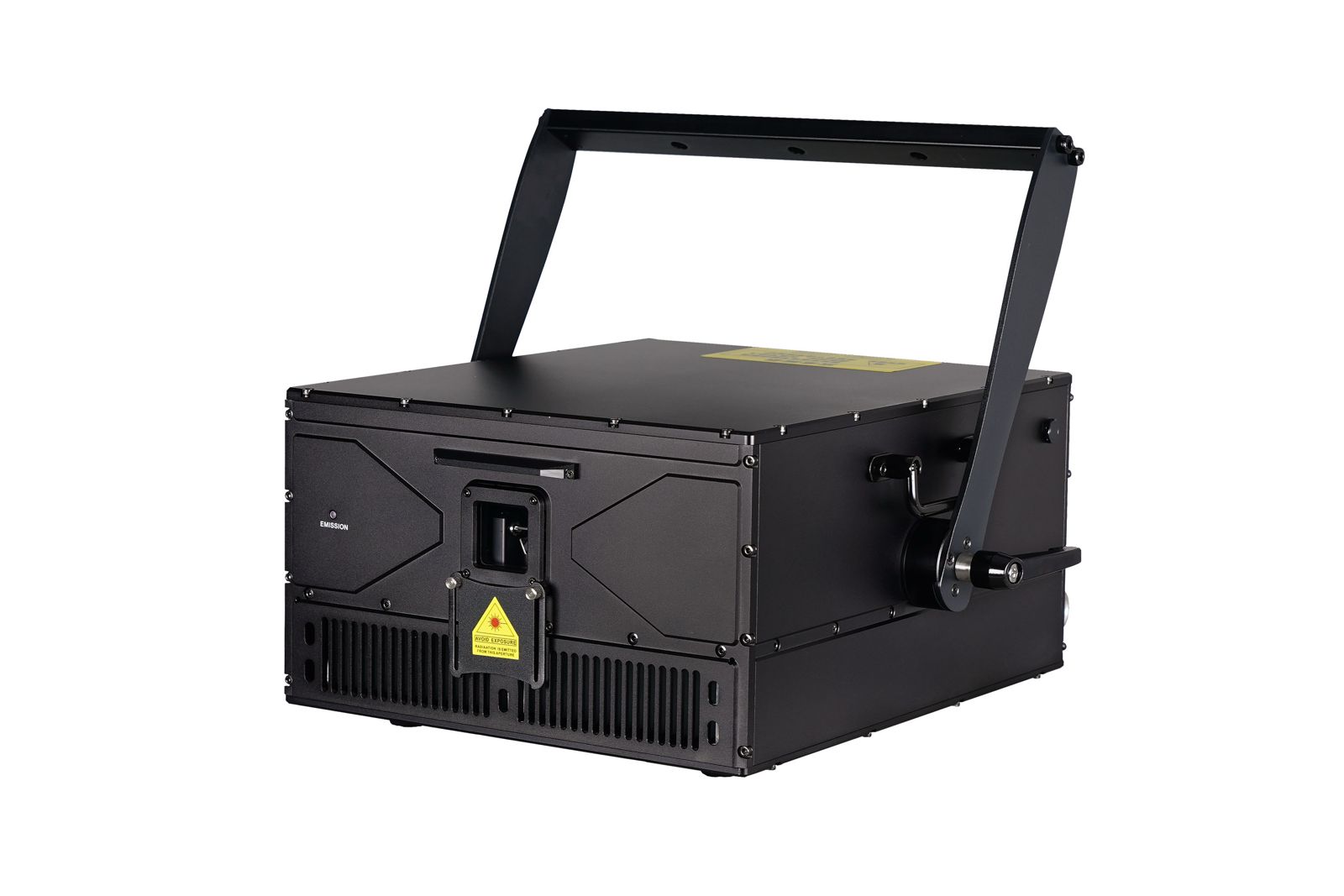

The LASER40RGBR9 is a powerful 40W RGB laser projector designed for professional outdoor applications, including large-scale concerts, electronic music festivals, and multimedia shows. Built with an IP66-rated waterproof and dustproof housing, it is engineered to perform reliably in challenging environments.
Delivering an impressive beam output of 40W RGB (R635–12W / G525–13W / B455–18W), this unit offers high brightness, clean color mixing, sharp beam definition, and uniform linearity. The integrated 40kpps high-speed scanner ensures smooth animation and dynamic effects, suitable for broadcast recording or live performances.
It features the U.S.-made FB4 control system, allowing full compatibility with QuickShow and advanced laser control workflows. Its robust structure includes a secure hook system, wide angle adjustment, and a durable flight case for safe transport and handling.
With outstanding visual performance, advanced control options, and rugged outdoor capability, the LASER40RGBR9 is a top-tier choice for demanding lighting professionals.
Specifications
- Laser Output: 40W RGB total
- Laser Diode Configuration: R635 – 12W / G525 – 13W / B455 – 18W
- Voltage Range: AC 100–240V, 50/60Hz
- Power Consumption: < 700W
- Modulation Type: Analog
- Scanning System: 40kpps high-speed scanner
- Scan Angle: Max ±30°
- Input Signal: ±5V
- Linearity Distortion: < 2%
- Beam Size & Divergence: 9 × 6.5 mm; < 1.0 mrad
- Control Modes: Automatic, DMX512 (16CH), FB4
- Control System: FB4 – QuickShow

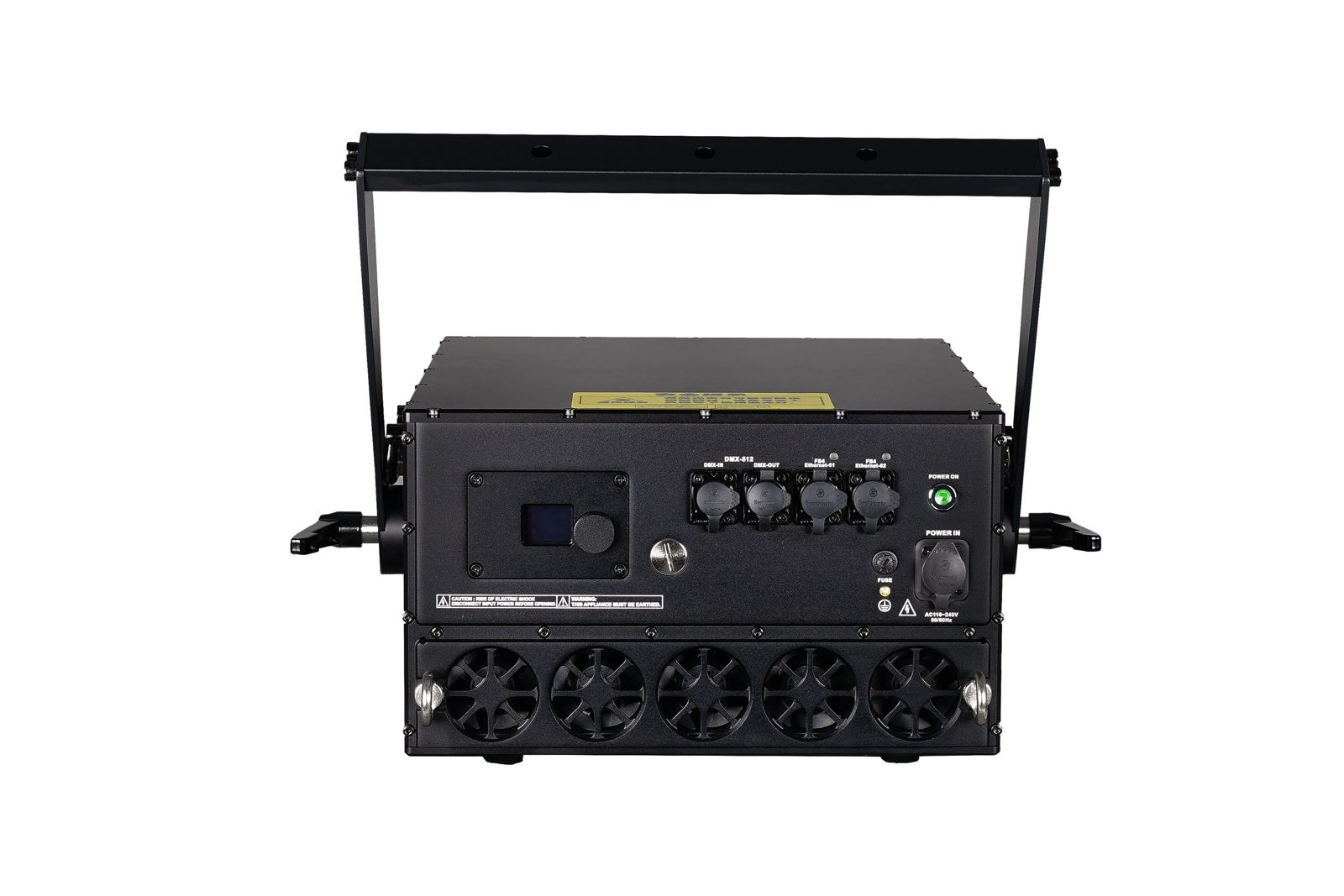

- Interfaces: Waterproof DMX512 and LAN
- IP Rating: IP66 (suitable for outdoor use)
- Applications: Concerts, outdoor festivals, touring shows, advertising, laser installations
- Flight Case Dimensions: 75 × 60 × 44 cm
- Net Weight: 34 kg
- Gross Weight: 57 kg (with flight case)
