Description
ARCUBE4840FC is an extremely powerful projector. 16-bit dimming mode. The color change is natural, with better color mixing. DMX512 protocol and RDM function Pixelable, we can choose different color segmentation changing effects to realize segmented control. Natural convection cooling of the fan and waterproof housing transfers the heat value of the LED to the housing surface with maximum efficiency for indoor use. It can also be widely used outdoors, where it can withstand wind and rain due to the IP65 rating. ARQCUBE4840FC can be widely used in live shows, bridges, tall buildings, high towers and long distance mountain lighting. Any large surface can be illuminated with this small giant.
TECHNICAL DATA/SPECIFICATIONS.
- LED: 48X40W 4-in-1 RGBW
- Lumen: 35000lm
- Beam angle: 4.5°, 8°, 20°
- Input voltage: AC100~240V, 50-60Hz
- Power: 1500W
- Drive current: 2.5A
- Dimming: 16Bit

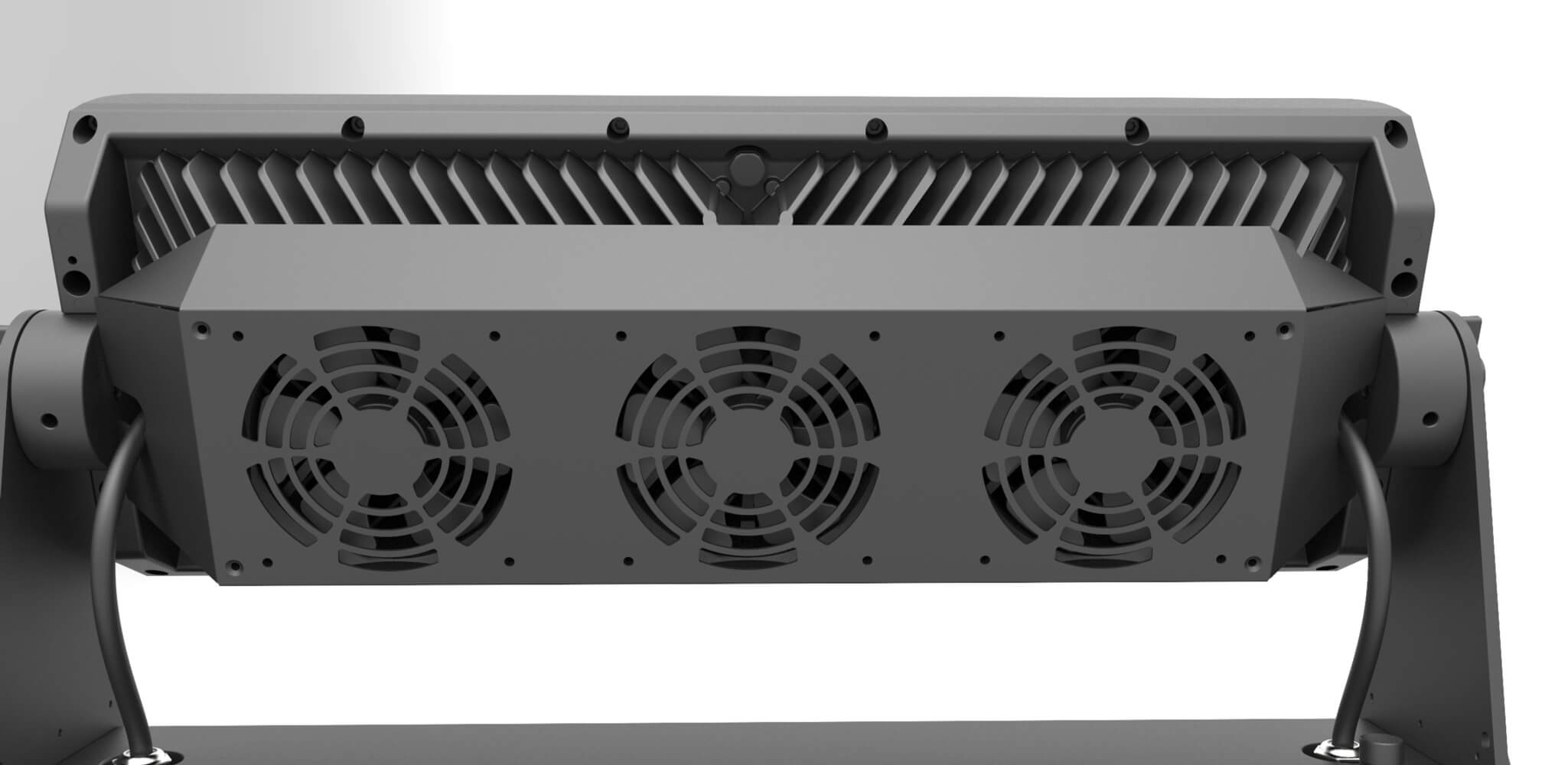

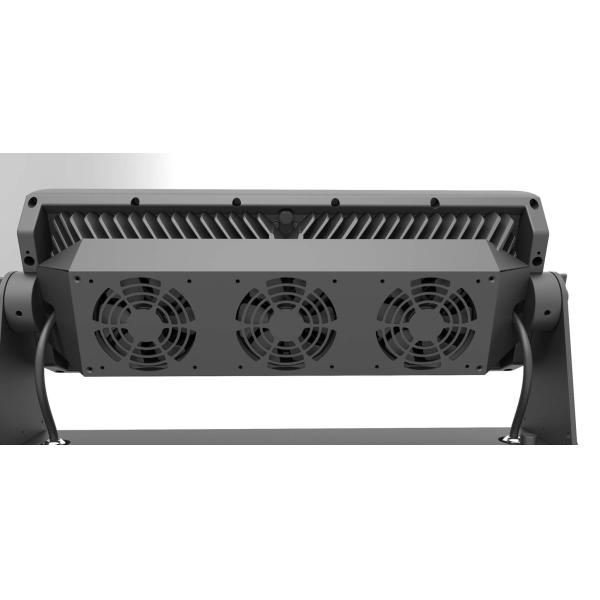

- Cooling: Fan cooling
- Control protocol: DMX512, RDM
- DMX channel: 4CH, 6CH, 9CH, 24CH, 29CH
- Function: Auto Run, User-Defined
- Dimensions: 710x170x428mm
- Weight.: 30Kg
- Housing material: Die -cast Magnesium alloy
- Housing color: Black
- Power cable: 3 Pin In
- DMX cable: 3 Pin In & Out
- Electrical safety class: I
- EMC: EMC, EMI
- Permitted Ambient Temperature: -20ºC~4ºC5
- IP Grade: IP65
