Description

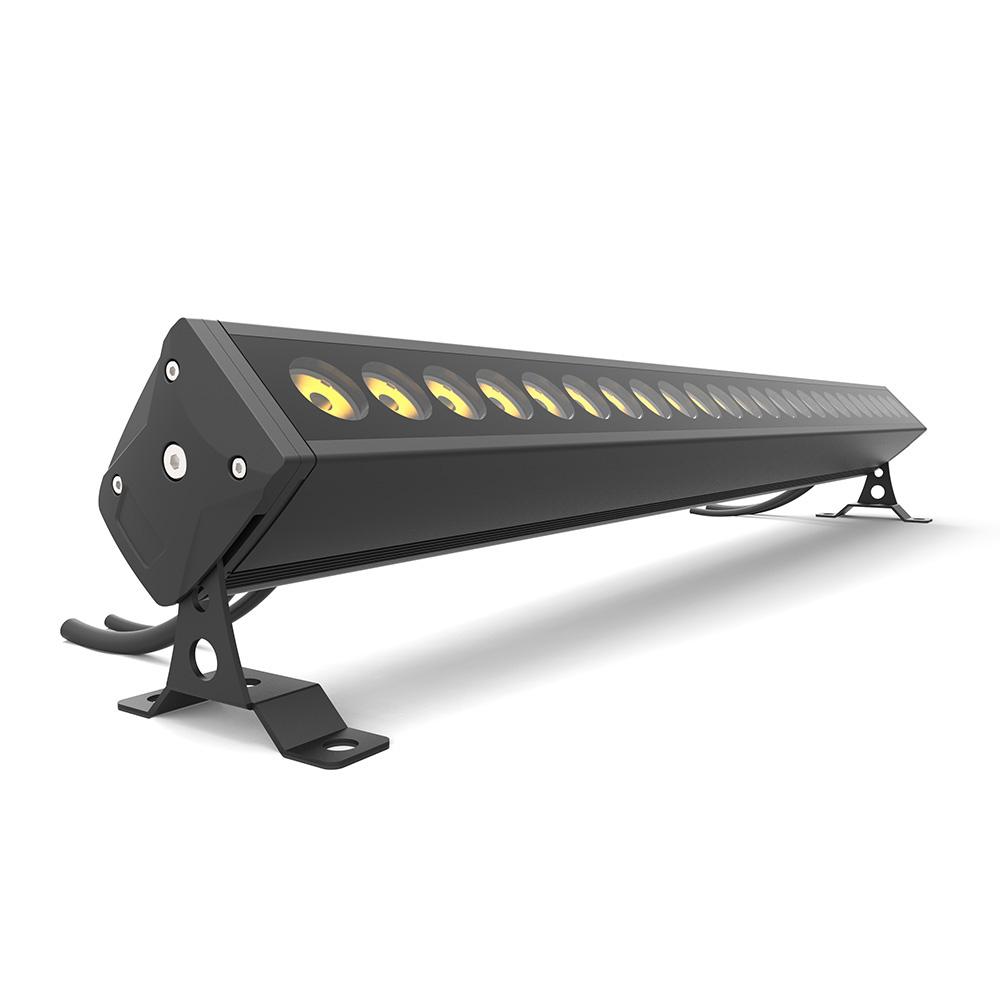

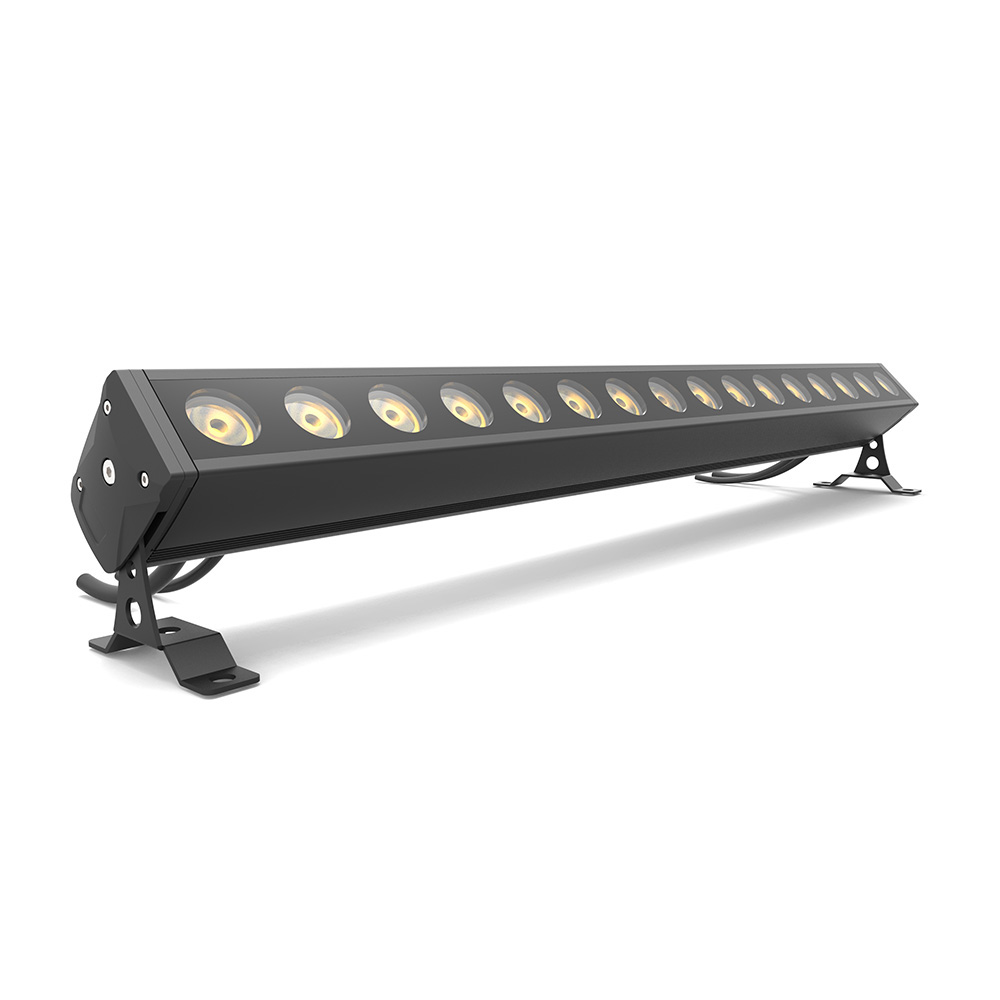

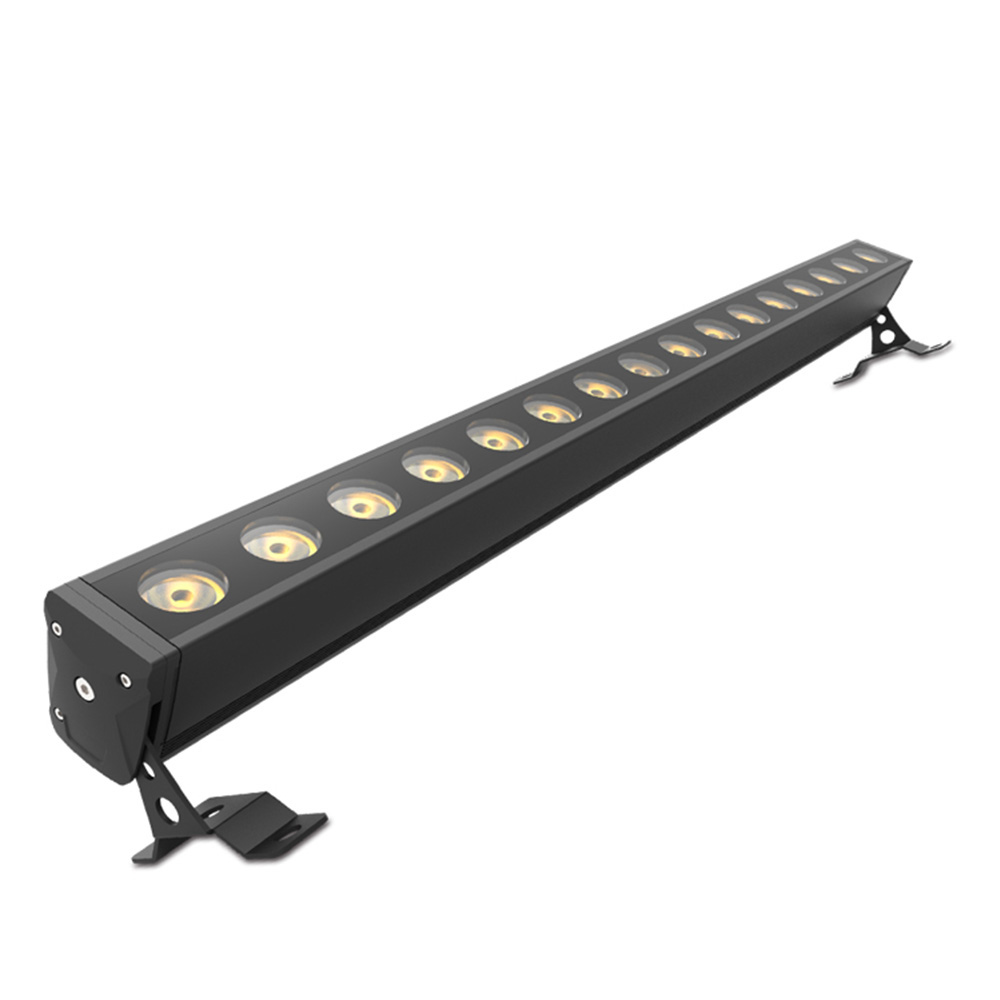

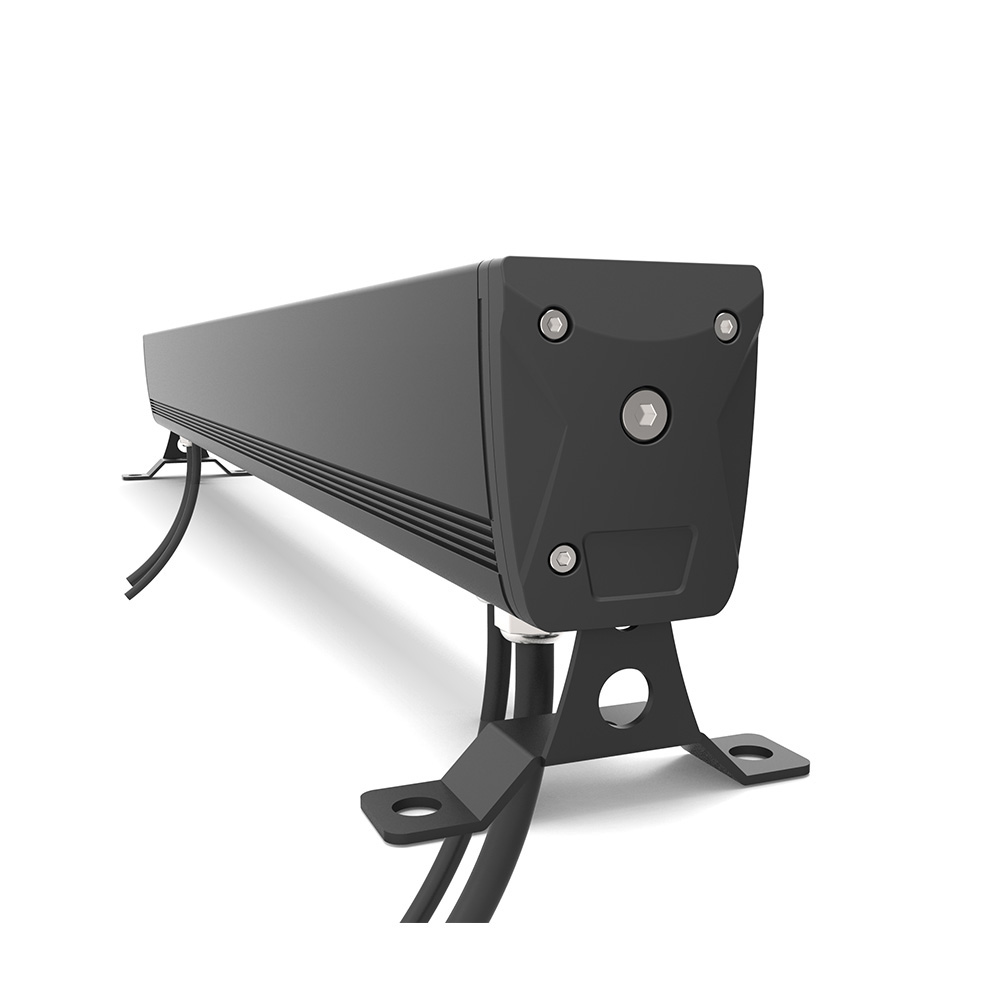

LEDBAR165IP is an IP65 rated LED stage light bar, die-cast aluminum private tool housing, very nice design, 16pcs * 5W RGBW 4-in-1 LEDs used, 20 degree 40 degree beam angles for Optional OLED display with 4 touch buttons Control Panel, this stage LED light bar with excellent color mixing, very smooth 16-bit dimming. It can be applied in stages, studios, bars and outdoor projects.
Optical system
- Light Source: 16Pcs * 5W RGBW 4-in-1 LEDs
- Beam Angle: 20o / 40 °
- Dimming: 0-100% 16bit dimming
Electrical Specs
- Input Voltage: AC100-240V, 50-60Hz
- Max. Power: 80W
- Power Factor: 0.578 @ 100V, 0.532 @ 240V
- Input Current: 1.284A @ 100V, 0.579A @ 240V
- Power Cascade: 5Pcs @ 100V , 10Pcs @ 240V
Appearance
- Dimension: 1008 × 145 × 145mm
- Weight: 6.2KG
- Housing: Tensile Aluminum
- Color: Black
Control
- Control Protocol: DMX512
- DMX Channels: 4CH, 6CH, 9CH
- Cooling: Natural convection cooling
Work Environment.
- Working temperature: -20 ℃ ~ 45 ℃IP Grade: IP65
Certification.
- CE & RoHS
