Description

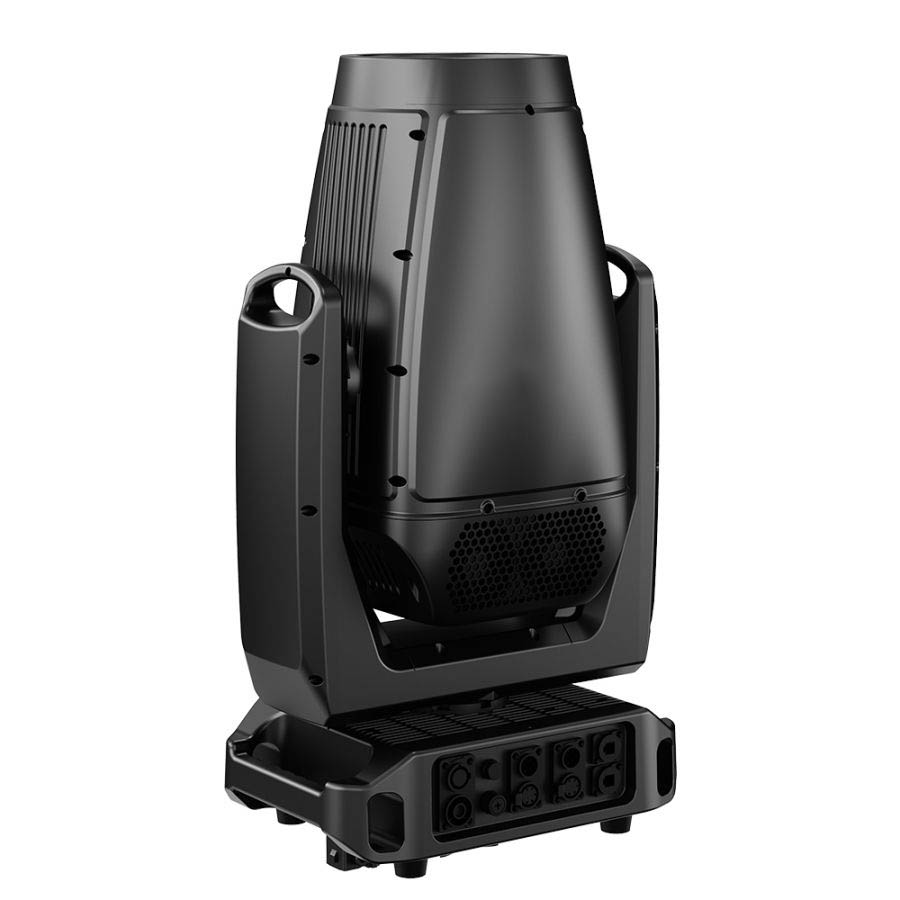

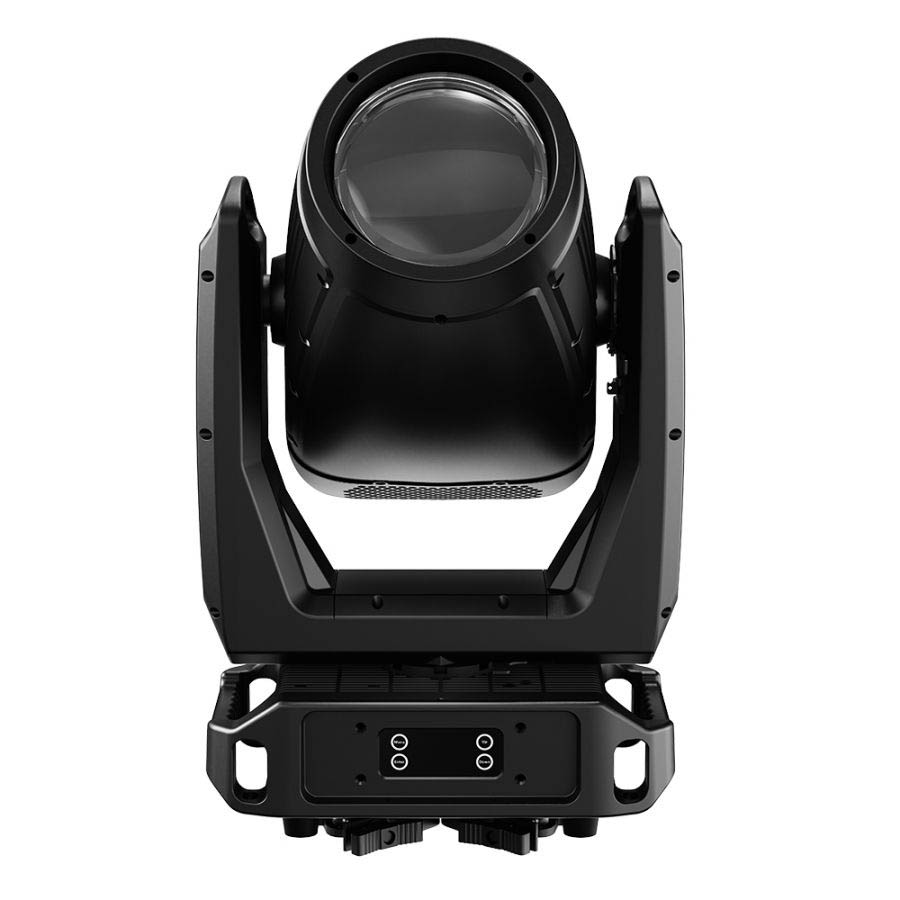

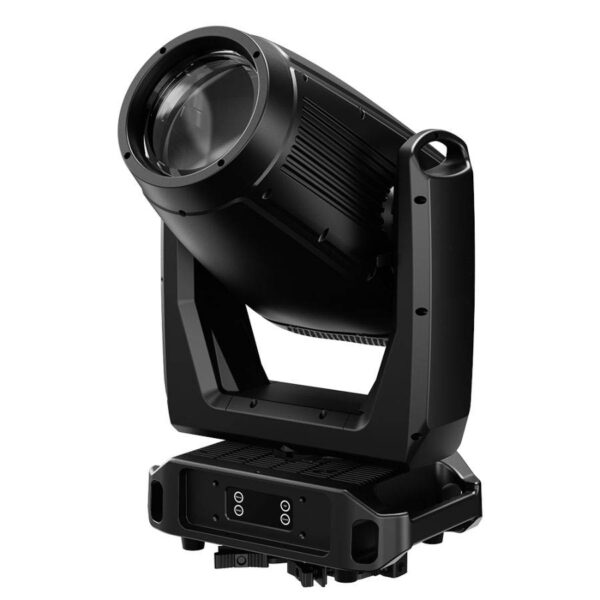

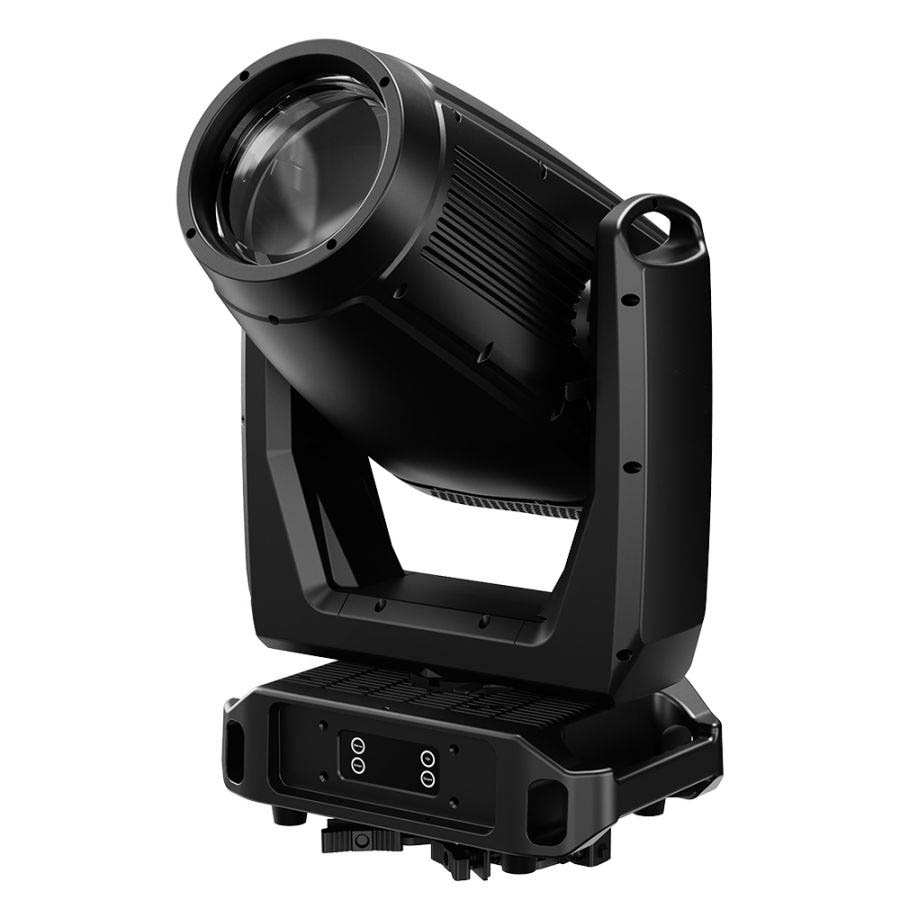

The HYBRID800P is a next-generation IP65-rated LED profile fixture designed for professional lighting applications in both indoor and outdoor environments. At its core is a powerful 800W LED engine delivering an impressive 52,500 lumens at a crisp 7,000K color temperature, making it ideal for concerts, festivals, theaters, and large-scale productions requiring long-throw projection and rich feature sets.
Its advanced optical system offers a wide 4.5°–50° zoom range, while multiple operating modes, including HCRI mode with CRI≥90, allow for high-fidelity rendering when needed. A 145mm front lens ensures sharp focus, even across the full zoom range.
The HYBRID800P features an extensive visual effects suite, including rotating and static gobo wheels, a graphic animation wheel, dual rotating/indexable prisms, a combinable frost filter, and precise CMY + linear CTO color mixing. It also includes a 5-color + CRI color wheel for rapid color access.
Control is seamless through DMX512, RDM, Art-Net, and sACN protocols, supported by an intuitive LCD display with 4-button touch control. With waterproof PowerCON and XLR connectors, this fixture is ready for reliable operation in harsh conditions.
Specifications
LIGHT SOURCE
- Light Source: 800W LED Engine
- Total Lumen Output: 52,500 lumens
- Color Temperature Output: 7,000K
- Life Expectancy: 20,000 hours
ELECTRICAL & CONNECTORS
- Input Voltage: 100–240V, 50/60Hz
- Power Consumption: 910W
- Power Connector: Waterproof power connector in/out
- Signal Connectors: 3-pin & 5-pin waterproof XLR, RJ45
OPTICAL SYSTEM
- Zoom Range: 4.5°–50°
- CRI (Standard Mode): Ra > 70
- CRI (HCRI Mode): Ra ≥ 90
- Diameter of Frontal Lens: 145 mm
CONTROL & INTERFACE
- Control Panel: 4 touch-button interface
- Display: LCD display
- Control Protocols: DMX512, RDM, Art-Net, sACN
- DMX Channel Modes: 42CH / 32S CH / 32F CH / 23CH
GOBO SYSTEM
- Static Gobo Wheel:
- 13 gobos + open
- Gobo Size: Ø17 mm (Image: Ø13 mm)
- Rotating Gobo Wheel:
- 8 gobos + open
- Gobos 1–7: Ø20 mm (Image: Ø12 mm)
- Gobo 8: Ø20 mm
ANIMATION & EFFECTS
- Animation Wheel: Rotating in both directions; can be used alone or with gobos; swappable
- Prisms: 4-facet prism + 4-mirror prism, rotating/indexable and combinable
- Frost Filter: 1 medium frost filter (combinable)
COLOR SYSTEM
- Color Mixing: Linear CMY
- Color Correction: Linear CTO (2,700K – 7,000K)
- Color Wheel: 5 colors + CRI filter
PAN & TILT
- Pan Movement: 540°
- Tilt Movement: 260°
- Pan/Tilt Correction: Automatic repositioning
PHYSICAL SPECIFICATIONS
- Dimensions: 358.2 x 239.8 x 658 mm
- Weight: 29 kg
- IP Rating: IP65 (dust and waterproof)
