Description

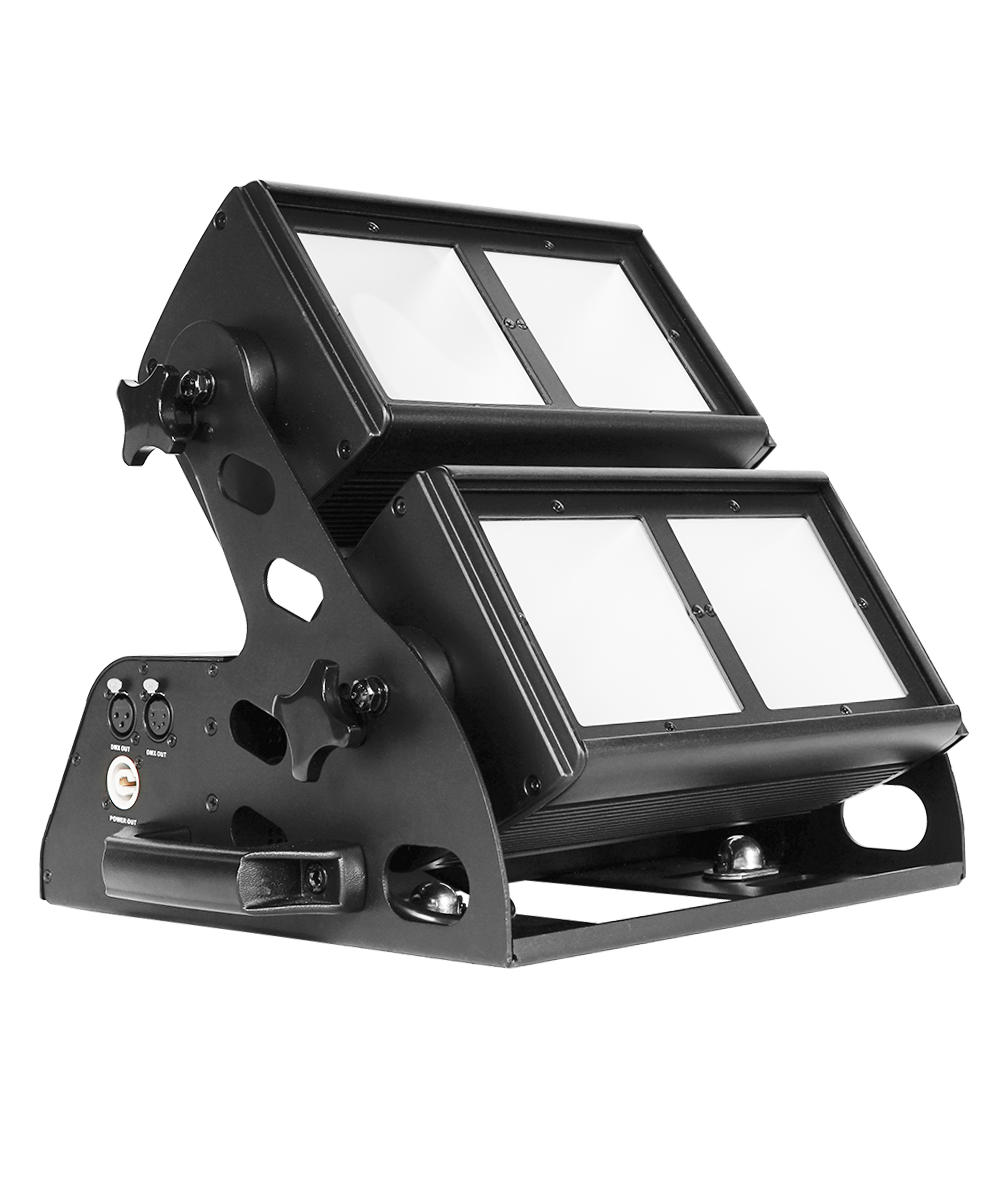

CYC.XAL applying the new RGBAL optics technology, unique asymmetrical optics, it is at least 2O% brighter than first generation MYCYC. With advanced HSIC color mixing system, can easily pick up whatever colors you need. Also it can quickly recall the most common used CCT from 2700k-80OOk.The CYC.XAL is fully replacing the traditional cyclorama.
Optical system.
- Light source: 200W LED RGBAL.
- CCT: 2700K, 8000K.
- CRI: Ra ≥90.
- CQS: >90.
- Angle: 15°-45°.
Electrical Specs.
- Voltage: 100-240VAC, 50/60Hz.
- power: 240W.
- Drive Current: 1.5A.
- Power Connection: Power in/out.
- DMX XLR: DMX in/out.
Control System.
- Dimmer: 0-100%16Bit.
- Cooling: Forced Convection.
- Control: DMX 512, RDM.
- Display: On board Control, 0-25Hz Strobe.
- Con Personality: HSIC(8CHS), SSP (10CHS), TOUR (13CHS), TR16(19CHS).
Appearance.
- Size: 510x285x261mm.
- Weight: 7.6kg.
- Casing: Extruded aluminum.
- Color: Black.
Work Environment.
- Ambient Temp: 0°C-45°C.
- IP Rated: IP20.
Certification.
- CE, MET.
