Description

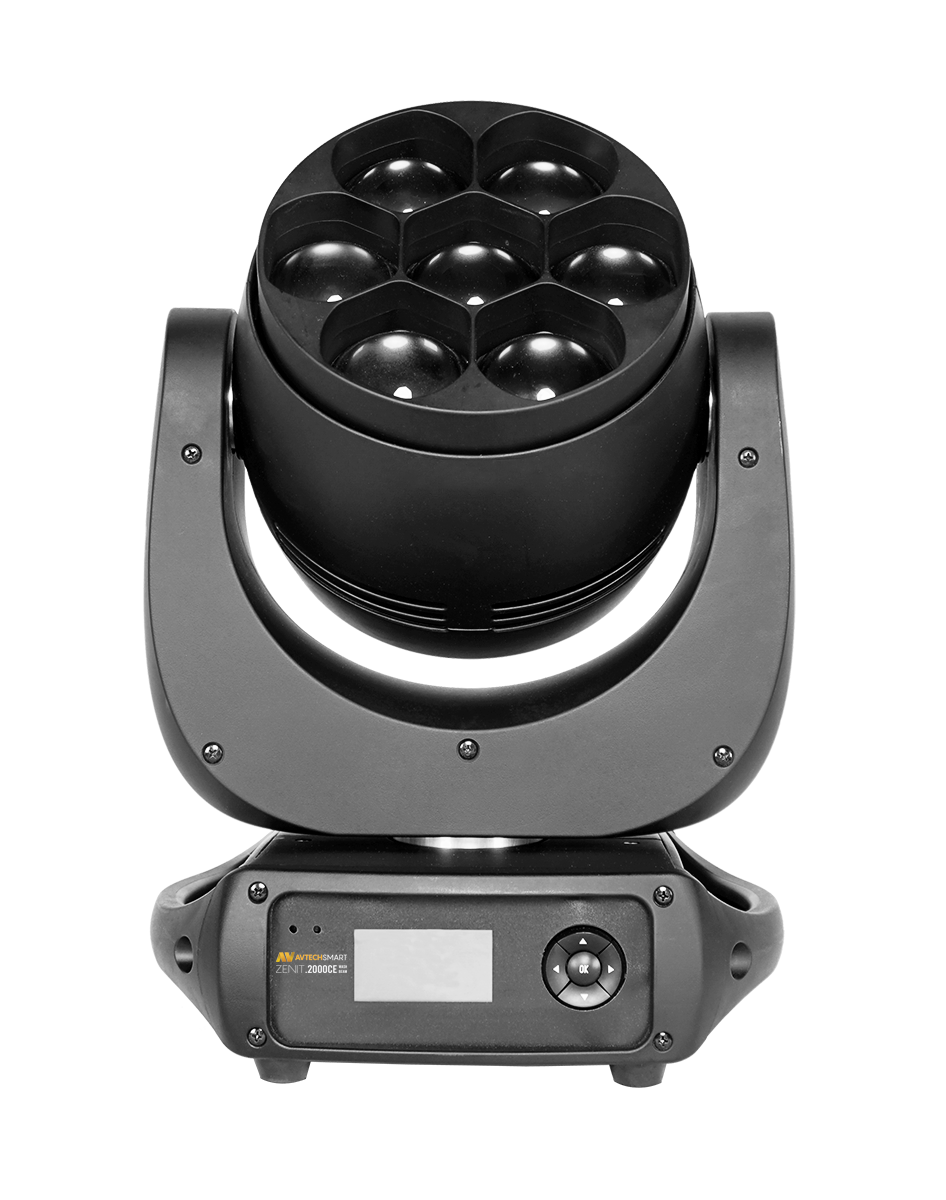

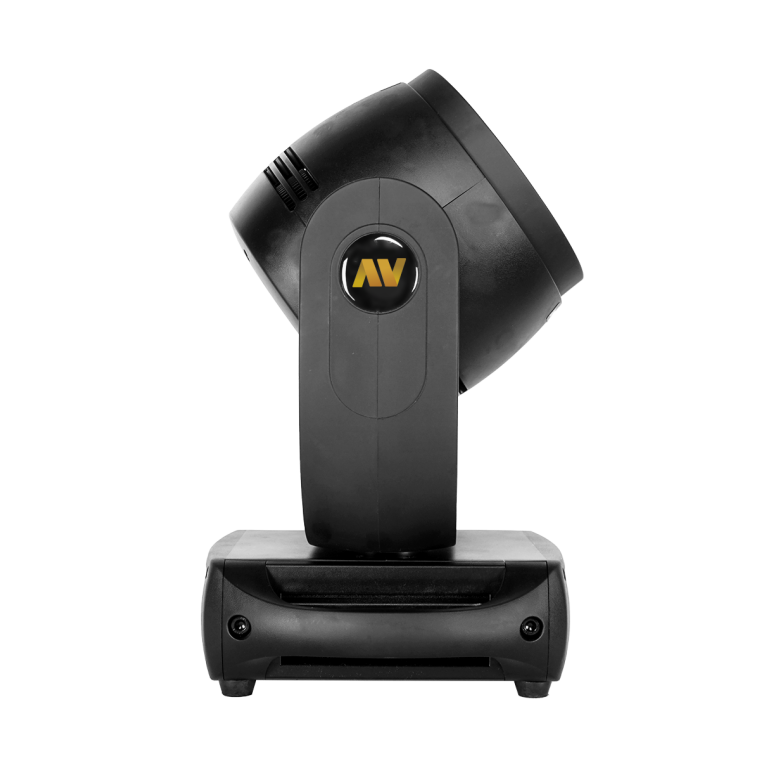

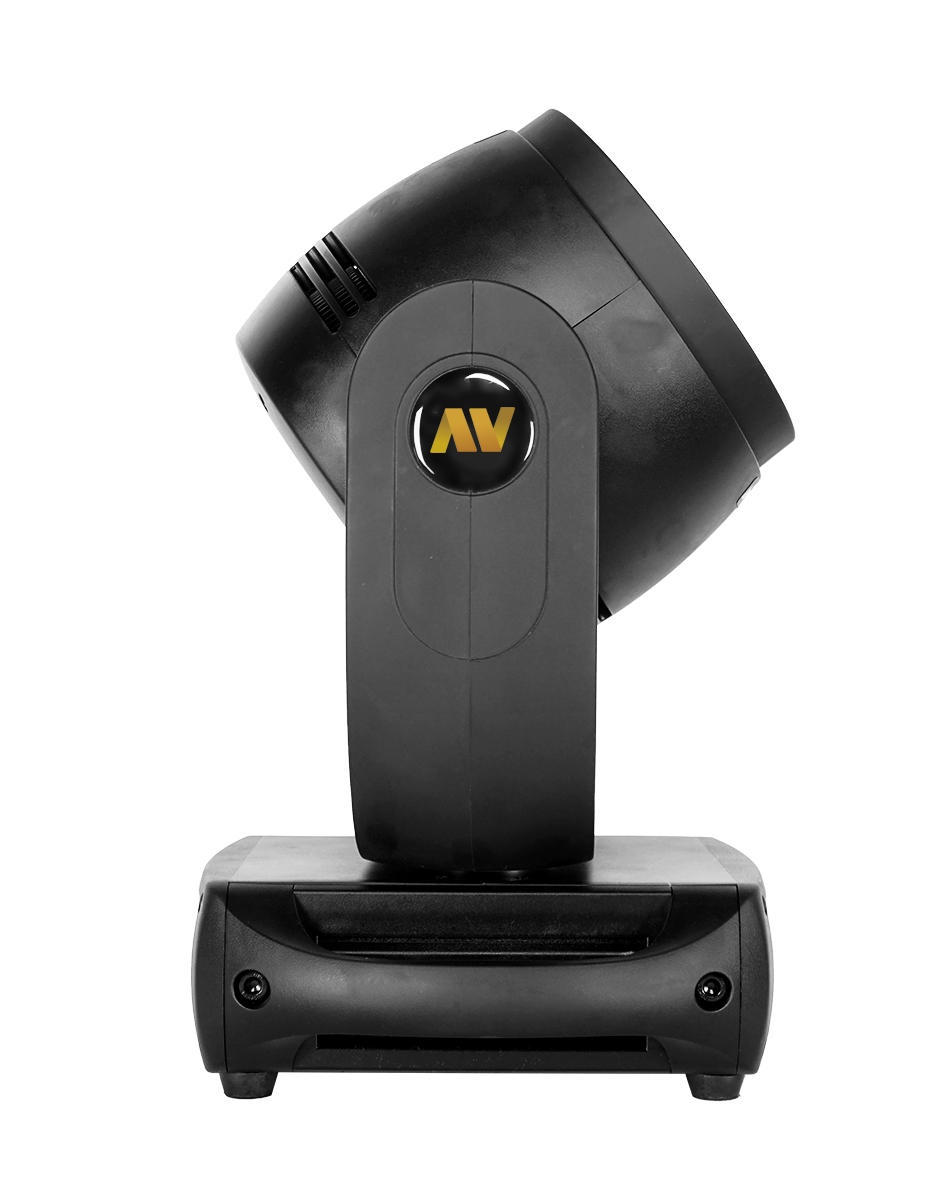

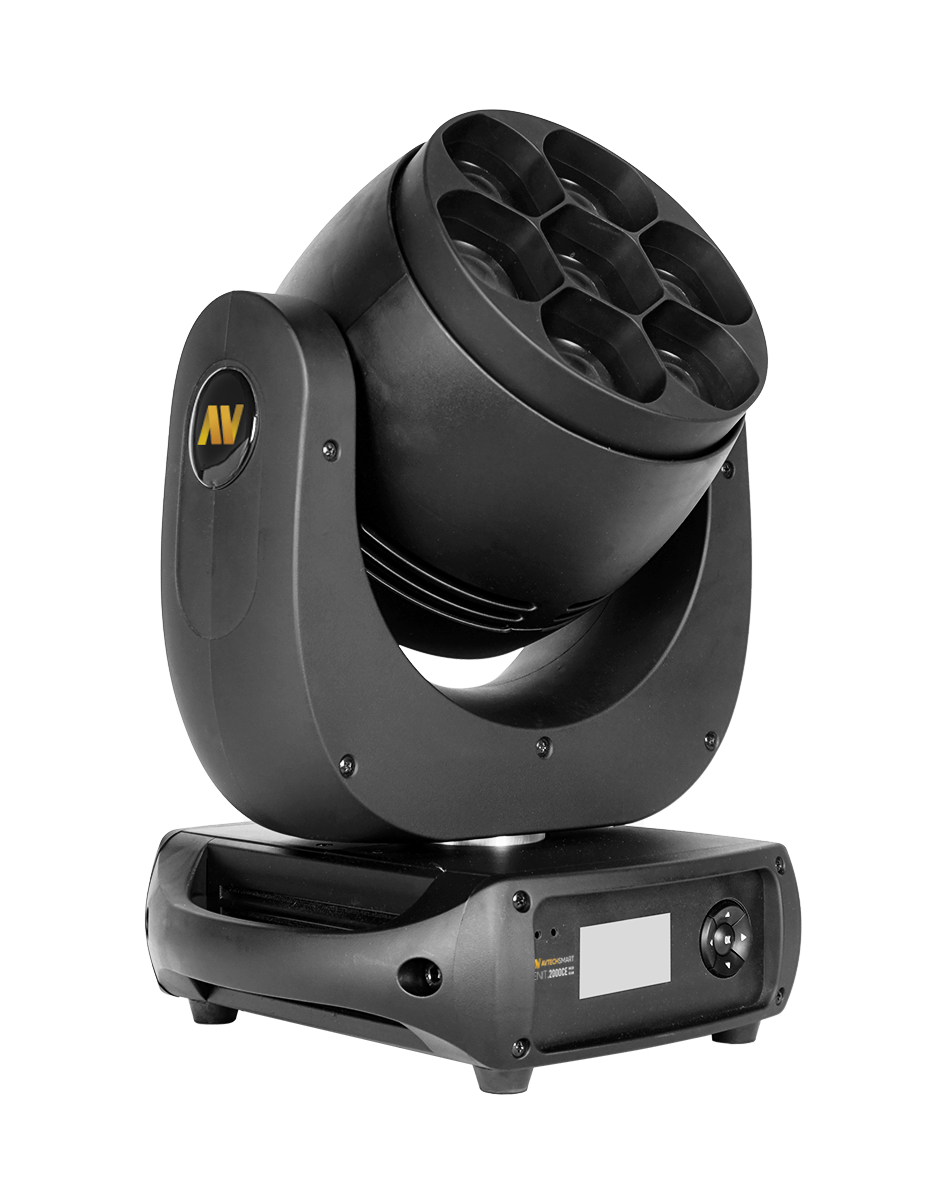

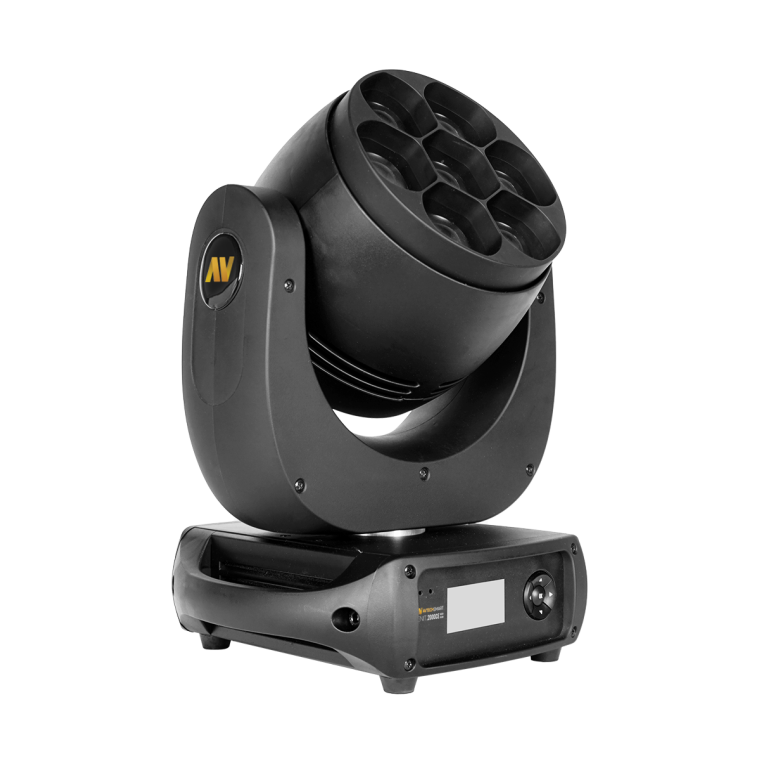

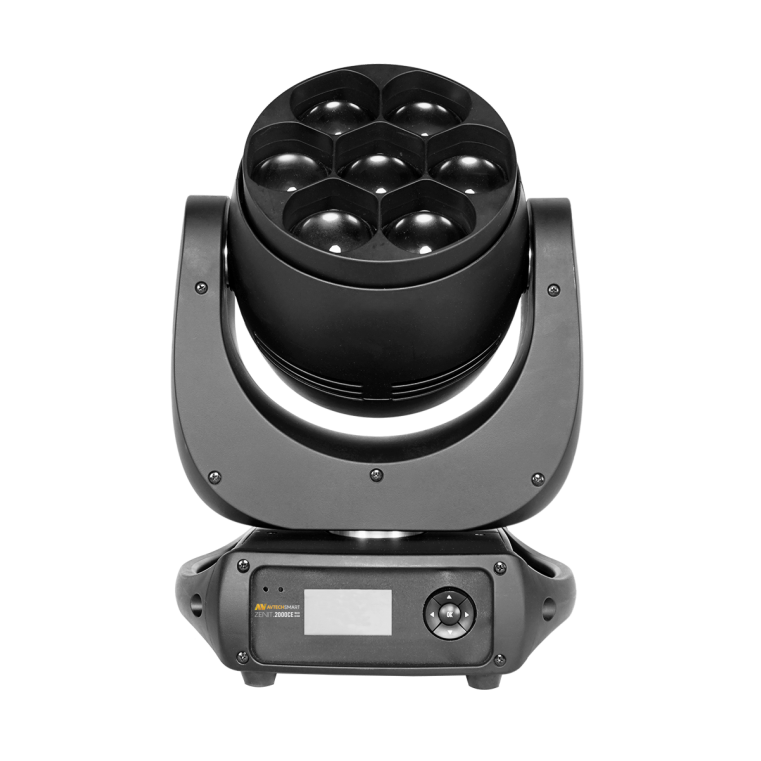

ZENIT2000CE Add ARTNET-OUT, upgrade and optimize the motor to acheive a much lower zoom noise. ZENIT2000CE is the new generation LED moving wash! Using 7X40W RGBW LED, high efficient optic, applying the HSIC color management system. Individual pixel control. Incredible beam angle 4.5°-36°, Field angle 9°-52°. either creates tight/strong beam or massive wash effects. With the lightweight /compact design, ZENIT2000CE is ideal wash light for professional rental / concert / TV applications.
Optical system.
- Light source: 7x40W (RGBW), (RGBA optional).
- Beam angle: 4.5° -36°.
- Field angle: 9° -52°.
Electrical Specs.
- Voltage: 100-240VAC, 50/60Hz.
- power: 300W.
- Drive Current: 2.5A.
- Power Connection: Power in and out.

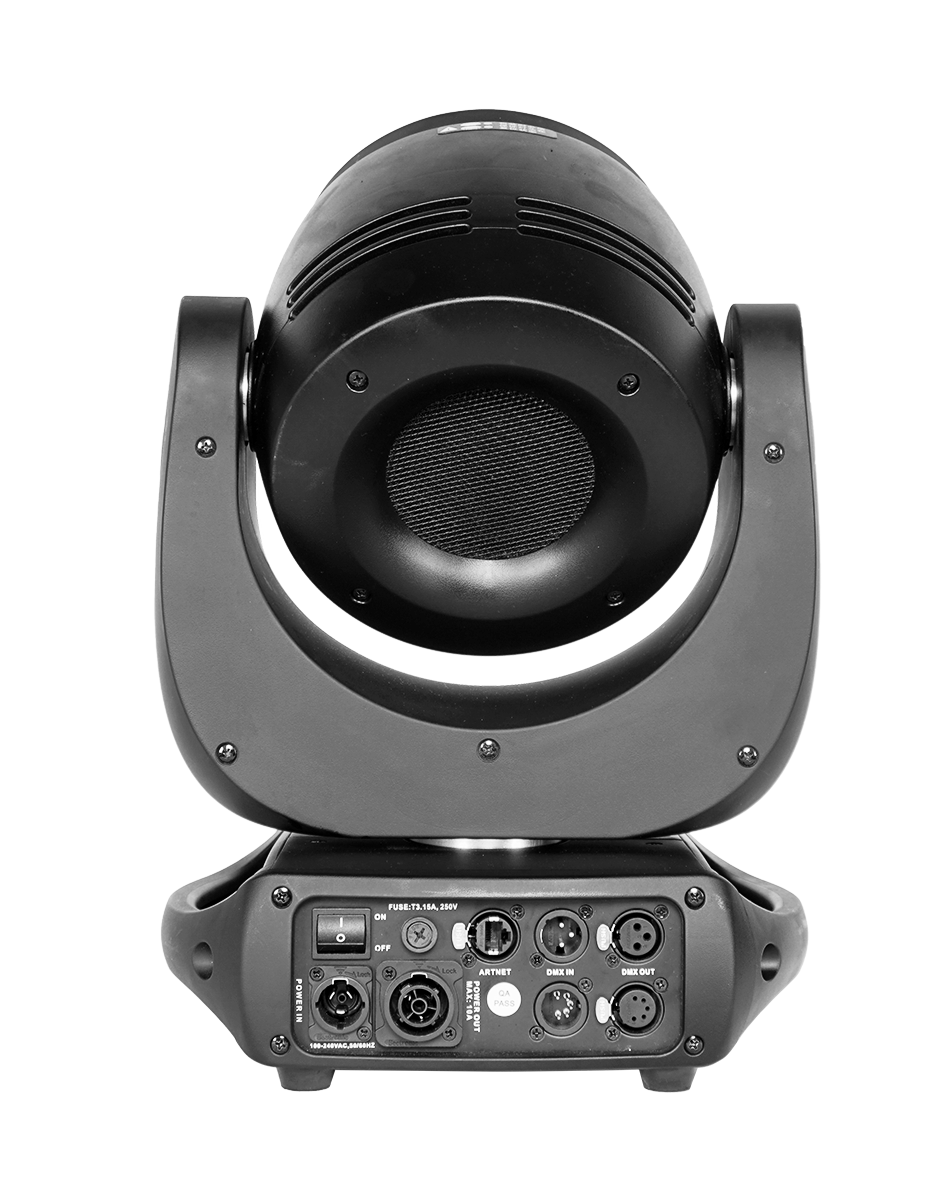

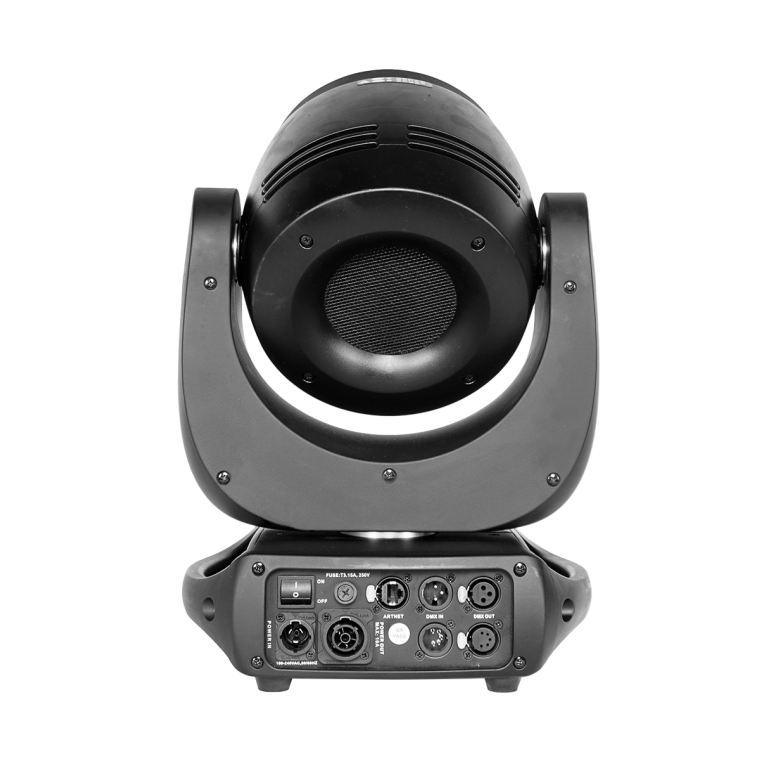

- Signal socket: 3pin or 5pin in and out, RJ45 in and out for Art-net.
Control System.
- Pan/Tilt rotation: 540° /270°(8-16bit).
- Dimmer: 0-100% 16Bit.
- Cooling: Forced Convection.
- Control: DMX512, ROM, Art Net, W-DMX (optional), Web Server.
- Display: On board Control, Custom Mode, 0-25Hz Strobe.
- Con Personality: HSIC (13CHS), PERSON1 (13CHS), PERSON2 (21 CHS), PIXEL (37CHS), CMY (15CHS).
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges.
Appearance.
- Size: 293x249x375mm.
- Weight: 9.3kg.
- Casing: Flame-retardant plastic (VO).
- Color: Black.
Work Environment.
- Ambient Temp: 0-45 ‘C.
- IP Rated: IP20.
Certification.
- CE, MET.
