Description

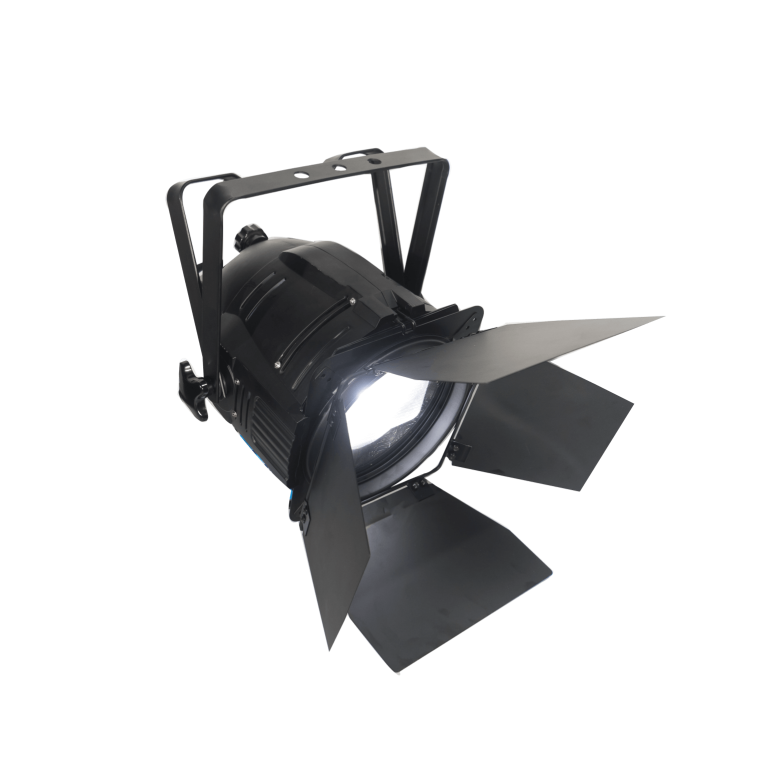

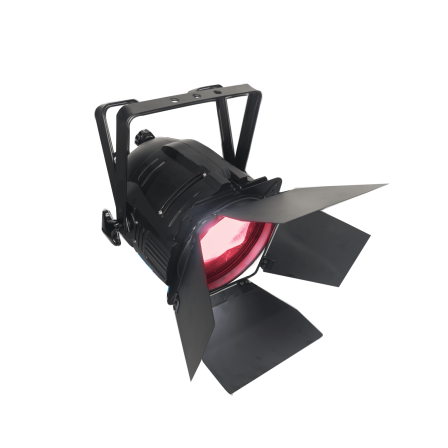

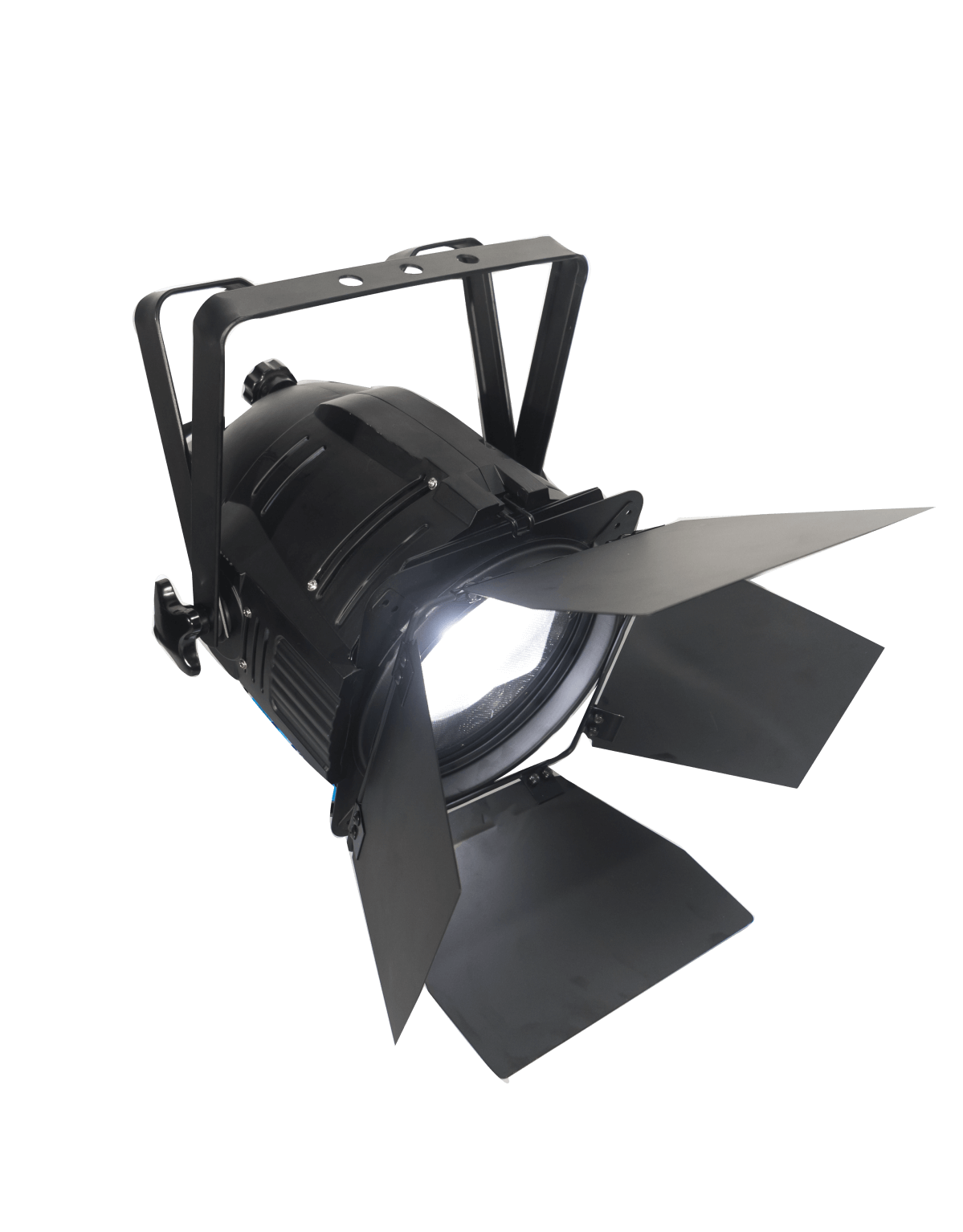

Powered by 150W RGBW LED, the PARPC150DY is designed to replace the traditional lamp par. Featuring manual zoom range from 25°-80°, durable LED life, compact design, flat and even field of light.
Optical
- Light source: 150W RGBW LED
- Color temperature: 8000K
- Zoom range: 25°- 80° manual zoom
- LED lifetime: 50,000 hours
Electrical
- AC power: 100-240 V nominal, 50/60 Hz
- Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
Control and programming
- Control protocol: DMX, RDM
- DMX channels: ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG(11CH)
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20

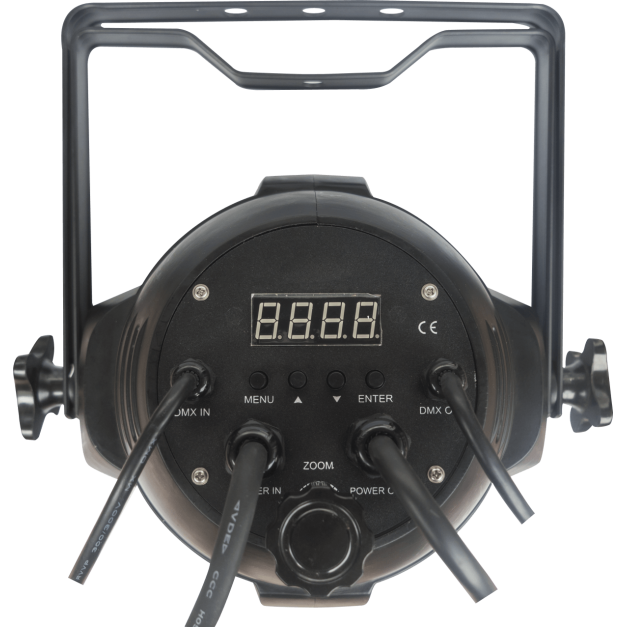

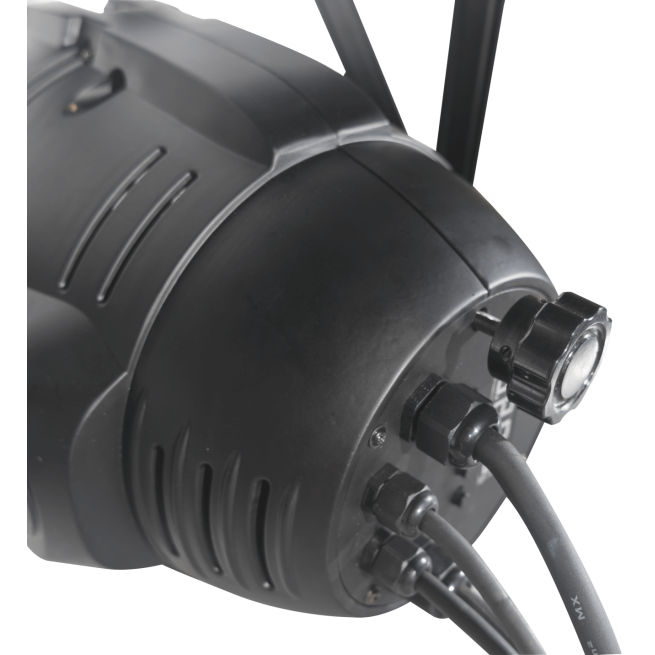

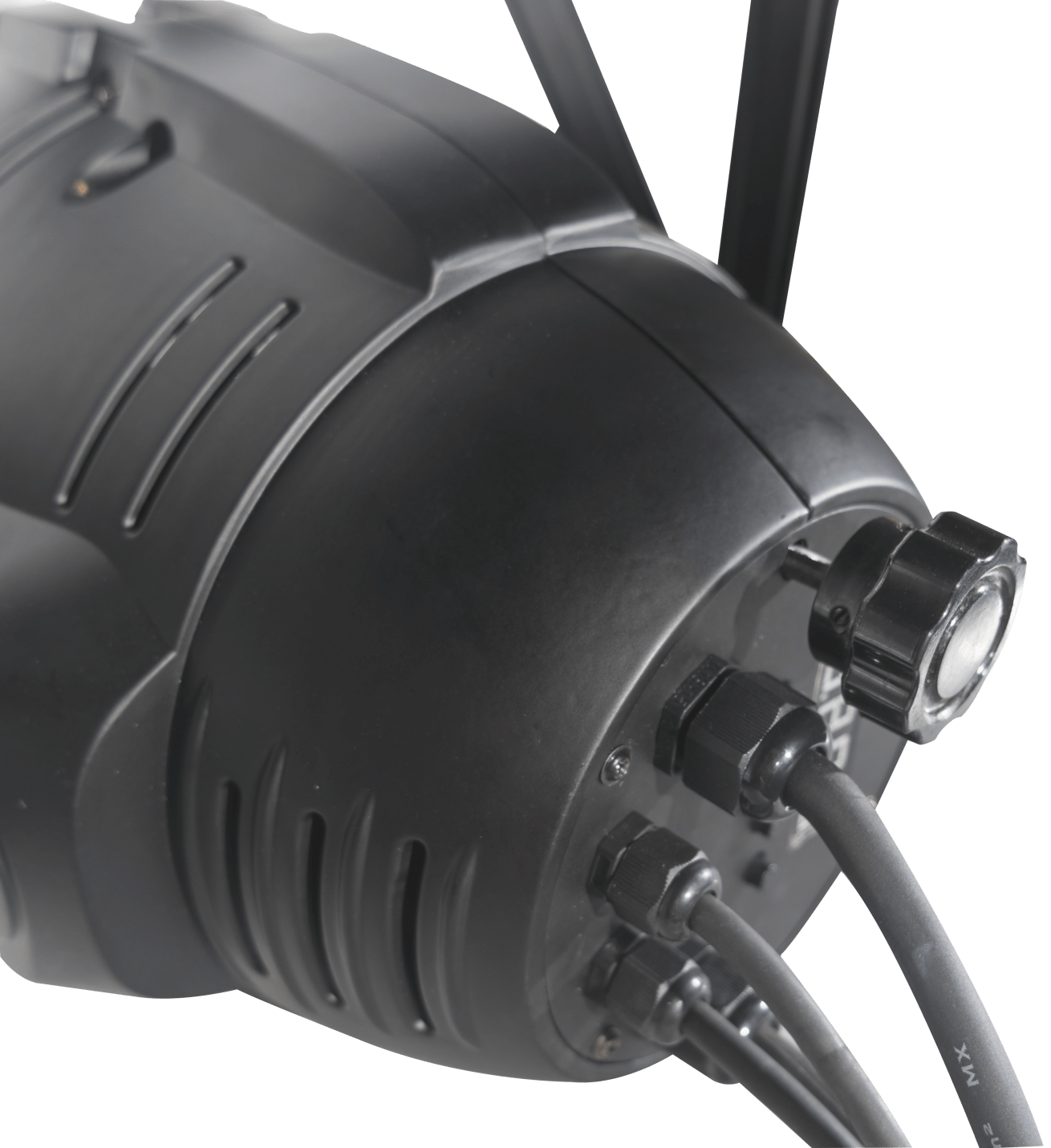

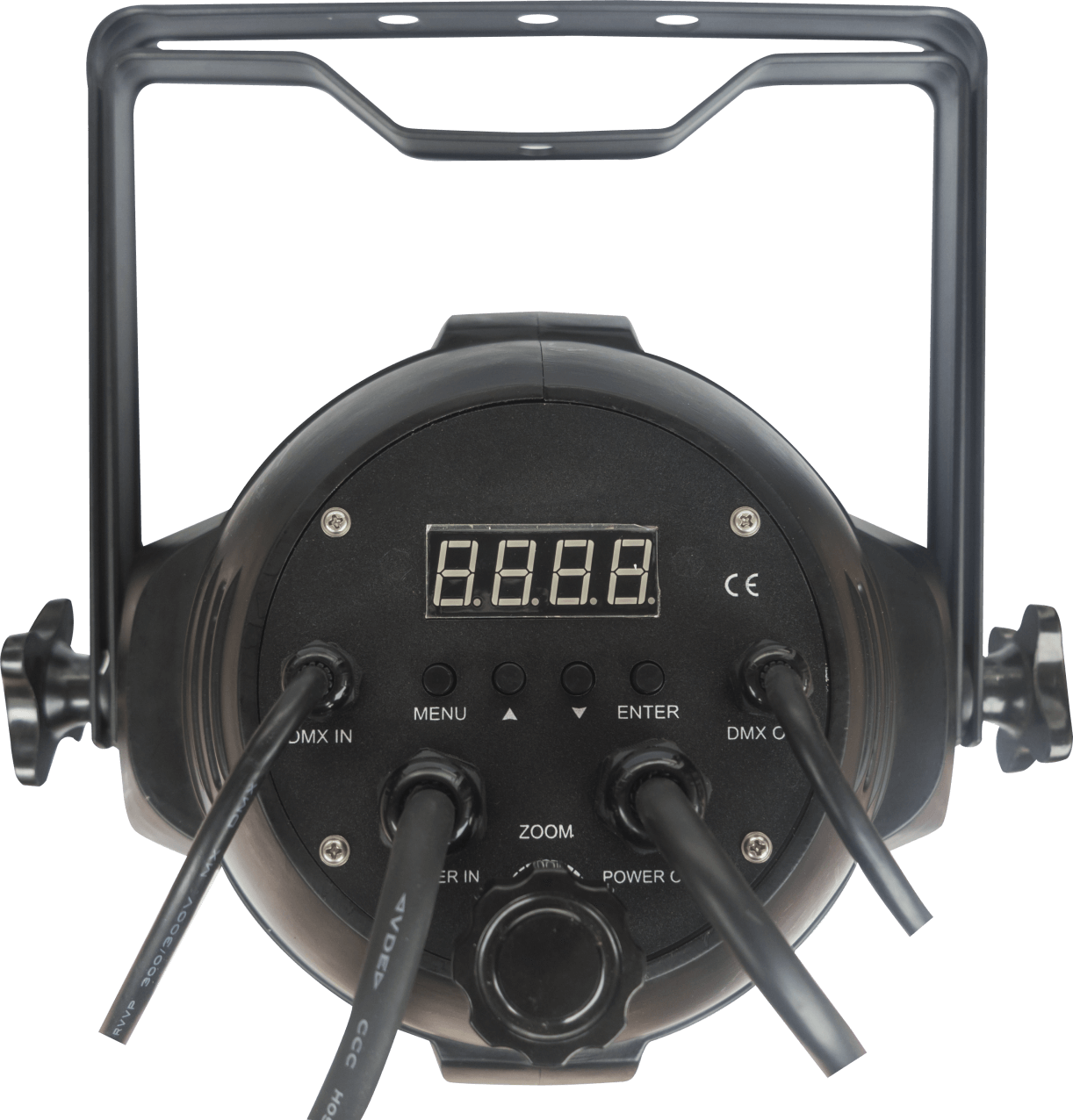

Connections
- AC power in, thru: IP rate power cable in
- DMX and RDM data in/out: 3-pin locking XLR
Construction
- Housing: Aluminum
- Color: Black
- Protection rating: IP20
Thermal
- Cooling: Heat sink( no noise)
- Maximum ambient temperature (Ta max.): 45° C
- Minimum ambient temperature (Ta min.): -5° C
Accessories(included):
- 4 leaf rotating barndoor
- Color frame
Accessories(optional):
- Clamp
Approvals: CE
