Description

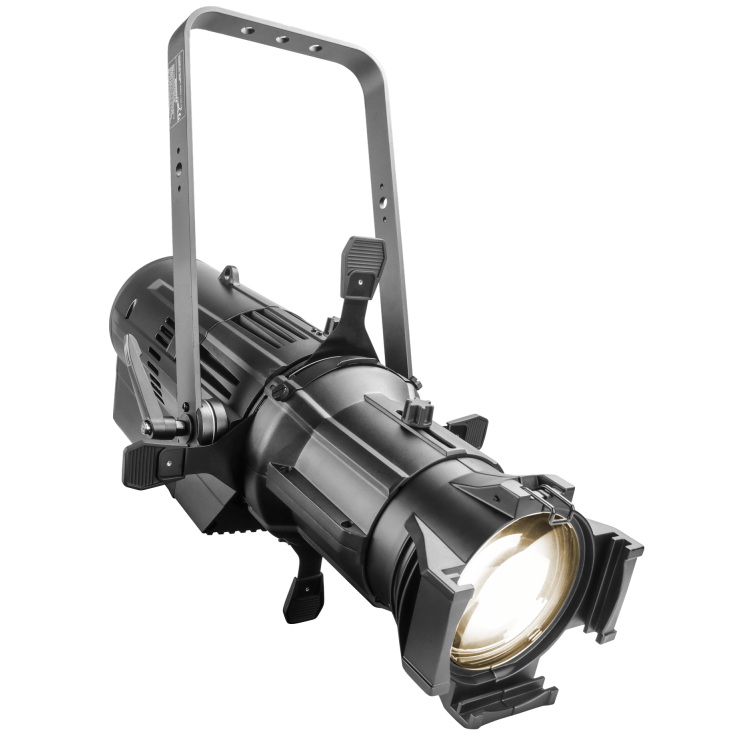

LUNA.250TU specifically design for replacing the traditional lamp Ellipsoidal, which controlled by the dimmer pack; It fully match with previous SCR (Silicon Controlled Rectifier) controller, and the DMX512 signal, dimming smooth, no shading. Intelligent power management system can automatically recognize the DMX 512 Protocol and SCR.50% brighter than the 1st successful version, color rendering>90, with compact structure, professional industrial design, it is truly energy saving fixture.
Optical system.
- Light source: 250W LED.
- CCT: 3200K.
- CRI: Ra≥90.
- CQS: >90.
- Angle: 5°/10°/19°/26°/36°/50°/15°-30°/25°-50°.
Electrical Specs.
- Voltage: 100-240VAC, 50/60Hz.
- power: 250W.
- Drive Current: 3.3A.
- Power Connection: Power in/out.
- DMX XLR: DMX in/out.
Control System.
- Dimmer: 0-100%16Bit.
- Cooling: Forced Convection.
- Control: DMX512, [RDM, Dimming Pack Control (ss27sw HDD/sc HDD)].
- Display: On board Control,0-25Hz Strobe.
- Con Personality: UNO(1CHS), DOS(2CHS), STD.P(3CHS).
Appearance.
- Size: 645x370x525mm.
- Weight: 9.6kg.
- Casing: Die-cast aluminum.
- Color: Black.
Work Environment.
- Ambient Temp: 0°C-45°C.
- IP Rated: IP20.
Certification.
- CE, MET.
