Description

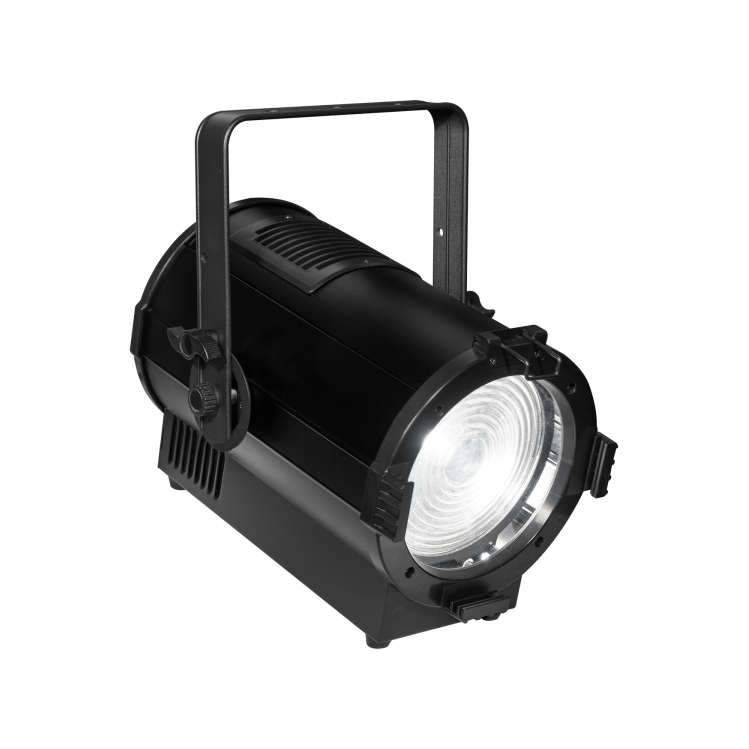

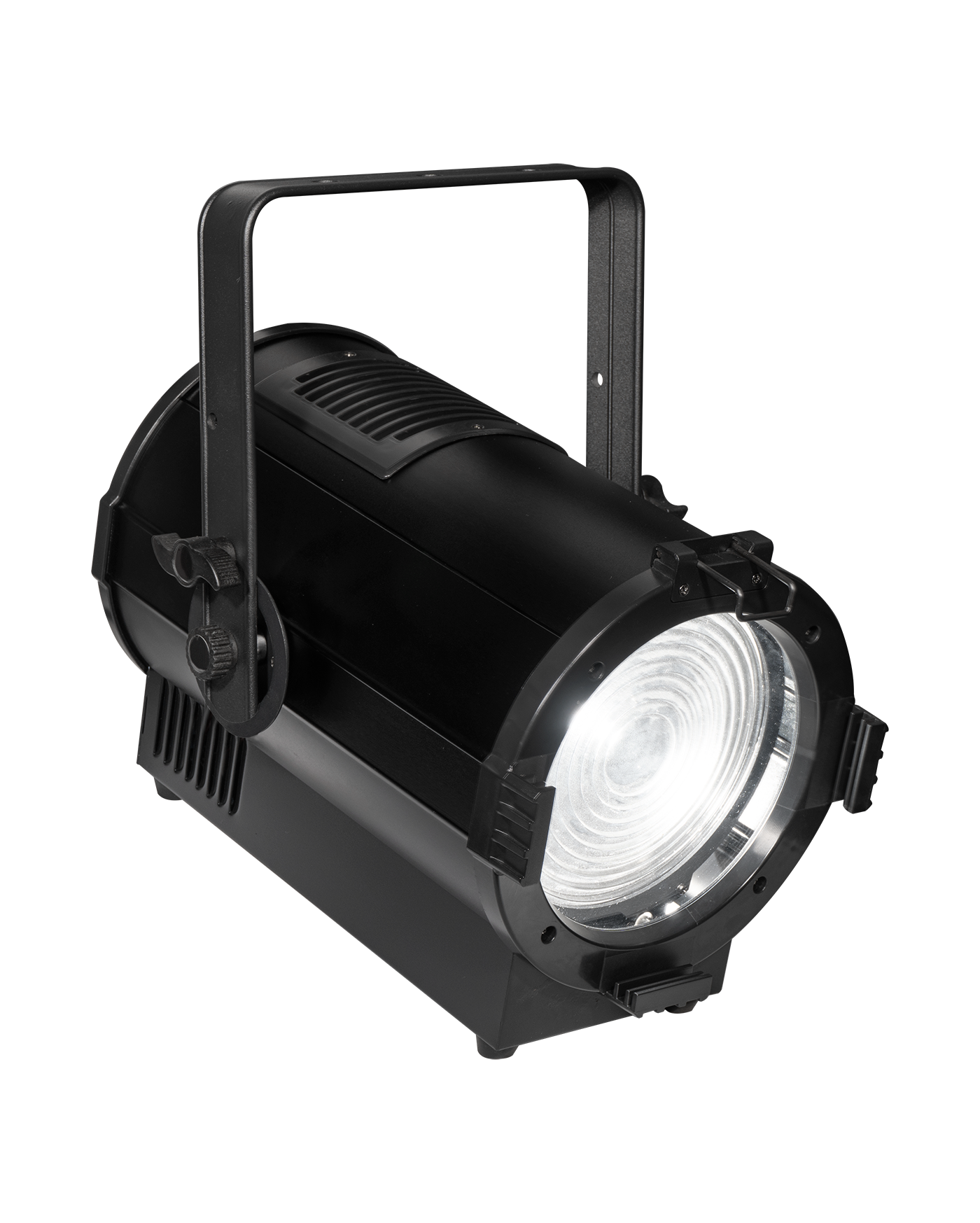

The LOBO2175TW is a 175W WW + 175W CW LED powered fresnel light with automatic zoom. The zoom range from 10~55°. It features low power draw but high output, Silent operation idea for theater and studio use, DMX/RDM control, powerCon in&out, wide zoom range.
Optical
- Light source: 175W WW + 175W CW LED
- Color temperature: 2700K – 6500K
- LED lifetime: 50,000 hours
- Zoom range: 10~55° motorized
Electrical
- 100~240V AC, 50/60 Hz Auto ranging power unit
- Maximum power linking – 8 units.
Control and programming
- Control channels: 3/6
- DMX512 in and thru via 5-pin XLR connectors(3-pin optional)
- RDM function available for addressing and settings
- RDM, DMX, Master-slave control mode 16-bit smooth dimming
- ID address setting as DMX address extension
- Selectable PWM for flicker free operation
Connections

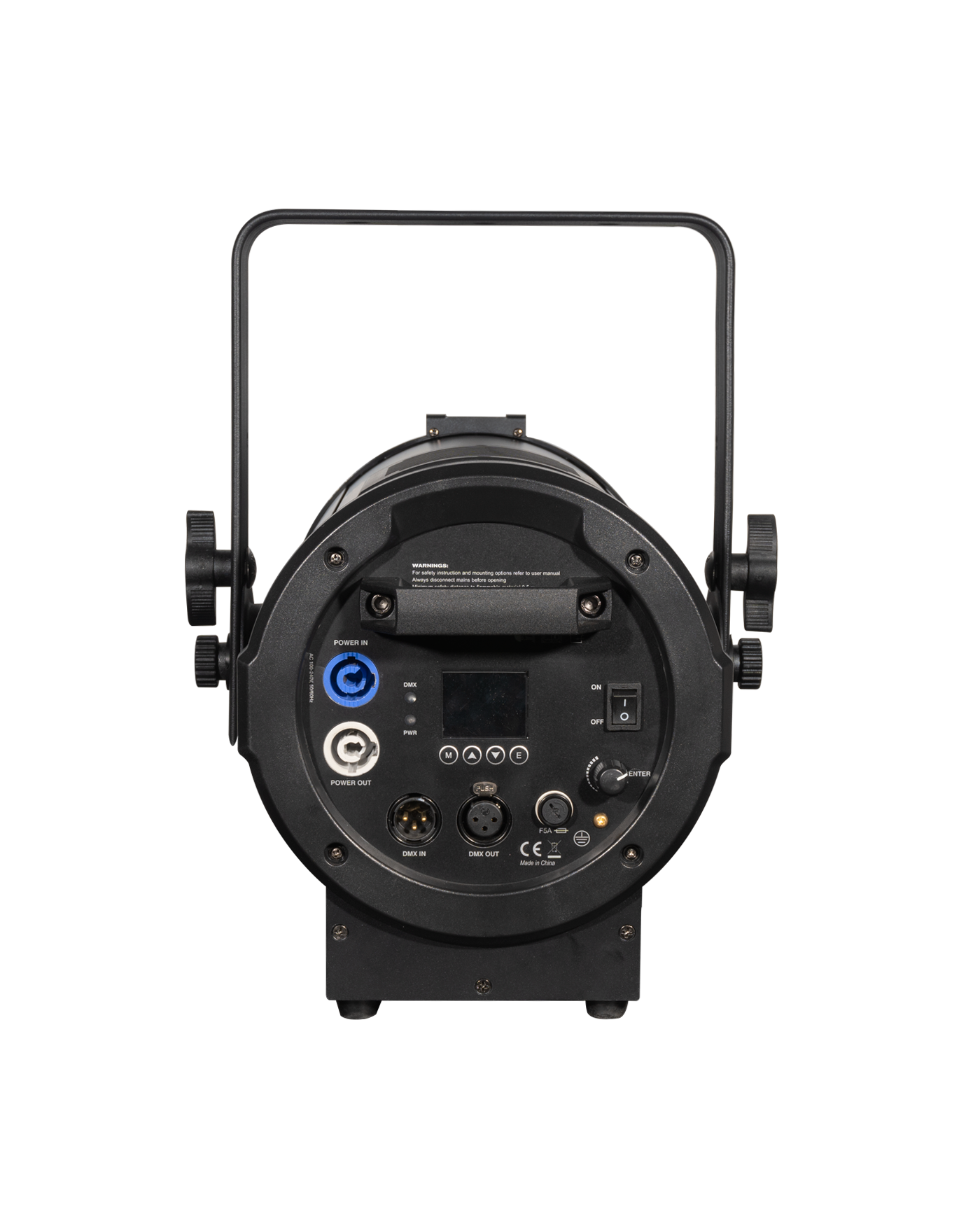

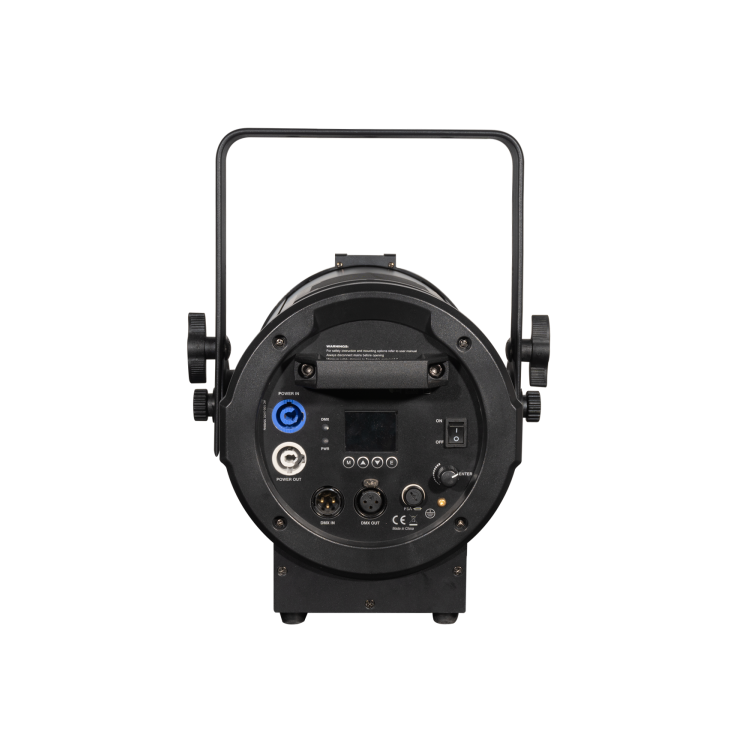

- Powercon in & out power connection
- 3-Pin XLR in & out DMX and RDM data connection(5-pin optional)
Construction
- Color: Black
- Housing: Die-cast aluminum, engineering grade flame-retardant plastic
- Enviroment: IP20 indoor use
Thermal
- Convection and silent fan cooling
- Ambient temperature: -10° to 45°C(-14° to 107.6°f)
Accessories(included):

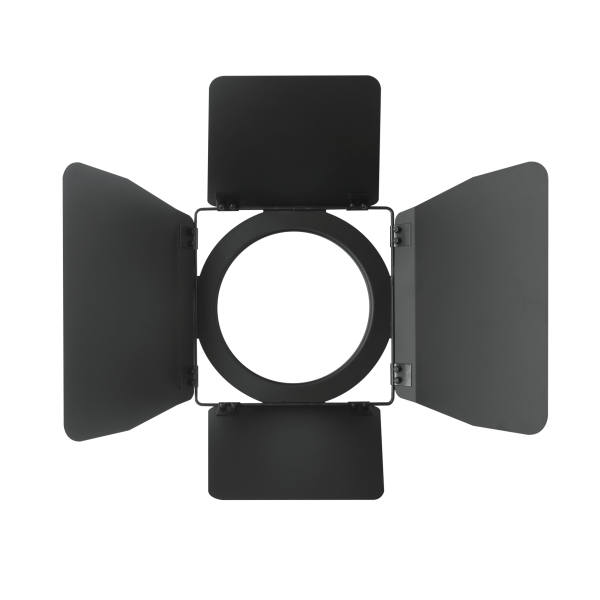

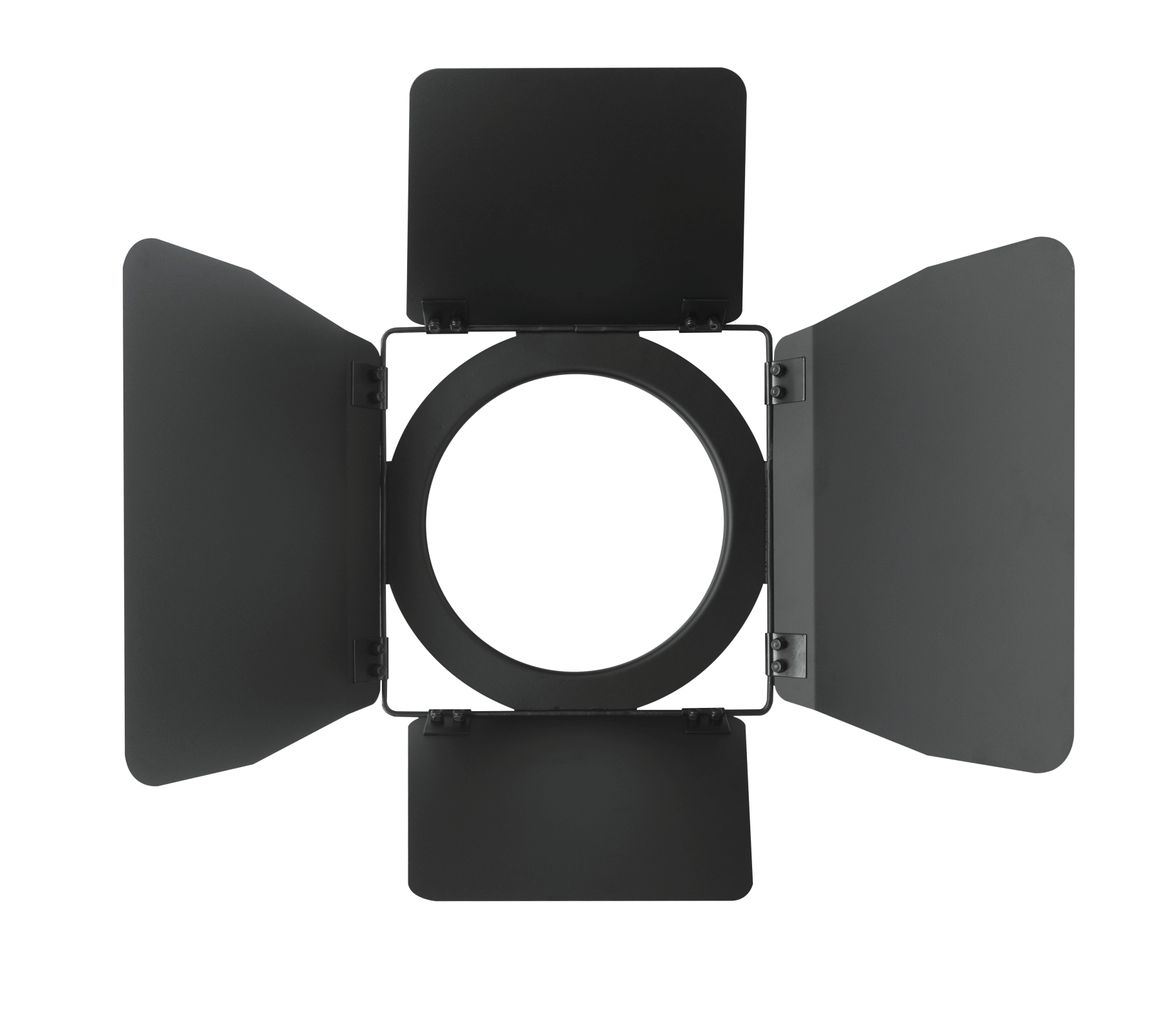

- 4 leaf rotating barndoor
- Color frame
Accessories(optional):
- Clamp
- Safety ring
Approvals: CE
