Description

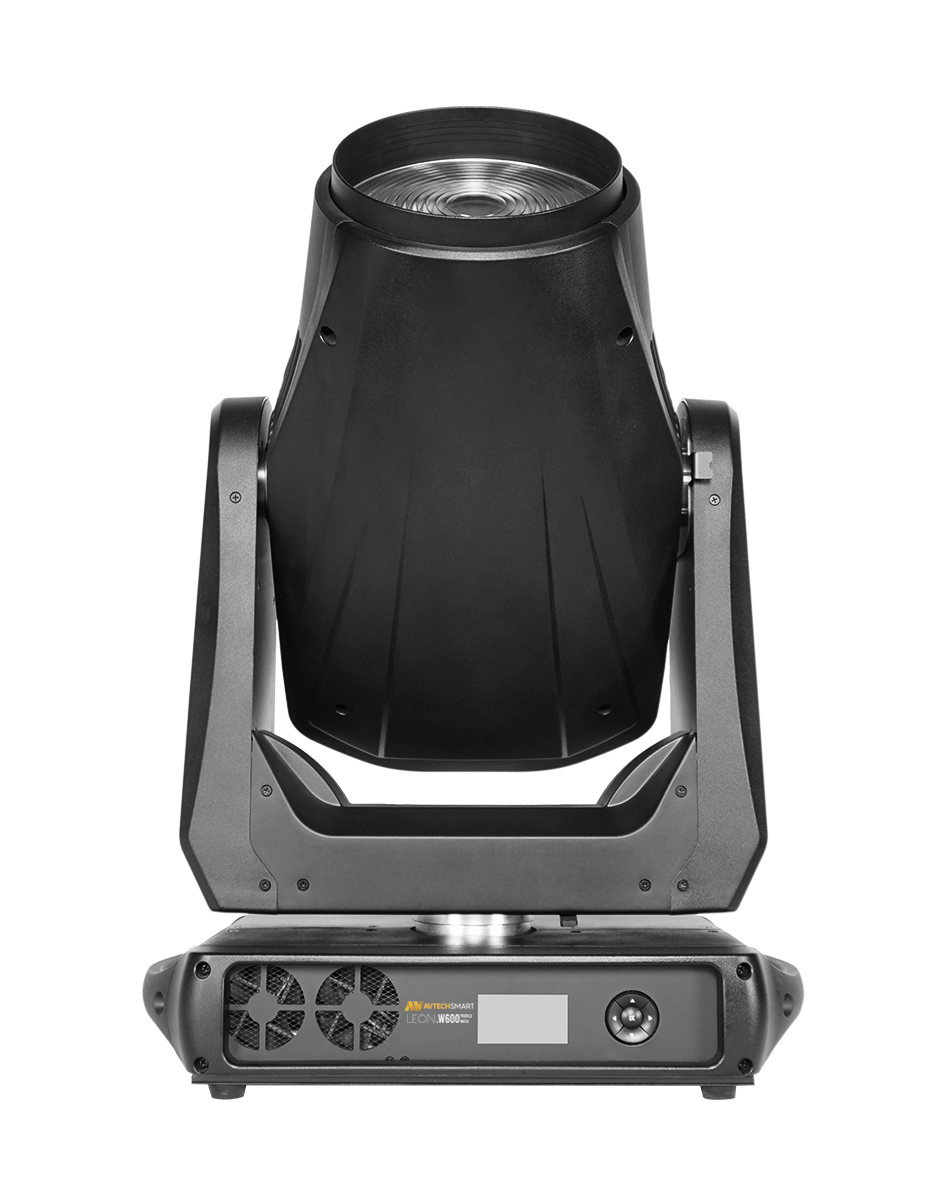

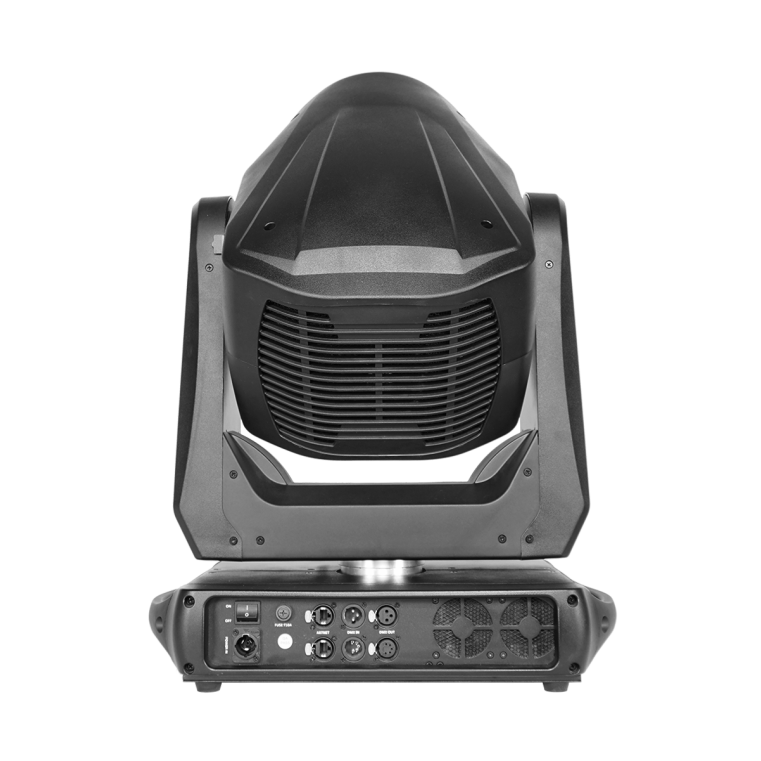

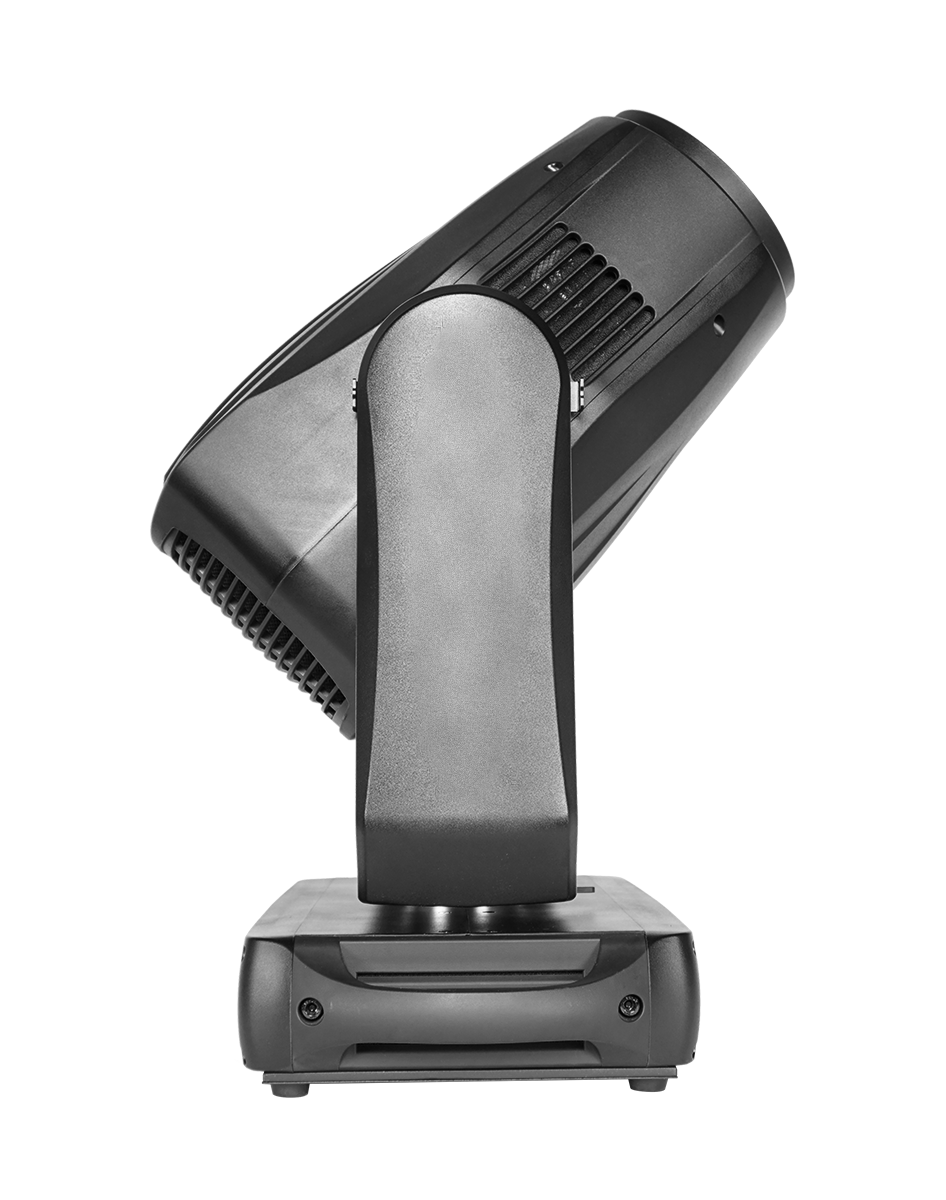

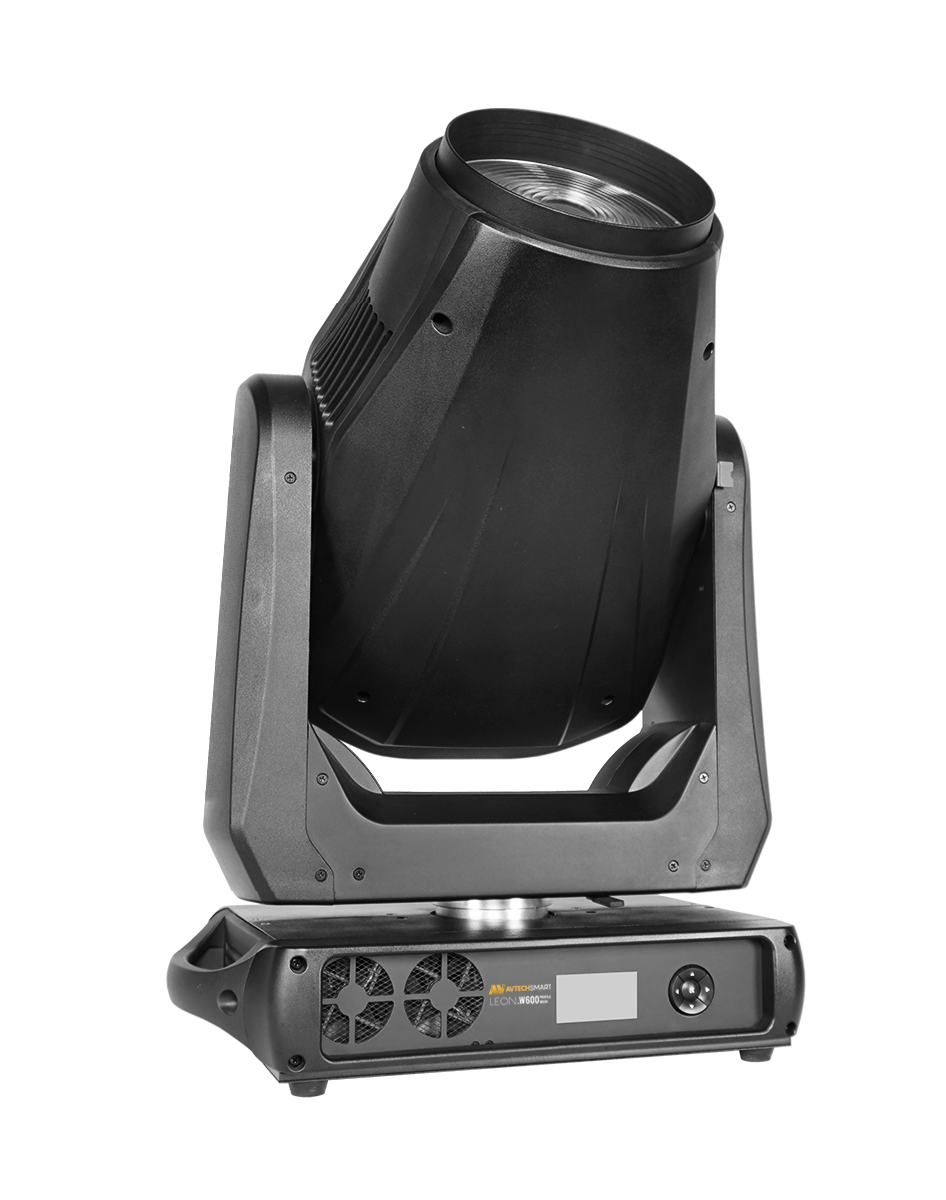

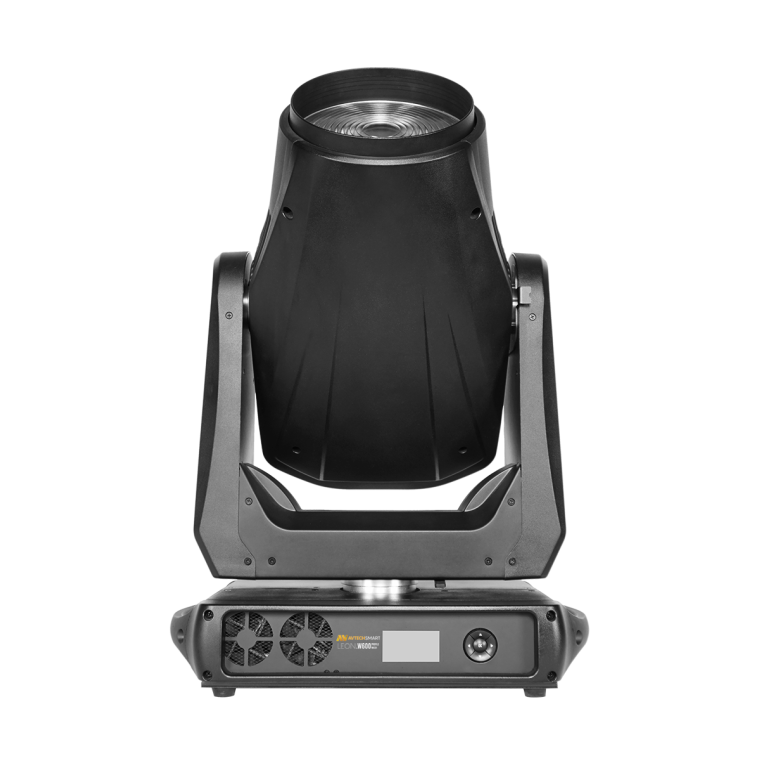

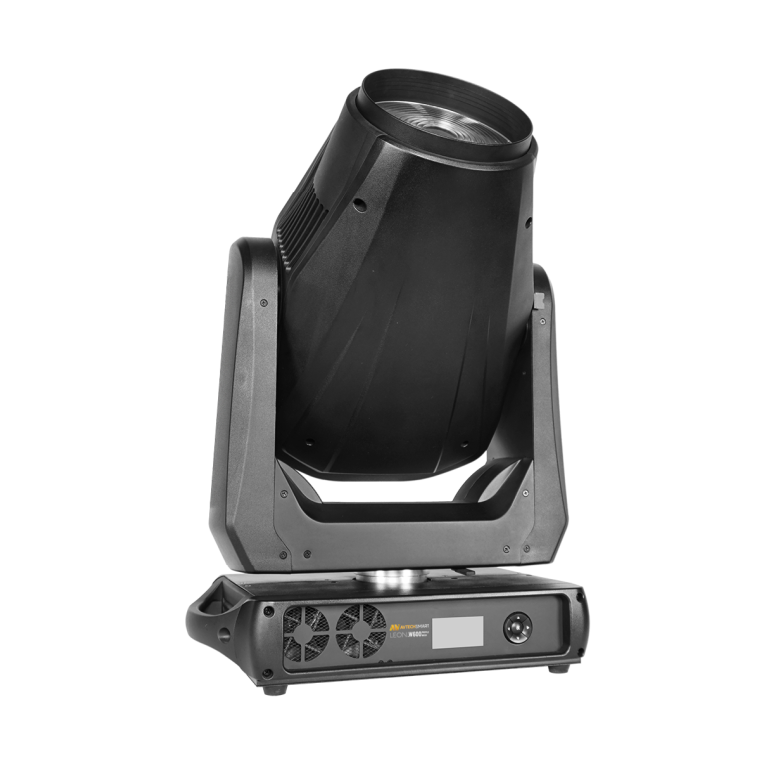

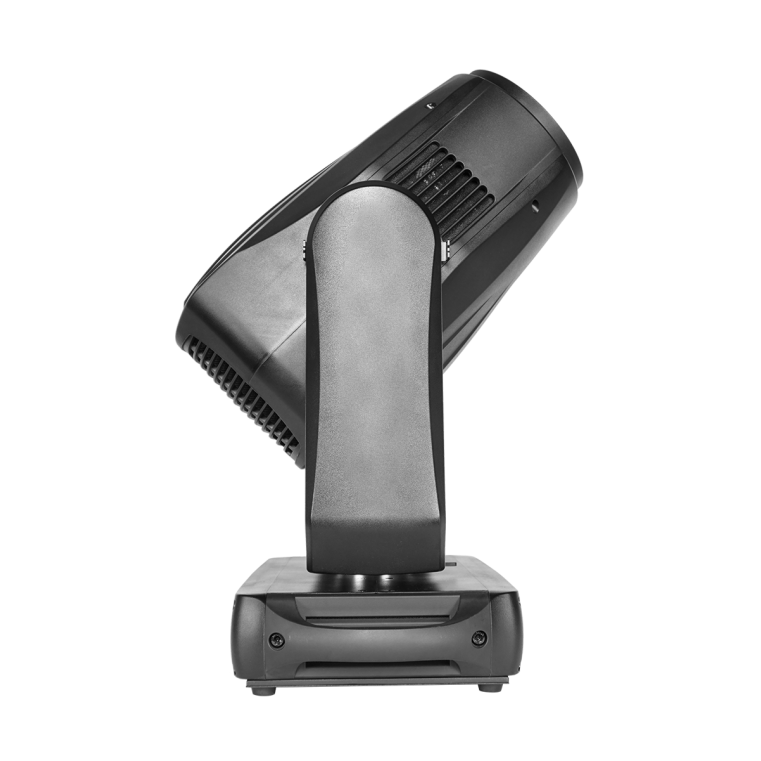

LEON.W600 WASH is a high power LED moving wash, with efficiency 600W LED optic system, smooth electronic zoom (Fresnel lens 7°–62° and PC lens 3°–65°optional), precise X/Y positioning, 2 color wheel, with high quality CMY and linear CTO. It is an ideal product for TV, Theatre, Concert, events and rental market.
Optical system.
- Light source: 600W module.
- Angle: Fresnel glass lens: 7° -62°, Fresnel PC Lens: 3°-65°.
- CRI: Ra> 70, (Ra>90 optional).
Electrical Specs.
- Voltage: 100-240VAC, 50/60Hz.
- power: 800W.
- Drive Current: 3A.
- Power Connection: Power in.
- Signal socket: 3pin/5pin in and out, RJ45 in and out.
Control System.
- Pan/Tilt rotation: 540°/270°(8-16bit).
- Dimmer: 0-100% 16Bit.
- Cooling: Forced Convection.
- Control: DMX512, ROM, ARTNET, W-DMX (optional).
- Display: On board Control, Custom Mode, 0-25Hz Strobe.
- Con Personality: STANDARD/21 CHS, BASIC/18CHS.
- Special: Pan/Tilt movement blackout, User-selectable
pan/tilt ranges.
Effect synthetic system.
- Colors: Two color wheel (7dichroic-filters+White, Rainbow-flow effect).
- CMYK: CMY wheel, Linear CTO function.
- Iris: 5-100% linearly adjustable with macro.
- Focus: Motorized linear focus.
Appearance.
- Size: 483x282x699mm.
- Weight: Fresnel glass lens: 30Kg. Fresnel PC Lens: 29Kg.
- Casing: Flame-retardant plastic (VO).
- Color: Black.
Work Environment.
- AmbientTemp: 0-45 C.
- IP Rated: IP20.
Certification.
- CE, MET.
