Description

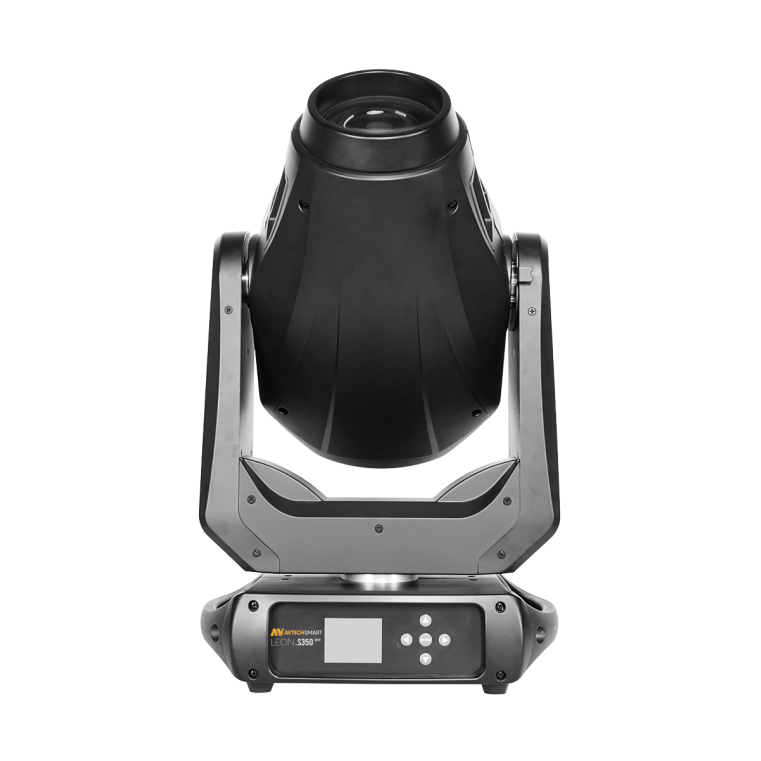

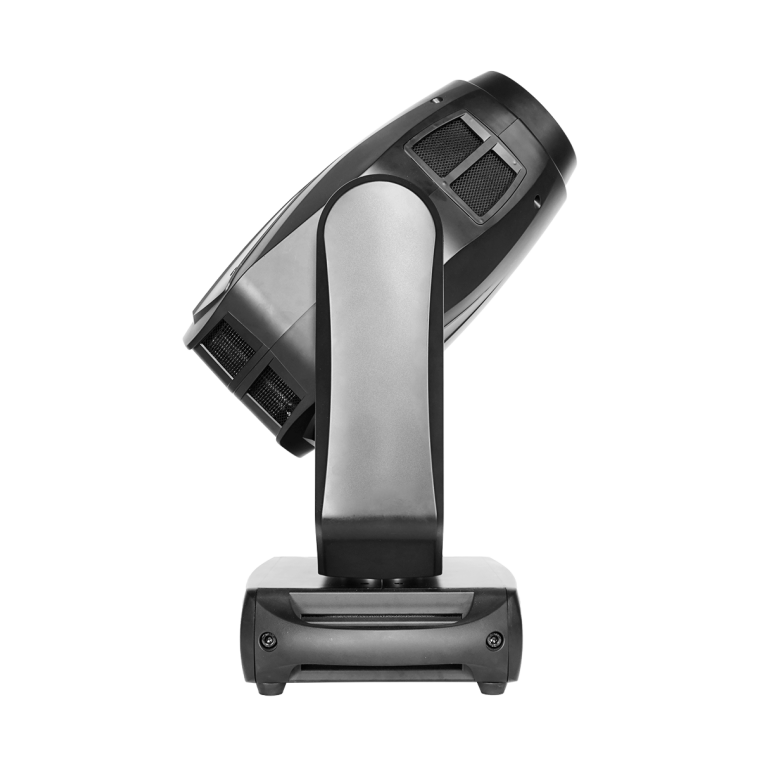

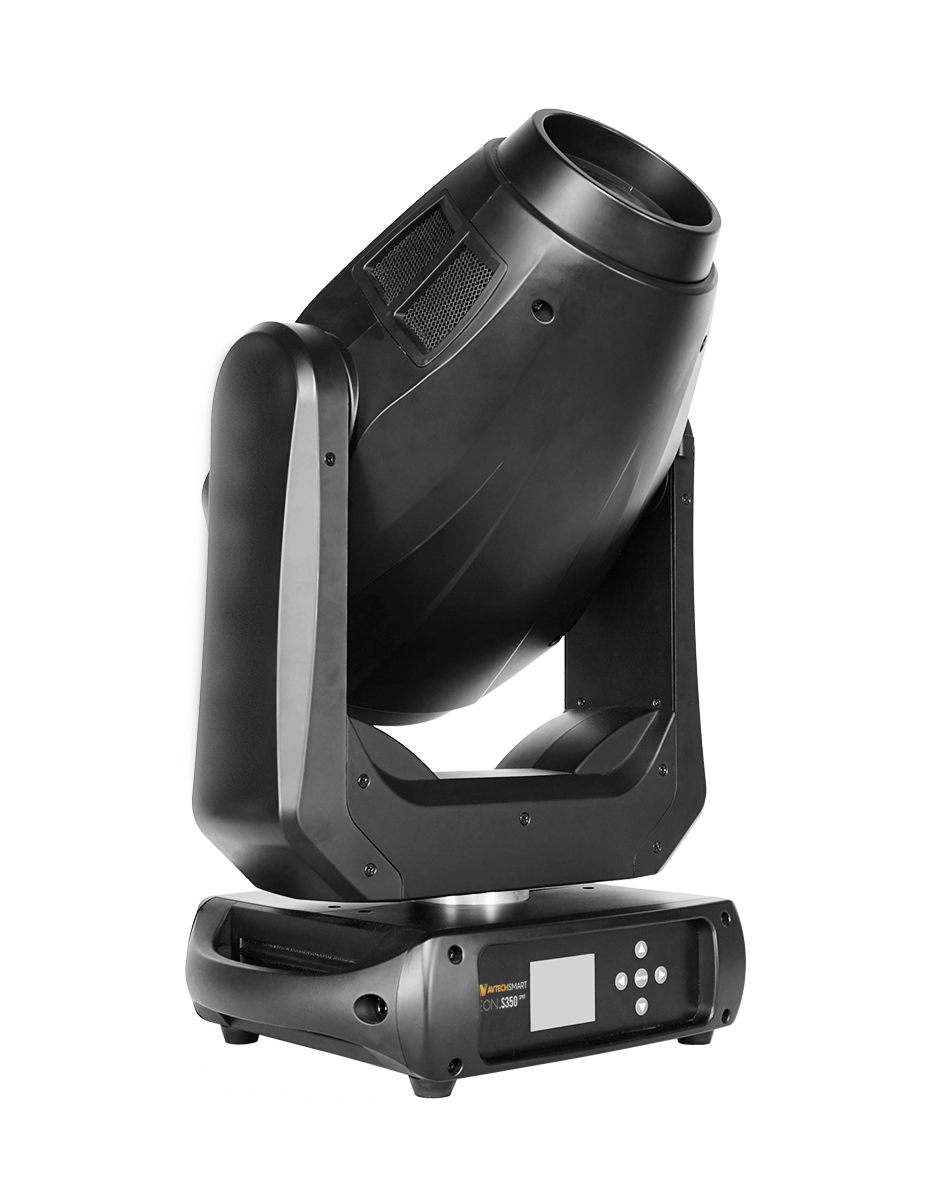

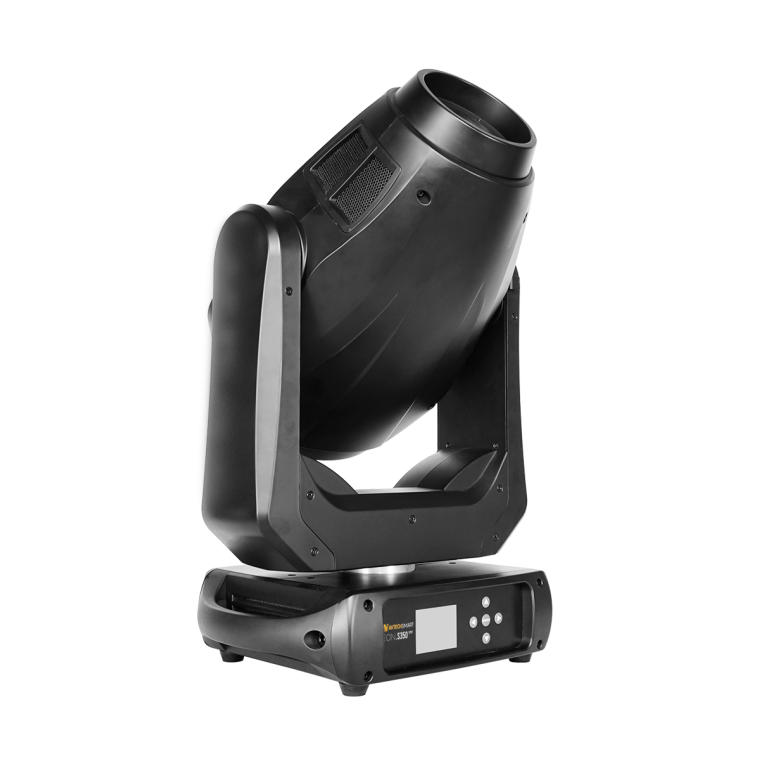

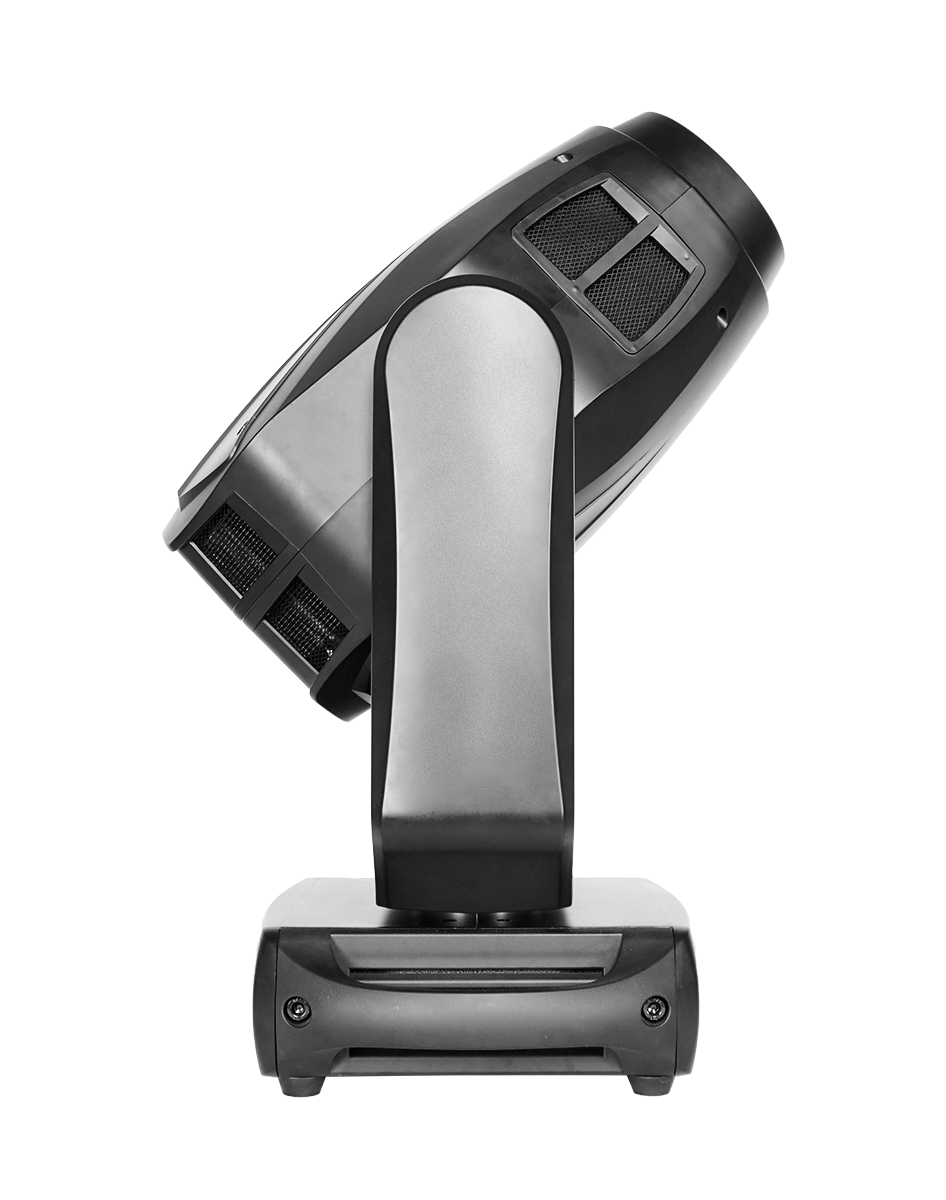

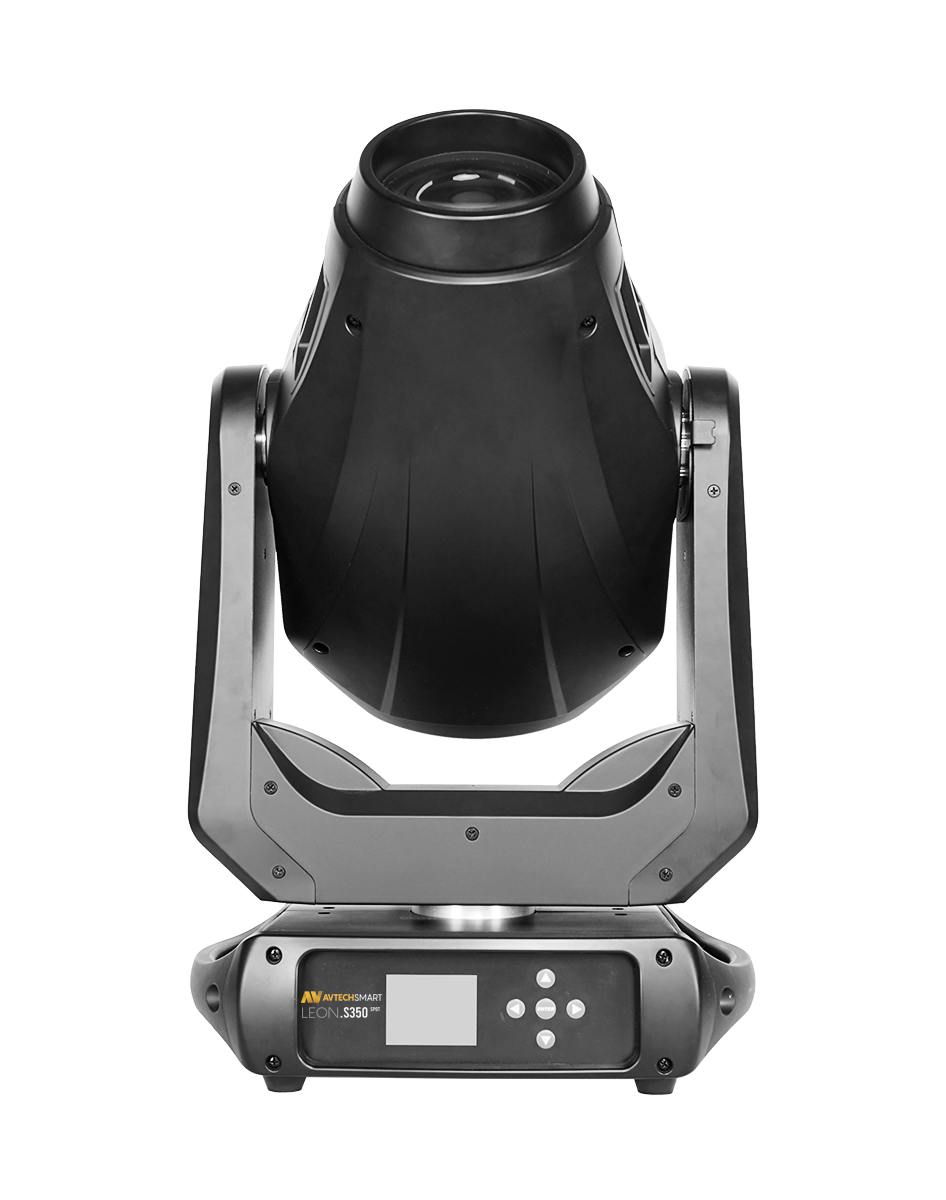

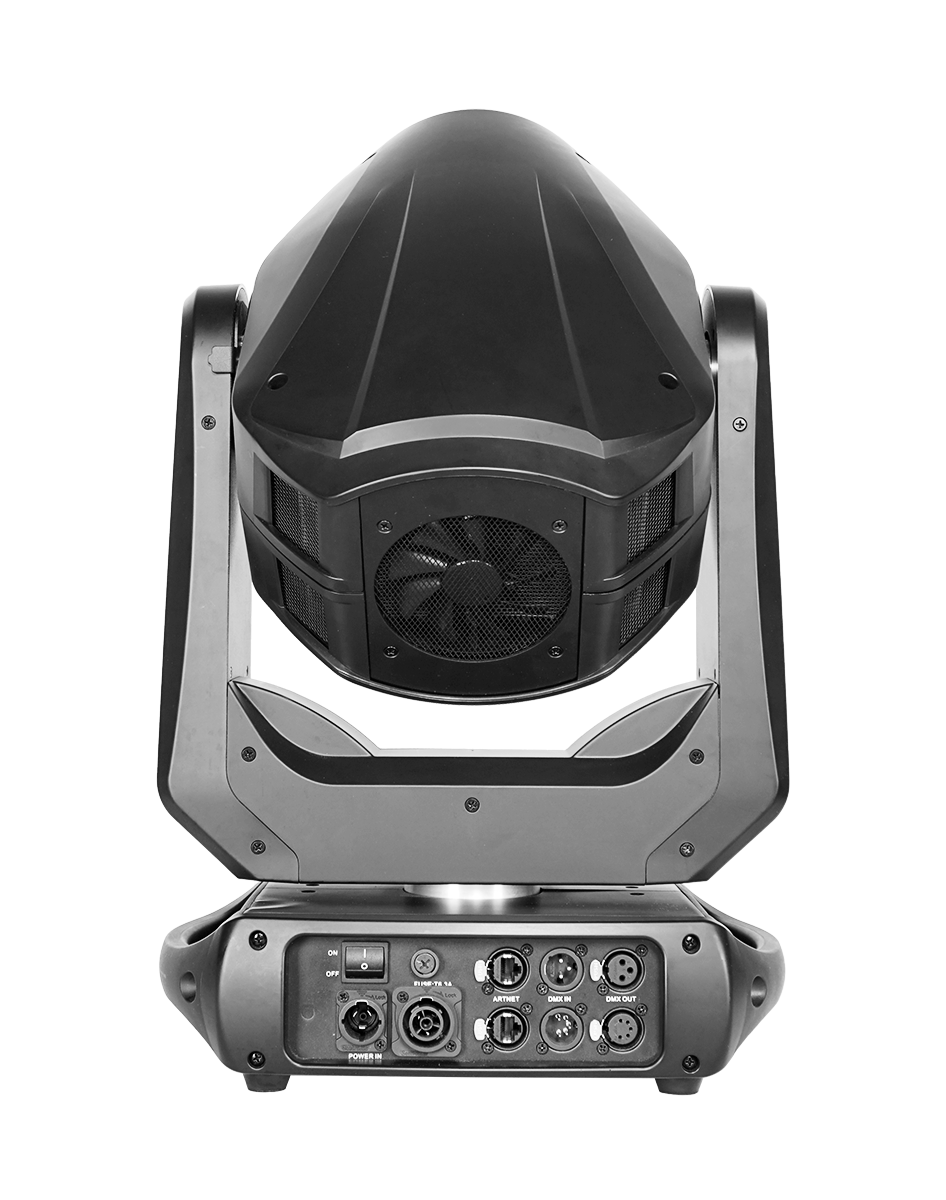

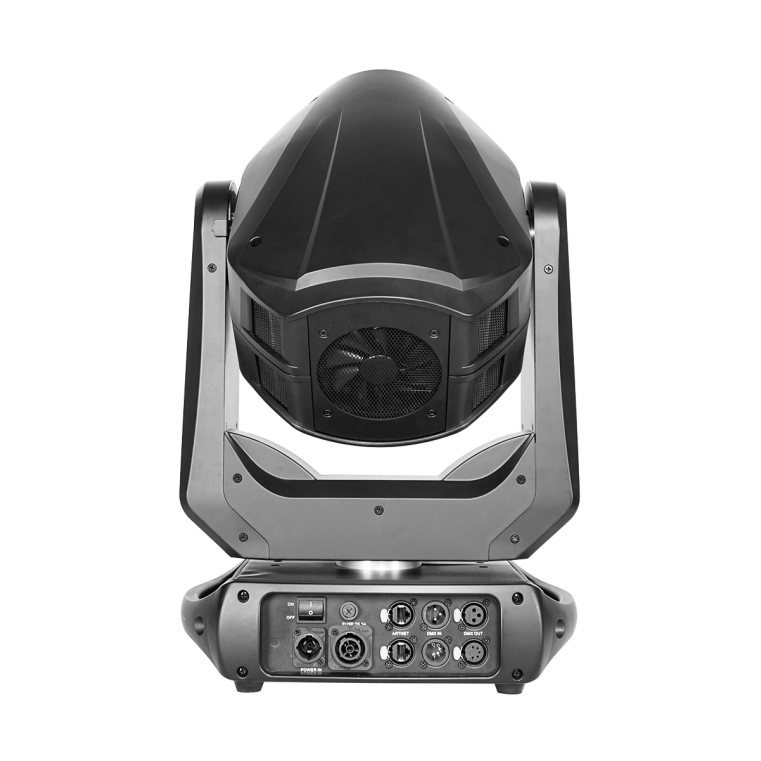

LEON.S350 is a professional LED spot moving ahead with 5° -35°Electronic zoom system. The luminance at 5 meter is 42000Ix. It is a kind of final version stage light , accurate and efficient motor can provide not only large pan angle and tilt angles but also with smooth and high speed. LEON.S350 with CMY system, zoom, focus, prism, color wheel, rotation gobo wheel, iris, frost can supply high-quality beam colors and gobos. LEON.S350 is design for the cultural center, function hall, banquet hall, rental performance market.
Optical system.
- Light source: 350W module.
- Angle: 5°-35°.
Electrical Specs.
- Voltage: 100-240VAC, 50/60Hz.
- power: 450W.
- Drive Current: 4A.
- Power Connection: Power in and out.
- Signal socket: 3pin I Spin in and out, RJ45 in and out.
Control System.
- Pan/Tilt rotation: 540°/270°(8-16bit).
- Dimmer: 0-100%16Bit.
- Cooling: Forced Convection.
- Control: DMX512, RDM, ARTNET, W-DMX (optional).
- Display: On board Control, Custom Mode, 0-25Hz Strobe.
- Con Personality: STANDARD/25CHS, BASIC/22CHS.
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges.
Work Environment.
- Ambient Temp: 0-45 ‘C.
- IP Rated: IP20.
Effect synthetic system.
- Rotating Gobo: 8Gobos+White, Gobo-flow effect, Gobo shake,
Bi-directional rotation.
- Static Gobo: 12Gobos+White, Gobo-flow effect, Gobo shake.
- Colors: CMYK wheel/One color wheel(8dichroic-filters+White,Rainbow-flow effect).
- Prism: One piece of 4 prism with bi-directional rotation, Speed
Adjustable.
- Iris: 5-100% linearly adjustable with macro.
- Focus: Motorized linear focus.
- Frost: 1 Frost filter.
Appearance.
- Size: 359x249x596mm.
- Weight: 18.5kg.
- Casing: Flame-retardant plastic (VO).
- Color: Black.
Certification.
- CE, MET.
