Description

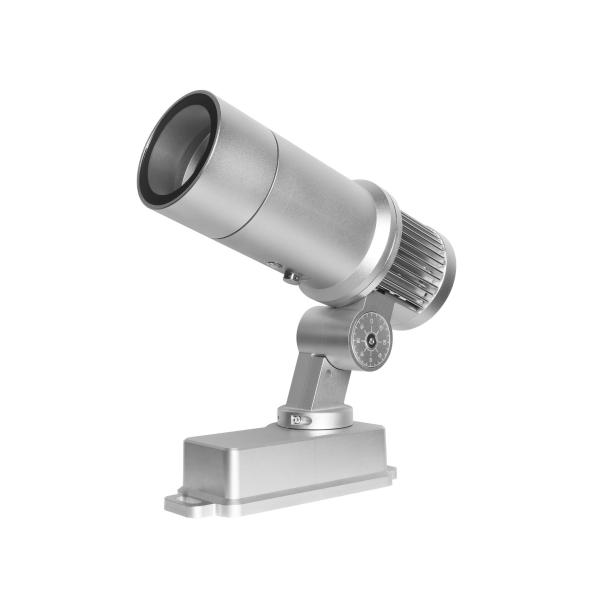

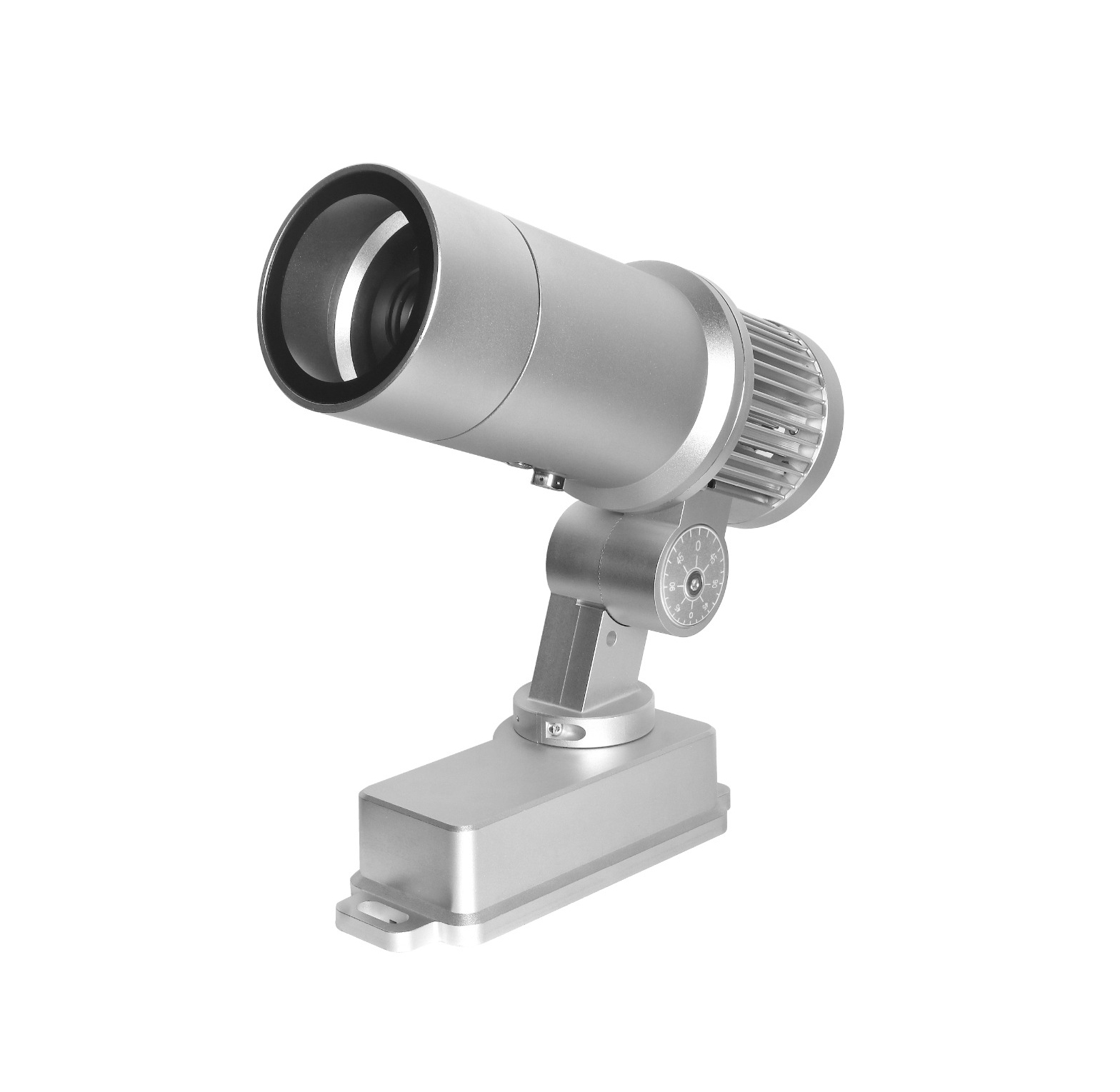

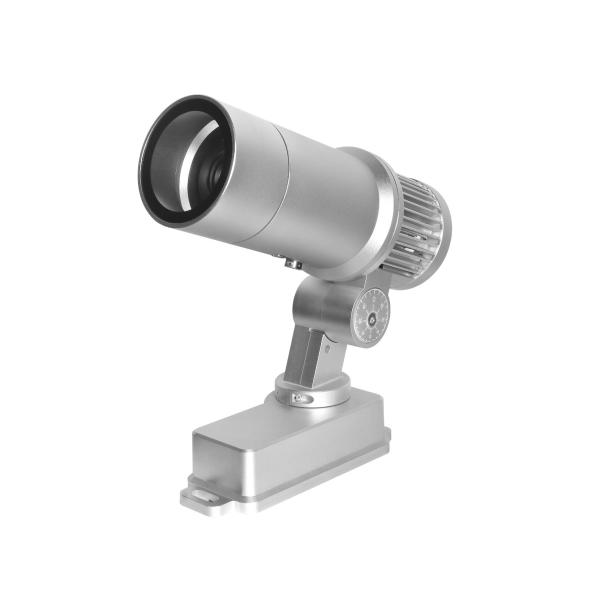

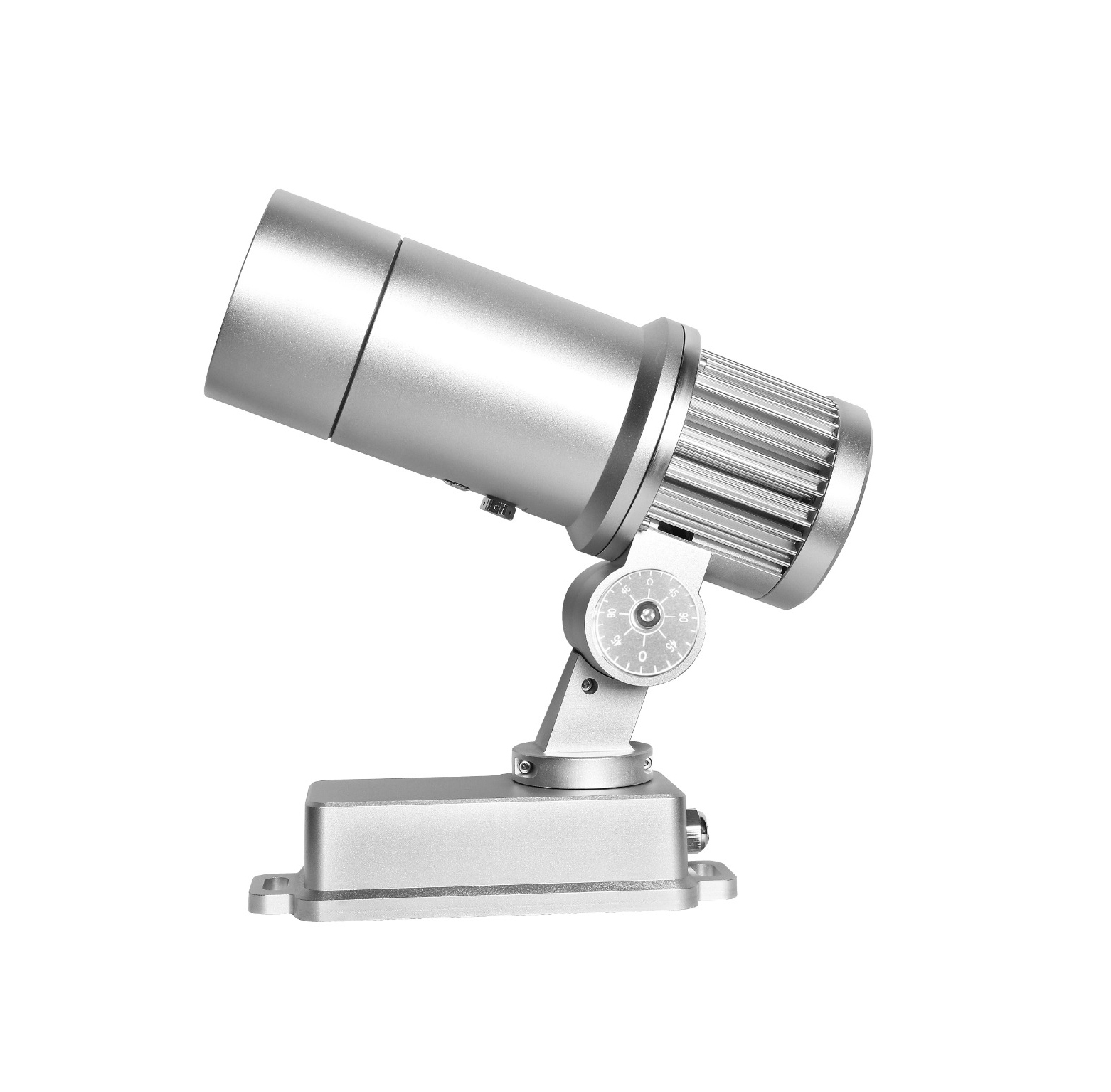

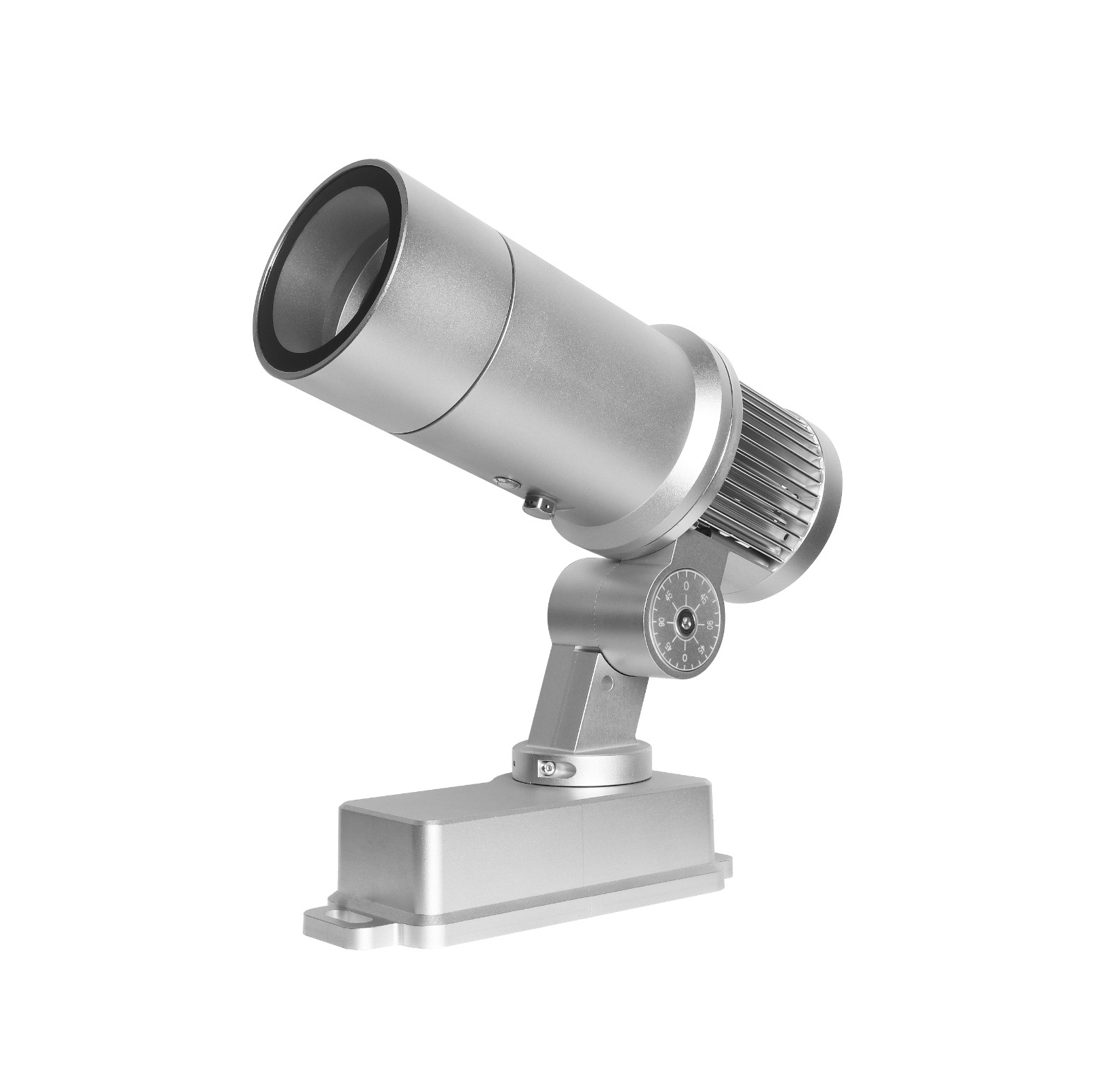

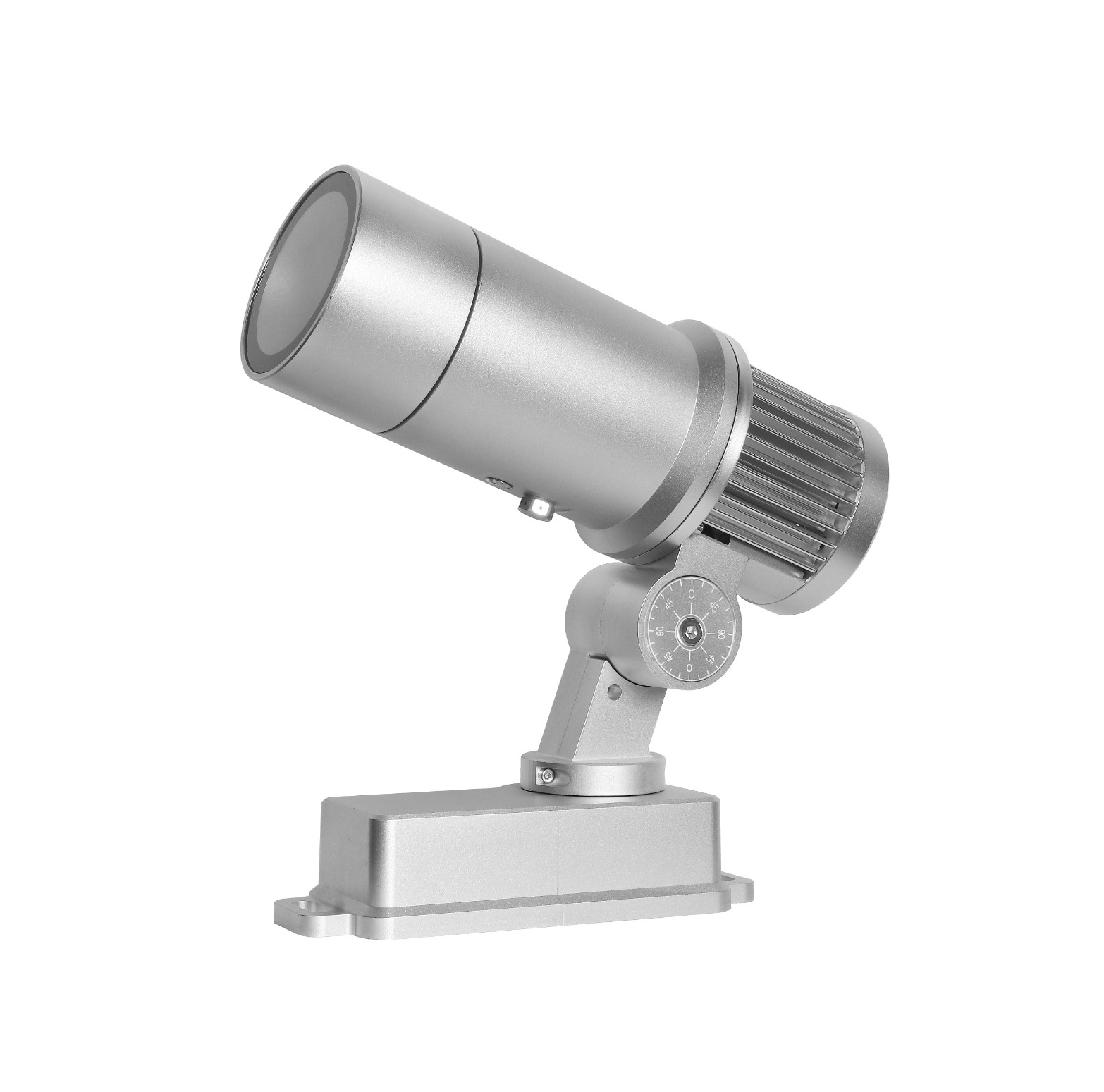

Powerful and compact outdoor gobo projector, equipped with a 60W white LED IP65 resistance grade Ideal projector for outdoor and indoor because of its absence of noise. Equipped with DMX and bi-directional RDM protocols. It is ideal for outdoor applications, in companies, stores, cultural tourism areas, theme parks, night view of a distinctive city, live performances, bridge piers, architectural decoration, etc.
Specifications
- LED Source: COB 60W
- Input Voltage: 100-240V AC,50-60Hz
- Drive Current: 4A
- Dimming: 0-100%
- Strobe: 0-20HZ
- Lumen: 1686
- Luminous Efficiency: 26,27
- CCT: 8000
- Ra: 77

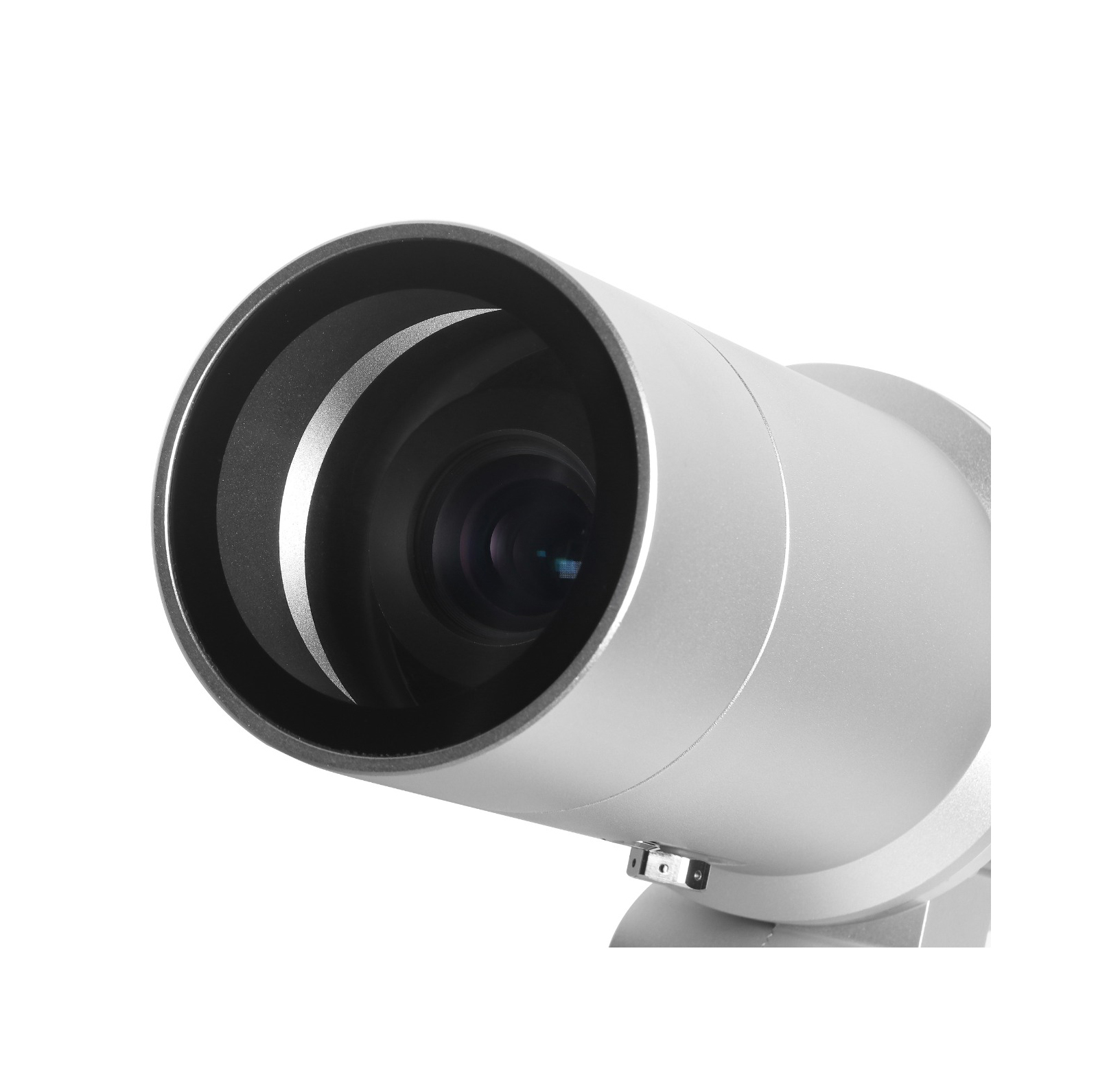

- Focus: With zoom
- Control protocol: DMX512,RDM
- Lamp direction: Adjustable
- Power supply: Built in
- Operation mode: Button operation
- Function: RDM, Master/Slave, DMX
- IP Grade: IP65
- Permitted Ambient Temperature: -20° ~+45°
- Housing Material: aluminium alloy
- Housing color: Matt Black/Grey
- Cooling way: Natural heat dissipation
- Dimensions: 310 x 285 x 124MM
- Weight: 4.5KG
- Certification: ROHS, CE
Downloads
PDF User Manual
PDF Drawing AVALON60HD-dw-perspective.pdf
PDF Drawing AVALON60HD-dw.pdf
IES FILE 20210629-0846 AVALON60HD.IES
