Description

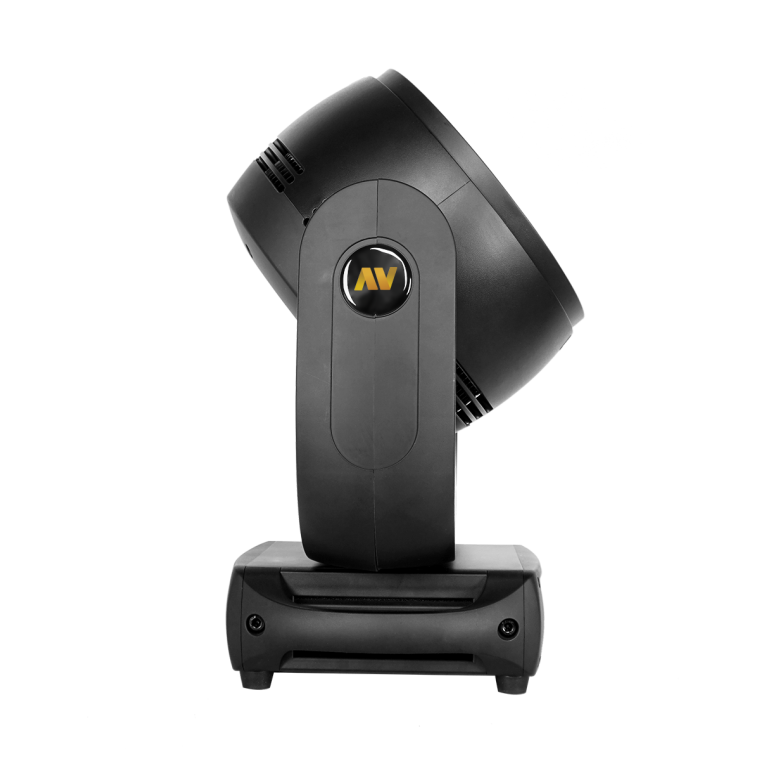

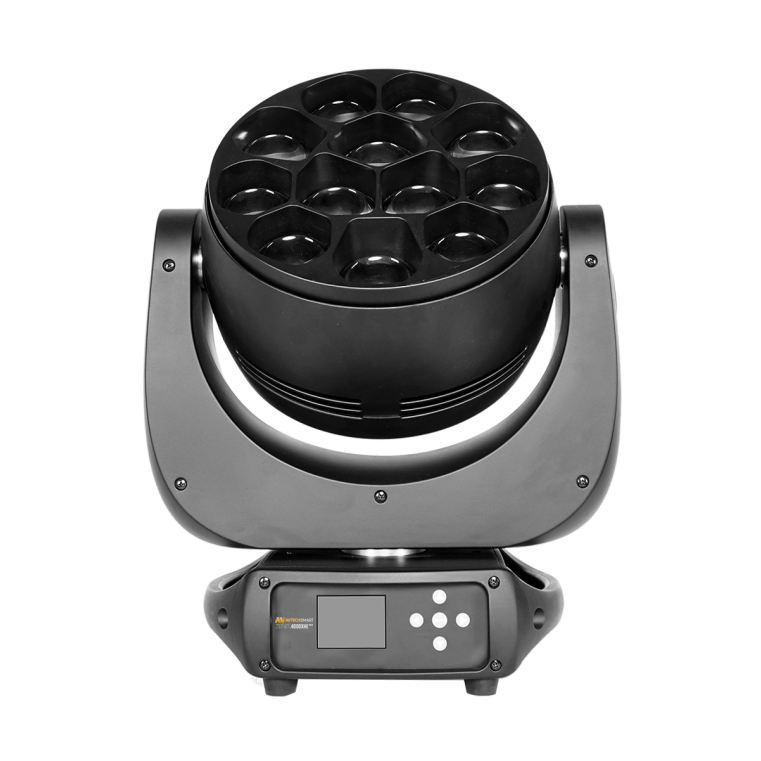

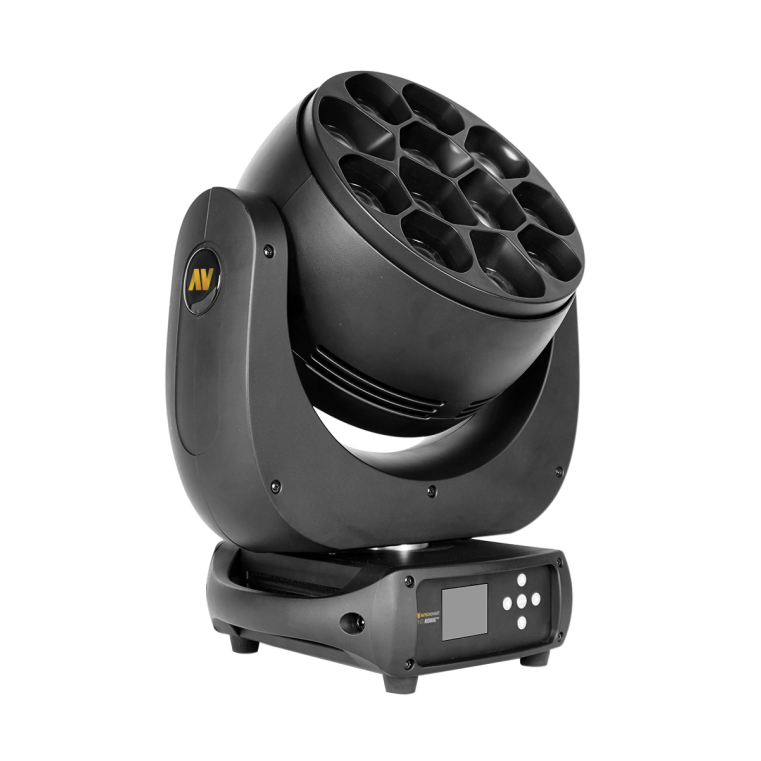

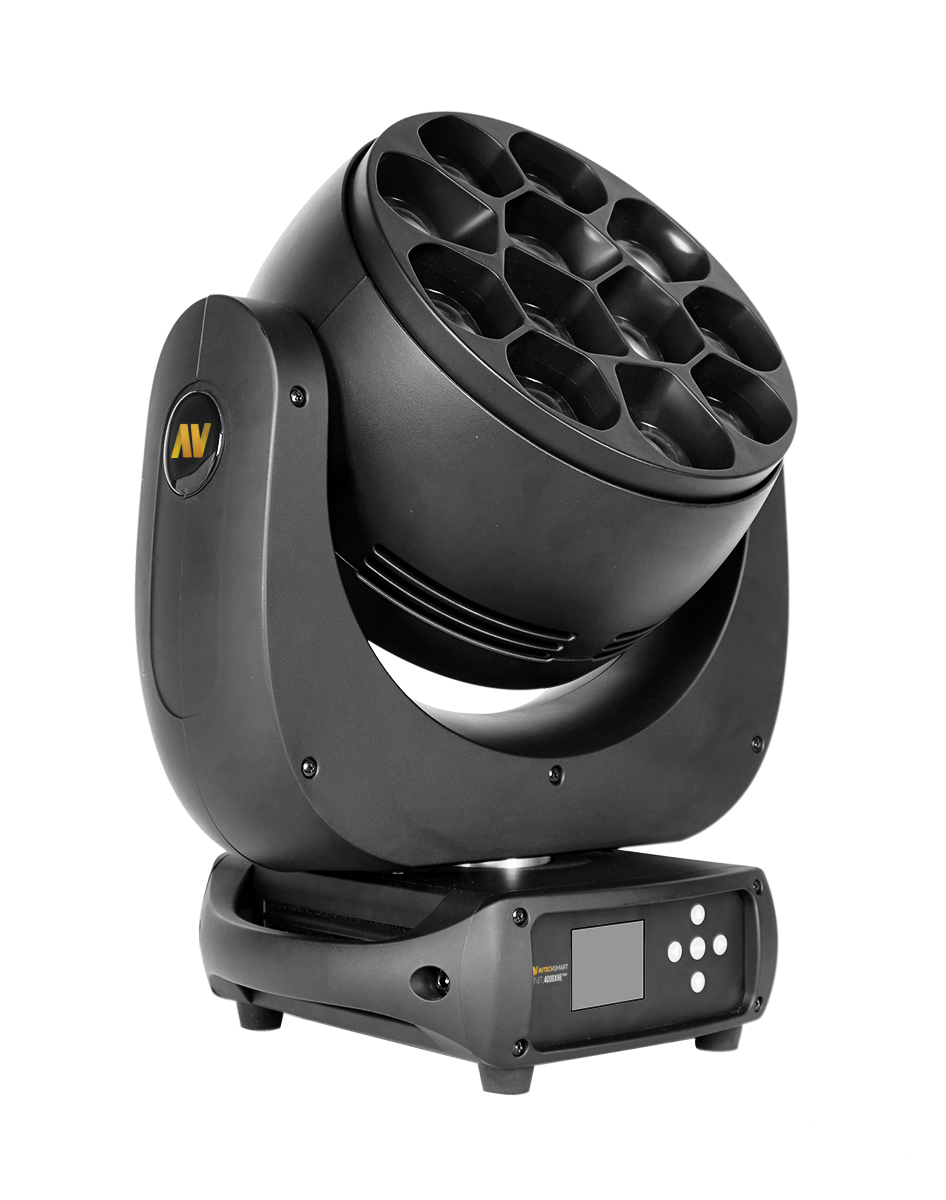

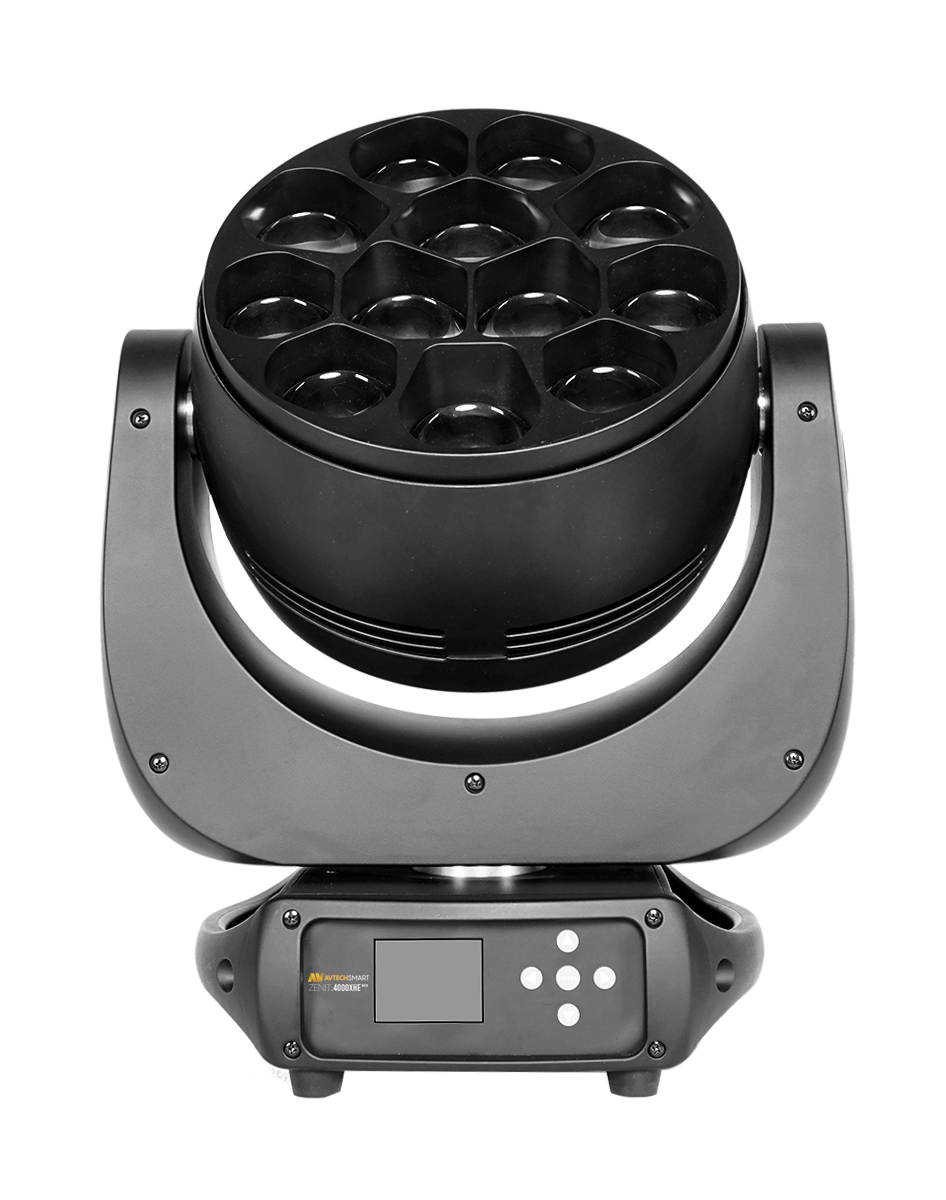

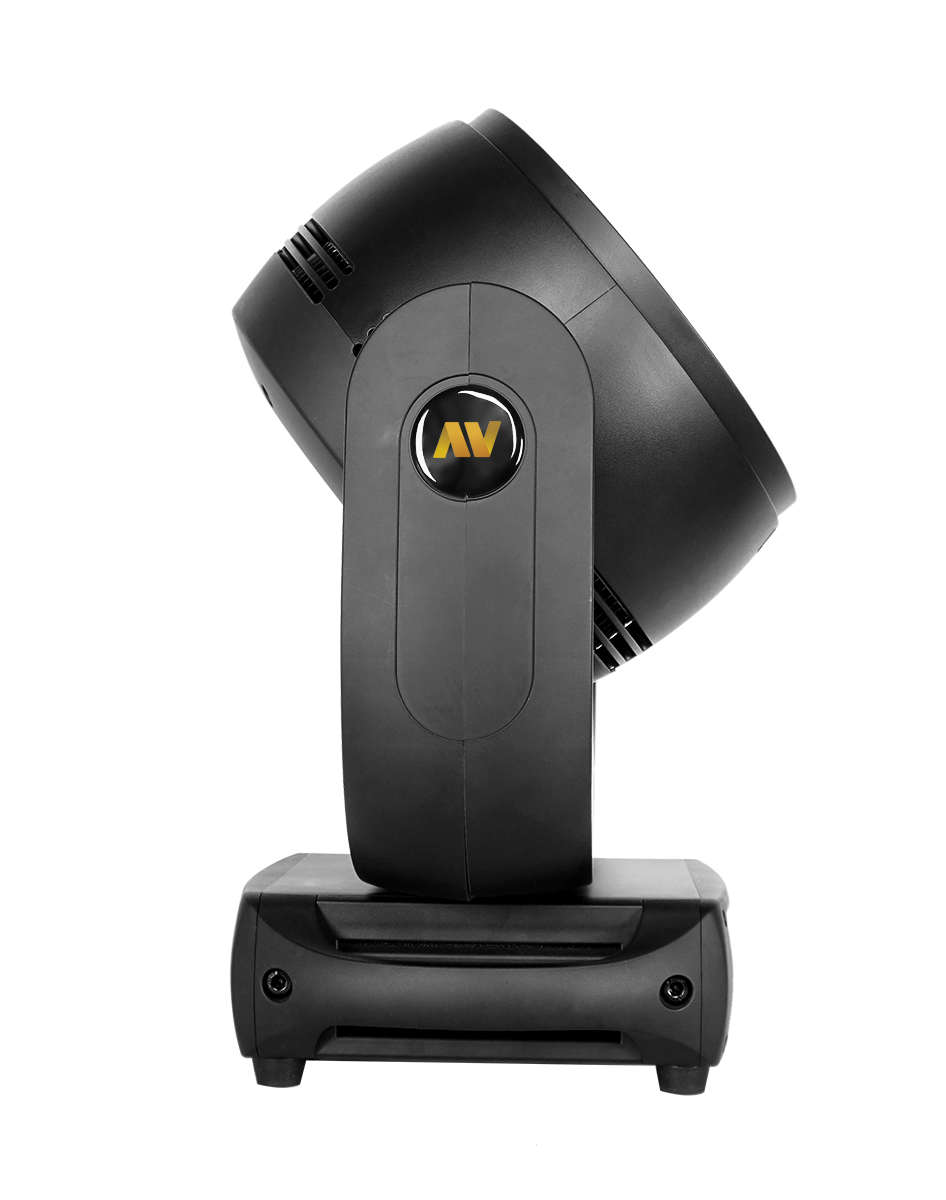

ZENIT4000XHE is the new generation full color range moving wash-RGBALC, high CRI, with ring control for dynamic effects, CCT 2700k-8000k, 16 bit flat dimmer curve, HSIC color mixing control system, pick up any color without a second, Intelligent CCS- color consistency system, keeping the same color consistency in different intensity for each model. ZENIT4000XHE it the perfect tool for large/medium-sized application.
Optical system
- Light source: 12x40W (RGBALC)
- Beam angle: 8°-25°
- Field angle: 13°-45°
Electrical Specs
- Voltage: 100-240VAC, 50/60Hz
- power: 536W
- Drive Current: 1.9A

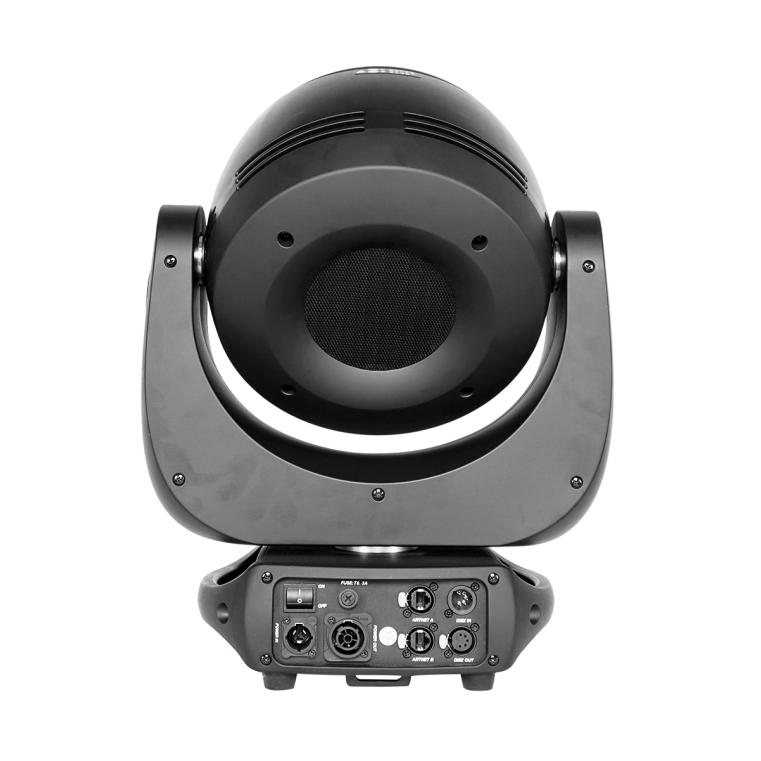

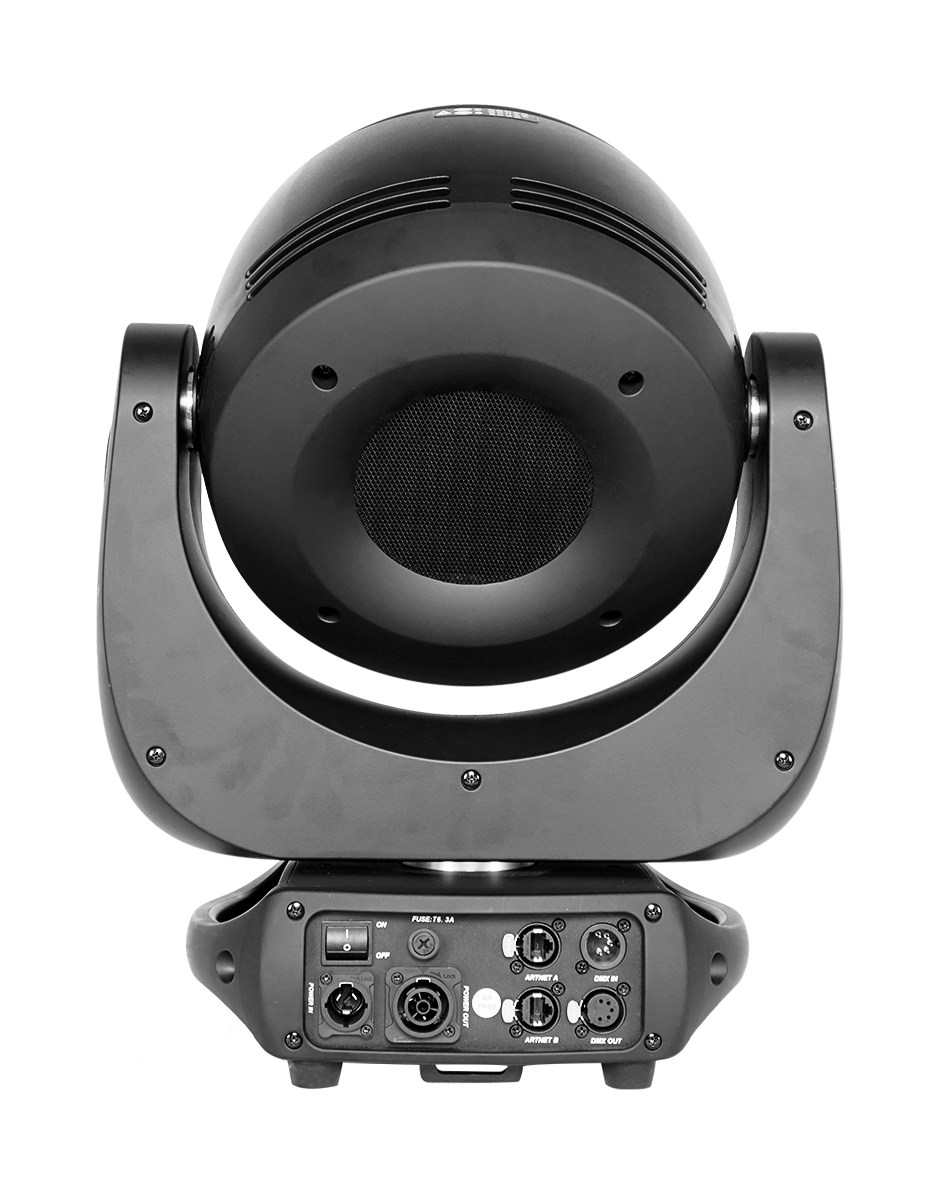

- Power Connection: Anti-loose power socket in the out
- Signal socket: 3pin or 5pin in and out, RJ45 in and out for Art-net.
Control System
- Pan/Tilt rotation: 540°/270°(8-16bit)
- Dimmer: 0-100%16Bit
- Cooling: Forced Convection
- Control: DMX512, RDM, Art Net, SACN, Web server, W-DMX (optional)
- Display: On board Control, Custom Mode,0-25Hz Strobe
- Con Personality: HSIC/13CHS, TOUR/17CHS, TR16/26CHS, CMY/16CHS, SECTION/22CHS
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges
Appearance
- Size: 390x292x411 mm
- Weight: 12.5kg
- Casing: Flame-retardant plastic (VO)
- Color: Black
Work Environment
- Ambient Temp: 0-45 °C
- IP Rated: IP20
Certification
- CE, MET
