Description

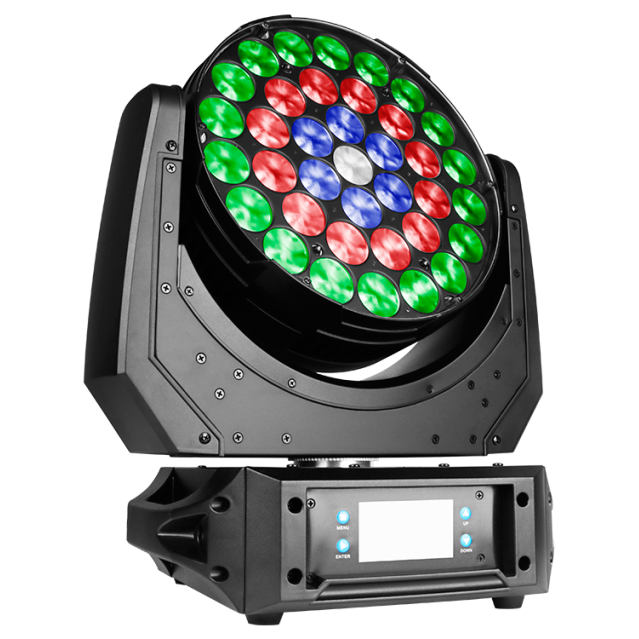

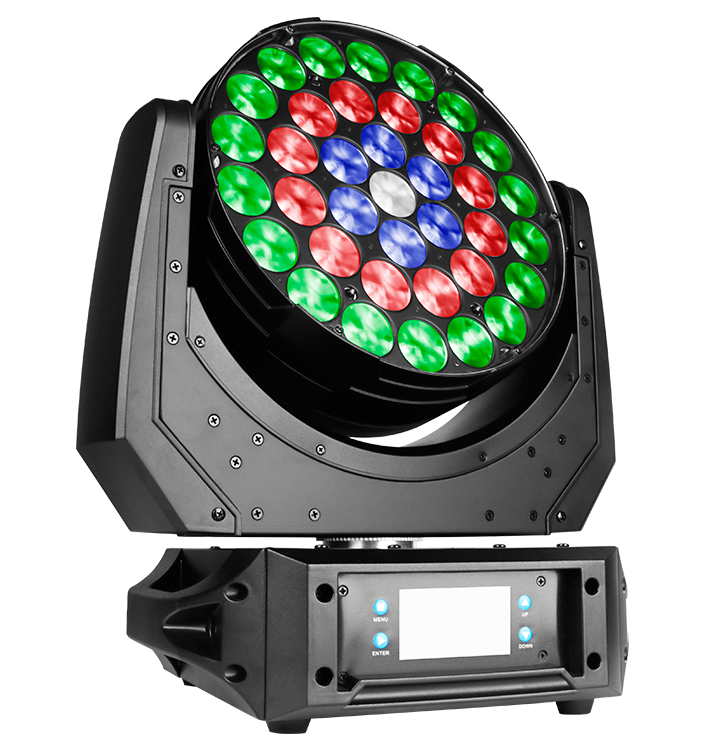

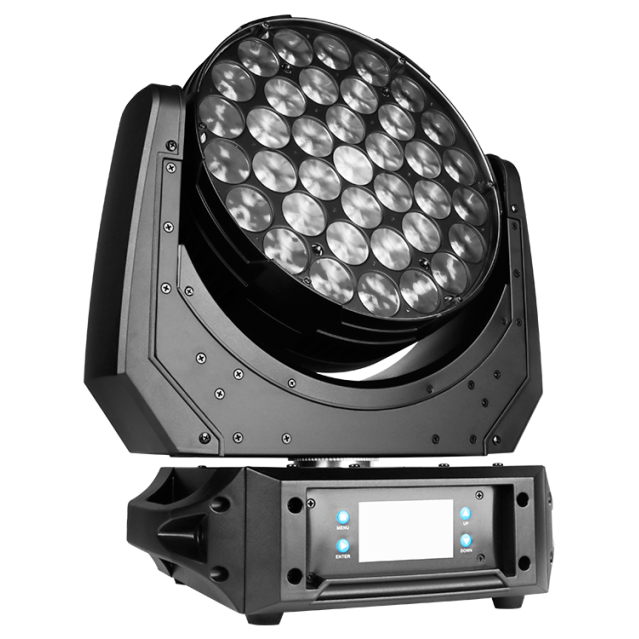

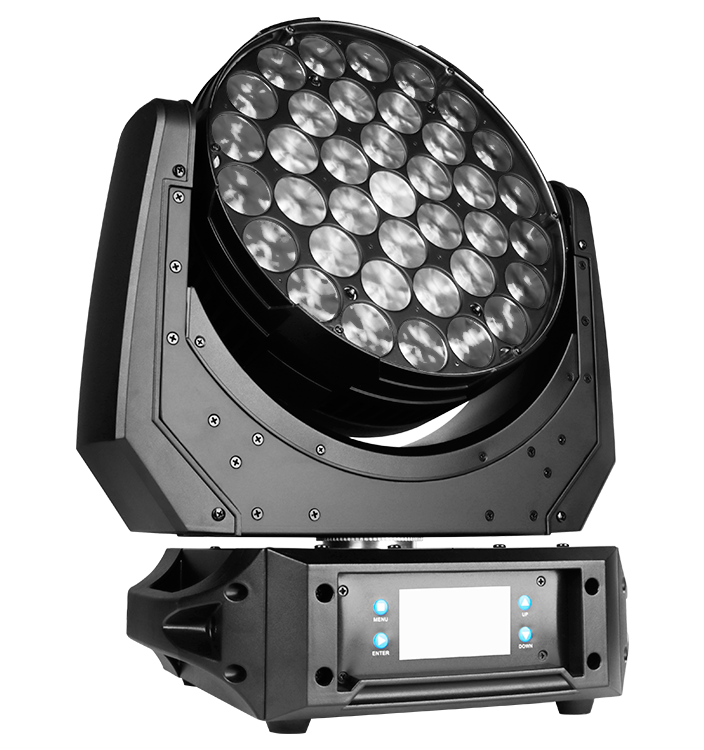

VENUS1200XCE is a rapid Moving head wash fixture. Combined with aversatile 8-40deg zoom. The additition of 6-section control means that dynamic effectsare easily created when multiple fixtures are used.
Optical system.
- Light source 37x20W (RGBW).
- Angle 8° -40°.
Electrical Specs.
- Voltage: 100-240VAC,50/60Hz.
- Power: 570W.
- Drive Current: 1000mA.
- Power Connection: Power in/out.
- Signal socket: 3pin/5pin in and out.
Control System.
- Pan/Tilt rotation: 540°/ 270° (8-16bit).
- Dimmer: 0-100% 16Bit.
- Cooling: Forced Convection.
- Control: DMX512.
- Display: On board Control, Custom Mode, 0-25Hz Strobe.
- Con Personality: PERSON1 (1 OCHS), PERSON2(21 CHS), PERSON3(8CHS), PERSON4(25CHS), PERSON5(58CHS), PERSON6 (21 CHS).
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges.
Appearance.
- Size: 41 Ox31 Ox396mm.
- Weight: 16.5kg.
- Casing: Flame-retardant plastic (VO).
- Color: Black.
Work Environment.
- Ambient Temp: 0-45 °C.
- IP Rated: IP20.
Certification.
- CE, MET.
